◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#40500) — 43 parça

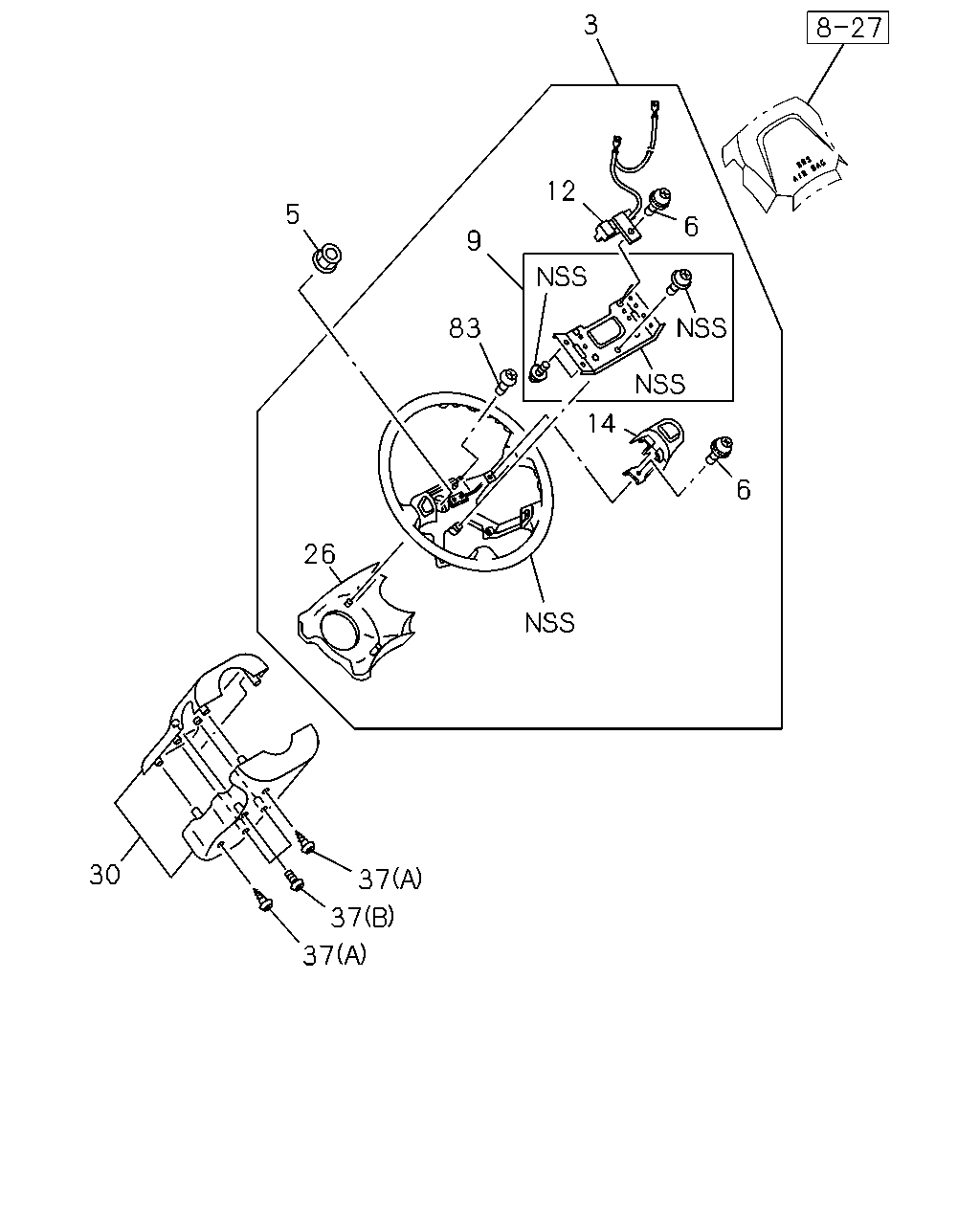

çizim 64063
3 12 6 5 9 83 14 6 26 30 37 37 37
BalonParca AdiParca NoAdetTipApplied Date
3 WHEEL; STRG
INTERIOR COLOR BEIGE(181) INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-302-1 01 1 9908-0202
3 WHEEL; STRG
INTERIOR COLOR BEIGE(181) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-302-3 01 1 0203-
3 WHEEL; STRG
INTERIOR COLOR BEIGE(181) EXC. INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-301-2 01 1 9908-0202
3 WHEEL; STRG
INTERIOR COLOR BEIGE(181) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-301-4 01 1 0203-
3 WHEEL; STRG
INTERIOR COLOR MEDIUM GRAY(113) INST TRIM WOOD GRAIN<7HB> BLACK 		8-97290-738-1 01 1 9908-0202
3 WHEEL; STRG
INTERIOR COLOR MEDIUM GRAY(113) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97290-738-3 01 1 0203-
3 WHEEL; STRG
STRG WHEEL LEATHER(NK3) BLACK 		8-97155-689-1 01 1 9708-9806
3 WHEEL; STRG
BLACK 		8-97155-689-1 01 1 9807-9907
3 WHEEL; STRG
INTERIOR COLOR MEDIUM GRAY(113) EXC. INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-689-2 01 1 9908-0202
3 WHEEL; STRG
INTERIOR COLOR MEDIUM GRAY(113) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-689-4 01 1 0203-
3 WHEEL; STRG
STRG WHEEL URETHANE(NK4) BLACK 		8-97155-250-0 01 1 9708-9801
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 9708-
6 SCREW; HORN SPR CONTACT 8-97122-618-0 03 1 9708-
9 PLATE; HORN CONTACT 8-97122-394-0 01 1 9708-
12 CORD; HORN 8-97122-397-0 01 1 9708-
14 BUTTON; HORN,STRG WHEEL
BLACK 		8-97155-253-0 01 1 9708-9907
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) EXC. INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-253-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-253-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
BLACK 		8-97155-252-0 01 1 9708-9907
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) EXC. INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-252-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97155-252-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-885-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-885-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-884-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-884-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) EXC. INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-308-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-308-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) EXC. INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-307-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR BEIGE(181) EXC. WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> LIGHT BEIGE 		8-97292-307-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) INST TRIM WOOD GRAIN<7HB> BLACK 		8-97292-883-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97292-883-0 01 1 0203-
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) INST TRIM WOOD GRAIN<7HB> BLACK 		8-97292-882-0 01 1 9908-0202
14 BUTTON; HORN,STRG WHEEL
INTERIOR COLOR MEDIUM GRAY(113) WOOD GRAIN TRIM CLUSTER<BC1>,INST TRIM WOOD GRAIN<7HB> BLACK 		8-97292-882-0 01 1 0203-
26 COVER; STRG WHEEL,LWR
BLACK 		8-97153-000-0 02 1 9708-9907
26 COVER; STRG WHEEL,LWR
INTERIOR COLOR MEDIUM GRAY(113) BLACK 		8-97153-000-1 02 1 9908-
26 COVER; STRG WHEEL,LWR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97292-306-1 02 1 9908-
30 COWL; STEERING
BLACK 		8-97098-330-5 01 1 9708-9907
30 COWL; STEERING
INTERIOR COLOR MEDIUM GRAY(113) BLACK 		8-97098-330-8 01 1 9908-
30 COWL; STEERING
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97292-299-8 01 1 9908-
37 SCREW; STRG COWL UPR
(A) M5X16 		5-09981-053-0 04 1 9708-
37 SCREW; STRG COWL UPR
(B) M4X12 		9-03900-412-0 03 1 9708-0108
37 SCREW; STRG COWL UPR
(B) M4X12 W/LK&PL WASHER 		9-03920-412-0 03 1 0109-
83 SCREW; LWR COVER TO WHEEL 8-97122-619-0 04 1 9708-
