0-12B — CYLINDER BLOCK (#405) — 70 parça

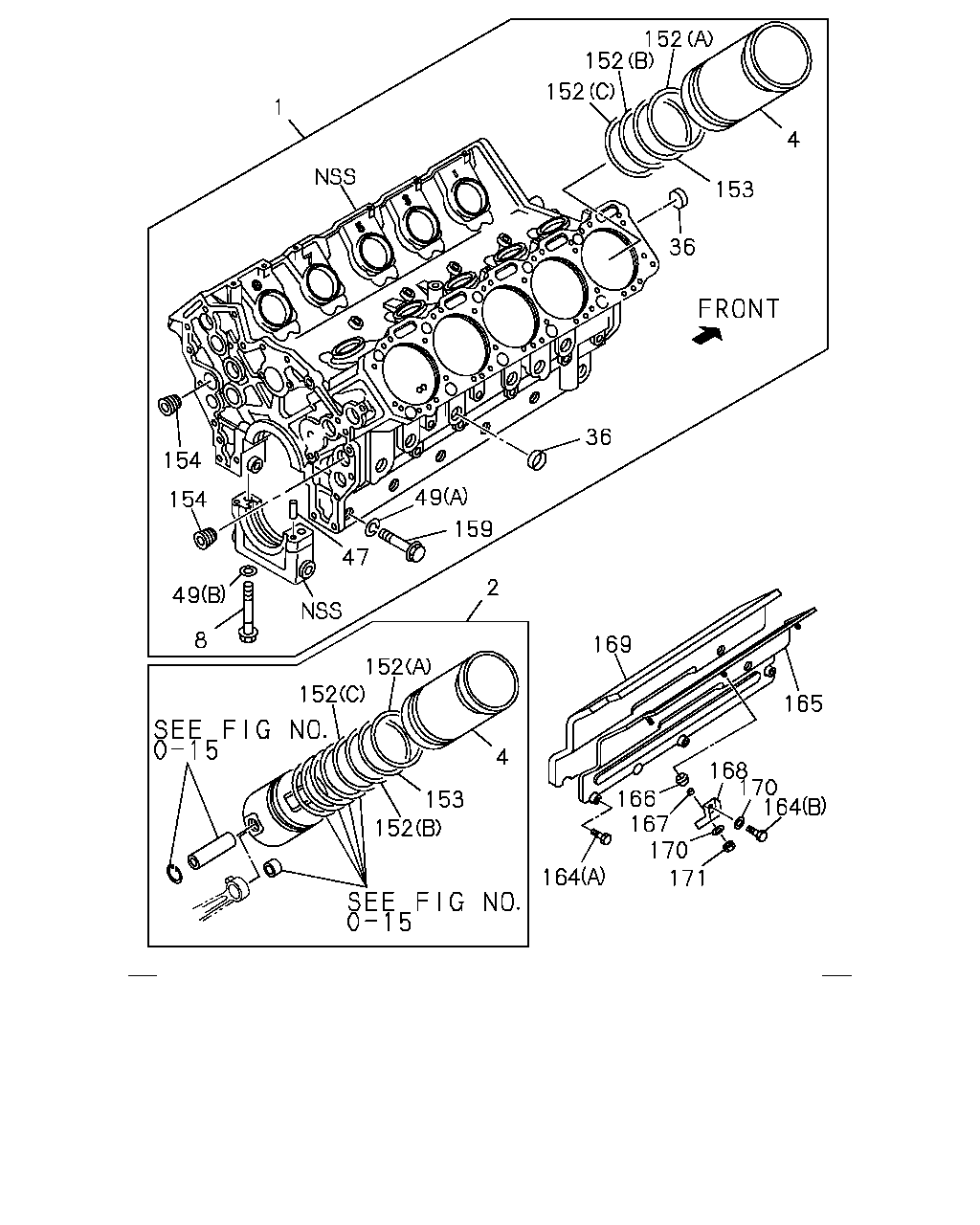

152 153 4 152 36 152 36 159 49 47 49 154 8 154 1 152 152 153 152 169 4 2 165 168 164 171 164 166 167 170 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	1-11210-416-7	01	1	8712-9001	●
1	BLOCK ASM; CYL	1-11210-502-4	01	1	9002-		●
2	LINER SET; ENG CYL NON GRADE	1-87811-443-0	10	1	8712-9001	●
2	LINER SET; ENG CYL NON GRADE	1-87811-396-0	10	1	9002-9412		●
2	LINER SET; ENG CYL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-396-0	10	1	9501-		●
2	LINER SET; ENG CYL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> NON GRADE	1-87811-390-0	10	1	9501-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-280-0	10	1	8712-9001	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-281-0	10	1	8712-9001	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-		●
8	BOLT; BRG CAP M18X138	1-09070-009-0	12	1	8712-9001	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	8712-9001	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	8712-	●	●
49	WASHER; BRG CAP (B) ID=18.2 OD=29	1-09503-032-0	12	1	8712-9001	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	8712-	●	●
49	WASHER; BRG CAP (B)	9-09851-672-2	12	1	9002-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-319-0	10	1	8712-9001	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B),(C) ID=132.5 LINE OD=4.3	1-09623-410-0	20	1	8712-8905	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	8906-	●	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	8906-	●	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	8712-	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	8712-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	8712-	●	●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M10X28 FLANGE	0-28181-028-0	03	1	9501-		●
164	BOLT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9501-		●
165	COVER; C/BL SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-226-1	01	1	9501-		●
166	MOUNT; COVER BLOCK SKIRT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-020-0	06	1	9501-		●
167	TUBE; DIST,SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-23332-003-0	06	1	9501-		●
168	BRACKET; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19386-012-3	03	1	9501-		●
169	INSULATOR; SIDE COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-066-3	01	1	9501-		●
170	WASHER; COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.5 OD=26	9-09160-710-0	06	1	9501-		●
171	NUT; COVER & BRKT EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M10	9-09110-410-0	03	1	9501-		●

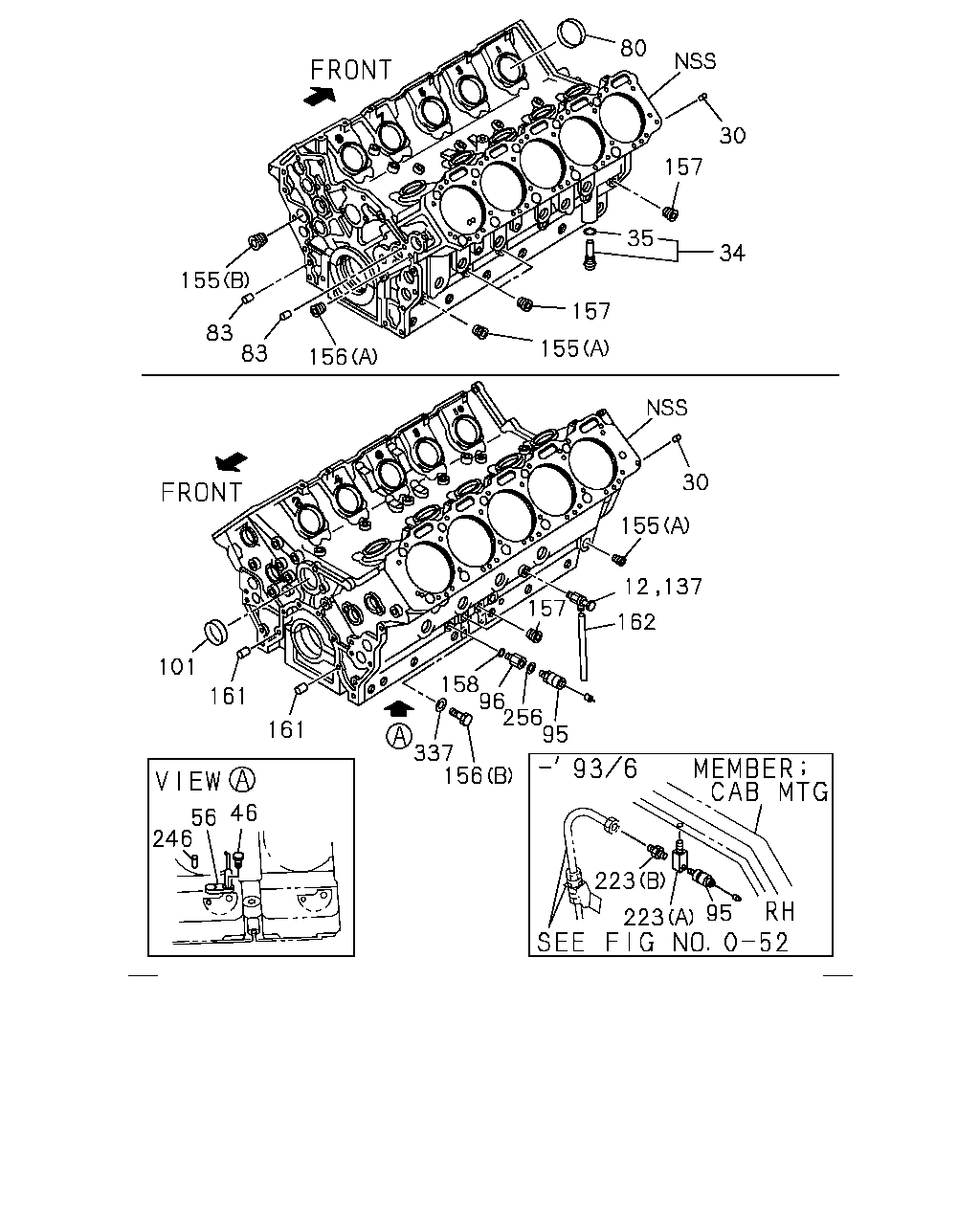

80 30 34 157 35 157 155 155 156 83 83 30 101 155 137 12 95 157 161 161 158 162 256 96 337 156 223 223 95 46 56 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	8712-9202	●	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306		●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	8712-	●	●
34	VALVE; OIL RELIEF	1-13160-016-0	02	1	8712-8812	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	8901-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	8712-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-031-2	10	1	8712-9001	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-		●
56	JET; OIL,PISTON COOLING	1-13342-092-0	10	1	8712-9001	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	8712-	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	8712-	●	●
95	PRESSURE UNIT; OIL	1-83151-030-0	01	1	8712-9001	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306		●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-		●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508		●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-		●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	8712-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-		●
155	PLUG; OIL GALLERY END (B) PT3/4	1-09605-020-0	02	1	8712-	●	●
155	PLUG; OIL GALLERY END (A) PT1	1-09605-021-0	04	1	8712-	●	●
156	PLUG; IDLE GEAR (A)	1-09605-019-0	02	1	8712-	●	●
156	PLUG; IDLE GEAR (B)	9-99202-314-0	01	1	9002-9306		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	8712-	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-		●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	8712-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-		●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	8712-	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306		●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306		●
246	PIN; OIL JET OD=5 L=10	9-08150-510-0	10	1	8712-9001	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-		●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306		●
