Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#40499) — 438 parça

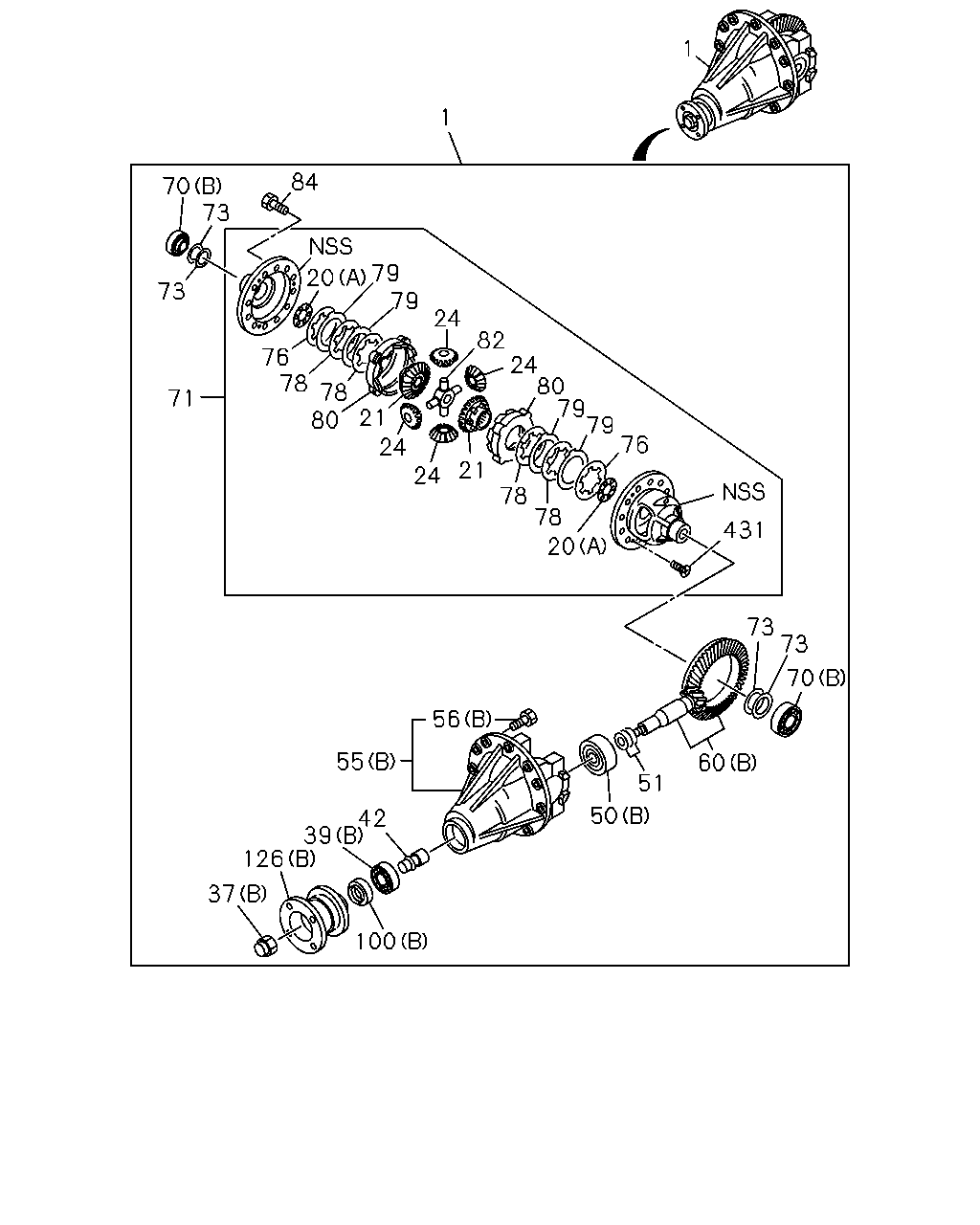

1 1 84 70 73 20 79 79 24 73 82 24 80 79 79 76 76 78 78 80 21 24 24 71 21 78 78 20 431 73 73 70 56 55 60 51 50 42 39 126 37 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97144-066-0	01	1	9708-9909
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97186-560-0	01	1	9910-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97144-065-0	01	1	9708-9910
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97186-557-0	01	1	9911-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.5	8-97221-791-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.6	8-97221-792-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.7	8-97221-793-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-783-0	02	1	9708-9910
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.8	8-97221-852-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.9	8-97221-853-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.0	8-97221-854-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.1	8-97221-855-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.2	8-97221-856-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.3	8-97221-857-0	02	1	9911-
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97211-722-0	02	1	9910-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-741-0	02	1	9911-
24	GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97211-721-0	04	1	9910-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-739-0	02	1	9911-
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9708-9907
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9908-9909
37	NUT; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-811-0	01	1	9910-9910
37	NUT; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-790-0	01	1	9910-9910
37	NUT; DRIVING PINION (B)	8-97221-790-0	01	1	9911-
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9708-9907
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9908-9909
39	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-939-0	01	1	9910-9910
39	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-755-0	01	1	9910-9910
39	BEARING; FINAL PINION (B)	8-97221-755-0	01	1	9911-
42	COLLAR; DIST,COLLAPSIBLE LIMITED SLIP DIFF(G80)	8-97221-757-0	01	1	9910-9910
42	COLLAR; DIST,COLLAPSIBLE	8-97221-757-0	01	1	9911-
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9708-9907
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9908-9909
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-212-0	01	1	9910-9910
50	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-754-0	01	1	9910-9910
50	BEARING; FINAL PINION (B)	8-97221-754-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.12	8-97221-822-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.12	8-97221-822-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.14	8-97221-823-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.14	8-97221-823-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.16	8-97221-824-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.16	8-97221-824-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.18	8-97221-825-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.18	8-97221-825-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.20	8-97221-826-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.20	8-97221-826-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.22	8-97221-827-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.22	8-97221-827-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.24	8-97221-828-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.24	8-97221-828-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.26	8-97221-829-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.26	8-97221-829-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.28	8-97221-830-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.28	8-97221-830-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.30	8-97221-831-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.30	8-97221-831-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.32	8-97221-832-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.32	8-97221-832-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.34	8-97221-833-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.34	8-97221-833-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.36	8-97221-834-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.36	8-97221-834-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.38	8-97221-835-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.38	8-97221-835-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.40	8-97221-836-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.40	8-97221-836-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.42	8-97221-837-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.42	8-97221-837-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.44	8-97221-838-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.44	8-97221-838-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.46	8-97221-839-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.46	8-97221-839-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.48	8-97221-840-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.48	8-97221-840-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.50	8-97221-841-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.50	8-97221-841-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.52	8-97221-842-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.52	8-97221-842-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.54	8-97221-843-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.54	8-97221-843-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.56	8-97221-844-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.56	8-97221-844-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.58	8-97221-845-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.58	8-97221-845-0	01	1	9911-
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9708-9907
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9908-9909
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-776-0	01	1	9910-9910
55	CARRIER; DIFF LIMITED SLIP DIFF(G80) (B)	8-97221-733-0	01	1	9910-9910
55	CARRIER; DIFF (B)	8-97221-733-0	01	1	9911-
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9708-9907
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9908-9909
56	BOLT; BRG CAP EXC. LIMITED SLIP DIFF(G80) (A)	8-97161-634-0	04	1	9910-9910
56	BOLT; BRG CAP LIMITED SLIP DIFF(G80) (B)	8-97221-736-0	04	1	9910-9910
56	BOLT; BRG CAP (B)	8-97221-736-0	04	1	9911-
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9708-9907
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9908-9909
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G80) (A) 43/10	8-97182-828-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G80) (B) 43/10	8-97221-746-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	8-97221-746-0	01	1	9911-
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9708-9907
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9908-9909
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-211-0	02	1	9910-9910
70	BEARING; DIFF CAGE LIMITED SLIP DIFF(G80) (B)	8-97221-756-0	02	1	9910-9910
70	BEARING; DIFF CAGE (B)	8-97221-756-0	02	1	9911-
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9807-9907
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9908-9909
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97207-841-0	01	1	9910-
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97221-737-0	01	1	9911-
73	SHIM; DIFF SIDE BRG T=0.076	8-97221-849-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.50	8-97221-846-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.50	8-97221-846-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.25	8-97221-847-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.25	8-97221-847-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.13	8-97221-848-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.13	8-97221-848-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.076	8-97221-849-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.30	8-97221-850-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.30	8-97221-850-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.35	8-97221-851-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.35	8-97221-851-0	AR	1	9911-
76	DISC; BEVEL LIMITED SLIP DIFF(G80)	8-97211-729-0	02	1	9910-
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97184-213-0	01	1	9708-9909
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97211-725-0	04	1	9910-
79	PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.65	8-97211-726-0	10	1	9910-
79	PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.75	8-97211-727-0	10	1	9910-
79	PLATE; FRICTION LIMITED SLIP DIFF(G80) T=1.85	8-97211-728-0	10	1	9910-
80	RING; PRESSURE LIMITED SLIP DIFF(G80)	8-97211-724-0	02	1	9910-
82	SPIDER; DIFF PINION LIMITED SLIP DIFF(G80)	8-97211-723-0	01	1	9910-
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF(G80)	8-97221-753-0	12	1	9910-9910
84	BOLT; FINAL DRIVE GEAR	8-97221-753-0	12	1	9911-
100	SEAL; OIL,FINAL PINION (A)	8-97179-937-0	01	1	9708-9909
100	SEAL; OIL,FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-937-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-758-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION (B)	8-97221-758-0	01	1	9911-
126	COUPLING; DRIVING PINION (A)	8-97182-810-0	01	1	9708-9909
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-810-0	01	1	9910-9910
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-787-0	01	1	9910-9910
126	COUPLING; DRIVING PINION (B)	8-97221-787-1	01	1	9911-
431	SCREW; CAGE,DIFF LIMITED SLIP DIFF(G80)	8-97221-794-0	03	1	9910-

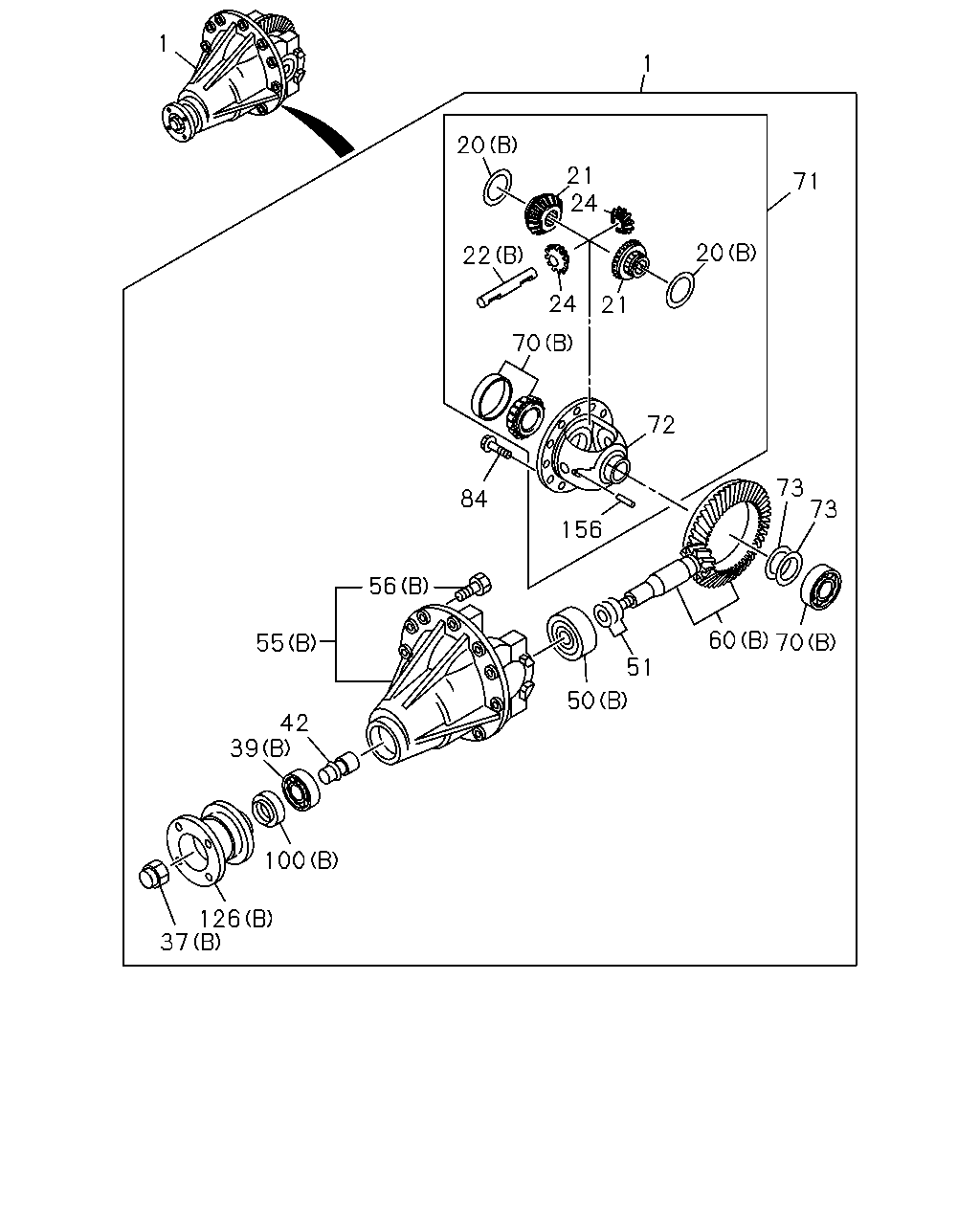

1 1 20 21 24 71 20 22 24 21 70 72 73 73 84 156 56 60 70 55 51 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97144-066-0	01	1	9708-9909
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97186-560-0	01	1	9910-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97144-065-0	01	1	9708-9910
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97186-557-0	01	1	9911-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.5	8-97221-791-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.6	8-97221-792-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.7	8-97221-793-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-783-0	02	1	9708-9910
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.8	8-97221-852-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.9	8-97221-853-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.0	8-97221-854-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.1	8-97221-855-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.2	8-97221-856-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.3	8-97221-857-0	02	1	9911-
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF(G80)	8-97211-722-0	02	1	9910-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-741-0	02	1	9911-
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9708-9907
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9908-9909
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-786-0	01	1	9910-9910
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (B)	8-97221-742-0	01	1	9911-
24	GEAR; PINION,DIFF LIMITED SLIP DIFF(G80)	8-97211-721-0	04	1	9910-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-739-0	02	1	9911-
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9708-9907
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9908-9909
37	NUT; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-811-0	01	1	9910-9910
37	NUT; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-790-0	01	1	9910-9910
37	NUT; DRIVING PINION (B)	8-97221-790-0	01	1	9911-
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9708-9907
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9908-9909
39	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-939-0	01	1	9910-9910
39	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-755-0	01	1	9910-9910
39	BEARING; FINAL PINION (B)	8-97221-755-0	01	1	9911-
42	COLLAR; DIST,COLLAPSIBLE LIMITED SLIP DIFF(G80)	8-97221-757-0	01	1	9910-9910
42	COLLAR; DIST,COLLAPSIBLE	8-97221-757-0	01	1	9911-
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9708-9907
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9908-9909
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-212-0	01	1	9910-9910
50	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-754-0	01	1	9910-9910
50	BEARING; FINAL PINION (B)	8-97221-754-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.12	8-97221-822-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.12	8-97221-822-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.14	8-97221-823-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.14	8-97221-823-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.16	8-97221-824-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.16	8-97221-824-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.18	8-97221-825-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.18	8-97221-825-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.20	8-97221-826-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.20	8-97221-826-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.22	8-97221-827-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.22	8-97221-827-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.24	8-97221-828-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.24	8-97221-828-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.26	8-97221-829-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.26	8-97221-829-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.28	8-97221-830-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.28	8-97221-830-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.30	8-97221-831-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.30	8-97221-831-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.32	8-97221-832-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.32	8-97221-832-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.34	8-97221-833-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.34	8-97221-833-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.36	8-97221-834-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.36	8-97221-834-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.38	8-97221-835-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.38	8-97221-835-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.40	8-97221-836-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.40	8-97221-836-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.42	8-97221-837-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.42	8-97221-837-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.44	8-97221-838-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.44	8-97221-838-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.46	8-97221-839-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.46	8-97221-839-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.48	8-97221-840-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.48	8-97221-840-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.50	8-97221-841-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.50	8-97221-841-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.52	8-97221-842-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.52	8-97221-842-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.54	8-97221-843-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.54	8-97221-843-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.56	8-97221-844-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.56	8-97221-844-0	01	1	9911-
51	SHIM; PINION,FINAL DRIVE LIMITED SLIP DIFF(G80) T=2.58	8-97221-845-0	01	1	9910-9910
51	SHIM; PINION,FINAL DRIVE T=2.58	8-97221-845-0	01	1	9911-
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9708-9907
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9908-9909
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-776-0	01	1	9910-9910
55	CARRIER; DIFF LIMITED SLIP DIFF(G80) (B)	8-97221-733-0	01	1	9910-9910
55	CARRIER; DIFF (B)	8-97221-733-0	01	1	9911-
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9708-9907
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9908-9909
56	BOLT; BRG CAP EXC. LIMITED SLIP DIFF(G80) (A)	8-97161-634-0	04	1	9910-9910
56	BOLT; BRG CAP LIMITED SLIP DIFF(G80) (B)	8-97221-736-0	04	1	9910-9910
56	BOLT; BRG CAP (B)	8-97221-736-0	04	1	9911-
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9708-9907
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9908-9909
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G80) (A) 43/10	8-97182-828-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G80) (B) 43/10	8-97221-746-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	8-97221-746-0	01	1	9911-
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9708-9907
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9908-9909
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-211-0	02	1	9910-9910
70	BEARING; DIFF CAGE LIMITED SLIP DIFF(G80) (B)	8-97221-756-0	02	1	9910-9910
70	BEARING; DIFF CAGE (B)	8-97221-756-0	02	1	9911-

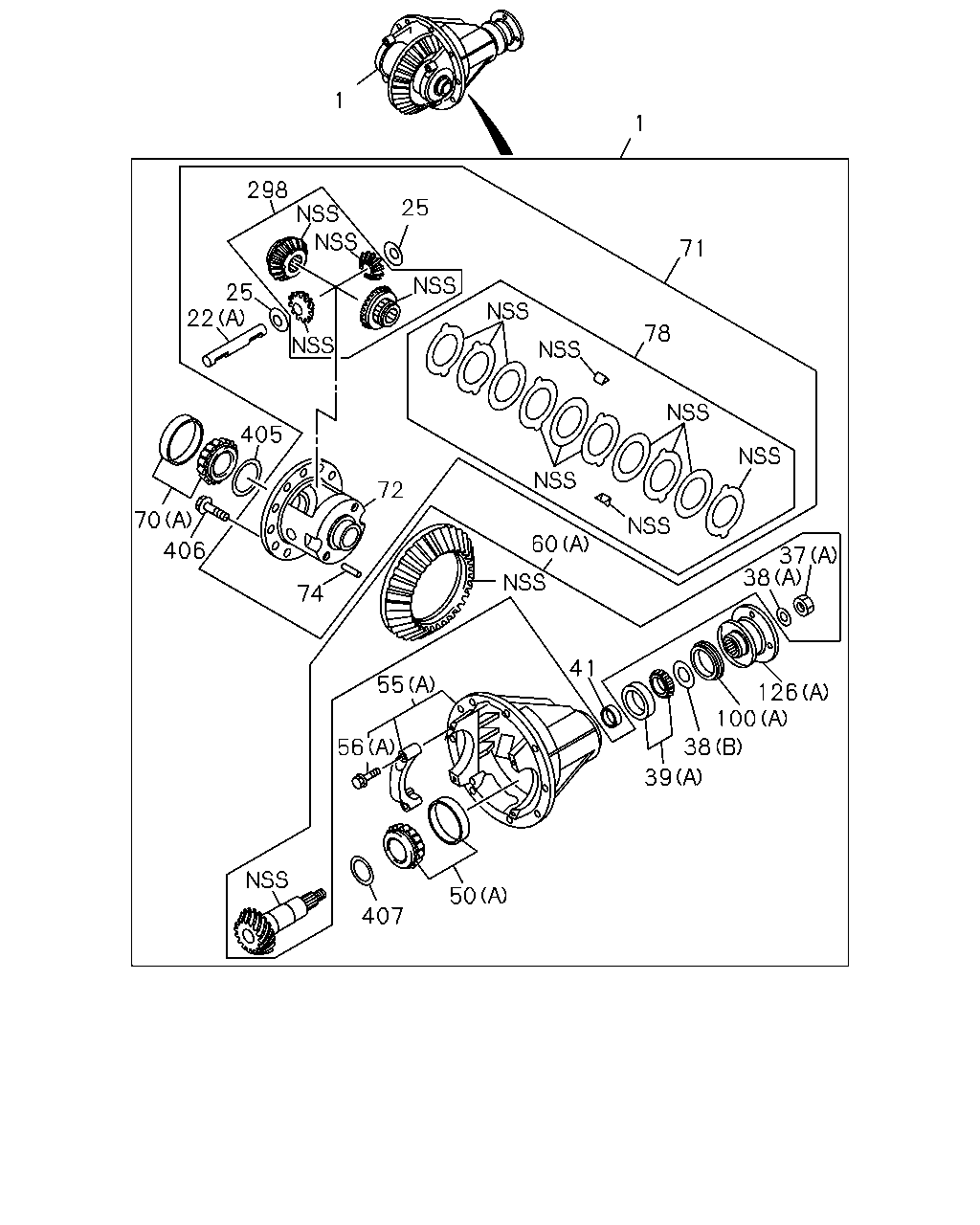

71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9807-9907
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9908-9909
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97207-841-0	01	1	9910-
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97221-737-0	01	1	9911-
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97182-816-0	01	1	9708-9909
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9708-9907
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9908-9910
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-738-0	01	1	9911-
73	SHIM; DIFF SIDE BRG T=0.076	8-97221-849-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.50	8-97221-846-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.50	8-97221-846-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.25	8-97221-847-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.25	8-97221-847-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.13	8-97221-848-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.13	8-97221-848-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.076	8-97221-849-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.30	8-97221-850-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.30	8-97221-850-0	AR	1	9911-
73	SHIM; DIFF SIDE BRG LIMITED SLIP DIFF(G80) T=0.35	8-97221-851-0	AR	1	9910-9910
73	SHIM; DIFF SIDE BRG T=0.35	8-97221-851-0	AR	1	9911-
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF(G80)	8-97221-753-0	12	1	9910-9910
84	BOLT; FINAL DRIVE GEAR	8-97221-753-0	12	1	9911-
100	SEAL; OIL,FINAL PINION (A)	8-97179-937-0	01	1	9708-9909
100	SEAL; OIL,FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-937-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-758-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION (B)	8-97221-758-0	01	1	9911-
126	COUPLING; DRIVING PINION (A)	8-97182-810-0	01	1	9708-9909
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-810-0	01	1	9910-9910
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-787-0	01	1	9910-9910
126	COUPLING; DRIVING PINION (B)	8-97221-787-1	01	1	9911-
156	PIN; SPR,DIFF CAGE EXC. LIMITED SLIP DIFF(G80)	8-97221-745-0	01	1	9911-

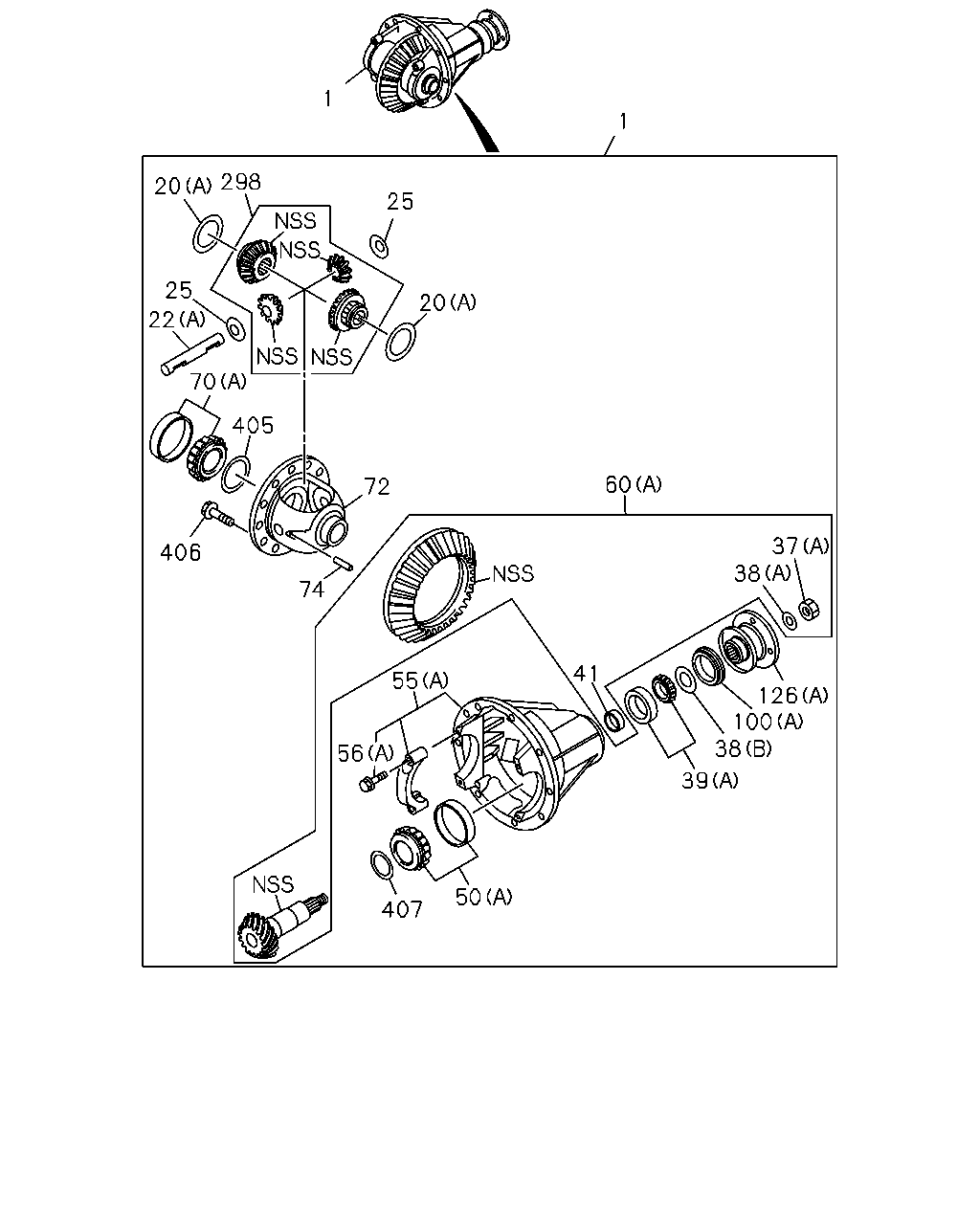

1 1 20 298 25 25 22 20 70 405 60 72 37 38 406 74 41 55 126 100 38 39 56 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97144-066-0	01	1	9708-9909
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97186-560-0	01	1	9910-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97144-065-0	01	1	9708-9910
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97186-557-0	01	1	9911-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.5	8-97221-791-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.6	8-97221-792-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF(G80) (A) T=1.7	8-97221-793-0	02	1	9910-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-783-0	02	1	9708-9910
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.8	8-97221-852-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=0.9	8-97221-853-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.0	8-97221-854-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.1	8-97221-855-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.2	8-97221-856-0	02	1	9911-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G80) (B) T=1.3	8-97221-857-0	02	1	9911-
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9708-9907
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9908-9909
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-786-0	01	1	9910-9910
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (B)	8-97221-742-0	01	1	9911-
25	WASHER; THRUST,PINION	8-97182-784-0	02	1	9708-9909
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G80)	8-97182-784-0	02	1	9910-9910
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9708-9907
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9908-9909
37	NUT; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-811-0	01	1	9910-9910
37	NUT; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-790-0	01	1	9910-9910
37	NUT; DRIVING PINION (B)	8-97221-790-0	01	1	9911-
38	WASHER; PL,DRIVING PINION (A)	8-97179-933-0	01	1	9708-9909
38	WASHER; PL,DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-933-0	01	1	9910-9910
38	WASHER; PL,DRIVING PINION (B)	8-97182-808-0	01	1	9708-9909
38	WASHER; PL,DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (B)	8-97182-808-0	01	1	9910-9910
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9708-9907
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9908-9909
39	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-939-0	01	1	9910-9910
39	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-755-0	01	1	9910-9910
39	BEARING; FINAL PINION (B)	8-97221-755-0	01	1	9911-
41	SPACER; FINAL DRIVE PINION BRG	8-97179-934-0	01	1	9708-9909
41	SPACER; FINAL DRIVE PINION BRG EXC. LIMITED SLIP DIFF(G80)	8-97179-934-0	01	1	9910-9910
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9708-9907
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9908-9909
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-212-0	01	1	9910-9910
50	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-754-0	01	1	9910-9910
50	BEARING; FINAL PINION (B)	8-97221-754-0	01	1	9911-
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9708-9907
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9908-9909
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-776-0	01	1	9910-9910
55	CARRIER; DIFF LIMITED SLIP DIFF(G80) (B)	8-97221-733-0	01	1	9910-9910
55	CARRIER; DIFF (B)	8-97221-733-0	01	1	9911-
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9708-9907
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9908-9909
56	BOLT; BRG CAP EXC. LIMITED SLIP DIFF(G80) (A)	8-97161-634-0	04	1	9910-9910
56	BOLT; BRG CAP LIMITED SLIP DIFF(G80) (B)	8-97221-736-0	04	1	9910-9910
56	BOLT; BRG CAP (B)	8-97221-736-0	04	1	9911-
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9708-9907
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9908-9909
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G80) (A) 43/10	8-97182-828-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G80) (B) 43/10	8-97221-746-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	8-97221-746-0	01	1	9911-
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9708-9907
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9908-9909
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-211-0	02	1	9910-9910
70	BEARING; DIFF CAGE LIMITED SLIP DIFF(G80) (B)	8-97221-756-0	02	1	9910-9910
70	BEARING; DIFF CAGE (B)	8-97221-756-0	02	1	9911-
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97182-816-0	01	1	9708-9909
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9708-9907
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9908-9910
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-738-0	01	1	9911-
74	PIN; LK,CROSS PIN	8-97182-796-0	01	1	9708-9909
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80)	8-97182-796-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION (A)	8-97179-937-0	01	1	9708-9909
100	SEAL; OIL,FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-937-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-758-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION (B)	8-97221-758-0	01	1	9911-
126	COUPLING; DRIVING PINION (A)	8-97182-810-0	01	1	9708-9909
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-810-0	01	1	9910-9910
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-787-0	01	1	9910-9910
126	COUPLING; DRIVING PINION (B)	8-97221-787-1	01	1	9911-
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97184-214-0	01	1	9708-9909
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97184-207-0	01	1	9708-9910
405	SHIM SET; DIFF SIDE BRG	8-97184-210-0	01	1	9708-9909
405	SHIM SET; DIFF SIDE BRG EXC. LIMITED SLIP DIFF(G80)	8-97184-210-0	01	1	9910-9910
406	BOLT SET; FINAL DRIVE GEAR	8-97182-798-0	01	1	9708-9909
406	BOLT SET; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF(G80)	8-97182-798-0	01	1	9910-9910
407	SHIM SET; PINION,FINAL DRIVE	8-97182-799-0	01	1	9708-9909
407	SHIM SET; PINION,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97182-799-0	01	1	9910-9910

1 1 298 25 71 25 22 78 405 72 70 406 60 37 38 74 41 55 126 100 38 39 56 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97144-066-0	01	1	9708-9909
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G80) 43/10	8-97186-560-0	01	1	9910-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97144-065-0	01	1	9708-9910
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G80) 43/10	8-97186-557-0	01	1	9911-
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9708-9907
22	PIN; CROSS,DIFF PINION (A)	8-97182-786-0	01	1	9908-9909
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-786-0	01	1	9910-9910
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G80) (B)	8-97221-742-0	01	1	9911-
25	WASHER; THRUST,PINION	8-97182-784-0	02	1	9708-9909
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G80)	8-97182-784-0	02	1	9910-9910
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9708-9907
37	NUT; DRIVING PINION (A)	8-97182-811-0	01	1	9908-9909
37	NUT; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-811-0	01	1	9910-9910
37	NUT; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-790-0	01	1	9910-9910
37	NUT; DRIVING PINION (B)	8-97221-790-0	01	1	9911-
38	WASHER; PL,DRIVING PINION (A)	8-97179-933-0	01	1	9708-9909
38	WASHER; PL,DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-933-0	01	1	9910-9910
38	WASHER; PL,DRIVING PINION (B)	8-97182-808-0	01	1	9708-9909
38	WASHER; PL,DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (B)	8-97182-808-0	01	1	9910-9910
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9708-9907
39	BEARING; FINAL PINION (A)	8-97179-939-0	01	1	9908-9909
39	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-939-0	01	1	9910-9910
39	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-755-0	01	1	9910-9910
39	BEARING; FINAL PINION (B)	8-97221-755-0	01	1	9911-
41	SPACER; FINAL DRIVE PINION BRG	8-97179-934-0	01	1	9708-9909
41	SPACER; FINAL DRIVE PINION BRG EXC. LIMITED SLIP DIFF(G80)	8-97179-934-0	01	1	9910-9910
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9708-9907
50	BEARING; FINAL PINION (A)	8-97184-212-0	01	1	9908-9909
50	BEARING; FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-212-0	01	1	9910-9910
50	BEARING; FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-754-0	01	1	9910-9910
50	BEARING; FINAL PINION (B)	8-97221-754-0	01	1	9911-
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9708-9907
55	CARRIER; DIFF (A)	8-97182-776-0	01	1	9908-9909
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-776-0	01	1	9910-9910
55	CARRIER; DIFF LIMITED SLIP DIFF(G80) (B)	8-97221-733-0	01	1	9910-9910
55	CARRIER; DIFF (B)	8-97221-733-0	01	1	9911-
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9708-9907
56	BOLT; BRG CAP (A)	8-97161-634-0	04	1	9908-9909
56	BOLT; BRG CAP EXC. LIMITED SLIP DIFF(G80) (A)	8-97161-634-0	04	1	9910-9910
56	BOLT; BRG CAP LIMITED SLIP DIFF(G80) (B)	8-97221-736-0	04	1	9910-9910
56	BOLT; BRG CAP (B)	8-97221-736-0	04	1	9911-
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9708-9907
60	GEAR SET; FINAL DRIVE,RR (A) 43/10	8-97182-828-0	01	1	9908-9909
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G80) (A) 43/10	8-97182-828-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR LIMITED SLIP DIFF(G80) (B) 43/10	8-97221-746-0	01	1	9910-9910
60	GEAR SET; FINAL DRIVE,RR (B) 43/10	8-97221-746-0	01	1	9911-
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9708-9907
70	BEARING; DIFF CAGE (A)	8-97184-211-0	02	1	9908-9909
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF(G80) (A)	8-97184-211-0	02	1	9910-9910
70	BEARING; DIFF CAGE LIMITED SLIP DIFF(G80) (B)	8-97221-756-0	02	1	9910-9910
70	BEARING; DIFF CAGE (B)	8-97221-756-0	02	1	9911-
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9807-9907
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97221-812-0	01	1	9908-9909
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF(G80)	8-97207-841-0	01	1	9910-
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97221-737-0	01	1	9911-
72	CAGE; DIFF LIMITED SLIP DIFF(G80)	8-97182-816-0	01	1	9708-9909
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9708-9907
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97182-778-0	01	1	9908-9910
72	CAGE; DIFF EXC. LIMITED SLIP DIFF(G80)	8-97221-738-0	01	1	9911-
74	PIN; LK,CROSS PIN	8-97182-796-0	01	1	9708-9909
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80)	8-97182-796-0	01	1	9910-9910
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97184-213-0	01	1	9708-9909
78	DISC; FRICTION LIMITED SLIP DIFF(G80)	8-97211-725-0	04	1	9910-
100	SEAL; OIL,FINAL PINION (A)	8-97179-937-0	01	1	9708-9909
100	SEAL; OIL,FINAL PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97179-937-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION LIMITED SLIP DIFF(G80) (B)	8-97221-758-0	01	1	9910-9910
100	SEAL; OIL,FINAL PINION (B)	8-97221-758-0	01	1	9911-
126	COUPLING; DRIVING PINION (A)	8-97182-810-0	01	1	9708-9909
126	COUPLING; DRIVING PINION EXC. LIMITED SLIP DIFF(G80) (A)	8-97182-810-0	01	1	9910-9910
126	COUPLING; DRIVING PINION LIMITED SLIP DIFF(G80) (B)	8-97221-787-0	01	1	9910-9910
126	COUPLING; DRIVING PINION (B)	8-97221-787-1	01	1	9911-
298	GEAR KIT; DIFF,RR AXLE LIMITED SLIP DIFF(G80)	8-97184-214-0	01	1	9708-9909
298	GEAR KIT; DIFF,RR AXLE EXC. LIMITED SLIP DIFF(G80)	8-97184-207-0	01	1	9708-9910
405	SHIM SET; DIFF SIDE BRG	8-97184-210-0	01	1	9708-9909
405	SHIM SET; DIFF SIDE BRG EXC. LIMITED SLIP DIFF(G80)	8-97184-210-0	01	1	9910-9910
406	BOLT SET; FINAL DRIVE GEAR	8-97182-798-0	01	1	9708-9909
406	BOLT SET; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF(G80)	8-97182-798-0	01	1	9910-9910
407	SHIM SET; PINION,FINAL DRIVE	8-97182-799-0	01	1	9708-9909
407	SHIM SET; PINION,FINAL DRIVE EXC. LIMITED SLIP DIFF(G80)	8-97182-799-0	01	1	9910-9910

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
