4-20 — REAR AXLE CASE AND SHAFT (#40498) — 30 parça

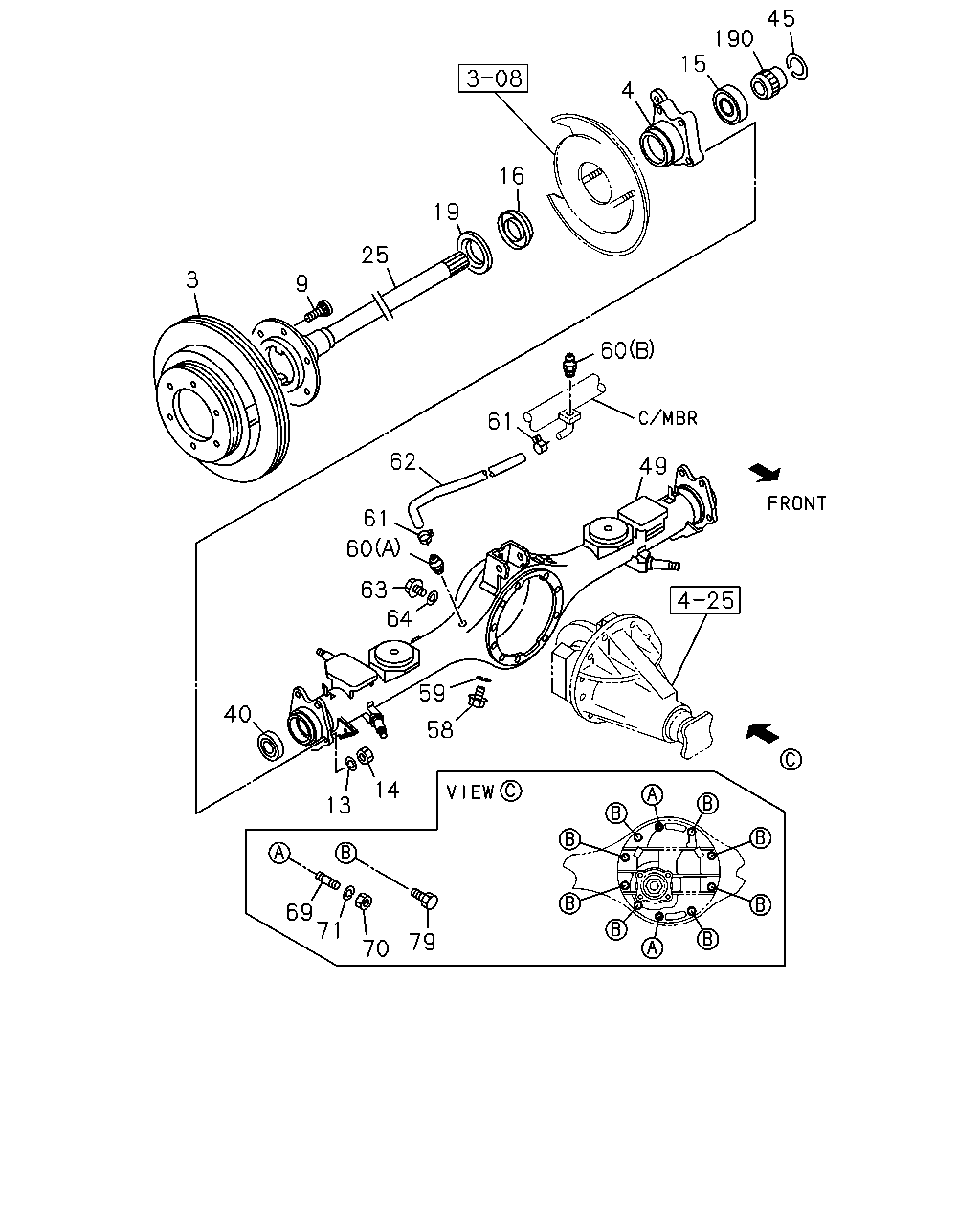

çizim 63931
45 190 15 4 16 19 25 3 9 60 61 62 49 61 60 63 64 59 40 58 14 13 69 71 79 70
BalonParca AdiParca NoAdetTipApplied Date
3 ROTOR; DISC BRK,RR 8-94375-425-1 02 1 9708-
4 HOLDER; BRG,AXLE SHAFT 8-94373-255-4 01 1 9708-
4 HOLDER; BRG,AXLE SHAFT 8-94373-254-4 01 1 9708-
9 PIN; WHEEL,RR AXLE
M12X42.5 		9-42331-601-2 12 1 9708-9901
9 PIN; WHEEL,RR AXLE
M12X42.5 		8-97213-870-0 12 1 9902-
13 WASHER; LK,BRG HOLDER TO CASE
ID=12 		9-09150-512-0 08 1 9708-
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 9708-
15 BEARING; HUB OUTER,RR AXLE 8-94429-847-2 02 1 9708-
16 SEAL; OIL,RR HUB,OUTER 8-94441-817-1 02 1 9708-
19 COVER; DUST,OIL SEAL 8-94441-534-1 02 1 9708-
25 SHAFT; AXLE,RR 8-97165-569-2 01 1 9708-
25 SHAFT; AXLE,RR 8-97165-568-2 01 1 9708-
40 SEAL; OIL,REAR AXLE 8-94178-277-0 02 1 9708-
45 RING; RR AXLE BRG 8-94454-098-0 02 1 9708-
49 CASE; RR AXLE 8-97172-762-3 01 1 9708-
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9708-
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 9708-
60 BREATHER; RR AXLE CASE
(A) L=37 		8-94226-849-1 01 1 9708-
60 BREATHER; RR AXLE CASE
(B) L=22 		8-94416-611-1 01 1 9708-
61 CLIP; BREATHER HOSE,RR AXLE
ID=11 WHITE 		5-09707-005-1 02 1 9708-0001
61 CLIP; BREATHER HOSE,RR AXLE
ID=11 		8-97173-219-0 02 1 0002-
62 HOSE; RUBBER,BREATHER,RR AXLE
L=400 SERVICED BY L=3000 		0-04650-300-0 01 1 9708-0001
62 HOSE; RUBBER,BREATHER,RR AXLE
L=380 SERVICED BY L=3000 		0-04750-300-0 01 1 0002-
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 9708-
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9708-
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9708-
70 NUT; CARRIER
M10 		9-09110-510-0 02 1 9708-
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 		9-09150-610-0 02 1 9708-
79 BOLT; COVER TO CASE
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9708-
190 SENSOR; ROTOR 8-97018-426-1 02 1 9708-
