4-15 — FRONT FINAL DRIVE (#40496) — 103 parça

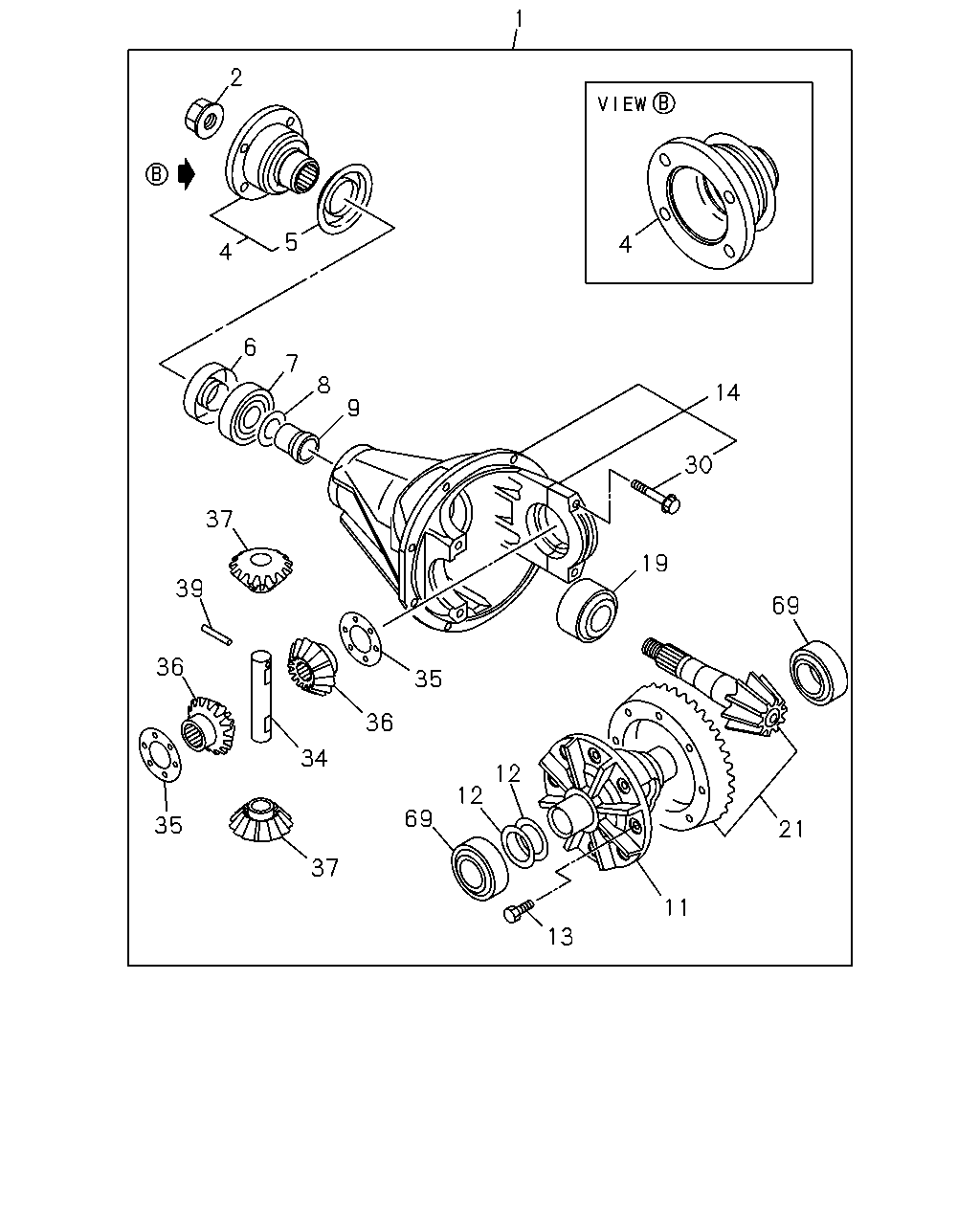

1 2 5 4 4 6 7 8 14 9 30 37 19 39 69 36 35 36 34 12 12 69 35 21 37 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT TORQUE ON DEMAND<7HA> 43/10	8-97183-888-0	01	1	9708-
1	DRIVE ASM; FINAL,FRT EXC. TORQUE ON DEMAND<7HA> 43/10	8-97039-250-0	01	1	9708-
2	NUT; FINAL DRIVE PINION M18 LOCK	8-94376-262-0	01	1	9708-
4	COUPLING; FINAL DRIVE PINION TORQUE ON DEMAND<7HA>	8-97139-548-2	01	1	9708-
4	COUPLING; FINAL DRIVE PINION EXC. TORQUE ON DEMAND<7HA>	8-94318-527-6	01	1	9708-
5	COVER; DUST,PINION,FINAL DRIVE	8-94318-409-1	01	1	9708-
6	SEAL; OIL,FINAL PINION	8-94318-520-2	01	1	9708-
7	BEARING; PINION,OUTER NSK	8-94472-099-0	01	1	9708-
7	BEARING; PINION,OUTER KOYO	8-94472-100-1	01	1	0006-
8	SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9708-
9	COLLAR; DIST,PINION	8-94472-118-0	01	1	9708-
11	CAGE; FINAL PINION	8-97038-515-1	01	1	9708-
12	SHIM; FINAL PINION CAGE T=0.10	8-97130-386-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.50	8-97130-387-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.24	9-41519-109-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.15	9-41519-111-0	AR	1	9708-
13	BOLT; FINAL PINION CAGE M10X17	8-97038-065-0	10	1	9708-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE TORQUE ON DEMAND<7HA>	8-97183-890-1	01	1	9708-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE EXC. TORQUE ON DEMAND<7HA>	8-94376-231-3	01	1	9708-
19	BEARING; PINION,INNER NSK	9-00093-621-0	01	1	9708-
21	GEAR SET; FINAL DRIVE,FRT 41/10	8-97044-728-0	01	1	9708-9709
21	GEAR SET; FINAL DRIVE,FRT 43/10	8-97039-251-1	01	1	9710-
30	BOLT; DIFF CAGE SETTING M12X62	8-94376-322-0	04	1	9708-
34	PIN; CROSS,DIFF PINION	9-41521-044-1	01	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.00	5-41562-005-1	02	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.05	5-41562-006-1	02	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.10	5-41562-007-1	02	1	9708-
36	GEAR; SIDE,DIFF Z=17	8-97079-519-1	02	1	9708-
37	GEAR; PINION DIFF Z=10	8-97079-518-0	02	1	9708-
39	PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9708-
69	BEARING; DIFF SIDE NSK	9-00093-074-0	02	1	9708-

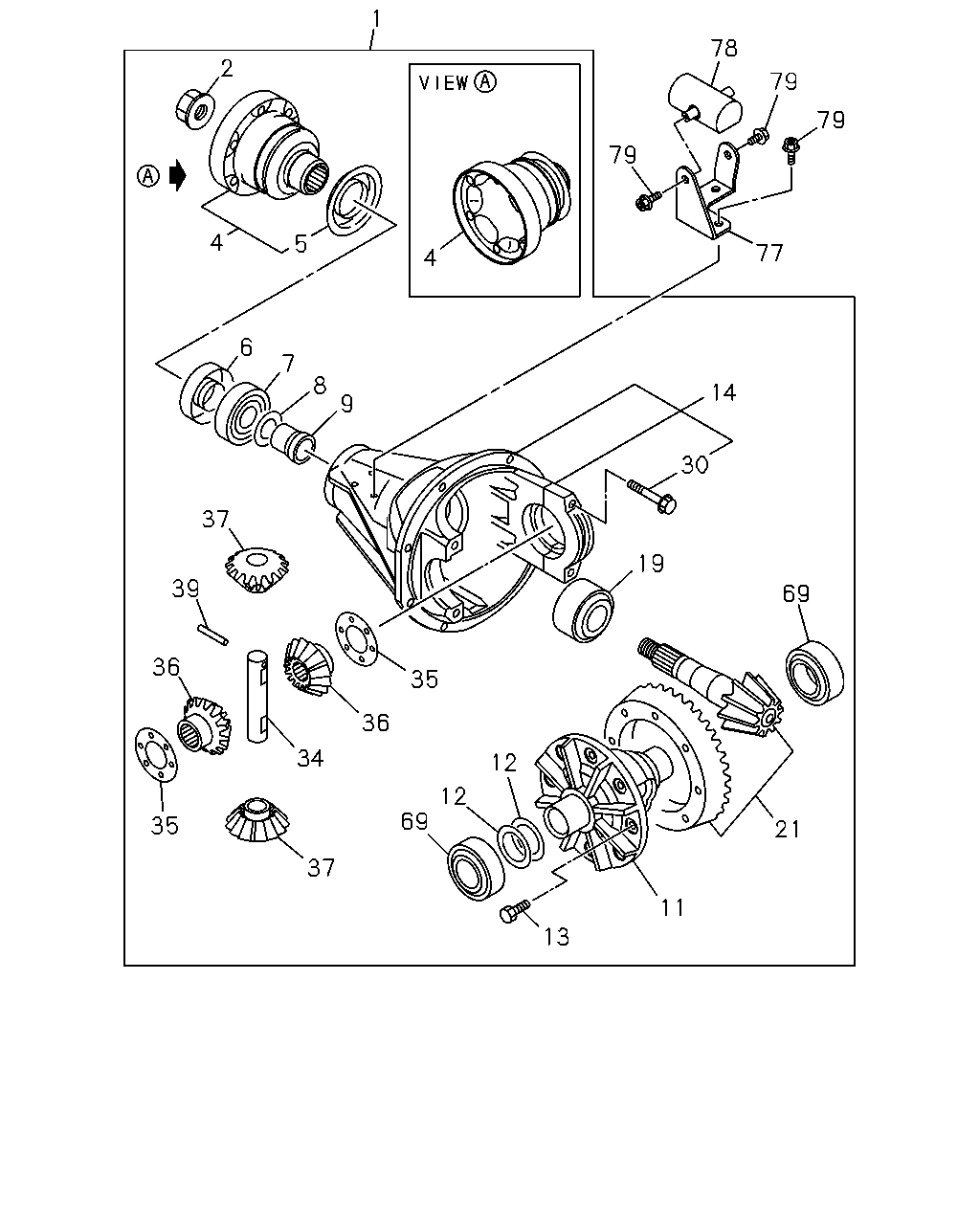

1 78 2 79 79 79 4 5 77 4 6 7 8 9 14 30 37 19 39 69 36 35 36 34 12 12 69 35 21 37 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT TORQUE ON DEMAND<7HA> 43/10	8-97183-888-0	01	1	9708-
1	DRIVE ASM; FINAL,FRT EXC. TORQUE ON DEMAND<7HA> 43/10	8-97039-250-0	01	1	9708-
2	NUT; FINAL DRIVE PINION M18 LOCK	8-94376-262-0	01	1	9708-
4	COUPLING; FINAL DRIVE PINION TORQUE ON DEMAND<7HA>	8-97139-548-2	01	1	9708-
4	COUPLING; FINAL DRIVE PINION EXC. TORQUE ON DEMAND<7HA>	8-94318-527-6	01	1	9708-
5	COVER; DUST,PINION,FINAL DRIVE	8-94318-409-1	01	1	9708-
6	SEAL; OIL,FINAL PINION	8-94318-520-2	01	1	9708-
7	BEARING; PINION,OUTER NSK	8-94472-099-0	01	1	9708-
7	BEARING; PINION,OUTER KOYO	8-94472-100-1	01	1	0006-
8	SHIM; PINION,FINAL DRIVE T=2.18	9-41519-153-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.20	9-41519-154-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.22	9-41519-155-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.24	9-41519-156-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.26	9-41519-157-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.28	9-41519-158-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.30	9-41519-159-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.32	9-41519-160-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.34	9-41519-161-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.36	9-41519-162-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.38	9-41519-163-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.40	9-41519-164-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.42	9-41519-165-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.44	9-41519-166-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.46	9-41519-167-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.48	9-41519-168-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.50	9-41519-169-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.52	9-41519-170-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.54	9-41519-171-1	01	1	9708-
8	SHIM; PINION,FINAL DRIVE T=2.56	9-41519-172-1	01	1	9708-
9	COLLAR; DIST,PINION	8-94472-118-0	01	1	9708-
11	CAGE; FINAL PINION	8-97038-515-1	01	1	9708-
12	SHIM; FINAL PINION CAGE T=0.10	8-97130-386-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.50	8-97130-387-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.24	9-41519-109-0	AR	1	9708-
12	SHIM; FINAL PINION CAGE T=0.15	9-41519-111-0	AR	1	9708-
13	BOLT; FINAL PINION CAGE M10X17	8-97038-065-0	10	1	9708-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE TORQUE ON DEMAND<7HA>	8-97183-890-1	01	1	9708-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE EXC. TORQUE ON DEMAND<7HA>	8-94376-231-3	01	1	9708-
19	BEARING; PINION,INNER NSK	9-00093-621-0	01	1	9708-
21	GEAR SET; FINAL DRIVE,FRT 41/10	8-97044-728-0	01	1	9708-9709
21	GEAR SET; FINAL DRIVE,FRT 43/10	8-97039-251-1	01	1	9710-
30	BOLT; DIFF CAGE SETTING M12X62	8-94376-322-0	04	1	9708-
34	PIN; CROSS,DIFF PINION	9-41521-044-1	01	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.00	5-41562-005-1	02	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.05	5-41562-006-1	02	1	9708-
35	WASHER; THRUST,SIDE GEAR T=1.10	5-41562-007-1	02	1	9708-
36	GEAR; SIDE,DIFF Z=17	8-97079-519-1	02	1	9708-
37	GEAR; PINION DIFF Z=10	8-97079-518-0	02	1	9708-
39	PIN; LK,CROSS PIN OD=5 L=35	9-09878-096-0	01	1	9708-
69	BEARING; DIFF SIDE NSK	9-00093-074-0	02	1	9708-
77	BRACKET; DAMPER TORQUE ON DEMAND<7HA>	8-97183-627-0	01	1	9708-
78	DAMPER; FINAL DRIVE TORQUE ON DEMAND<7HA>	8-97183-891-0	01	1	9708-
79	BOLT; BRKT TORQUE ON DEMAND<7HA>	8-97138-666-0	05	1	9708-
