4-12 — FRONT DRIVE SHAFT (#40495) — 119 parça

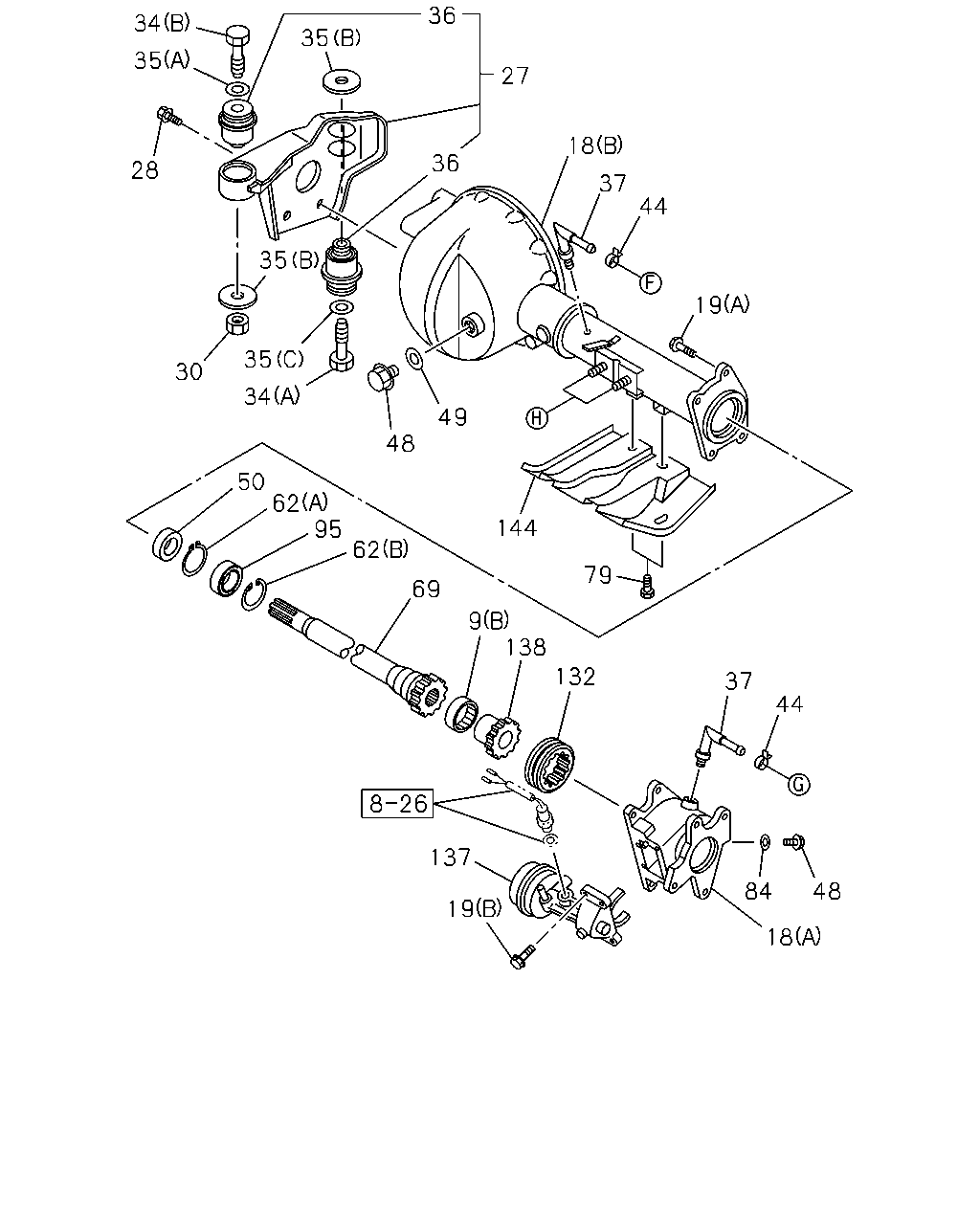

36 34 35 35 27 18 36 28 37 44 35 19 35 30 34 49 48 50 62 144 95 62 79 69 9 138 132 37 44 137 48 84 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9708-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	9708-
18	CASE; FRT AXLE (A)	8-97081-658-3	01	1	9708-
18	CASE; FRT AXLE (B)	8-97101-757-3	01	1	9708-
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	9708-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	9708-
19	BOLT; FRT AXLE (C) M8X25 GOLD	8-94180-329-1	03	1	9708-9903
19	BOLT; FRT AXLE (C) M8X20 FLANGE	0-28680-820-0	03	1	9904-
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	9708-
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	9708-
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	9708-
27	BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97131-941-1	01	1	9708-
27	BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97114-277-1	01	1	9708-
27	BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-97113-948-1	01	1	9708-
27	BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-94382-042-1	01	1	9708-
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9708-
30	NUT; FRT AXLE MTG M14	9-99110-514-0	02	1	9708-
34	BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9708-
34	BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9708-9804
34	BOLT; FRT AXLE MTG (B) M14X80	9-91066-480-0	02	1	9805-
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9708-
35	WASHER; FRT AXLE MTG (B) ID=14 OD=50	8-97093-581-0	04	1	9708-
35	WASHER; FRT AXLE MTG (C) ID=14 OD=36	9-09164-714-0	02	1	9708-
36	BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9708-
37	BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	9708-
44	CLIP; AIR BREATHER HOSE ID=11	8-94238-570-0	02	1	9708-9709
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	02	1	9710-
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	02	1	9708-
49	GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9708-
50	SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	9708-
62	RING; SNAP,AXLE SHAFT (A) ID=37	9-09180-040-0	01	1	9708-
62	RING; SNAP,AXLE SHAFT (B) ID=58	9-09180-162-0	01	1	9708-
69	SHAFT; AXLE,FRT INNER	8-97130-566-1	01	1	9708-9711
69	SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	9712-
79	BOLT; BRKT	0-28481-016-0	02	1	9708-
84	GASKET; PLUG,OIL FILLER ID=20 OD=30	8-94462-734-0	01	1	9708-
95	BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	9708-
132	SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	9708-
137	ACTUATOR; AXLE	8-97101-856-4	01	1	9708-
138	GEAR; CLUTCH	8-97134-857-1	01	1	9708-
144	PROTECTOR	8-97101-788-2	01	1	9708-

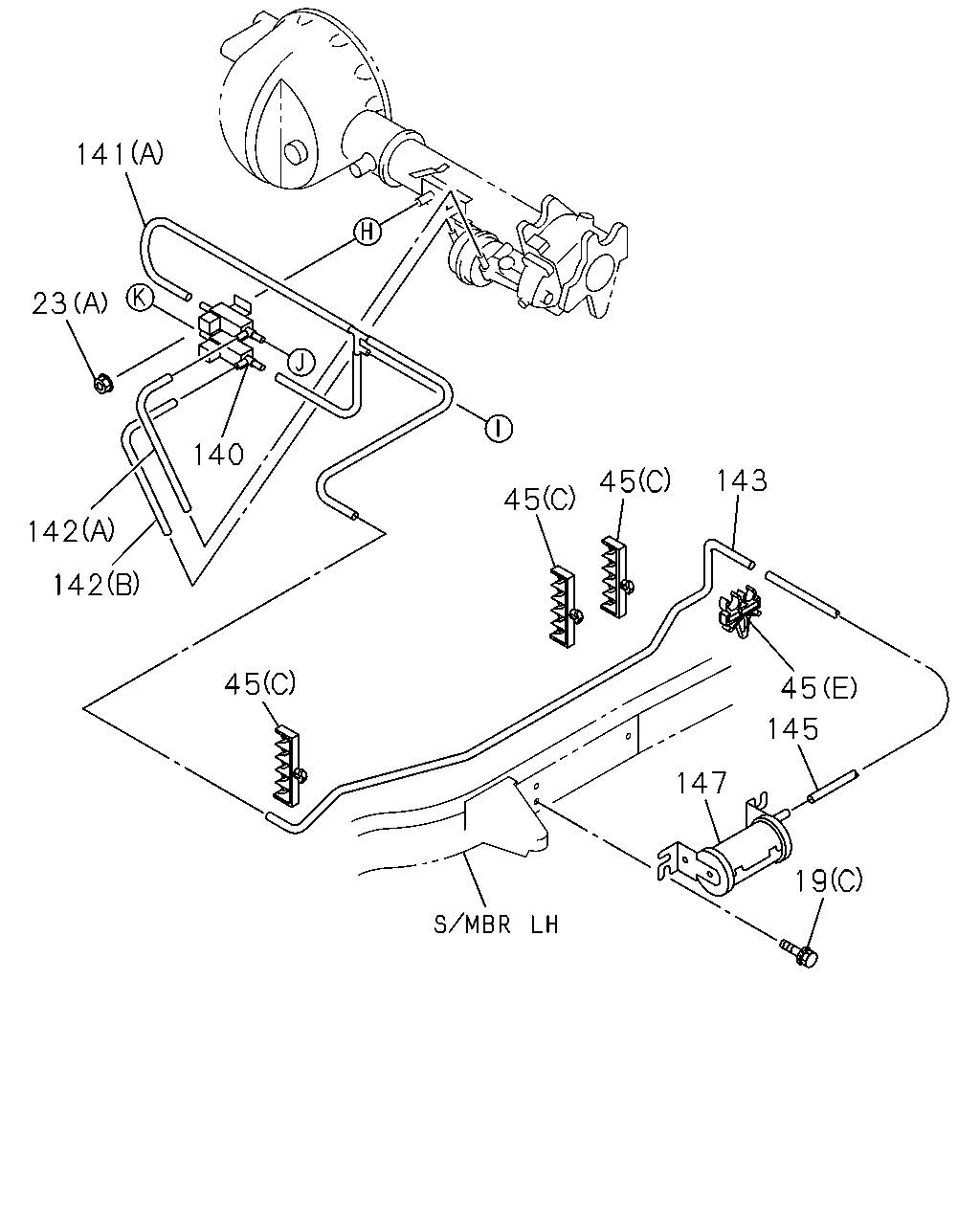

141 23 140 143 45 45 142 142 45 45 145 147 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	9708-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	9708-
19	BOLT; FRT AXLE (C) M8X25 GOLD	8-94180-329-1	03	1	9708-9903
19	BOLT; FRT AXLE (C) M8X20 FLANGE	0-28680-820-0	03	1	9904-
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	9708-
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	9708-
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	9708-
23	NUT; FRT AXLE (A) M6 FLANGE	8-97063-399-0	02	1	9708-
23	NUT; FRT AXLE (B) M8	9-09110-508-0	02	1	9708-
45	CLIP (B) ID=22	5-09700-369-0	01	1	9708-9711
45	CLIP (B) ID=21 L=28	1-09700-673-1	01	1	9712-
45	CLIP (C) L=8.9	8-94435-551-1	03	1	9708-
45	CLIP (E)	8-94466-385-0	01	1	9708-
45	CLIP (D)	8-97180-937-0	01	1	9708-9801
45	CLIP (D)	8-97200-741-0	01	1	9802-
45	CLIP (A) ID=26 L=26	9-09915-417-1	01	1	9708-
140	VALVE UNIT; AXLE	8-97101-858-1	01	1	9708-
141	HOSE; VACUUM (A)	8-97131-140-0	01	1	9708-
141	HOSE; VACUUM (B)	8-97178-056-5	01	1	9708-0107
141	HOSE; VACUUM (B)	8-97321-118-0	01	1	0108-
142	HOSE; VSV (A)	8-97101-810-0	01	1	9708-
142	HOSE; VSV (B)	8-97101-811-2	01	1	9708-
143	PIPE; VACUUM	8-97133-591-0	01	1	9708-
145	HOSE; VAC TANK L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9708-9903
145	HOSE; VAC TANK L=140 SERVICED BY L=3000	0-04740-300-0	01	1	9904-
147	TANK; VACUUM	8-97102-100-5	01	1	9708-

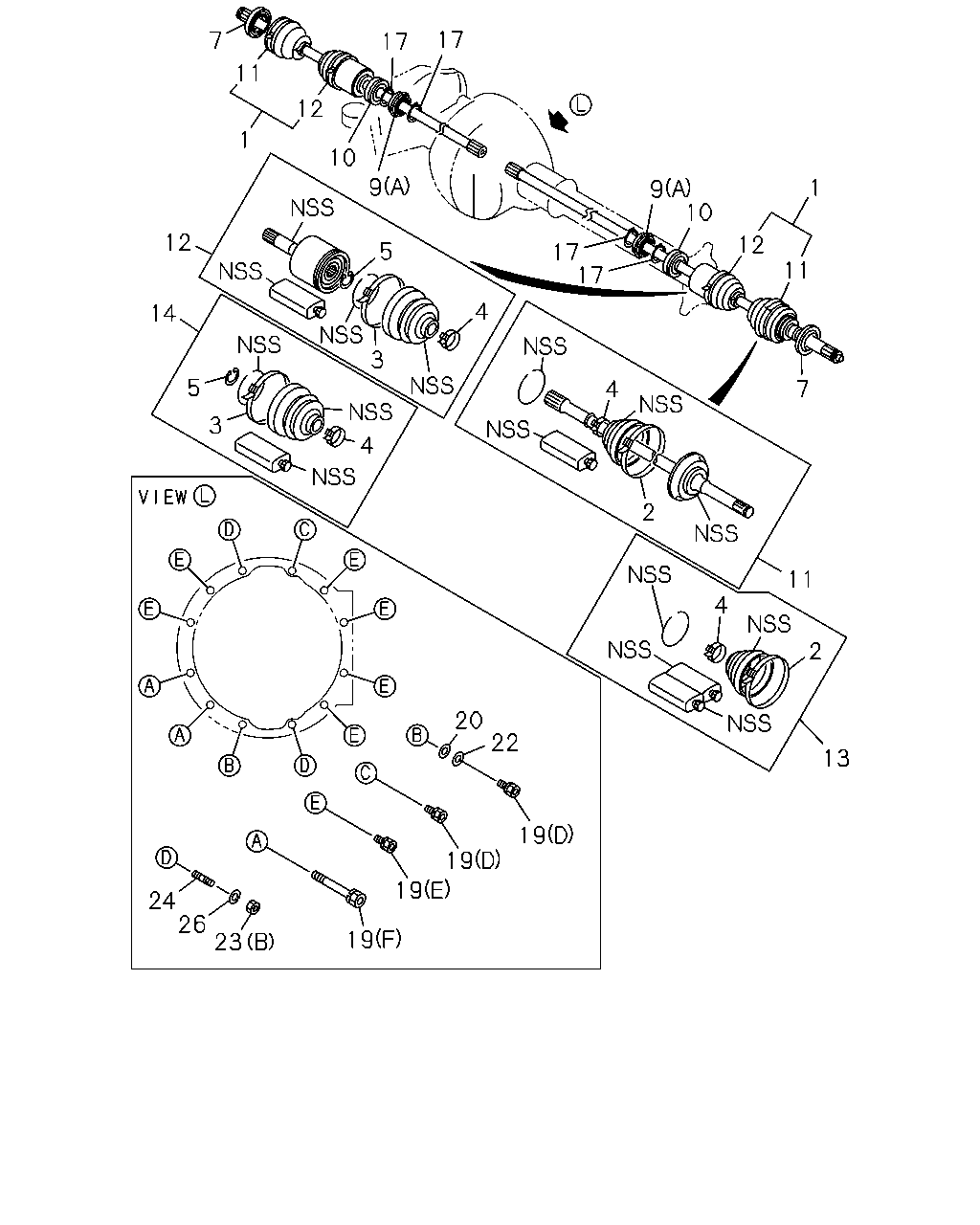

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 3 5 7 4 3 4 2 11 4 2 20 22 13 19 19 19 24 26 23 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT ASM; FRT DRIVE	8-97116-334-0	02	1	9708-9711
1	SHAFT ASM; FRT DRIVE	8-97183-948-1	02	1	9712-9911
1	SHAFT ASM; FRT DRIVE	8-97221-416-0	02	1	9912-0004
1	SHAFT ASM; FRT DRIVE	8-97183-948-1	02	1	0005-
2	BAND; "A",FRT DRIVE SHAFT	8-94313-066-0	02	1	9708-
3	BAND; "B",FRT DRIVE SHAFT	8-94313-066-0	02	1	9708-
4	BAND; "C",FRT DRIVE SHAFT	8-94313-068-0	04	1	9708-
5	RING; RET,FRT DRIVE SHAFT	8-97117-241-0	02	1	9708-
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9708-
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9708-
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	9708-
10	SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	9708-
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97117-244-0	02	1	9708-9711
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97200-101-0	02	1	9712-9911
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97226-660-0	02	1	9912-0004
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT	8-97200-101-0	02	1	0005-
12	JOINT ASM	8-97117-216-0	02	1	9708-9711
12	JOINT ASM	8-97200-103-0	02	1	9712-
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT	8-97117-221-0	02	1	9708-
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT	8-97117-220-0	02	1	9708-
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	9708-
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	9708-
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	9708-
19	BOLT; FRT AXLE (C) M8X25 GOLD	8-94180-329-1	03	1	9708-9903
19	BOLT; FRT AXLE (C) M8X20 FLANGE	0-28680-820-0	03	1	9904-
19	BOLT; FRT AXLE (E) M8X25 W/LK WASHER	8-97093-664-1	06	1	9708-
19	BOLT; FRT AXLE (D) M8X30 W/LK WASHER	8-97093-665-1	02	1	9708-
19	BOLT; FRT AXLE (F) M8X90 W/LK WASHER	8-97093-666-1	02	1	9708-
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9708-
22	WASHER; PL,AXLE CASE ID=8	9-09164-508-0	01	1	9708-
23	NUT; FRT AXLE (A) M6 FLANGE	8-97063-399-0	02	1	9708-
23	NUT; FRT AXLE (B) M8	9-09110-508-0	02	1	9708-
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	9708-
26	WASHER; LK,CASE,FRT AXLE ID=8	9-09150-608-0	02	1	9708-

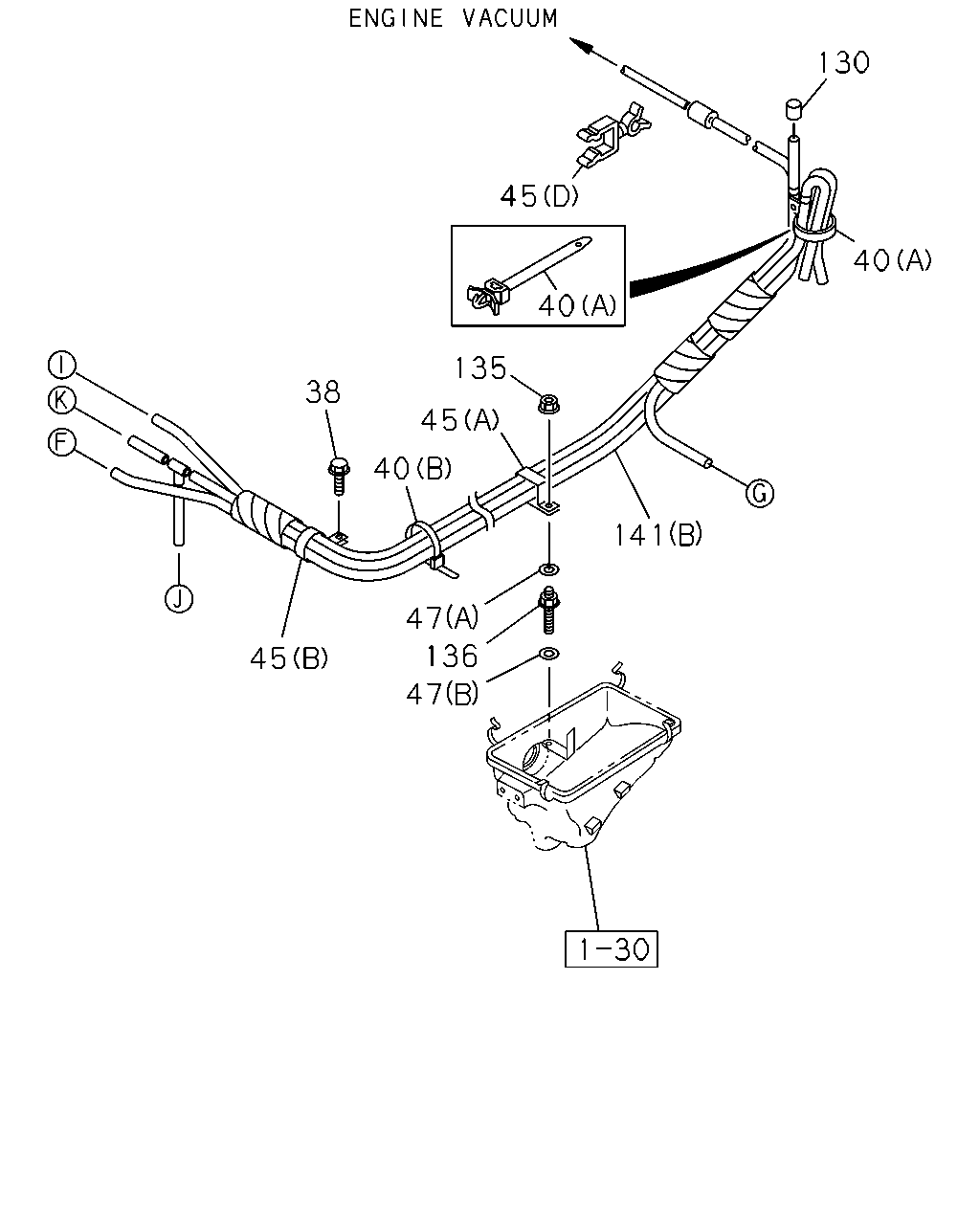

130 45 40 40 135 38 45 40 141 47 136 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; AIR BREATHER,FRT AXLE M6X20 FLANGE	0-28680-620-0	01	1	9708-
40	CLIP; BAND,AIR BREATHER HOSE (B) L=170	5-09707-054-0	01	1	9708-
40	CLIP; BAND,AIR BREATHER HOSE (A) L=172	8-94232-620-0	01	1	9708-
45	CLIP (B) ID=22	5-09700-369-0	01	1	9708-9711
45	CLIP (B) ID=21 L=28	1-09700-673-1	01	1	9712-
45	CLIP (C) L=8.9	8-94435-551-1	03	1	9708-
45	CLIP (E)	8-94466-385-0	01	1	9708-
45	CLIP (D)	8-97180-937-0	01	1	9708-9801
45	CLIP (D)	8-97200-741-0	01	1	9802-
45	CLIP (A) ID=26 L=26	9-09915-417-1	01	1	9708-
47	WASHER; CLIP (A) ID=8	9-09160-608-0	01	1	9708-
47	WASHER; CLIP (B) ID=8	9-09164-808-0	01	1	9708-
130	FILTER; OIL,FRT AXLE	8-97101-779-0	01	1	9708-
135	NUT; BREATHER M8 FLANGE	0-91150-108-0	01	1	9708-
136	STUD; BREATHER	8-97032-290-0	01	1	9708-
141	HOSE; VACUUM (A)	8-97131-140-0	01	1	9708-
141	HOSE; VACUUM (B)	8-97178-056-5	01	1	9708-0107
141	HOSE; VACUUM (B)	8-97321-118-0	01	1	0108-
