Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

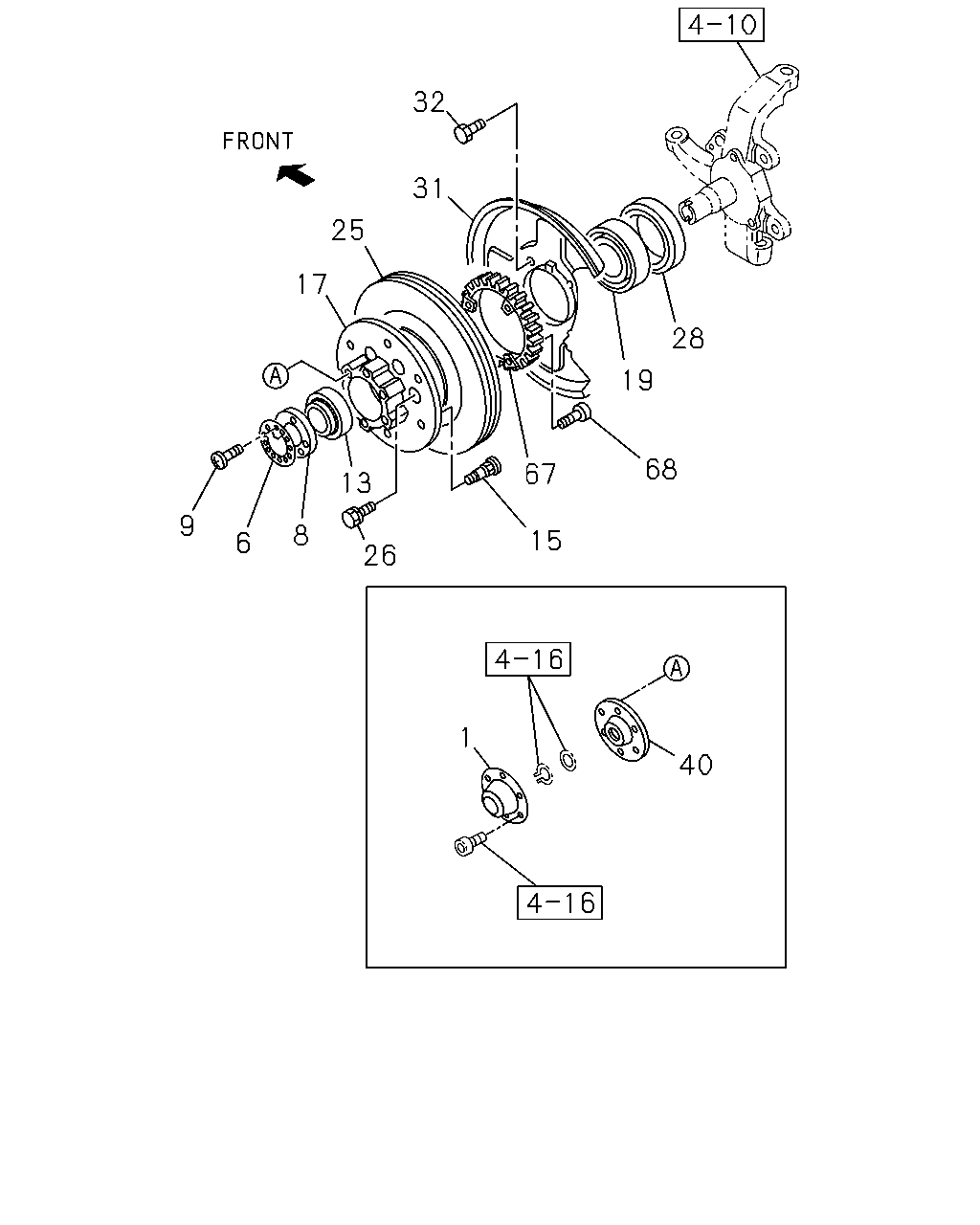

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#40494) — 18 parça
32
31
25
17
28
19
68
67
13
9
8
15
6
26
1
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
8-94173-314-2
02
1
9708-
6
WASHER; LK,FRT HUB
T=1.8 ID=65
8-94442-398-0
02
1
9708-
8
NUT; ADJ,FRT HUB
8-94442-399-1
02
1
9708-
9
SCREW; ADJ,NUT
M4X8
9-93090-408-0
06
1
9708-
13
BEARING; HUB OUTER,FRT AXLE
NSK
8-94227-041-0
02
1
9708-
15
PIN; WHEEL,FRT AXLE
8-94223-200-0
12
1
9708-9901
15
PIN; WHEEL,FRT AXLE
8-97213-871-0
12
1
9902-
17
HUB; FRT AXLE
8-94381-084-2
02
1
9708-
19
BEARING; HUB INNER,FRT AXLE
NSK
8-94258-819-0
02
1
9708-
25
ROTOR; DISC BRK,FRT
8-94375-416-4
02
1
9708-
26
BOLT; BRK,DISC TO HUB
M12X31.5
8-94409-921-0
12
1
9708-
28
SEAL; OIL,FRT HUB
8-94407-711-0
02
1
9708-
31
COVER; DUST,FRT BRAKE
8-94375-418-0
01
1
9708-
31
COVER; DUST,FRT BRAKE
8-94375-417-0
01
1
9708-
32
BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
9708-
40
FLANGE; FRT WHEEL HUB
8-94173-313-0
02
1
9708-
67
ROTOR; SENSOR
8-97018-425-1
02
1
9708-
68
BOLT; SENSOR ROTOR
M8X16
9-05820-816-0
06
1
9708-
