4-01 — PROPELLER SHAFT (#40492) — 79 parça

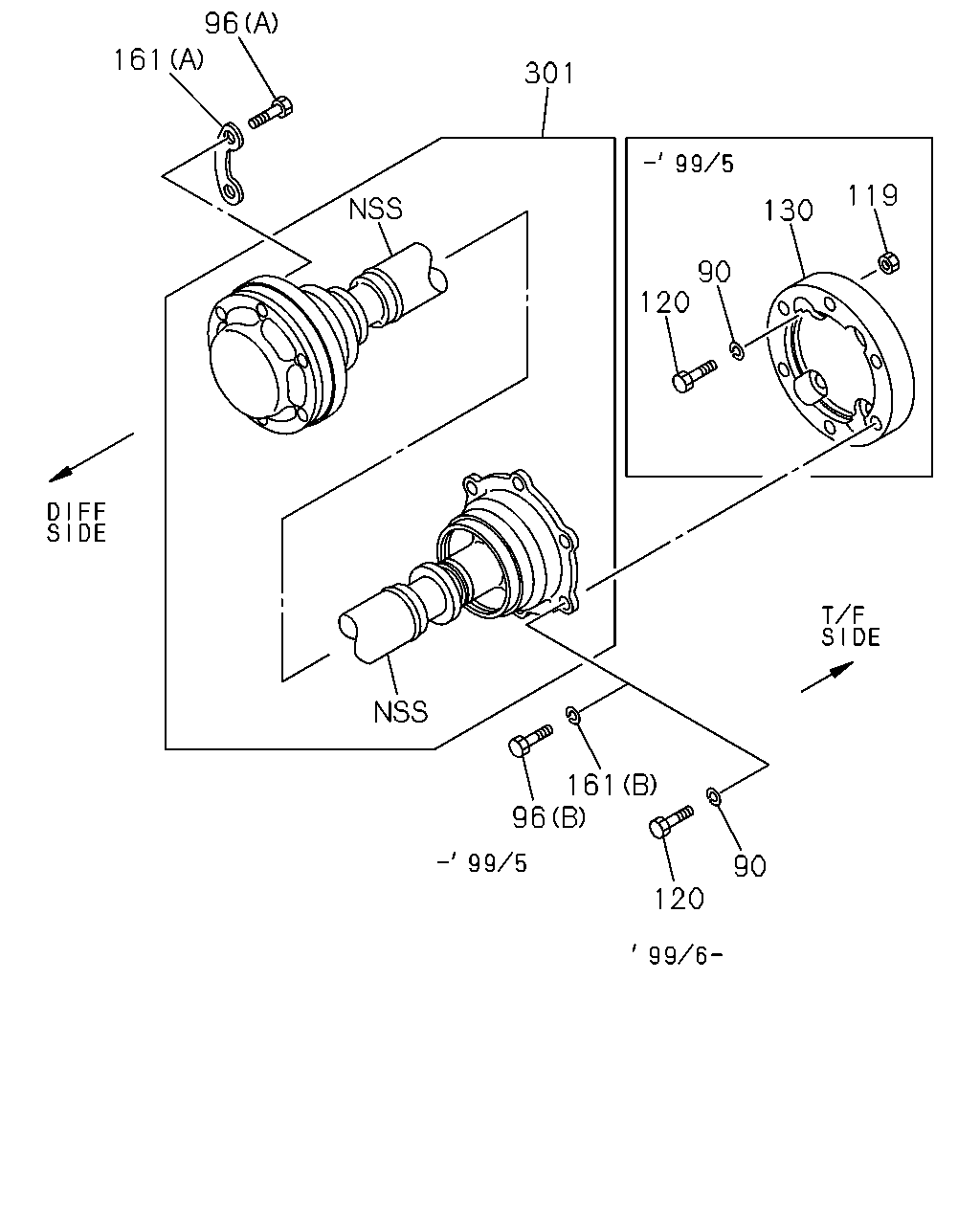

96 161 301 119 130 90 120 161 96 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	06	1	9906-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9906-
90	WASHER; LK,YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	08	1	9708-
96	BOLT; PROP SHAFT TORQUE ON DEMAND<7HA> (A)	8-97110-727-0	06	1	9708-
96	BOLT; PROP SHAFT TORQUE ON DEMAND<7HA> (B) M10X29	8-97168-458-1	06	1	9708-9905
119	NUT; PROP SHAFT TORQUE ON DEMAND<7HA> M10	8-94159-009-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	06	1	9906-
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9906-
120	BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	08	1	9708-
130	ADAPTER; PROP SHAFT TORQUE ON DEMAND<7HA>	8-97115-029-0	01	1	9708-9804
130	ADAPTER; PROP SHAFT TORQUE ON DEMAND<7HA>	8-97187-581-0	01	1	9805-9905
161	WASHER; LK,PROP SHAFT TORQUE ON DEMAND<7HA> (A)	8-97110-850-0	03	1	9708-
161	WASHER; LK,PROP SHAFT TORQUE ON DEMAND<7HA> (B) ID=10.2	9-09150-610-0	06	1	9708-9905
301	SHAFT ASM; PROP,FRT TORQUE ON DEMAND<7HA>	8-97110-728-0	01	1	9708-9909
301	SHAFT ASM; PROP,FRT TORQUE ON DEMAND<7HA>	8-97214-691-1	01	1	9910-
301	SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND<7HA>	8-97180-423-0	01	1	9708-9810
301	SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND<7HA>	8-97211-639-1	01	1	9811-

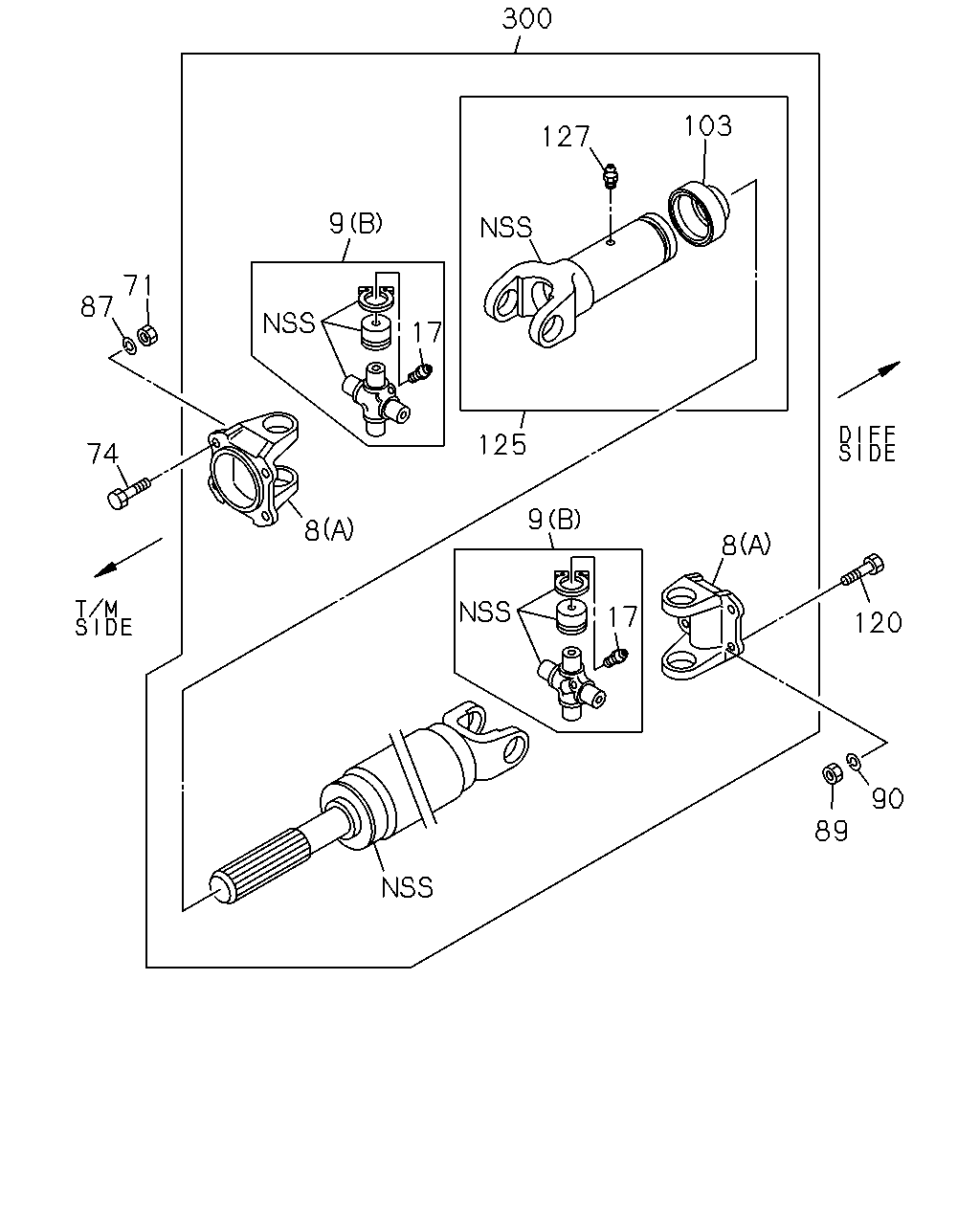

300 103 127 9 71 87 17 125 74 9 8 8 17 120 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A)	8-97178-365-0	02	1	9708-
8	YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (B)	8-97020-310-0	02	1	9708-9810
8	YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (B)	8-97211-120-0	02	1	9811-
9	JOURNAL ASM; PROP SHAFT (B)	8-97167-317-0	02	1	9708-
9	JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (A)	8-97029-526-1	02	1	9708-9810
9	JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (A)	8-97211-133-0	02	1	9811-
17	NIPPLE; GREASE,PROP SHAFT TORQUE ON DEMAND<7HA> REAR M6 STRAIGHT	9-09031-006-0	02	1	9708-
17	NIPPLE; GREASE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> FRONT AND REAR M6 STRAIGHT	9-09031-006-0	04	1	9708-
71	NUT; YOKE M10	8-94159-009-1	04	1	9708-
74	BOLT; YOKE,TRANS M10X29	8-97168-458-1	04	1	9708-
87	WASHER; LK,1ST PROP TO 2ND PROP ID=10.2	9-09150-610-0	04	1	9708-
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	04	1	9708-
89	NUT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> M10	8-94159-009-1	08	1	9708-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	06	1	9906-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9906-
90	WASHER; LK,YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	08	1	9708-
103	BOOT; PROP SHAFT TORQUE ON DEMAND<7HA>	8-97020-597-1	01	1	9708-
103	BOOT; PROP SHAFT EXC. TORQUE ON DEMAND<7HA>	8-97020-597-1	02	1	9708-
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	06	1	9906-
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9906-
120	BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	08	1	9708-
125	YOKE ASM; SPLINED,PROP SHAFT	8-97167-316-0	01	1	9708-
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	9708-
300	SHAFT ASM; PROP,RR TORQUE ON DEMAND<7HA>	8-97164-318-1	01	1	9708-
300	SHAFT ASM; PROP,RR EXC. TORQUE ON DEMAND<7HA>	8-97164-317-1	01	1	9708-

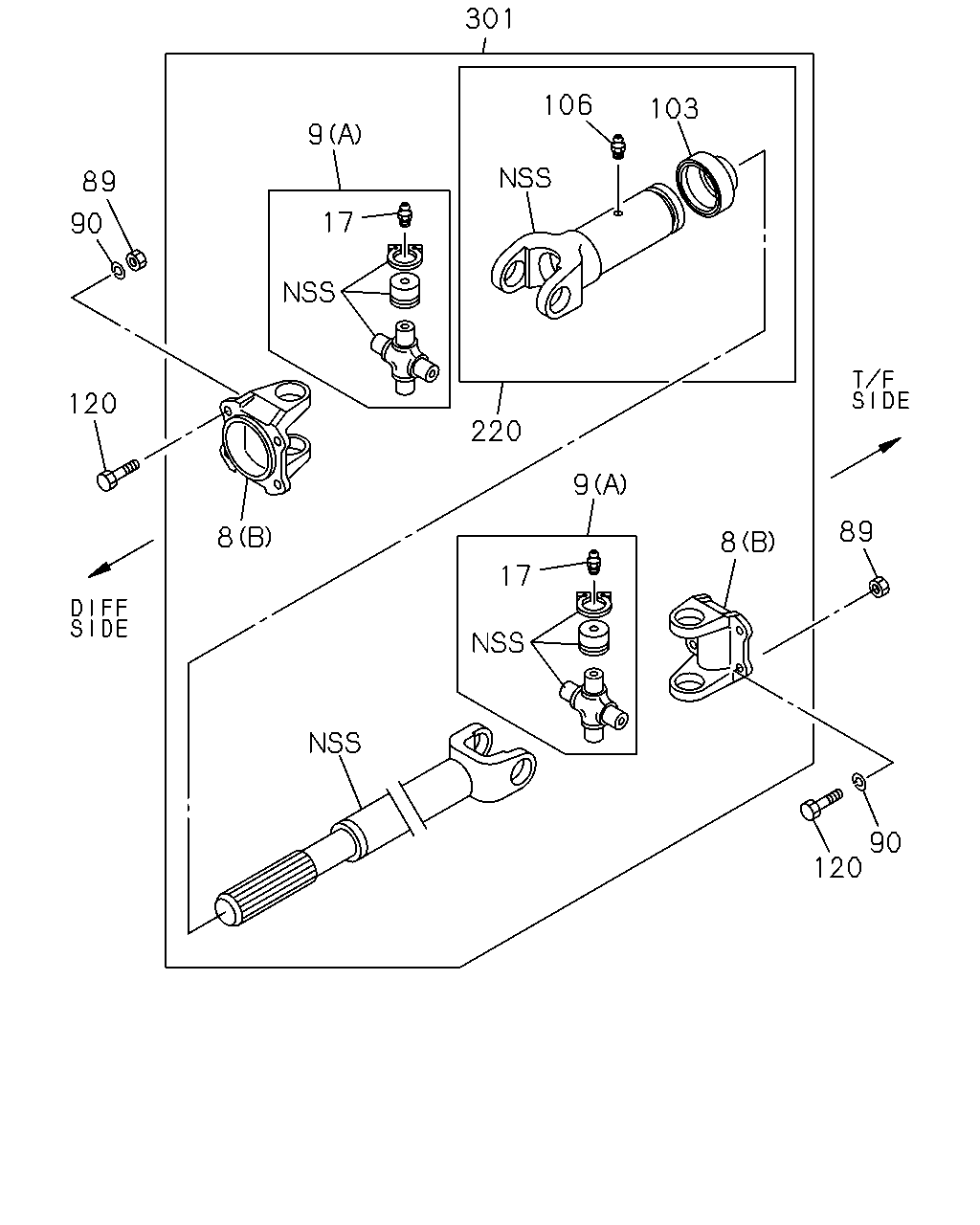

301 106 103 9 89 17 90 120 220 9 89 8 8 17 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT (A)	8-97178-365-0	02	1	9708-
8	YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (B)	8-97020-310-0	02	1	9708-9810
8	YOKE; FLANGE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (B)	8-97211-120-0	02	1	9811-
9	JOURNAL ASM; PROP SHAFT (B)	8-97167-317-0	02	1	9708-
9	JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (A)	8-97029-526-1	02	1	9708-9810
9	JOURNAL ASM; PROP SHAFT EXC. TORQUE ON DEMAND<7HA> (A)	8-97211-133-0	02	1	9811-
17	NIPPLE; GREASE,PROP SHAFT TORQUE ON DEMAND<7HA> REAR M6 STRAIGHT	9-09031-006-0	02	1	9708-
17	NIPPLE; GREASE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> FRONT AND REAR M6 STRAIGHT	9-09031-006-0	04	1	9708-
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	04	1	9708-
89	NUT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> M10	8-94159-009-1	08	1	9708-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	04	1	9708-9905
90	WASHER; LK,YOKE TO RR AXLE TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	06	1	9906-
90	WASHER; LK,YOKE TO RR AXLE ID=10.2	9-09150-610-0	04	1	9906-
90	WASHER; LK,YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> ID=10.2	9-09150-610-0	08	1	9708-
103	BOOT; PROP SHAFT TORQUE ON DEMAND<7HA>	8-97020-597-1	01	1	9708-
103	BOOT; PROP SHAFT EXC. TORQUE ON DEMAND<7HA>	8-97020-597-1	02	1	9708-
106	NIPPLE; GREASE,YOKE,PROP SHAFT EXC. TORQUE ON DEMAND<7HA> M6 STRAIGHT	9-09031-006-0	01	1	9708-
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	04	1	9708-9905
120	BOLT; YOKE TO RR AXLE TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	06	1	9906-
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9906-
120	BOLT; YOKE TO RR AXLE EXC. TORQUE ON DEMAND<7HA> M10X29	8-97168-458-1	08	1	9708-
220	YOKE; SPLINED EXC. TORQUE ON DEMAND<7HA> L=177	8-97049-301-1	01	1	9708-9810
220	YOKE; SPLINED EXC. TORQUE ON DEMAND<7HA> L=177	8-97211-131-0	01	1	9811-
301	SHAFT ASM; PROP,FRT TORQUE ON DEMAND<7HA>	8-97110-728-0	01	1	9708-9909
301	SHAFT ASM; PROP,FRT TORQUE ON DEMAND<7HA>	8-97214-691-1	01	1	9910-
301	SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND<7HA>	8-97180-423-0	01	1	9708-9810
301	SHAFT ASM; PROP,FRT EXC. TORQUE ON DEMAND<7HA>	8-97211-639-1	01	1	9811-
