Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#40490) — 19 parça
◀

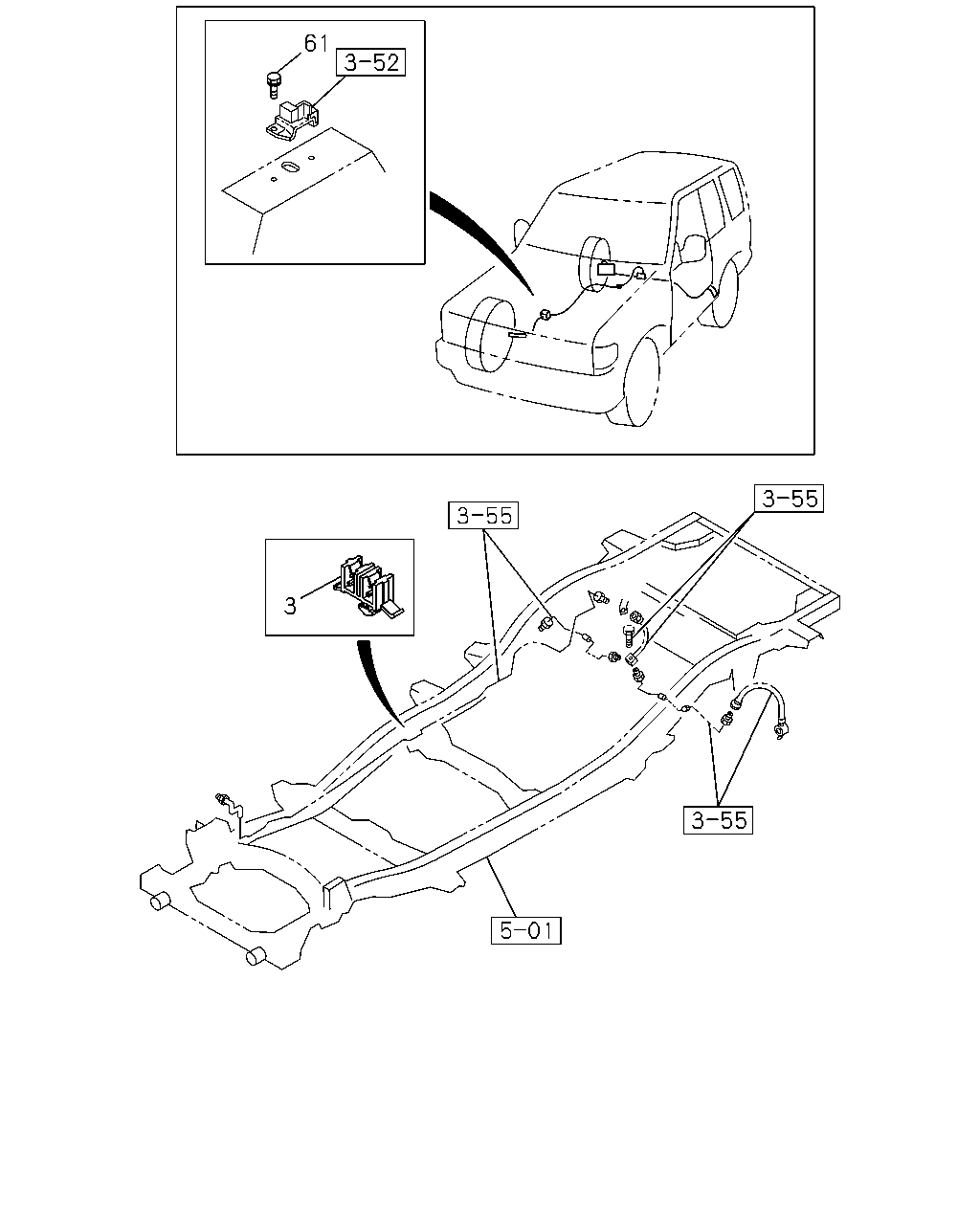

[358A] NO.2 (4 parça)

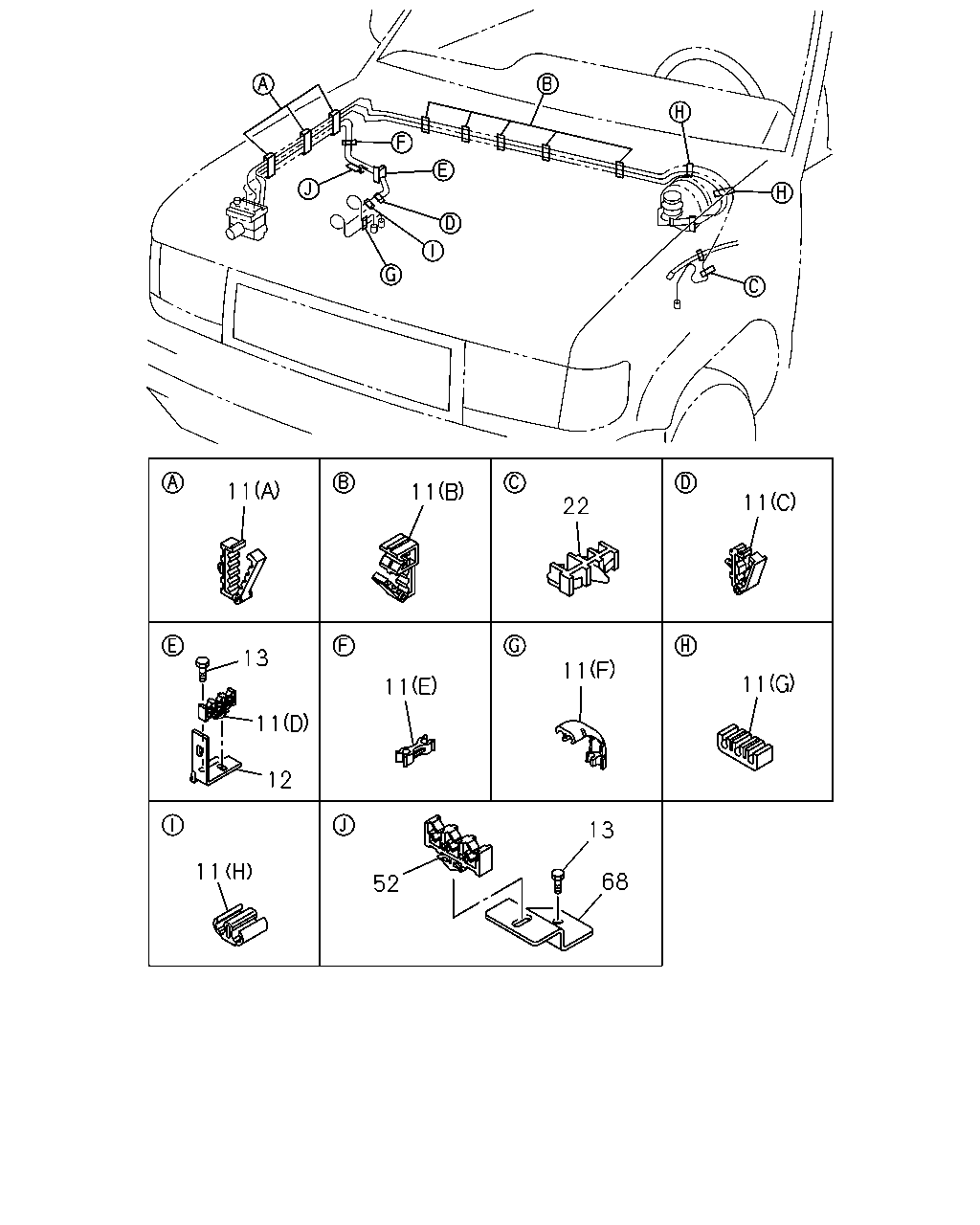

[358A] NO.1 (15 parça)
▶
61
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CLIP; BRK PIPE
8-94326-752-0
01
1
9708-
61
BOLT; BRK PIPE
M6X16 W/LK WASHER
0-50040-616-0
02
1
9708-9806
61
BOLT; BRK PIPE
M6X16 FLANGE
0-28680-616-0
02
1
9807-9809
61
BOLT; BRK PIPE
M6X16 FLANGE
0-28480-616-0
02
1
9810-
11
11
11
22
13
11
11
11
11
12
13
11
68
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; OIL PIPE
(D)
8-94107-743-0
01
1
9708-9903
11
CLIP; OIL PIPE
(G)
8-94122-333-0
02
1
9708-9812
11
CLIP; OIL PIPE
(G) ID=6.4 & 4.8X2
8-94146-043-0
02
1
9901-
11
CLIP; OIL PIPE
(E) ID=4.6
8-94241-454-0
01
1
9708-
11
CLIP; OIL PIPE
(C)
8-97035-570-3
01
1
9708-
11
CLIP; OIL PIPE
(B)
8-97037-992-3
05
1
9708-
11
CLIP; OIL PIPE
(A)
8-97062-177-1
03
1
9708-
11
CLIP; OIL PIPE
(F)
8-97069-554-1
01
1
9708-
11
CLIP; OIL PIPE
(H) ID=6.35 & 6.35
8-94474-113-0
02
1
9711-
12
BRACKET; OIL PIPE
8-94382-253-0
01
1
9708-9903
13
BOLT; BRKT,OIL PIPE
M6X12 W/LK WASHER
0-50040-612-0
01
1
9708-9806
13
BOLT; BRKT,OIL PIPE
M6X12 FLANGE
0-28080-612-0
01
1
9807-
22
CLIP; PIPE TO FRAME
8-94442-883-1
01
1
9708-
52
CLIP; BRK PIPE
8-94107-743-0
01
1
9904-
68
BRACKET; CLIP
8-97213-534-0
01
1
9904-
