◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#40484) — 43 parça

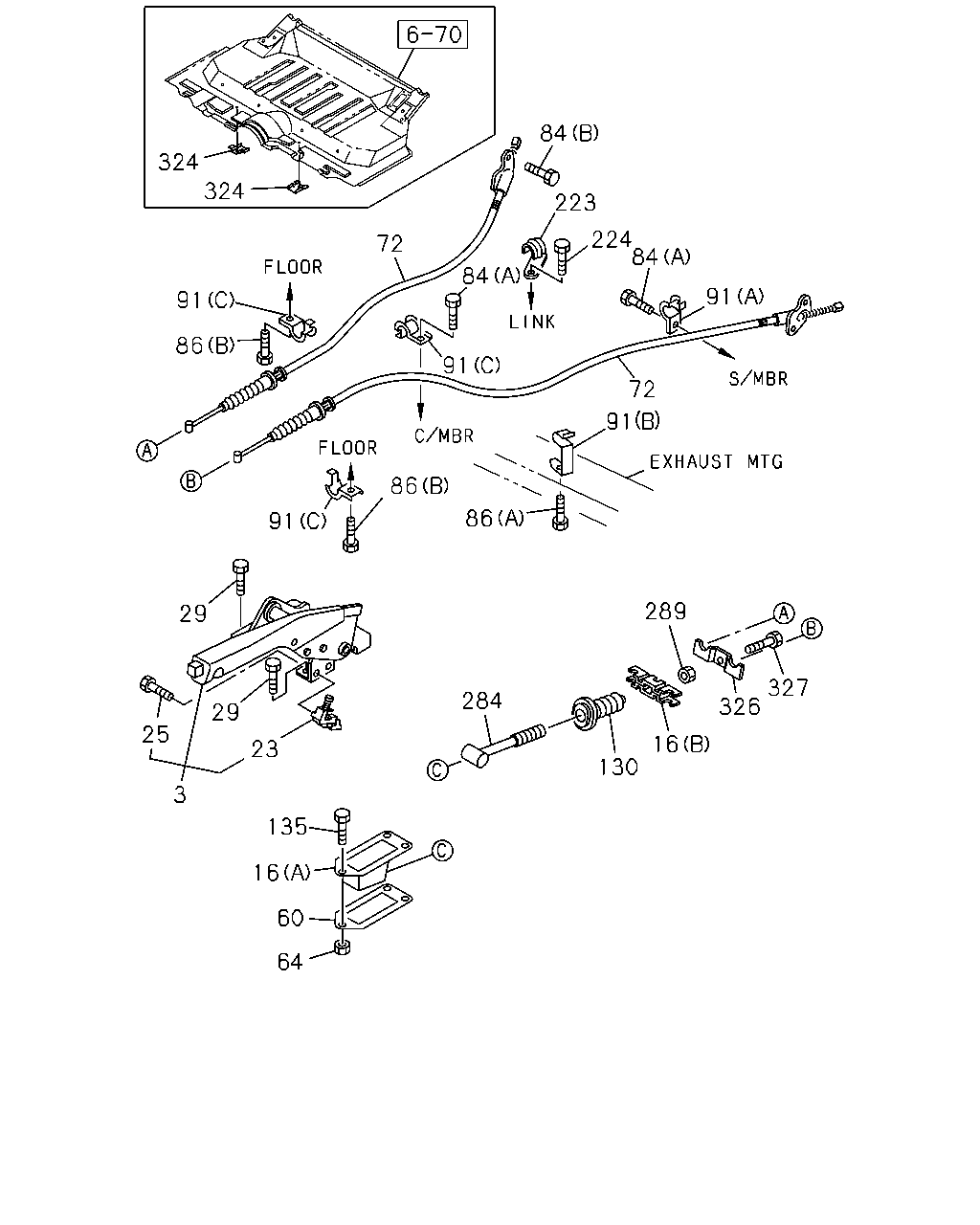

çizim 63938
84 324 324 223 224 84 72 84 91 91 86 91 72 91 86 86 91 289 29 327 326 284 29 25 16 23 130 3 135 16 60 64
BalonParca AdiParca NoAdetTipApplied Date A B
3 LEVER; PARKING BRK
GRADE LTD(RBD) 		8-97132-592-1 01 1 9708-9708 ● ●
3 LEVER; PARKING BRK
GRADE LTD(RBD) 		8-97187-693-0 01 1 9709-9806 ● ●
3 LEVER; PARKING BRK
LEATHER GRIP PACKAGE<7GZ> 		8-97187-693-0 01 1 9807- ●
3 LEVER; PARKING BRK
GRADE S(RBA),GRADE LS(RBB) 		8-97132-589-1 01 1 9708-9708 ● ●
3 LEVER; PARKING BRK
GRADE S(RBA),GRADE LS(RBB) 		8-97187-692-0 01 1 9709-9801 ● ●
3 LEVER; PARKING BRK
GRADE LS(RBB) 		8-97187-692-0 01 1 9802-9806 ● ●
3 LEVER; PARKING BRK
EXC. LEATHER GRIP PACKAGE<7GZ> 		8-97187-692-0 01 1 9807- ●
16 BRACKET; PARKING BRK
(A) 		8-97046-793-2 01 1 9708-9809 ● ●
16 BRACKET; PARKING BRK
(A) 		8-97177-857-0 01 1 9810- ● ●
16 BRACKET; PARKING BRK
(B) 		8-97142-956-2 01 1 9708- ● ●
23 SWITCH; PARKING BRK 8-97032-276-0 01 1 9708-9710 ● ●
23 SWITCH; PARKING BRK 8-97094-937-0 01 1 9711-9806 ● ●
23 SWITCH; PARKING BRK 8-97094-937-0 01 1 9807- ●
25 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 9708-9806 ● ●
25 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 9807- ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28680-820-0 04 1 9708- ● ●
60 GASKET; PARKING BRK 8-97046-789-1 01 1 9708- ● ●
64 NUT; PARKING BRK
M8 		9-09110-408-0 01 1 9708- ● ●
72 CABLE; PARKING BRK 8-97131-204-0 01 1 9708-9904 ● ●
72 CABLE; PARKING BRK 8-97227-099-1 01 1 9905- ● ●
72 CABLE; PARKING BRK 8-97131-203-0 01 1 9708-9904 ● ●
72 CABLE; PARKING BRK 8-97227-098-0 01 1 9905- ● ●
84 BOLT; CABLE
(A) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9708-9810 ● ●
84 BOLT; CABLE
(A) M6X12 FLANGE 		0-28080-612-0 02 1 9811-9812 ● ●
84 BOLT; CABLE
(A),(B) M6X12 FLANGE 		0-28080-612-0 06 1 9901- ● ●
84 BOLT; CABLE
(B) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9708-9812 ● ●
86 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9708- ● ●
86 BOLT
(B) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9708-9810 ● ●
86 BOLT
(B) M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97021-566-0 01 1 9708-0108 ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-97146-506-0 01 1 9708- ● ●
91 CLIP; PARKING BRK CABLE
(C) ID=14 		9-09916-883-0 03 1 9708- ● ●
130 COVER; DUST,PARK BRK LEVER 8-97142-954-0 01 1 9708- ● ●
135 BOLT; PARKING BRK BRKT
M6X14 W/PL WASHER 		8-94204-636-0 03 1 9708- ● ●
223 CLIP; PARKING BRK CABLE 8-94387-628-1 01 1 9708- ● ●
223 CLIP; PARKING BRK CABLE 8-94387-627-1 01 1 9708- ● ●
224 BOLT; CABLE CLIP
M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9708-9810 ● ●
224 BOLT; CABLE CLIP
M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ●
284 ROD; HAND BRK 8-97142-955-1 01 1 9708- ● ●
289 NUT; PARKING BRK
M8 FLANGE 		0-91150-108-0 01 1 9708- ● ●
324 BRACKET 8-97801-525-0 02 1 9708- ● ●
326 RETAINER; PARK CABLE 8-97024-708-0 01 1 9708- ● ●
327 BOLT; RETAINER
M8X25 FLANGE 		0-28680-825-0 01 1 9708- ● ●
