3-10 — BRAKE PEDAL AND CONTROL (#40483) — 28 parça

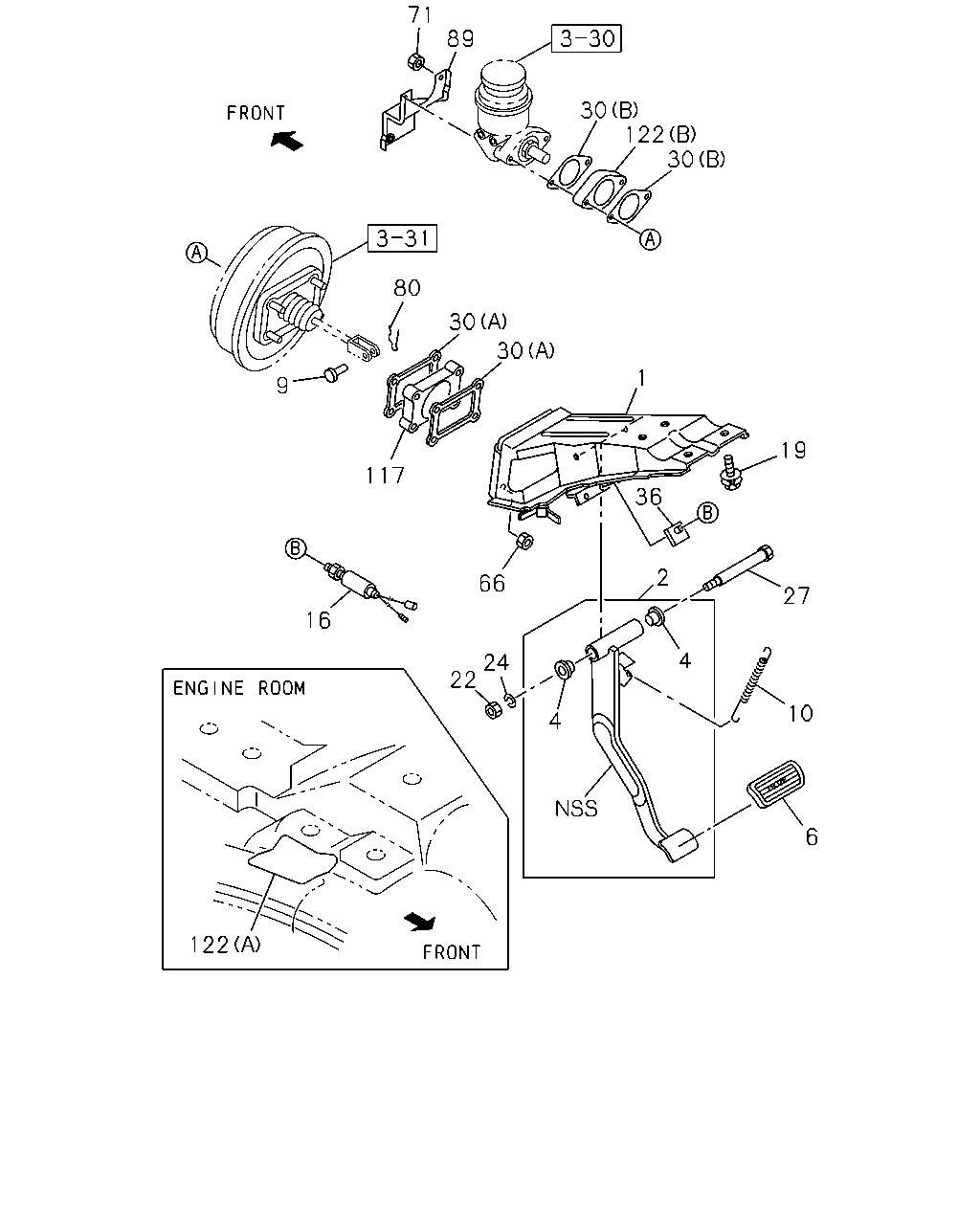

çizim 65262
71 89 30 122 30 80 30 30 1 9 19 117 36 2 66 27 16 4 24 22 10 4 6 122
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-97093-778-3 01 1 9708-
2 PEDAL; BRK
A/T THM(RMQ) 		8-97093-782-0 01 1 9708-9806
2 PEDAL; BRK 8-97093-782-1 01 1 9807-
2 PEDAL; BRK
M/T AR-5 5 SPEED(RNK) 		8-97093-781-0 01 1 9708-9806
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 9708-
6 COVER; BRK PEDAL
A/T THM(RMQ) 		8-94249-897-0 01 1 9708-9806
6 COVER; BRK PEDAL 8-94249-897-0 01 1 9807-
6 COVER; BRK PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94222-524-1 01 1 9708-9806
9 PIN; JAW JOINT 8-94250-182-0 01 1 9708-
10 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9708-
16 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-94109-863-0 01 1 9708-9801
16 SWITCH; STOP LAMP 8-94109-863-0 01 1 9802-
16 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 12V 12A 		8-94362-930-0 01 1 9708-9801
19 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 9708-
22 NUT; SHAFT
M10 		9-09110-410-0 01 1 9708-
24 WASHER; PL,SHAFT
ID=10.2 		9-09150-510-0 01 1 9708-
27 SHAFT; BRK PEDAL 8-94384-221-0 01 1 9708-
30 GASKET; M/VAC TO BODY
(A) 		8-94111-590-0 02 1 9708-
30 GASKET; M/VAC TO BODY
(B) 		8-97178-015-0 02 1 9708-0306
30 GASKET; M/VAC TO BODY
(B) 		8-97366-719-0 02 1 0307-
36 STOPPER; BRK PEDAL 8-97302-305-0 01 1 0109-
66 NUT; SERVO TO BRKT
M8 FLANGE 		5-09440-005-0 04 1 9708-
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9708-
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9708-
89 BRACKET; M/CYL 8-97109-658-0 01 1 9708-
117 SPACER; M/VAC TO BODY 8-94440-231-0 01 1 9708-
122 SPACER; BRK M/CYL
(A) 45X45 T=0.08 		8-94238-288-1 01 1 9708-0101
122 SPACER; BRK M/CYL
(B) 		8-97178-014-0 01 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
