Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
3 - Brakes, Brake System
▶
3-06 - REAR DISC BRAKE CALIPER
▶

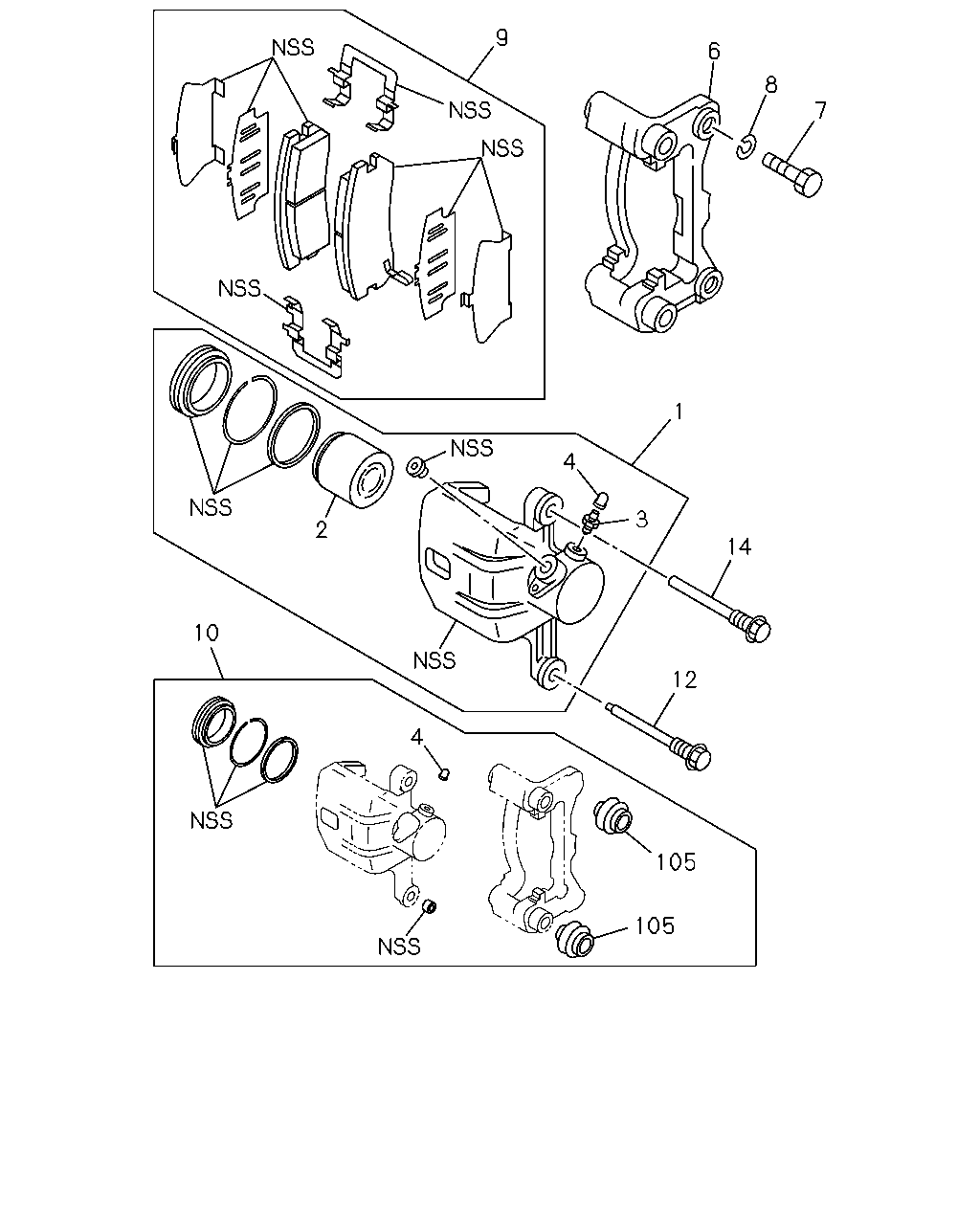

3-06 — REAR DISC BRAKE CALIPER
(#40481) — 15 parça
9
6
8
7
1
4
3
2
14
10
12
4
105
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; RR DISC BRK
8-97144-479-0
01
1
9708-
1
CALIPER; RR DISC BRK
8-97144-478-0
01
1
9708-
2
PISTON; CALIPER,RR
8-97035-261-0
02
1
9708-
3
SCREW; BLEEDER,CALIPER,RR
8-97113-867-0
02
1
9708-
4
CAP; BLEEDER SCREW,CALIPER,RR
1-47619-009-0
02
1
9708-
6
BRACKET; SUPPORT,RR DISC BRK
8-97035-260-0
02
1
9708-
7
BOLT; DISC BRK
M12X27
8-97126-215-1
04
1
9708-0206
7
BOLT; DISC BRK
M12X27
8-97351-108-0
04
1
0207-
8
WASHER; LK,DISC BRK
ID=12
9-09150-812-0
04
1
9708-
9
PAD KIT; CALIPER,RR
8-97175-530-0
01
1
9708-9708
9
PAD KIT; CALIPER,RR
8-97035-266-0
01
1
9709-
10
REPAIR KIT; DISC BRK,RR
8-97134-718-0
01
1
9708-
12
PIN; RET,CALIPER,RR DISC BRK
8-94362-821-0
02
1
9708-
14
PIN; GUIDE,CALIPER
8-94362-820-0
02
1
9708-
105
BOOT; PIN
8-94362-823-0
04
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
