50803 - UBS(TAIWAN)-LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

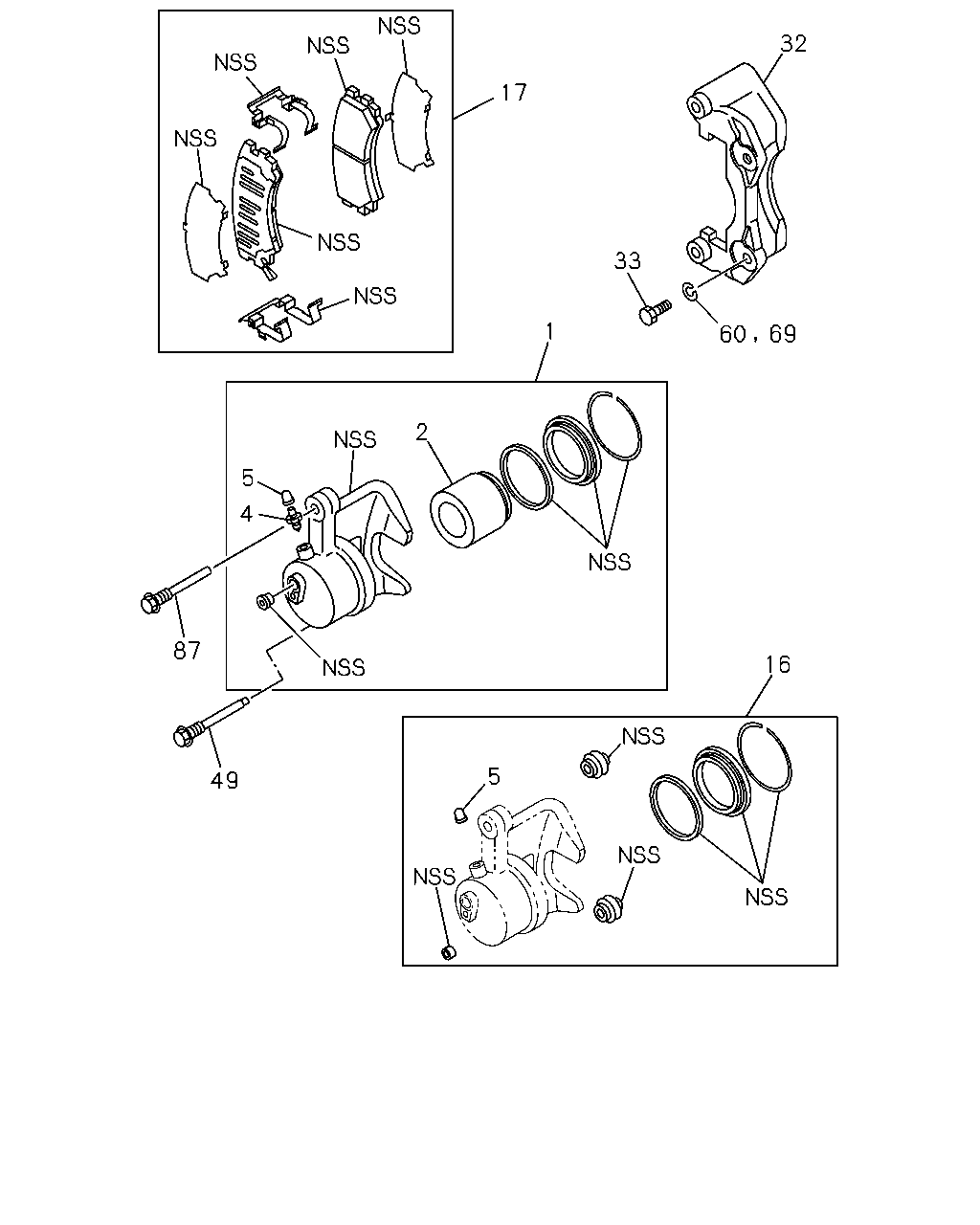

3-02 — FRONT DISC BRAKE CALIPER
(#40480) — 15 parça
32
17
33
1
69
60
2
5
4
87
16
5
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
8-97144-477-0
01
1
9708-
1
CALIPER; FRT DISC BRK
8-97144-476-0
01
1
9708-
2
PISTON; CALIPER,DISC BRK,FRT
8-94438-689-0
02
1
9708-
4
SCREW; BLEEDER,DISC BRK,FRT
8-97113-867-0
02
1
9708-
5
CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
9708-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97134-716-0
01
1
9708-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97175-531-0
01
1
9708-9708
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97035-257-1
01
1
9709-
32
SUPPORT; FRT DISC BRK
8-97035-250-1
02
1
9708-
33
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
04
1
9708-0203
33
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
04
1
0204-
49
PIN; SLIDE,CALIPER
8-97035-254-0
02
1
9708-
60
WASHER; LK,SUPPORT BRKT TO KNUCKLE
ID=14
9-09150-814-0
02
1
9708-
69
WASHER; LK,FRT DISC BRK
ID=14
9-09150-814-0
02
1
9708-
87
PIN; LOCK
8-97035-255-0
02
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
