Sayfa 2-66 - Isuzu EPC

2-66 — MANUAL TRANSFER GEAR; OUTPUT (#40479) — 48 parça

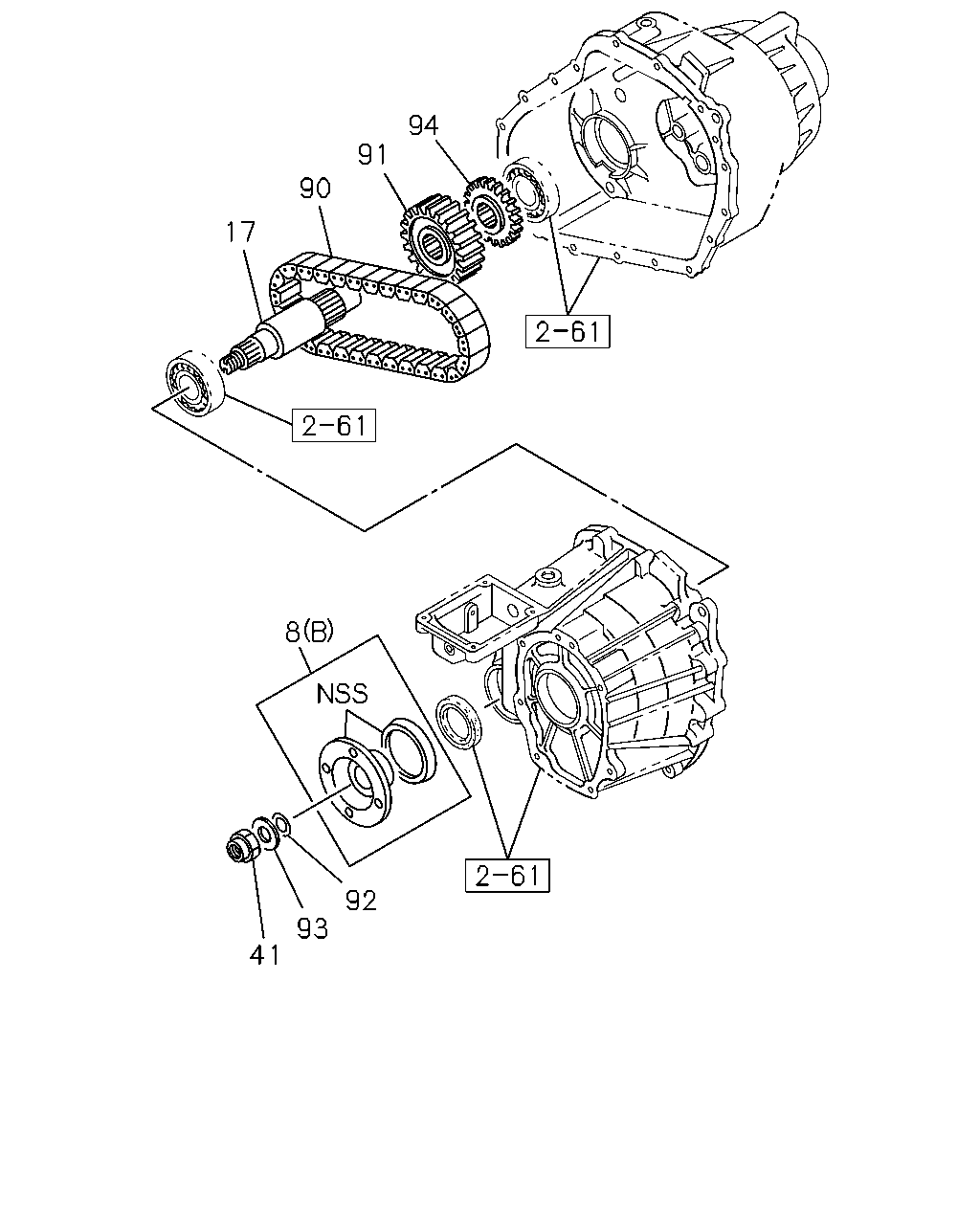

94 91 90 17 8 92 93 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9708-9905
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9708-
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9708-0004
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-
17	SHAFT; OUTPUT TORQUE ON DEMAND<7HA>	8-97129-242-0	01	1	9708-
41	NUT; FLANGE LK,OUTPUT TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9708-
90	CHAIN; DRIVE TORQUE ON DEMAND<7HA>	8-97129-237-0	01	1	9708-
91	SPROCKET; LWR DRIVE TORQUE ON DEMAND<7HA>	8-97129-240-0	01	1	9708-
92	SEAL; FLANGE TORQUE ON DEMAND<7HA>	8-97129-249-0	02	1	9708-9907
92	SEAL; FLANGE TORQUE ON DEMAND<7HA>	8-97129-247-0	02	1	9908-
93	WASHER; FLANGE TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9708-
94	WHEEL; TONE TORQUE ON DEMAND<7HA>	8-97129-254-0	01	1	9708-

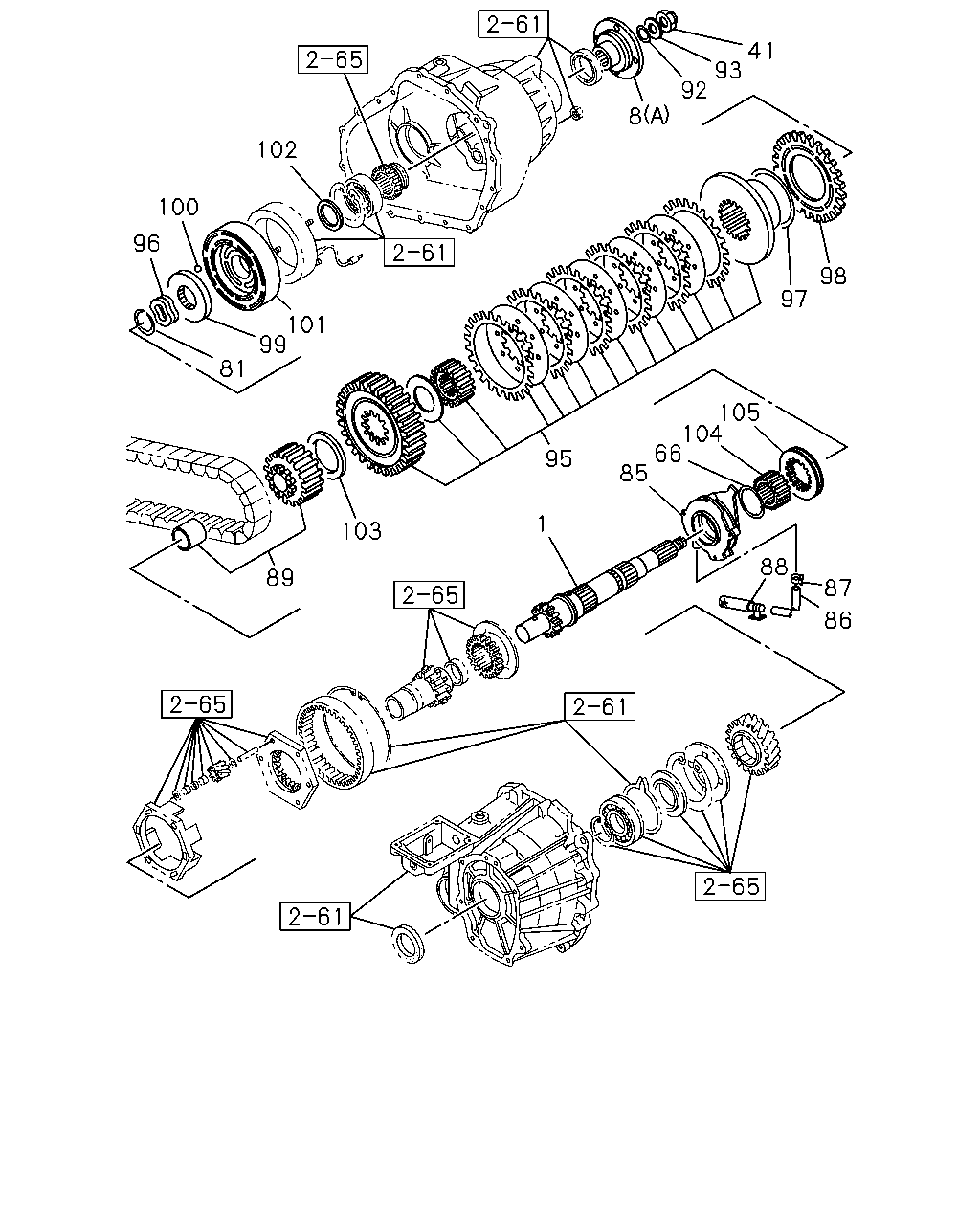

41 93 92 8 102 100 96 98 97 101 99 81 105 104 66 85 95 1 103 88 89 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; GEAR,OUTPUT,RR TORQUE ON DEMAND<7HA>	8-97129-178-0	01	1	9708-
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9708-9905
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9708-
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9708-0004
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-
41	NUT; FLANGE LK,OUTPUT TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9708-
66	WASHER; THRUST,DIST PIECE,TRANSFER TORQUE ON DEMAND<7HA>	8-97129-233-0	01	1	9708-
81	RING; SNAP TORQUE ON DEMAND<7HA>	8-97129-259-0	01	1	9708-
85	PUMP; OIL,TRANSFER TORQUE ON DEMAND<7HA>	8-97129-179-0	01	1	9708-
86	HOSE; OIL PUMP TORQUE ON DEMAND<7HA>	8-97129-220-0	01	1	9708-
87	CLAMP; HOSE TORQUE ON DEMAND<7HA>	8-97129-230-0	01	1	9708-
88	FILTER; OIL PUMP TORQUE ON DEMAND<7HA>	8-97129-232-0	01	1	9708-
89	SPROCKET; DRIVE TORQUE ON DEMAND<7HA>	8-97129-236-0	01	1	9708-
92	SEAL; FLANGE TORQUE ON DEMAND<7HA>	8-97129-249-0	02	1	9708-9907
92	SEAL; FLANGE TORQUE ON DEMAND<7HA>	8-97129-247-0	02	1	9908-
93	WASHER; FLANGE TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9708-
95	CLUTCH ASM; TRANSFER TORQUE ON DEMAND<7HA>	8-97181-588-0	01	1	9708-
96	SPRING; WAVE,CLUTCH TORQUE ON DEMAND<7HA>	8-97129-258-0	01	1	9708-
97	WASHER; CLUTCH TORQUE ON DEMAND<7HA>	8-97129-260-0	01	1	9708-
98	ARMATURE; CLUTCH TORQUE ON DEMAND<7HA>	8-97129-261-0	01	1	9708-
99	CAM; APPLY TORQUE ON DEMAND<7HA>	8-97129-262-0	01	1	9708-
100	BALL; CAM TORQUE ON DEMAND<7HA>	8-97129-263-0	03	1	9708-
101	HOUSING; COIL,TRANSFER TORQUE ON DEMAND<7HA>	8-97129-264-0	01	1	9708-
102	WASHER; THRUST,CLUTCH TORQUE ON DEMAND<7HA>	8-97129-265-0	01	1	9708-
103	SPACER; CLUTCH TORQUE ON DEMAND<7HA>	8-97129-286-0	01	1	9708-
104	HUB; LOCKUP TORQUE ON DEMAND<7HA>	8-97129-287-0	01	1	9708-
105	SLEEVE; LOCKUP TORQUE ON DEMAND<7HA>	8-97129-288-0	01	1	9708-

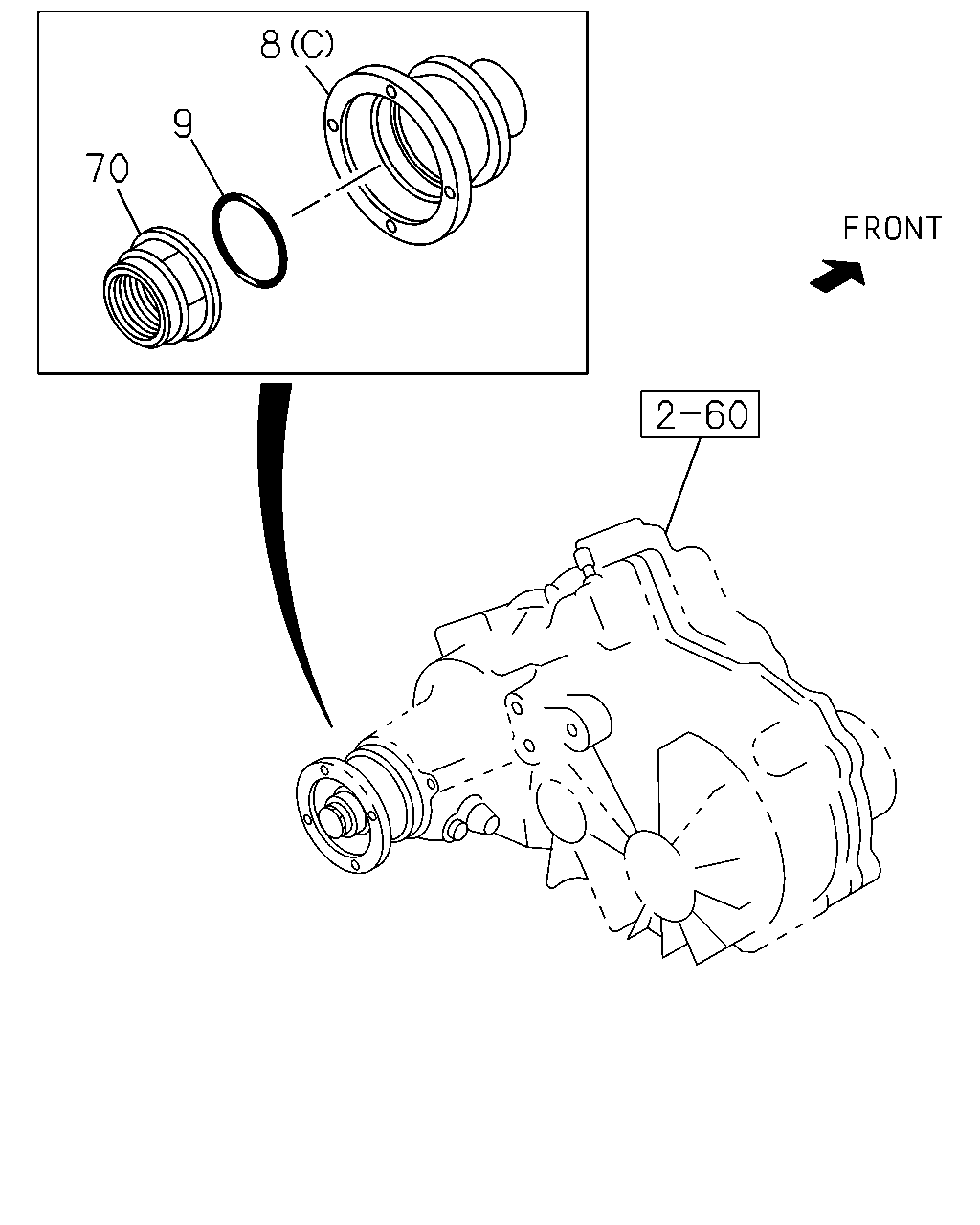

8 9 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9708-9905
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-
8	FLANGE; OUTPUT TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9708-
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9708-0004
8	FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-
9	GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	9-09561-326-0	01	1	9708-
70	NUT; RR OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> M24	8-94385-985-1	01	1	9708-
