2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#40478) — 20 parça

21 25 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; GEAR,INPUT TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9708-
1	SHAFT; GEAR,INPUT EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9708-
7	SPACER; INPUT SHAFT BRG EXC. TORQUE ON DEMAND<7HA>	8-94368-834-3	01	1	9708-
21	RING; SNAP,PILOT BRG TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9708-
21	RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9708-
25	BEARING; BALL,INPUT SHAFT TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9708-
25	BEARING; BALL,INPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-052-0	01	1	9708-

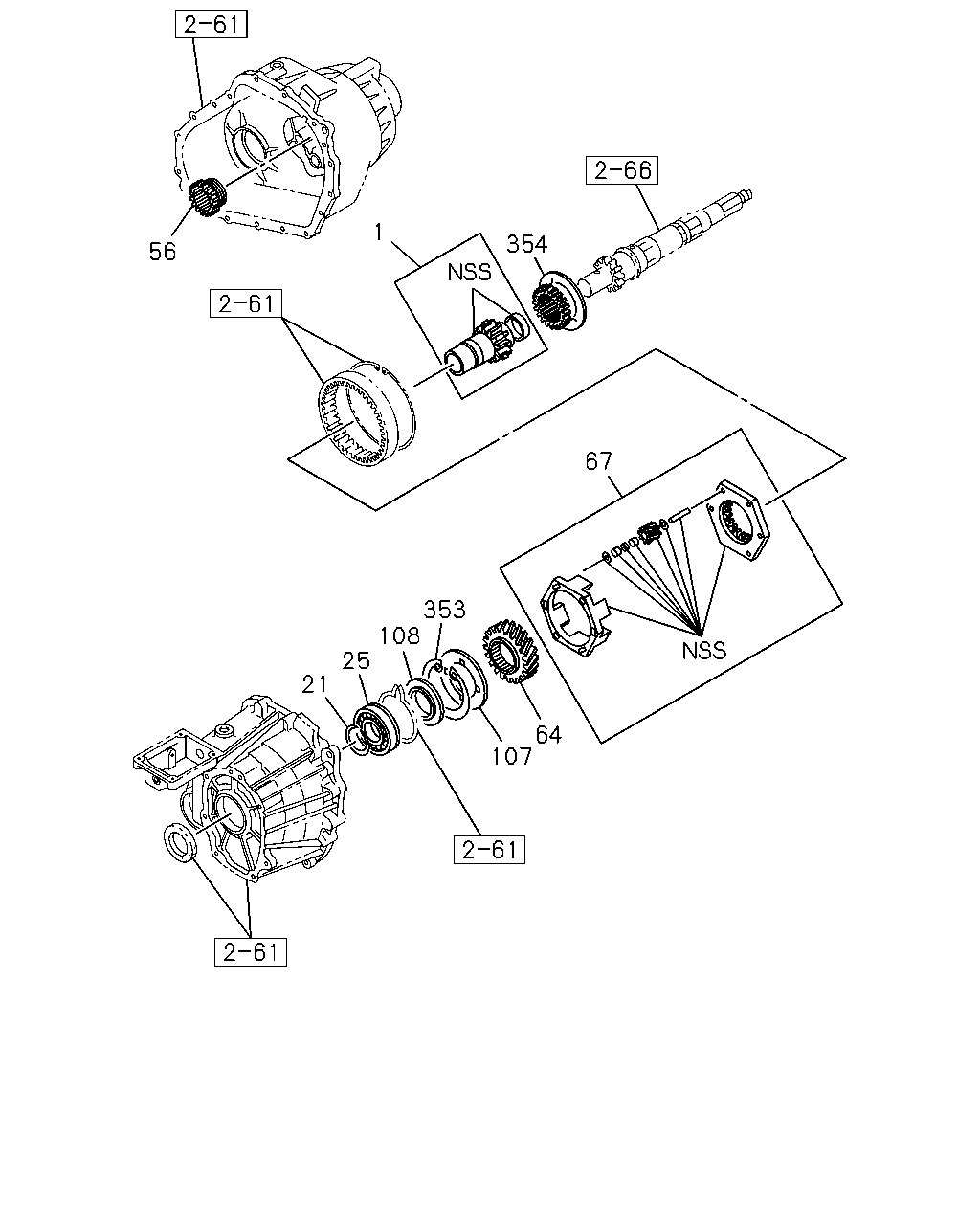

1 354 56 67 353 108 25 21 64 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; GEAR,INPUT TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9708-
1	SHAFT; GEAR,INPUT EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9708-
21	RING; SNAP,PILOT BRG TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9708-
21	RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9708-
25	BEARING; BALL,INPUT SHAFT TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9708-
25	BEARING; BALL,INPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-052-0	01	1	9708-
56	GEAR; SPD DRIVE,TRANSFER TORQUE ON DEMAND<7HA>	8-97129-270-0	01	1	9708-
64	GEAR; SUN,TRANSFER TORQUE ON DEMAND<7HA>	8-97129-044-0	01	1	9708-
67	CARRIER; TRANSFER TORQUE ON DEMAND<7HA>	8-97129-048-0	01	1	9708-
107	PLATE; THRUST,SUN GEAR TORQUE ON DEMAND<7HA>	8-97129-045-0	01	1	9708-
108	HUB; INPUT SHAFT TORQUE ON DEMAND<7HA>	8-97129-046-0	01	1	9708-
353	RING; SNAP,CARRIER TORQUE ON DEMAND<7HA>	8-97129-049-0	01	1	9708-
354	HUB; REDUCTION TORQUE ON DEMAND<7HA>	8-97129-050-0	01	1	9708-
