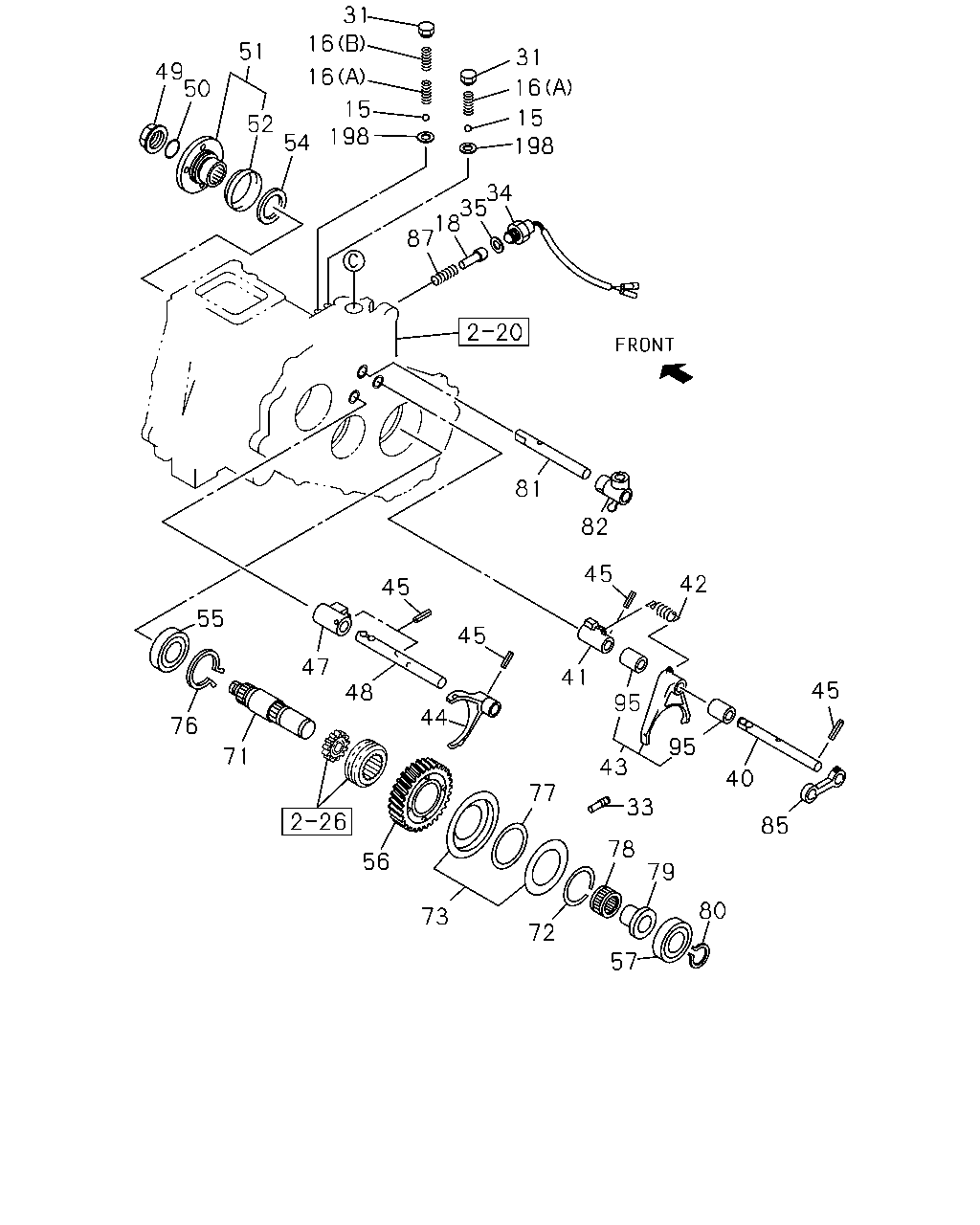

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#40477) — 89 parça

31 16 51 31 49 50 16 16 15 198 15 198 52 54 34 35 18 87 81 82 45 42 45 55 45 47 41 45 48 95 44 76 95 71 43 40 77 33 85 78 56 79 80 73 72 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BALL; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94435-335-0	02	1	9708-
16	SPRING; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA> (A) L=23.4	8-97145-374-0	02	1	9708-0005
16	SPRING; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA> (A) L=26.8	8-94320-193-0	02	1	0006-
16	SPRING; DETENT,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA> (B) L=23.2	8-97241-351-0	01	1	0006-
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94461-898-0	01	1	9708-
31	PLUG; DETENT BALL,TRANSFER EXC. TORQUE ON DEMAND<7HA> M12X9	9-99202-312-0	02	1	9708-
33	SCREW; STOPPER,TRANSFER EXC. TORQUE ON DEMAND<7HA> M6X18	8-94448-812-2	01	1	9708-
34	SWITCH; TRANSFER INDICATOR EXC. TORQUE ON DEMAND<7HA>	8-97138-632-1	01	1	9708-
35	GASKET; INDICATOR SWITCH,TRANSFER EXC. TORQUE ON DEMAND<7HA> ID=14.2 OD=20.0	9-09571-414-0	01	1	9708-
40	ROD; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97127-547-0	01	1	9708-
41	BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97068-781-0	01	1	9708-9809
41	BLOCK; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97210-555-0	01	1	9810-
42	SPRING; GEAR LOCK RELEASE,TRANSFER EXC. TORQUE ON DEMAND<7HA> L=30	8-94422-188-0	01	1	9708-
43	ARM; SHIFT,4X2-4X4,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97100-915-2	01	1	9708-
44	ARM; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94421-922-3	01	1	9708-
45	PIN; SPR,SHIFT ARM TO ROD EXC. TORQUE ON DEMAND<7HA> D=4.2 L=25	8-94171-541-0	05	1	9708-
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97141-883-1	01	1	9708-
48	ROD; SHIFT,HIGH-LOW,TRANSFER A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-97148-999-0	01	1	9708-9708
48	ROD; SHIFT,HIGH-LOW,TRANSFER M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-97182-406-0	01	1	9708-9708
48	ROD; SHIFT,HIGH-LOW,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97182-406-1	01	1	9709-
49	NUT; COUPLING DRIVER,FRT OUTPUT EXC. TORQUE ON DEMAND<7HA> M27 FLANGE	8-94422-073-0	01	1	9708-
50	GASKET; COUPLING DRIVER,FRT OUTPUT EXC. TORQUE ON DEMAND<7HA>	8-94483-035-0	01	1	9708-
51	FLANGE ASM; COUPLING DRIVER,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94453-699-7	01	1	9708-
52	COVER; DUST,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA>	8-94320-867-3	01	1	9708-
54	SEAL; OIL,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-702-0	01	1	9708-0010
54	SEAL; OIL,TRANSFER FLANGE EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-703-2	01	1	9708-
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-172-1	01	1	9708-
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=49	8-97126-101-1	01	1	9708-
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-052-0	01	1	9708-
71	SHAFT; TRANSFER OUTPUT EXC. TORQUE ON DEMAND<7HA>	8-94377-437-5	01	1	9708-
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-94482-501-0	01	1	9708-9806
73	PLATE ASM; ANTI LASH,TRANSFER GEAR M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-97164-346-0	01	1	9708-9806
76	RING; SNAP,BRG OUTER,TRANSFER EXC. TORQUE ON DEMAND<7HA> OD=77.0	8-94422-092-0	01	1	9708-
77	SPRING; BELLEVILLE,ANTI LASH PLATE M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-94482-499-0	01	1	9708-9806
78	BEARING; FRT OUTPUT GEAR,TRANSFER EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-064-0	01	1	9708-
78	BEARING; FRT OUTPUT GEAR,TRANSFER EXC. TORQUE ON DEMAND<7HA> KOYO	8-94422-065-1	01	1	9809-
79	COLLAR; FRT OUTPUT GEAR,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94422-076-1	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.55 WHITE	8-94422-180-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.60 YELLOW	8-94422-181-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.65 BLUE	8-94422-182-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.70 PINK	8-94422-183-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.75 GREEN	8-94422-184-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.80 BROWN	8-94422-185-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.85 RED	8-94422-186-0	01	1	9708-
80	RING; FRT OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> T=1.90 ORANGE	8-94422-187-0	01	1	9708-
81	ROD; TRANSFER SELECT EXC. TORQUE ON DEMAND<7HA>	8-94370-499-2	01	1	9708-
82	BLOCK; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97033-092-1	01	1	9708-
85	BRIDGE; CONT ROD,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97128-522-0	01	1	9708-
87	SPRING; INTER LOCK,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94461-897-0	01	1	9708-
95	BUSHING EXC. TORQUE ON DEMAND<7HA>	8-97103-115-0	02	1	9708-
198	GASKET; PLUG,DETENT EXC. TORQUE ON DEMAND<7HA> ID=12.2	1-09630-084-0	02	1	0006-

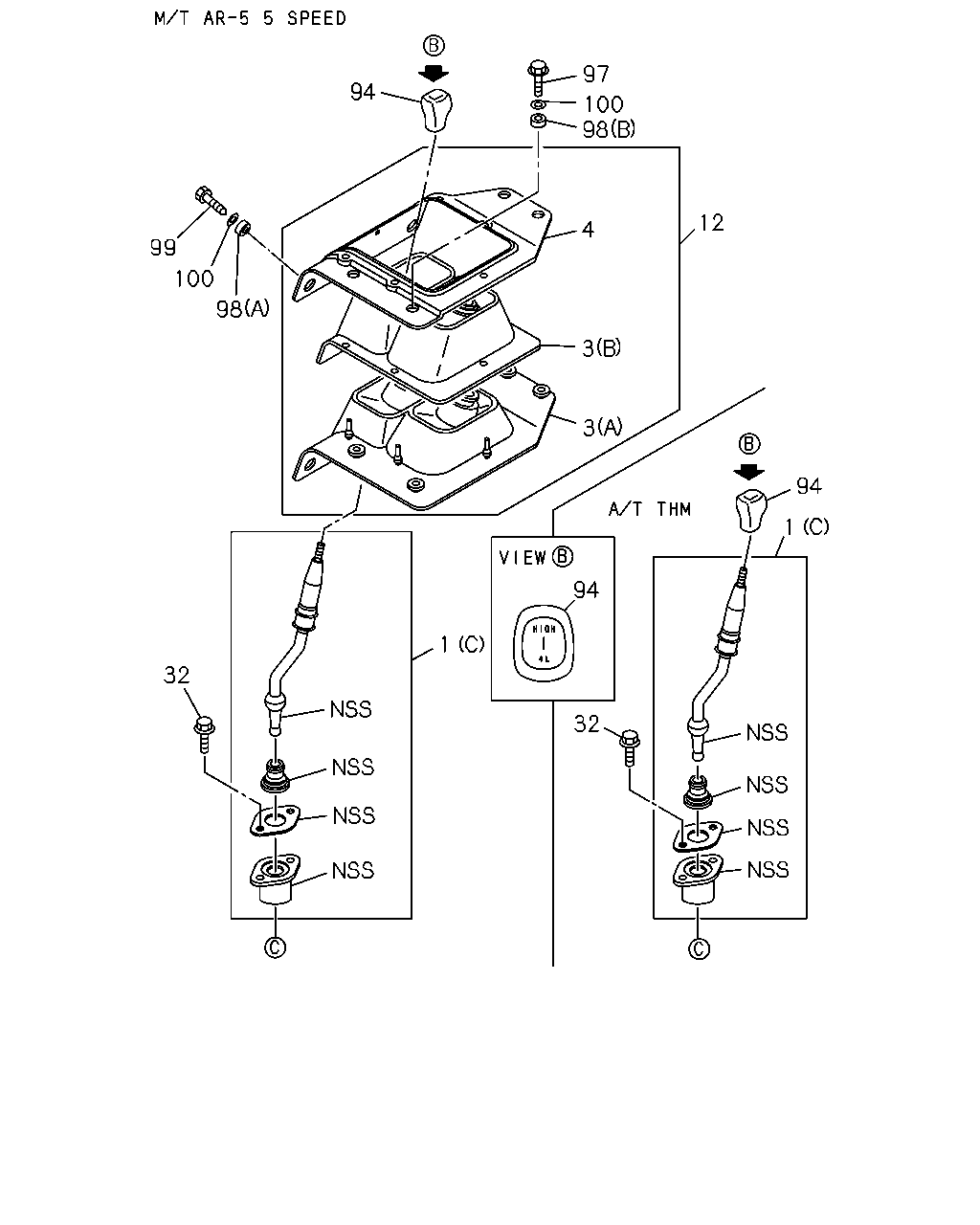

97 100 98 94 12 4 99 100 98 3 3 94 1 94 1 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (B)	8-97181-589-0	01	1	9708-
1	LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (A)	8-97090-614-0	01	1	9708-
1	LEVER ASM; TRANSFER CONT EXC. TORQUE ON DEMAND<7HA> (C)	8-97179-997-2	01	1	9708-
3	COVER; DUST,CHANGE LEVER M/T AR-5 5 SPEED(RNK) (A)	8-94381-105-2	01	1	9708-9806
3	COVER; DUST,CHANGE LEVER M/T AR-5 5 SPEED(RNK) (B)	8-94381-106-1	01	1	9708-9806
4	RETAINER; CHANGE LEVER,TRANSFER M/T AR-5 5 SPEED(RNK)	8-94381-046-1	01	1	9708-9806
12	GROMMET; TRANSFER LEVER M/T AR-5 5 SPEED(RNK)	8-97185-203-0	01	1	9708-9806
32	BOLT; CHANGE LEVER TO SIDE CASE EXC. TORQUE ON DEMAND<7HA> M8X20 FLANGE	0-28680-820-0	02	1	9708-
94	KNOB; TRANSFER LEVER A/T THM(RMQ) GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9708-9806
94	KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9807-
94	KNOB; TRANSFER LEVER GRADE S(RBA),GRADE LS(RBB) EXC. TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9708-9801
94	KNOB; TRANSFER LEVER GRADE LS(RBB) EXC. TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9802-9806
94	KNOB; TRANSFER LEVER EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9807-
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE LTD(RBD)	8-97163-253-0	01	1	9708-9806
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> LEATHER GRIP PACKAGE<7GZ>	8-97163-253-0	01	1	9807-
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE S(RBA),GRADE LS(RBB)	8-97163-250-0	01	1	9708-9801
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE LS(RBB)	8-97163-250-0	01	1	9802-9806
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> EXC. LEATHER GRIP PACKAGE<7GZ>	8-97163-250-0	01	1	9807-
97	BOLT; GROMMET M/T AR-5 5 SPEED(RNK) M8X25 W/LK&PL WASHER	8-94411-977-0	04	1	9708-9806
98	PIECE; DIST,GROMMET M/T AR-5 5 SPEED(RNK) (A) OD=13 T=4.5	8-94230-464-1	02	1	9708-9806
98	PIECE; DIST,GROMMET M/T AR-5 5 SPEED(RNK) (B) OD=15 T=6.8	8-94437-495-0	04	1	9708-9806
99	SCREW; GROMMET M/T AR-5 5 SPEED(RNK)	8-94220-277-0	02	1	9708-9806
100	WASHER; GROMMET M/T AR-5 5 SPEED(RNK) ID=8 OD=22	9-09164-708-0	02	1	9708-9806

94 94 1 1 38 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (B)	8-97181-589-0	01	1	9708-
1	LEVER ASM; TRANSFER CONT TORQUE ON DEMAND<7HA> (A)	8-97090-614-0	01	1	9708-
1	LEVER ASM; TRANSFER CONT EXC. TORQUE ON DEMAND<7HA> (C)	8-97179-997-2	01	1	9708-
38	BOLT; CHANGE LEVER TO CASE TORQUE ON DEMAND<7HA>	8-97129-290-0	04	1	9708-
94	KNOB; TRANSFER LEVER A/T THM(RMQ) GRADE LTD(RBD) EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9708-9806
94	KNOB; TRANSFER LEVER LEATHER GRIP PACKAGE<7GZ> EXC. TORQUE ON DEMAND<7HA>	8-97164-193-0	01	1	9807-
94	KNOB; TRANSFER LEVER GRADE S(RBA),GRADE LS(RBB) EXC. TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9708-9801
94	KNOB; TRANSFER LEVER GRADE LS(RBB) EXC. TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9802-9806
94	KNOB; TRANSFER LEVER EXC. LEATHER GRIP PACKAGE<7GZ>,TORQUE ON DEMAND<7HA>	8-97143-755-0	01	1	9807-
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE LTD(RBD)	8-97163-253-0	01	1	9708-9806
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> LEATHER GRIP PACKAGE<7GZ>	8-97163-253-0	01	1	9807-
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE S(RBA),GRADE LS(RBB)	8-97163-250-0	01	1	9708-9801
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> GRADE LS(RBB)	8-97163-250-0	01	1	9802-9806
94	KNOB; TRANSFER LEVER TORQUE ON DEMAND<7HA> EXC. LEATHER GRIP PACKAGE<7GZ>	8-97163-250-0	01	1	9807-
101	BUSHING; CHANGE LEVER TORQUE ON DEMAND<7HA>	8-97129-327-0	01	1	9708-
