2-61 — TRANSFER CASE AND GEAR SHIFTER (#40476) — 84 parça

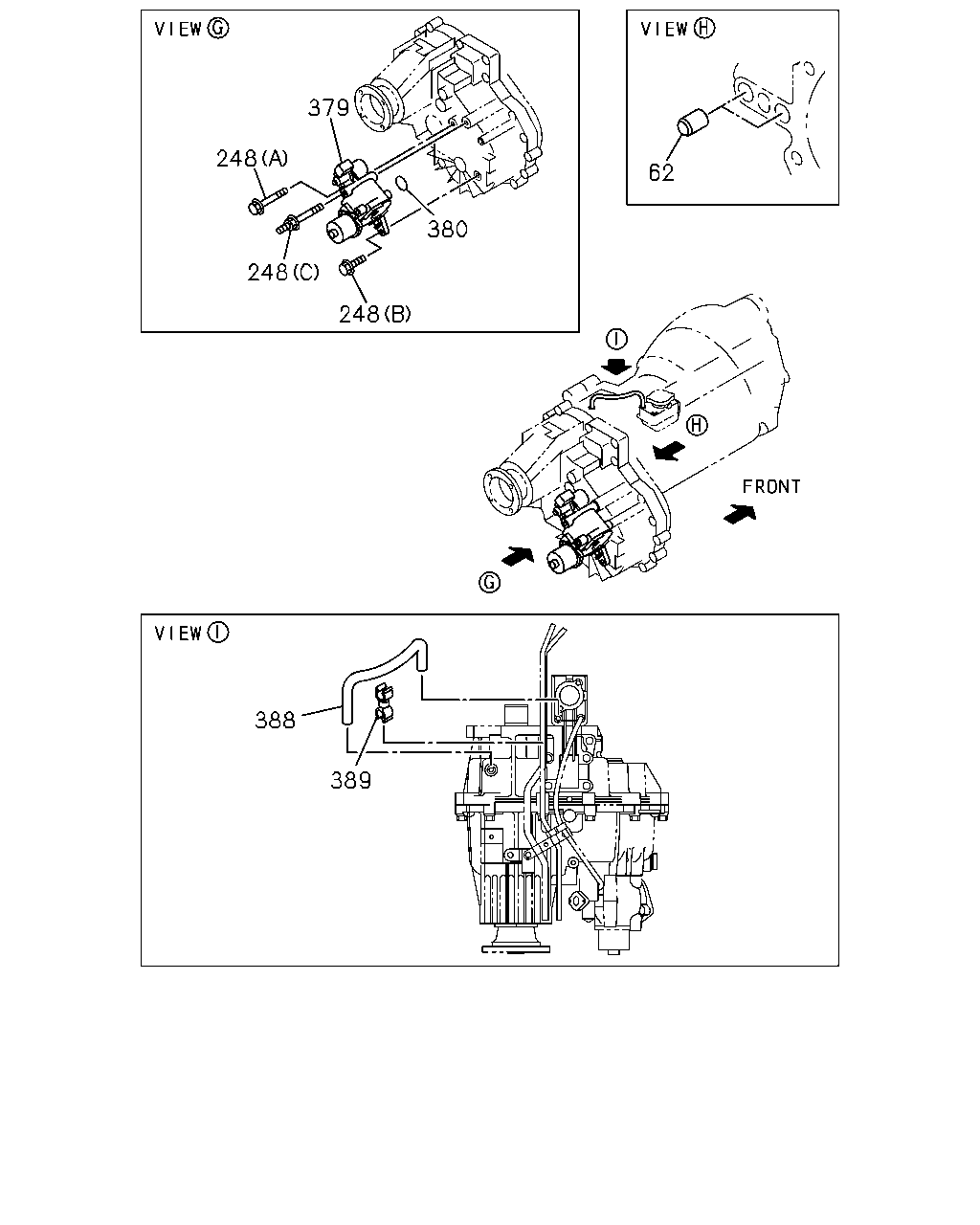

çizim 16658
379 248 62 380 248 248 388 389
BalonParca AdiParca NoAdetTipApplied Date
62 CAP; SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> 		8-94321-479-1 02 1 9708-9902
62 CAP; SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> 		8-97221-078-0 02 1 9903-
248 BOLT
EXC. TORQUE ON DEMAND<7HA> (A) M8X70 FLANGE 		0-28080-870-0 01 1 9708-
248 BOLT
EXC. TORQUE ON DEMAND<7HA> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9708-
248 BOLT
EXC. TORQUE ON DEMAND<7HA> (C) M8 		8-97161-466-0 01 1 9708-
379 ACTUATOR; TRANSFER,2-4 SHIFT
EXC. TORQUE ON DEMAND<7HA> 		8-97182-672-0 01 1 9708-
380 GASKET; ACTUATOR
EXC. TORQUE ON DEMAND<7HA> 		8-97171-385-0 01 1 9708-
388 HOSE; AIR,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-97173-553-0 01 1 9708-
389 CLAMP; HOSE
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> ID=8.3 & 8.3 		8-94426-175-0 02 1 9708-9806
389 CLAMP; HOSE
EXC. TORQUE ON DEMAND<7HA> ID=8.3 & 8.3 		8-94426-175-0 02 1 9807-
389 CLAMP; HOSE
M/T AR-5 5 SPEED(RNK) ID=8.3 & 10 		8-94176-792-0 02 1 9708-9806

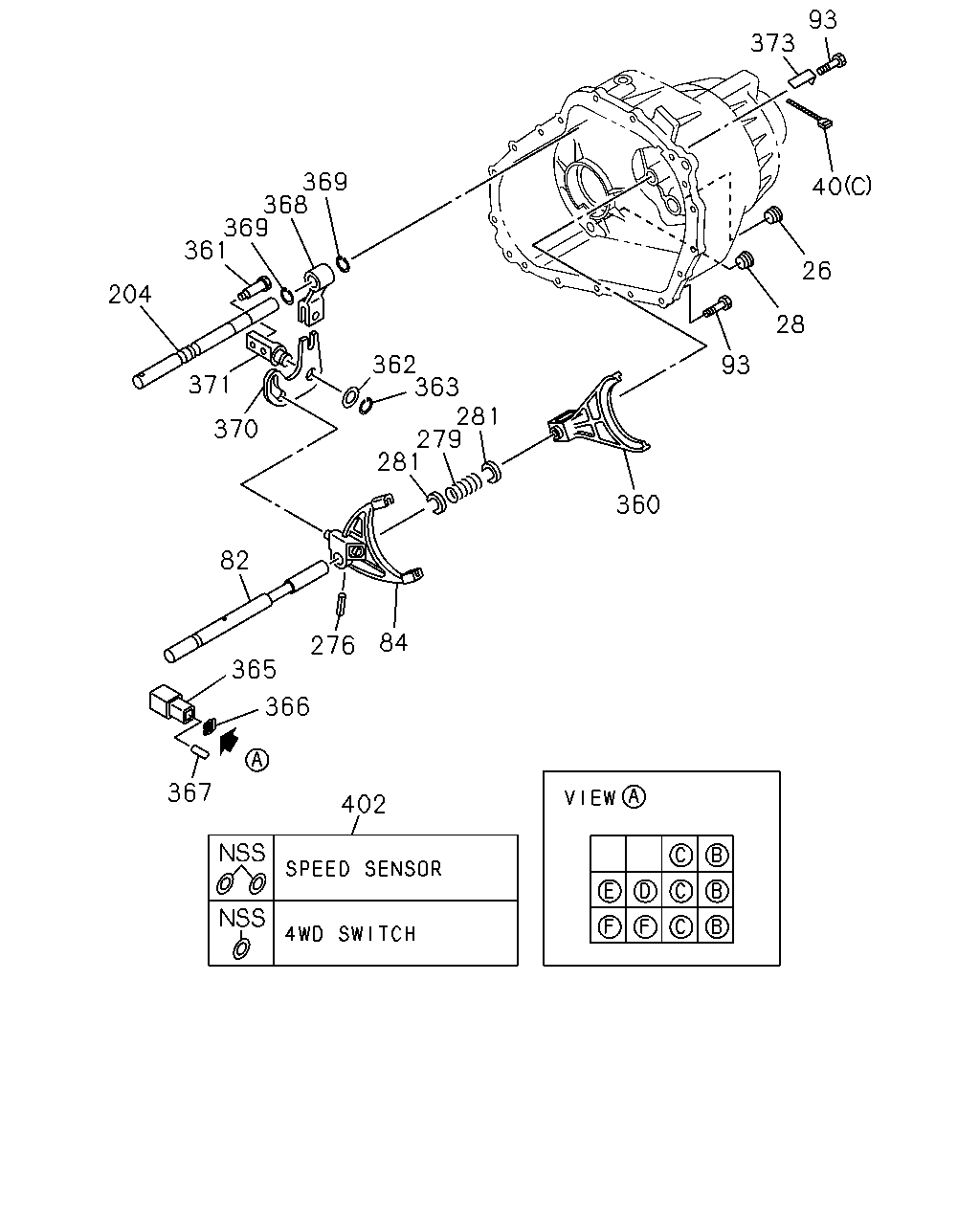

çizim 63843
93 373 369 368 369 361 40 26 204 28 362 363 281 279 281 93 370 371 360 82 84 276 365 366 367 402
BalonParca AdiParca NoAdetTipApplied Date
26 PLUG; FILLER,TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-280-0 01 1 9708-
28 PLUG; DRAIN,TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-280-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (A) 		8-97129-218-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (B) 		8-97129-219-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (C) 		8-97131-242-0 01 1 9708-
82 ROD; SHIFT,LOW & HIGH
TORQUE ON DEMAND<7HA> 		8-97181-577-0 01 1 9708-
84 FORK; SHIFT,LOW & HIGH
TORQUE ON DEMAND<7HA> 		8-97129-051-0 01 1 9708-
93 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND<7HA> 		8-97129-274-0 16 1 9708-
204 ROD; SHIFT,TRANSFER CONT
TORQUE ON DEMAND<7HA> 		8-97129-282-0 01 1 9708-
204 ROD; SHIFT,TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97176-249-2 01 1 9708-
276 PIN; SHIFT FORK
TORQUE ON DEMAND<7HA> 		8-97129-052-0 01 1 9708-
279 SPRING; SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-284-0 01 1 9708-
281 RETAINER; SPRING
TORQUE ON DEMAND<7HA> 		8-97129-285-0 02 1 9708-
360 FORK; SHIFT,LOCKUP
TORQUE ON DEMAND<7HA> 		8-97129-283-0 01 1 9708-
361 BOLT; CAM PIVOT
TORQUE ON DEMAND<7HA> 		8-97129-289-0 02 1 9708-
362 WASHER; THRUST,CAM
TORQUE ON DEMAND<7HA> 		8-97129-332-0 01 1 9708-
363 RING; SNAP,CAM
TORQUE ON DEMAND<7HA> 		8-97129-333-0 01 1 9708-
365 CONNECTOR; HARNESS
TORQUE ON DEMAND<7HA> 		8-97129-211-0 01 1 9708-
366 HOLDER; LOCK
TORQUE ON DEMAND<7HA> 		8-97129-212-0 01 1 9708-
367 PLUG; CONNECTOR
TORQUE ON DEMAND<7HA> 		8-97129-213-0 01 1 9708-
368 LEVER; REDUCTION
TORQUE ON DEMAND<7HA> 		8-97129-214-0 01 1 9708-
369 RING; SNAP,REDUCTION LEVER
TORQUE ON DEMAND<7HA> 		8-97129-215-0 02 1 9708-
370 CAM; SHIFT
TORQUE ON DEMAND<7HA> 		8-97129-216-0 01 1 9708-
371 BLOCK; CAM PIVOT
TORQUE ON DEMAND<7HA> 		8-97129-217-0 01 1 9708-
373 BRACKET; HARNESS
TORQUE ON DEMAND<7HA> 		8-97181-314-0 01 1 9708-
402 GASKET SET; SWITCH
TORQUE ON DEMAND<7HA> 		8-97217-758-0 01 1 9809-

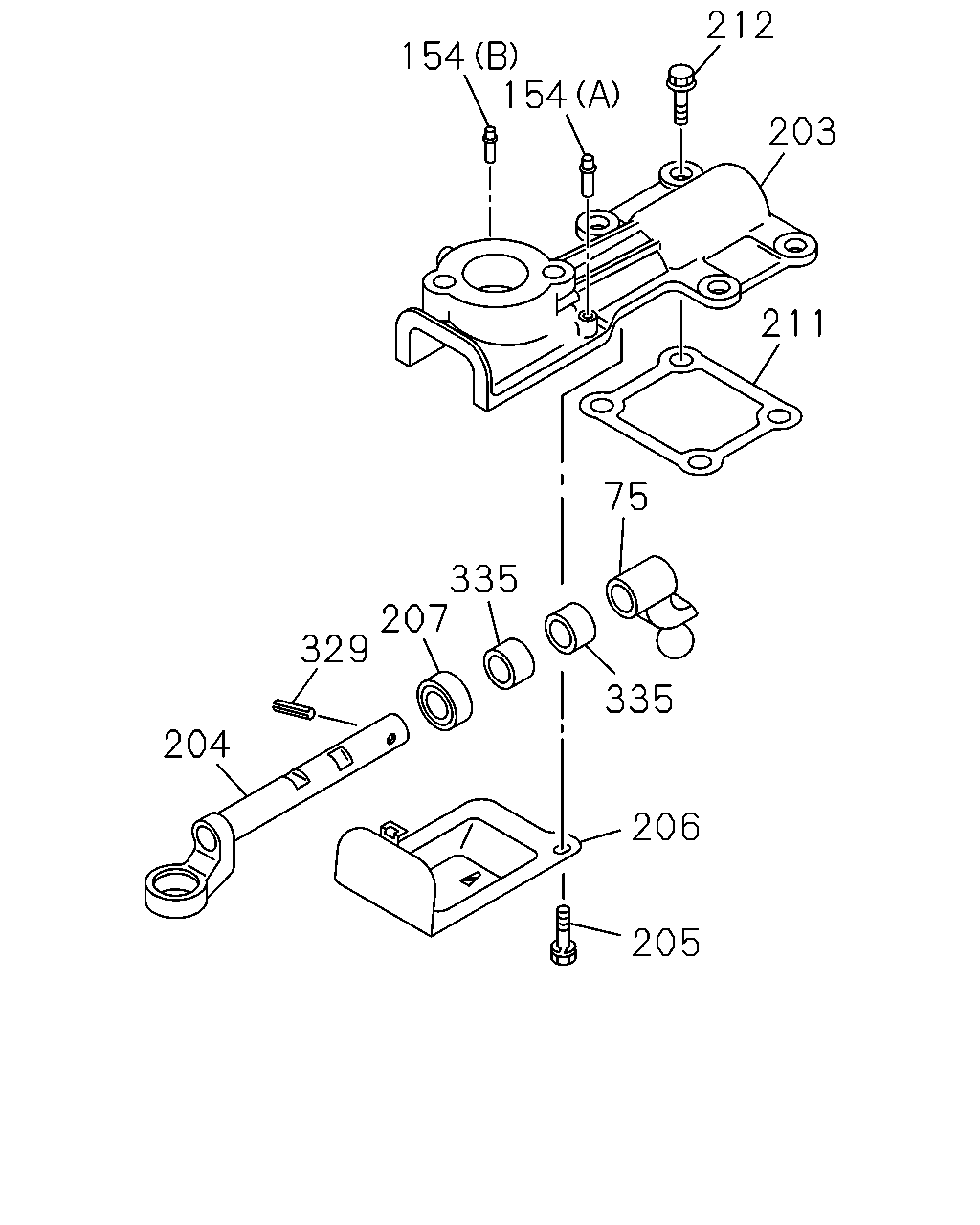

çizim 65114
212 154 154 203 211 75 335 207 329 335 204 206 205
BalonParca AdiParca NoAdetTipApplied Date
75 LEVER ASM; L-H CONT,INTERNAL
EXC. TORQUE ON DEMAND<7HA> 		8-94367-929-2 01 1 9708-
154 PIPE; BREATHER
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97173-544-0 01 1 9708-
154 PIPE; BREATHER
EXC. TORQUE ON DEMAND<7HA> (B) 		8-97173-545-0 01 1 9708-
203 BOX; TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97173-546-1 01 1 9708-
204 ROD; SHIFT,TRANSFER CONT
TORQUE ON DEMAND<7HA> 		8-97129-282-0 01 1 9708-
204 ROD; SHIFT,TRANSFER CONT
EXC. TORQUE ON DEMAND<7HA> 		8-97176-249-2 01 1 9708-
205 BOLT; DUST COVER,CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> M6X8 		9-03490-608-0 01 1 9708-
206 COVER; DUST,CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-97106-784-1 01 1 9708-
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-94221-533-1 01 1 9708-
211 GASKET; CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-94368-327-0 01 1 9708-
212 BOLT; CONT BOX,TRANSFER
EXC. TORQUE ON DEMAND<7HA> M8X25 FLANGE 		0-28680-825-0 04 1 9708-
329 PIN; SPRING,SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-329-0 01 1 9708-
329 PIN; SPRING,SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> OD=5.4 		9-09678-510-0 01 1 9708-
335 BUSHING
EXC. TORQUE ON DEMAND<7HA> 		8-94388-205-1 02 1 9708-

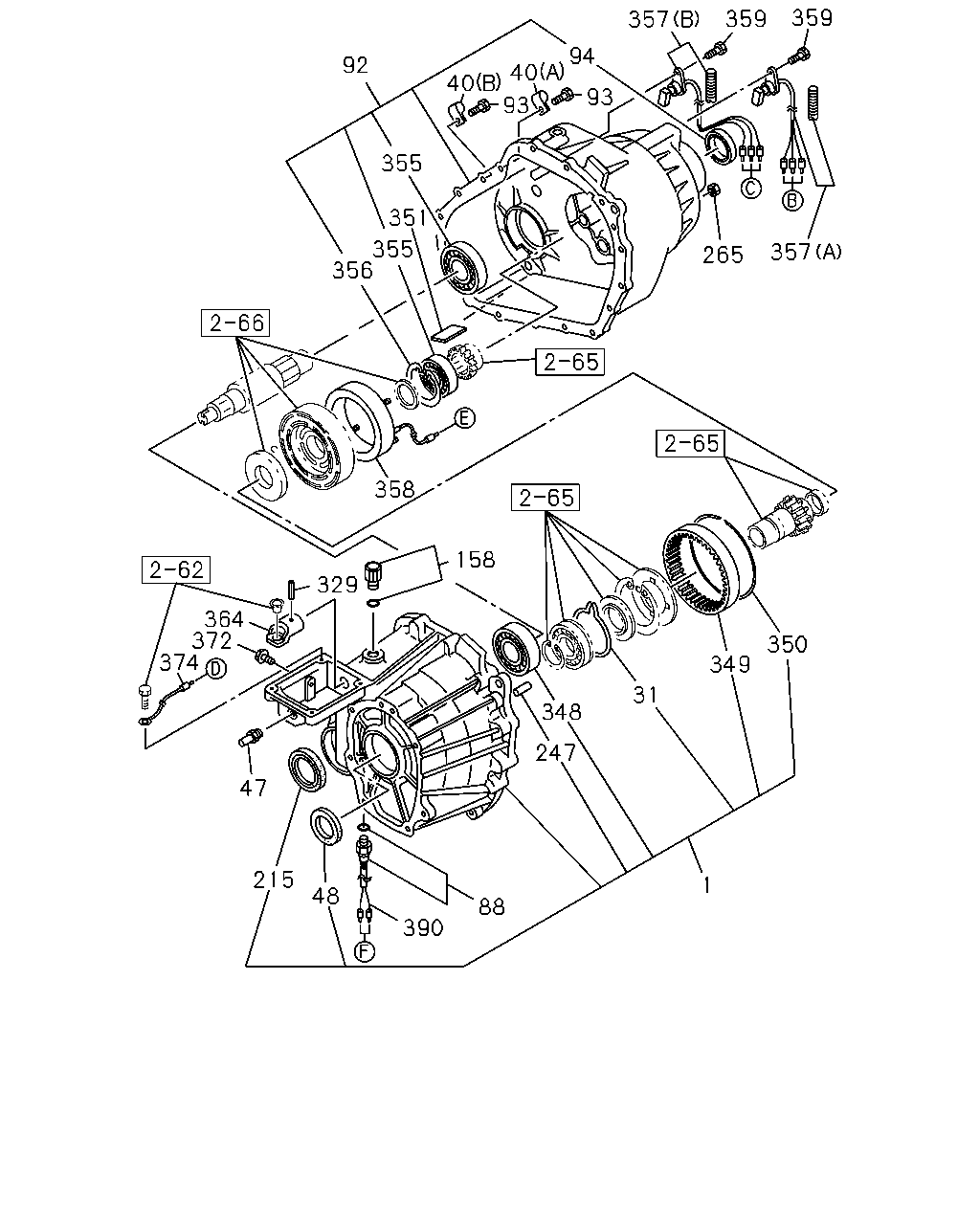

çizim 65247
359 359 357 94 40 40 93 92 93 355 351 355 356 357 265 358 158 329 364 372 374 350 349 31 348 247 47 215 1 48 88 390
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-309-0 01 1 9708-
31 RING; SNAP,INPUT
TORQUE ON DEMAND<7HA> 		8-97129-002-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (A) 		8-97129-218-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (B) 		8-97129-219-0 01 1 9708-
40 CLIP; HARNESS
TORQUE ON DEMAND<7HA> (C) 		8-97131-242-0 01 1 9708-
47 BREATHER; TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-053-0 01 1 9708-
48 SEAL; OIL,INPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-041-0 01 1 9708-
88 SWITCH; 4WD,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-620-0 01 1 9708-
92 COVER; RR,TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-313-0 01 1 9708-
93 BOLT; TRANSFER CASE TO RR COVER
TORQUE ON DEMAND<7HA> 		8-97129-274-0 16 1 9708-
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). TORQUE ON DEMAND<7HA> 		8-97129-040-0 01 1 9708-
158 PLUG; DETENT BALL
TORQUE ON DEMAND<7HA> 		8-97187-679-0 01 1 9708-
215 SEAL; OIL,TRANSFER CASE,FRT
TORQUE ON DEMAND<7HA> 		8-97129-040-0 01 1 9708-
247 PIN; DOWEL,TRANSFER CASE COVER
TORQUE ON DEMAND<7HA> 		8-97129-039-0 02 1 9708-
265 NUT; TRANSFER CASE
TORQUE ON DEMAND<7HA> 		8-97129-272-0 03 1 9708-
329 PIN; SPRING,SHIFT ROD
TORQUE ON DEMAND<7HA> 		8-97129-329-0 01 1 9708-
329 PIN; SPRING,SHIFT ROD
EXC. TORQUE ON DEMAND<7HA> OD=5.4 		9-09678-510-0 01 1 9708-
348 BEARING; FRT OUTPUT
TORQUE ON DEMAND<7HA> 		8-97129-037-0 01 1 9708-
349 GEAR; RING
TORQUE ON DEMAND<7HA> 		8-97129-038-0 01 1 9708-
350 RING; SNAP,RING GEAR
TORQUE ON DEMAND<7HA> 		8-97129-042-0 01 1 9708-
351 MAGNET; CASE
TORQUE ON DEMAND<7HA> 		8-97129-228-0 01 1 9708-
355 BEARING; OUTPUT SHAFT
TORQUE ON DEMAND<7HA> 		8-97129-037-0 02 1 9708-
356 RING; SNAP,BEARING
TORQUE ON DEMAND<7HA> 		8-97129-268-0 01 1 9708-
357 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (A) 		8-97181-578-0 01 1 9708-0006
357 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (A) 		8-97251-685-0 01 1 0007-
357 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (B) 		8-97181-579-0 01 1 9708-0006
357 SENSOR; SPEED
TORQUE ON DEMAND<7HA> (B) 		8-97251-686-0 01 1 0007-
358 COIL; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97181-617-0 01 1 9708-
359 BOLT; SENSOR
TORQUE ON DEMAND<7HA> 		8-97129-279-0 02 1 9708-
364 LEVER; GUIDE
TORQUE ON DEMAND<7HA> 		8-97181-618-0 01 1 9708-
372 BOLT; SHIFT GUIDE
TORQUE ON DEMAND<7HA> 		8-97129-281-0 01 1 9708-
374 WIRE; POWER GND
TORQUE ON DEMAND<7HA> 		8-97181-629-0 01 1 9708-
390 HARNESS; SWITCH
TORQUE ON DEMAND<7HA> 		8-97181-315-0 01 1 9708-
