◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#40475) — 20 parça

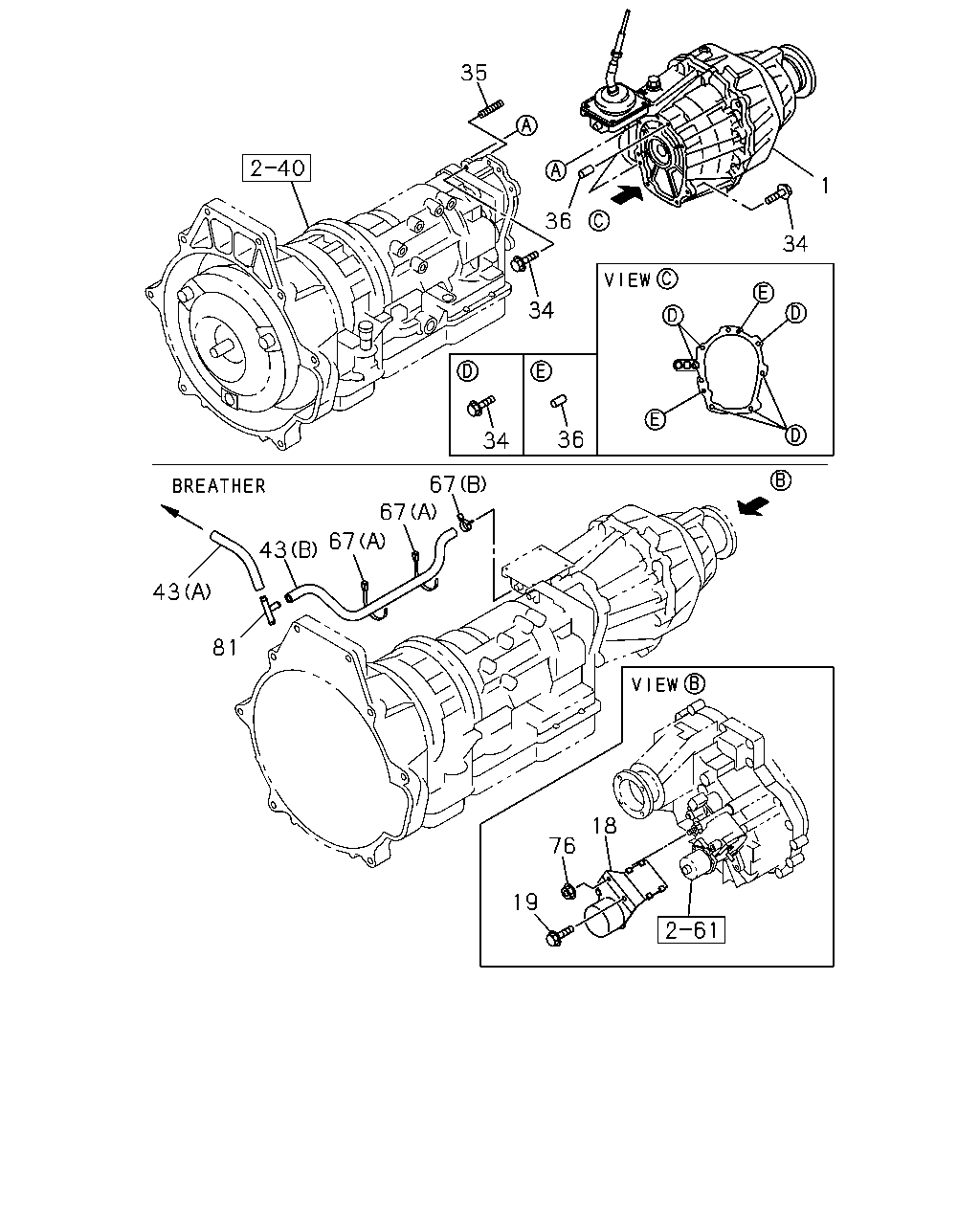

çizim 64033
35 1 36 34 34 36 34 67 67 67 43 43 81 18 76 19
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSFER ASM
TORQUE ON DEMAND<7HA> 		8-97136-560-0 01 1 9708-9905
1 TRANSFER ASM
TORQUE ON DEMAND<7HA> 		8-97211-175-0 01 1 9906-
1 TRANSFER ASM
EXC. TORQUE ON DEMAND<7HA> 		8-97164-252-0 01 1 9708-
18 PROTECTOR; HEAT,TRANSFER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97175-609-0 01 1 9708-9806
18 PROTECTOR; HEAT,TRANSFER
EXC. TORQUE ON DEMAND<7HA> 		8-97175-609-0 01 1 9807-
19 BOLT; HEAT PROTECTOR
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> M8X16 FLANGE 		0-28080-816-0 01 1 9708-9806
19 BOLT; HEAT PROTECTOR
EXC. TORQUE ON DEMAND<7HA> M8X16 FLANGE 		0-28080-816-0 01 1 9807-
34 BOLT; TRANSFER
A/T THM(RMQ) M10X35 FLANGE 		0-28081-035-0 07 1 9708-9806
34 BOLT; TRANSFER
M10X35 FLANGE 		0-28081-035-0 07 1 9807-
34 BOLT; TRANSFER
M/T AR-5 5 SPEED(RNK) M10X35 FLANGE 		0-28081-035-0 06 1 9708-9806
35 STUD; TRANSFER
M/T AR-5 5 SPEED(RNK) 		1-09300-013-0 01 1 9708-9806
36 PIN; KNOCK,TRANSFER
L=20 		8-97135-423-0 02 1 9708-
43 HOSE; RUBBER,BREATHER
TORQUE ON DEMAND<7HA> (A) L=130 SERVICED BY L=3000 		0-02857-300-0 01 1 9708-
43 HOSE; RUBBER,BREATHER
TORQUE ON DEMAND<7HA> (B) L=500 SERVICED BY L=3000 		0-02857-300-0 01 1 9708-
67 CLIP; BAND
TORQUE ON DEMAND<7HA> (A) L=140 		5-09707-031-1 02 1 9708-
67 CLIP; BAND
TORQUE ON DEMAND<7HA> (B) ID=12 		8-94238-610-0 01 1 9708-
76 NUT; HEAT PROTECTOR
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> M8 FLANGE 		0-91150-108-0 01 1 9708-9806
76 NUT; HEAT PROTECTOR
EXC. TORQUE ON DEMAND<7HA> M8 FLANGE 		0-91150-108-0 01 1 9807-
81 PIPE; BREATHER
TORQUE ON DEMAND<7HA> 3WAY 		8-94211-900-1 01 1 9708-0108
81 PIPE; BREATHER
TORQUE ON DEMAND<7HA> 3WAY 		8-97322-699-0 01 1 0109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
