Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-56 - AUTO TRANS CONTROL LINK
▶

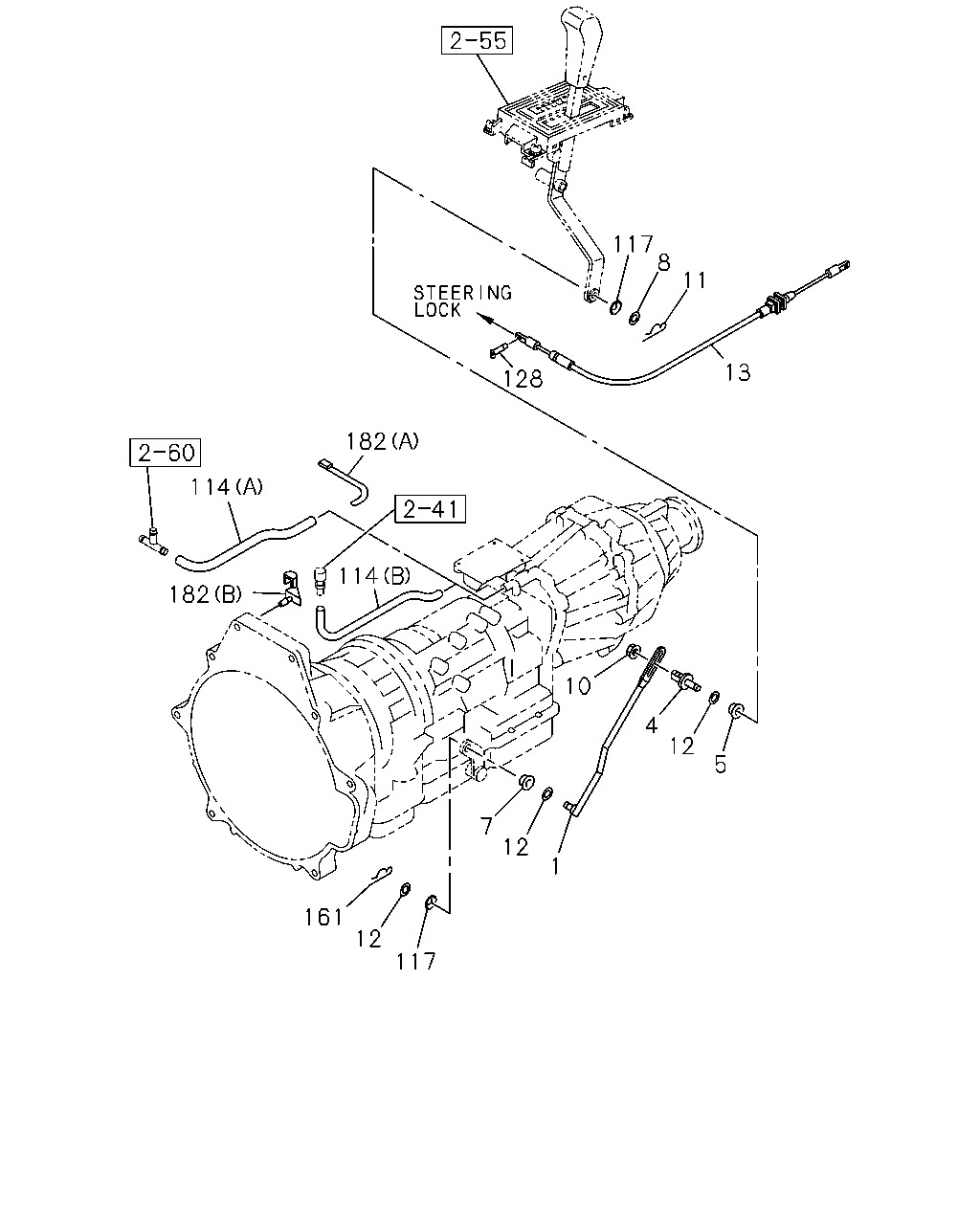

2-56 — AUTO TRANS CONTROL LINK
(#40474) — 18 parça
117
8
11
13
128
182
114
114
182
10
4
12
5
7
12
1
161
12
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ROD; LINK,SELECT CONT
8-97124-685-2
01
1
9708-
4
BOSS; SELECT LEVER
8-97124-639-0
01
1
9708-
5
BUSHING; LINK ROD TO SELECT LEVER
8-97038-937-0
01
1
9708-
7
BUSHING; JOINT,A/T CONT
8-97038-937-0
01
1
9708-
8
WASHER; PL,A/T CONT
ID=8 OD=22
9-09160-708-0
01
1
9708-
10
NUT; CLIP
M10 FLANGE
0-91150-210-0
01
1
9708-
11
PIN; SNAP,A/T CONT
L=27.7
8-94210-407-0
01
1
9708-
12
WASHER; PL,SELECT CONT
ID=8 OD=22
9-09160-708-0
03
1
9708-
13
CABLE; SAFETY LK
8-97181-563-0
01
1
9708-9908
13
CABLE; SAFETY LK
8-97239-251-0
01
1
9909-9910
13
CABLE; SAFETY LK
8-97241-136-0
01
1
9911-
114
HOSE; BREATHER
TORQUE ON DEMAND<7HA> (A) L=500 SERVICED BY L=3000
0-02857-300-0
01
1
9708-
114
HOSE; BREATHER
EXC. TORQUE ON DEMAND<7HA> (B) L=640 SERVICED BY L=3000
0-02857-300-0
01
1
9708-
117
WASHER; CURVED,SELECT CONT
ID=8.5 T=0.3
5-09509-001-0
02
1
9708-
128
PIN; SNAP,STRG LK TO CABLE
8-94170-423-0
01
1
9708-
161
PIN; SNAP,LINK ROD TO SELECT LEVER
L=27.7
8-94210-407-0
01
1
9708-
182
CLIP; BREATHER HOSE
(A) L=140
5-09707-031-1
01
1
9708-
182
CLIP; BREATHER HOSE
(B)
8-97164-817-1
01
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
