2-55 — AUTO TRANS SHIFT CONTROL LEVER (#40473) — 57 parça

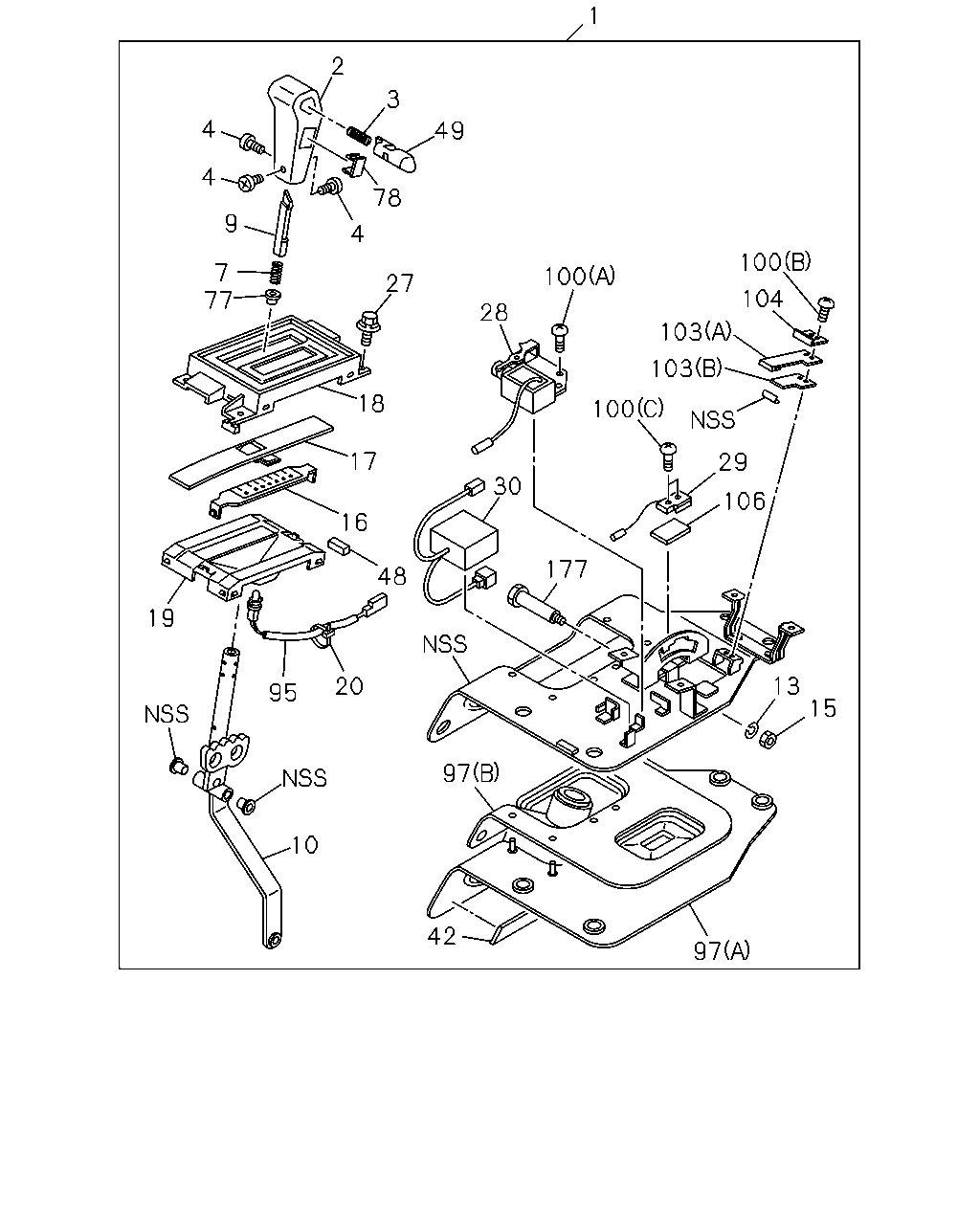

çizim 15527
1 2 3 4 49 4 78 9 4 100 7 77 100 27 104 28 103 103 18 100 17 29 30 106 16 177 48 19 13 20 95 15 97 10 42 97
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97154-265-1 01 1 9708-0001
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-053-3 01 1 0002-0304
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-270-0 01 1 0305-
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97154-266-1 01 1 9708-0001
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-054-3 01 1 0002-0304
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-271-0 01 1 0305-
2 KNOB ASM; AUTO CONT LEVER
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97151-629-0 01 1 9708-0304
2 KNOB ASM; AUTO CONT LEVER
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-280-0 01 1 0305-
2 KNOB ASM; AUTO CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-94389-629-0 01 1 9708-0304
2 KNOB ASM; AUTO CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-277-0 01 1 0305-
3 SPRING; RETURN,KNOB 8-94370-126-0 01 1 9708-
4 SCREW; KNOB TO LEVER 8-94370-128-0 03 1 9708-0209
4 SCREW; KNOB TO LEVER 8-94370-128-0 02 1 0210-
7 SPRING; RETURN,ROD 8-97029-913-0 01 1 9708-
9 SLEEVE; KNOB,SHIFT LEVER 8-94370-129-0 01 1 9708-
10 LEVER; A/T CONT 8-97125-744-0 01 1 9708-
13 WASHER; LEVER TO SHAFT
ID=8 		9-09150-608-0 01 1 9708-0209
15 NUT; LEVER TO SHAFT
M8 		9-09111-408-0 01 1 9708-
16 LENS; INDICATOR 8-97123-315-0 01 1 9708-
17 PLATE; INDICATOR 8-97113-989-0 01 1 9708-0001
17 PLATE; INDICATOR 8-97241-376-0 01 1 0002-
18 COVER; INDICATOR,UPR 8-97035-002-0 01 1 9708-
19 COVER; INDICATOR,LWR 8-97035-003-0 01 1 9708-
20 CLIP; INHIBITOR SW 8-94389-647-0 02 1 9708-
27 SCREW; INDICATOR TO BRKT
M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9708-0209
27 SCREW; INDICATOR TO BRKT
M5X10 W/LK+PL WASHER 		9-03920-510-0 06 1 0210-
28 SOLENOID ASM 8-97035-005-0 01 1 9708-
29 SWITCH; A/T 8-97035-007-0 01 1 9708-
30 CONTROLLER; A/T 8-97035-008-0 01 1 9708-
42 SEAL; RUBBER 8-97137-596-0 02 1 0210-
48 INSULATION; PLATE 8-97066-477-0 02 1 9708-
49 BUTTON; PUSH,KNOB
BLACK 		8-94389-614-0 01 1 9708-
77 SUPPORT; SPRING,A/T CONT LEVER 8-94370-130-0 01 1 9708-
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97098-096-0 01 1 9708-0304
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-283-0 01 1 0305-
95 LAMP; INDICATOR 8-97035-013-0 01 1 9708-
97 BOOT
(A) 		8-97034-998-5 01 1 9708-
97 BOOT
(B) 		8-97034-999-0 01 1 9708-
100 SCREW
(C) 		8-97024-167-1 02 1 9708-
100 SCREW
(A) 		8-97093-499-0 02 1 9708-0209
100 SCREW
(B) M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 9708-
103 SPRING; PLATE
(A) 		8-97035-014-0 01 1 9708-
103 SPRING; PLATE
(B) 		8-97066-443-0 01 1 9708-
104 PLATE; LINK 8-97035-016-1 01 1 9708-
106 SHEET; SWITCH 8-97035-009-1 01 1 9708-
177 SHAFT; SHIFT LEVER,A/T 8-97066-339-1 01 1 9708-

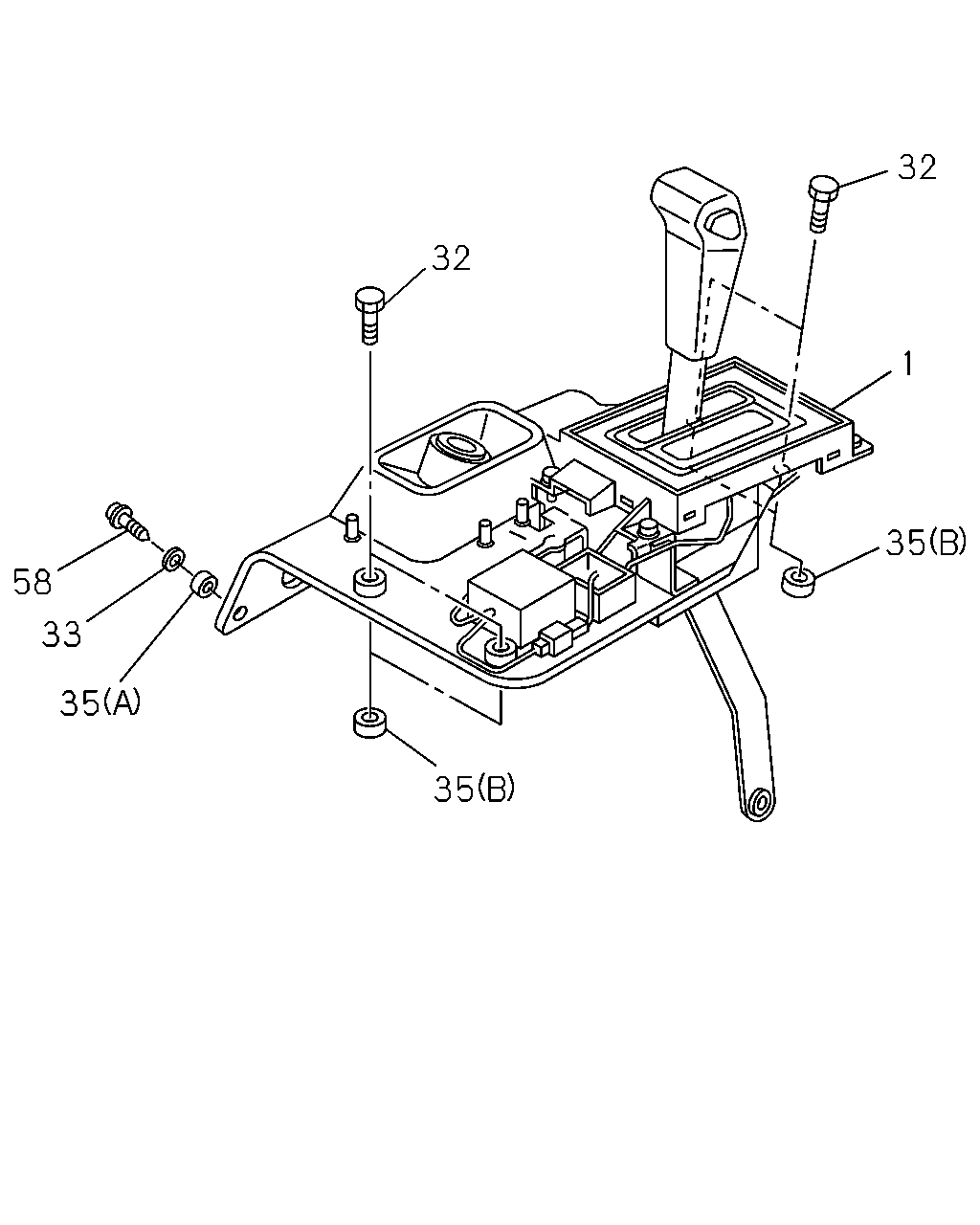

çizim 15637
32 32 1 35 58 33 35 35
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97154-265-1 01 1 9708-0001
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-053-3 01 1 0002-0304
1 LEVER; SHIFT,A/T
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-270-0 01 1 0305-
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97154-266-1 01 1 9708-0001
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-054-3 01 1 0002-0304
1 LEVER; SHIFT,A/T
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-271-0 01 1 0305-
32 BOLT; CONT LEVER TO BODY
M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 9708-
33 WASHER; PL,CONT LEVER TO BODY
ID=8 OD=22 		9-09164-708-0 02 1 9708-
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(A) OD=13 T=4.5 		8-94230-464-1 02 1 9708-
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(B) OD=15 T=6.8 		8-94437-495-0 04 1 9708-
58 SCREW; BRKT 8-94220-277-0 02 1 9708-
