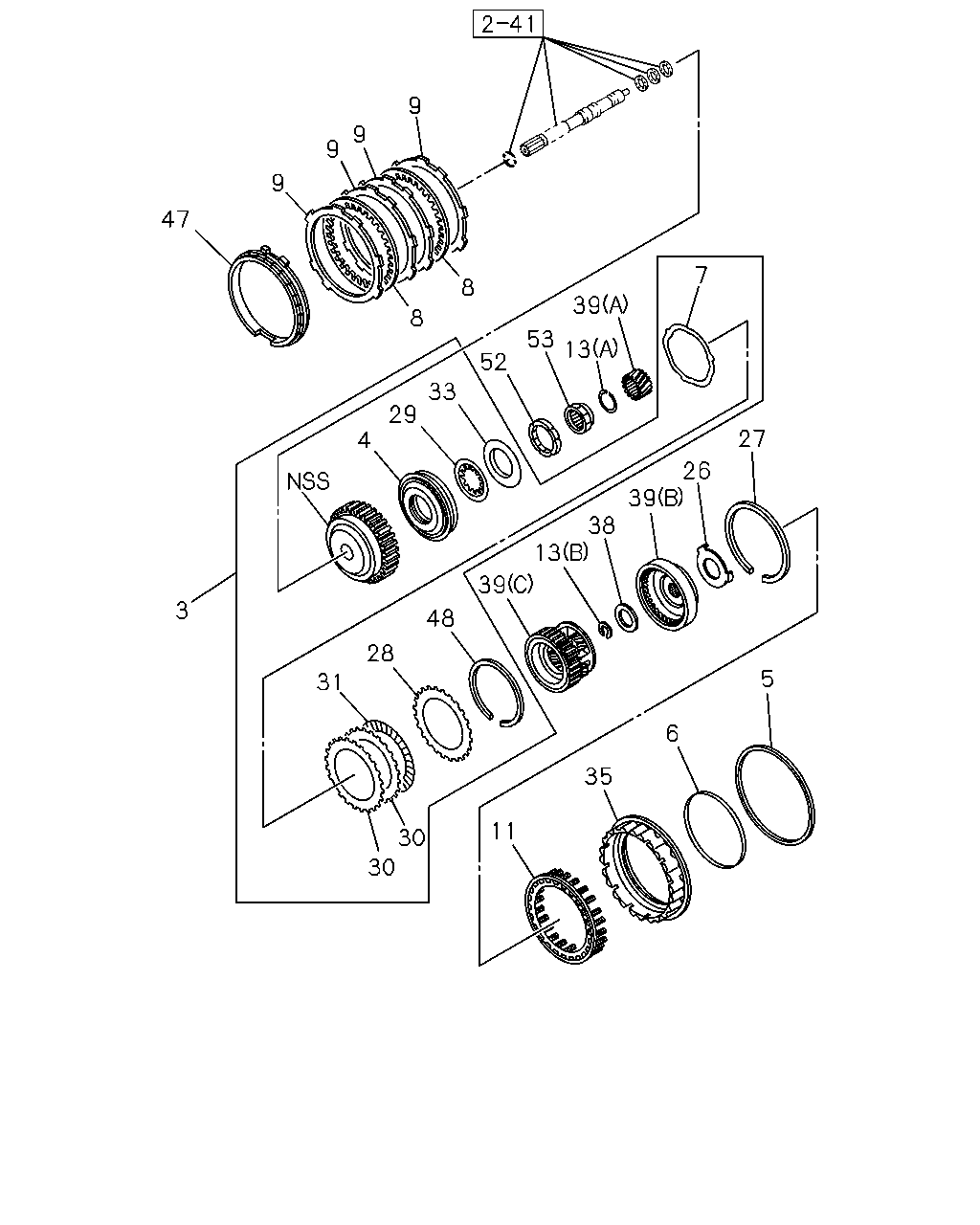

2-52 — AUTO TRANS OVERDRIVE GEAR (#40471) — 26 parça

9 9 9 9 47 7 8 39 8 53 13 52 33 29 27 4 26 39 38 13 39 3 48 28 5 31 6 35 11 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	DRUM; CLU,OVERDRIVE,A/T	8-96041-100-0	01	1	9708-
4	PISTON ASM; CLU,OVERDRIVE,A/T	8-96017-401-0	01	1	9708-
5	GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T	8-96017-561-0	01	1	9708-
6	GASKET; CLU PISTON,INNER,OVERDRIVE,A/T	8-96014-321-0	01	1	9708-
7	PLATE; CLU CUSHION	8-96014-983-0	01	1	9708-
8	DISC; CLU,OVERDRIVE,A/T	8-96014-459-0	02	1	9708-
9	DISC ASM; CLU & FACING,OVERDRIVE,A/T	8-96014-187-0	04	1	9708-
11	SPRING; CLU RETURN,OVERDRIVE,A/T	8-08635-244-0	01	1	9708-
13	RING; SNAP,OVERDRIVE,A/T (A)	8-08634-274-0	01	1	9708-
13	RING; SNAP,OVERDRIVE,A/T (B)	8-96014-389-0	01	1	9708-
26	WASHER; THRUST,OVERDRIVE,A/T	8-96014-390-0	01	1	9708-
27	RING; RET,OVERDRIVE,A/T	8-08634-023-0	01	1	9708-
28	PLATE; CLU BACKING,OVERDRIVE,A/T	8-08634-864-0	01	1	9708-
29	DISC ASM; CLU & FACING,OVERDRIVE,A/T	8-96014-902-0	01	1	9708-
30	DISC; CLU,OVERDRIVE,A/T	8-96014-194-0	02	1	9708-
31	PLATE; CUSHION,OVERDRIVE,A/T	8-96014-195-0	01	1	9708-
33	RETAINER; BRK RETURN SPR,OVERDRIVE,A/T	8-96015-601-0	01	1	9708-
35	PISTON; BRK,OVERDRIVE,A/T	8-96017-559-0	01	1	9708-
38	WASHER; THRUST,OVERDRIVE,A/T	8-08634-035-0	01	1	9708-
39	GEAR ASM; PLANETARY INTERNAL,A/T (A)	8-96014-199-0	01	1	9708-
39	GEAR ASM; PLANETARY INTERNAL,A/T (B)	8-96014-202-0	01	1	9708-
39	GEAR ASM; PLANETARY INTERNAL,A/T (C)	8-96014-376-0	01	1	9708-
47	FLANGE; OVERDRIVE BRK,A/T	8-96015-385-0	01	1	9708-
48	RING; SNAP,PLANETARY RING GEAR,OD	8-08634-056-0	01	1	9708-
52	ROLLER; OVERDRIVE CLU	8-00930-660-0	01	1	9708-
53	CAM; OVERDRIVE ROLLER CLU	8-08634-038-0	01	1	9708-
