2-49 — AUTO TRANS INHIBITOR SWITCH (#40470) — 20 parça

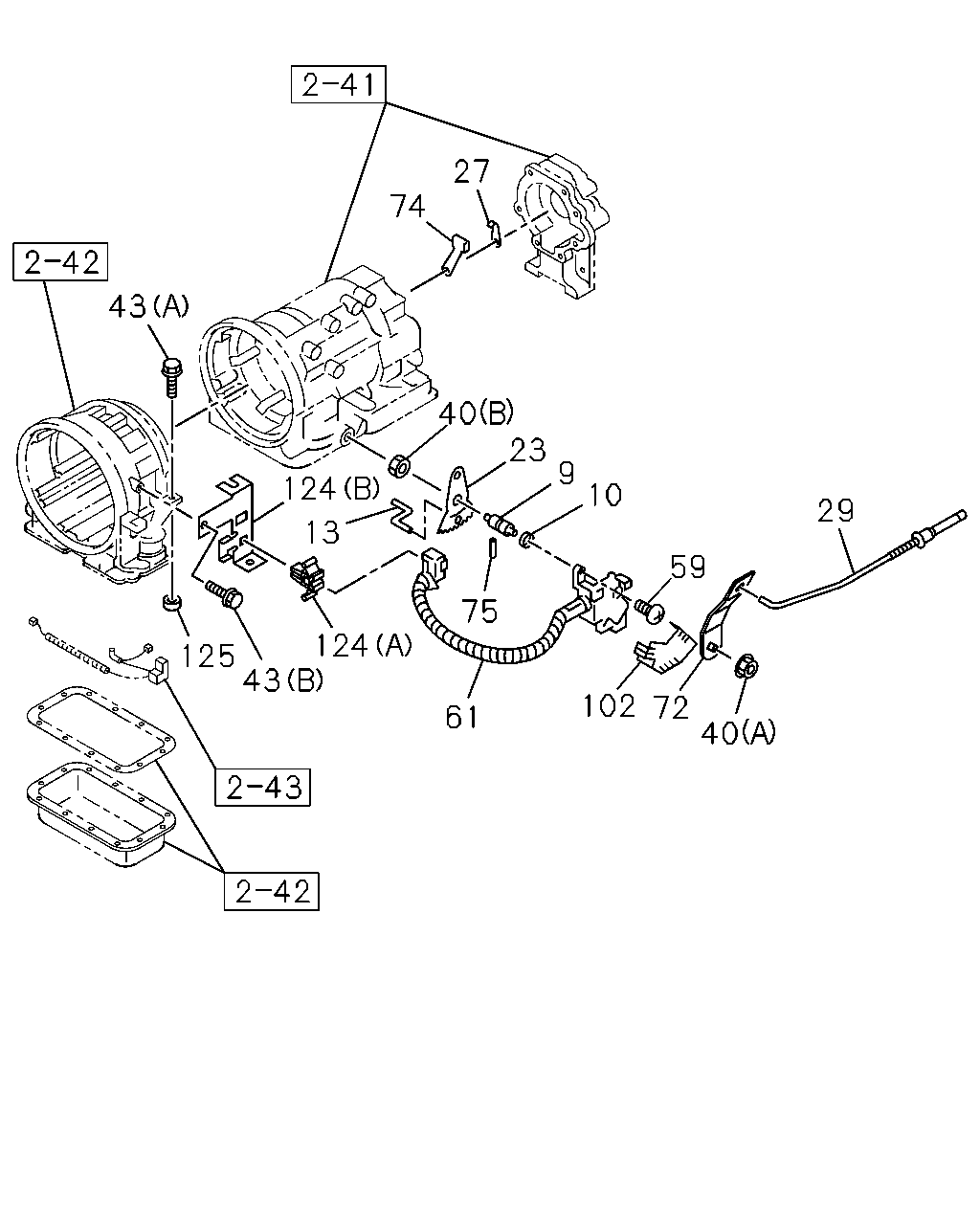

çizim 65004
27 74 43 40 23 9 124 10 13 29 59 75 124 125 43 40 61 102 72
BalonParca AdiParca NoAdetTipApplied Date
9 SHAFT; MANUAL,A/T 8-96014-268-0 01 1 9708-
10 GASKET; MANUAL SHIFT,A/T 8-08644-709-0 01 1 9708-
13 LEVER; SELECT,MANUAL SHAFT,A/T 8-05258-243-0 01 1 9708-
23 LEVER; PARKING ROD,A/T 8-96017-378-0 01 1 9708-
27 SPRING; PAWL RETURN,A/T 8-05258-076-0 01 1 9708-
29 ROD ASM; CONT,A/T 8-96017-286-0 01 1 9708-
40 NUT; LEVER TO SHAFT
(A) M10 FLANGE 		0-91250-110-0 01 1 9708-
40 NUT; LEVER TO SHAFT
(B) 		8-11067-223-0 01 1 9708-
43 BOLT; BRKT
(A) 		8-11041-238-0 01 1 9708-
43 BOLT; BRKT
(B) 		8-96017-499-0 01 1 9708-
59 SCREW; SW,A/T 8-96014-453-0 02 1 9708-0003
59 SCREW; SW,A/T 8-96024-064-0 02 1 0004-
61 SWITCH ASM; POSITION 8-96017-511-0 01 1 9708-
72 LEVER; SELECT CONT 8-97013-518-1 01 1 9708-
74 PAWL; PARKING BRK LK,A/T 8-96016-620-0 01 1 9708-
75 PIN; PARKING BRK LK,A/T 8-05259-654-0 01 1 9708-
102 SHIELD; MODE SWITCH,A/T 8-96014-454-0 01 1 9708-
124 BRACKET; MODE SWITCH
(A) 		8-90414-915-0 01 1 9708-
124 BRACKET; MODE SWITCH
(B) 		8-96018-450-0 01 1 9708-
125 NUT; BRKT 8-96017-663-0 01 1 9708-
