Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

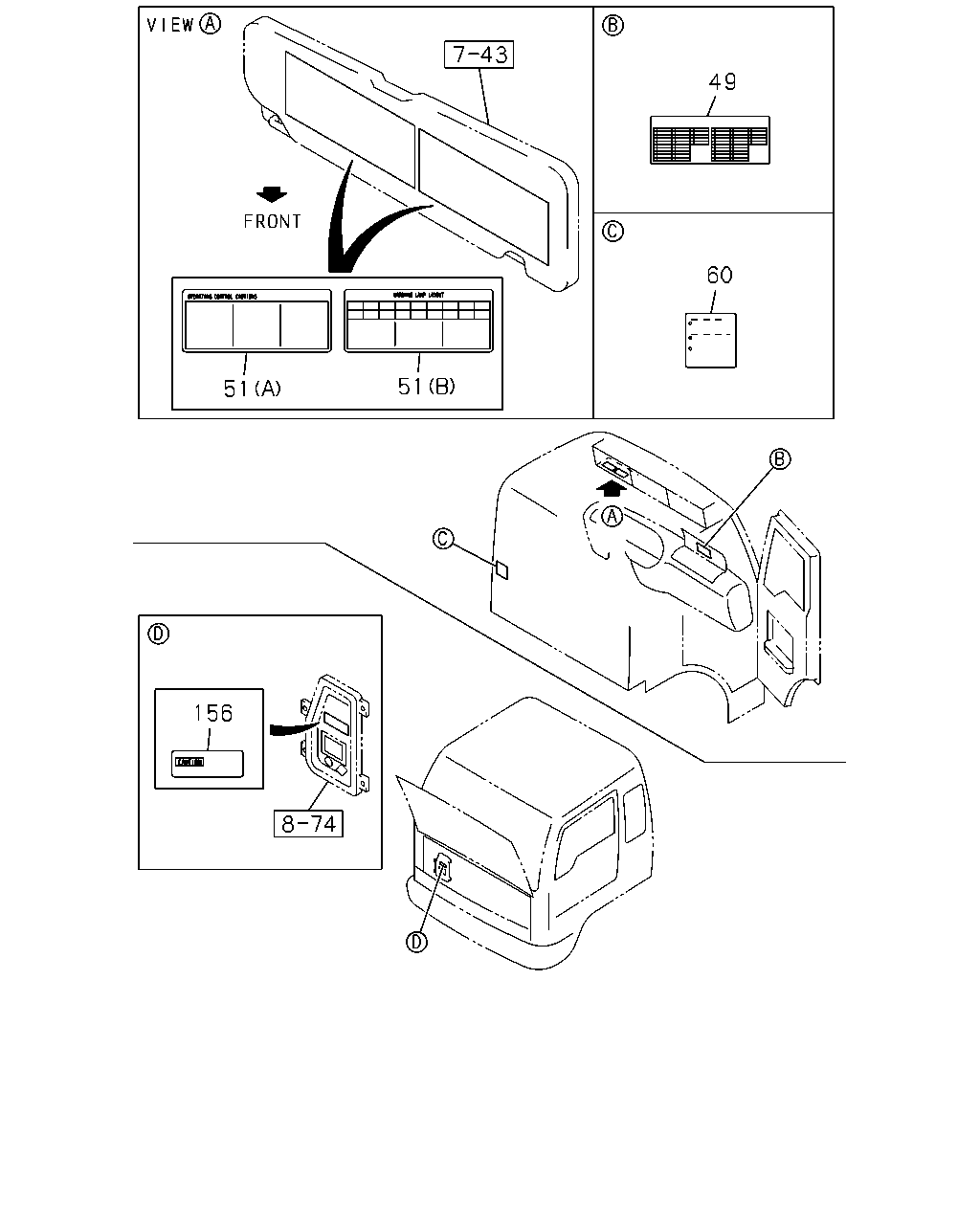

7-10 — CAUTION PLATE AND LABEL (#4047) — 99 parça

119 193 4 4 7 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE 6HK1 TCC ENG(81L) (D)	8-94391-524-0	01	1	0608-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1> EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94391-006-0	01	1	9710-0004	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-97600-807-0	01	1	0005-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94395-936-0	01	1	9510-0004	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1> (B)	8-94395-936-0	01	1	0005-0106	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS SPANISH<YN1> EMISSION SYSTEM ECE REQUIREMENTS<SFV> 6HH1 STD ENG(65L) (B)	8-94395-936-0	01	1	0107-0208	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS SPANISH<YN1> EMISSION SYSTEM ECE REQUIREMENTS<SFV> 6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B)	8-94395-936-0	01	1	0209-	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	9510-0002	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	0003-0208	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,ANTI NOISE EQUIPMENT ECE<SLK>,CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	0209-0210	●	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	0211-	●	●
4	LABEL; ENG MAINTENANCE EXC. CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	9610-9802		●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EXC. CAUTIONS SPANISH<YN1> (A)	8-94395-931-0	01	1	9610-9802	●
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94390-593-0	01	1	9902-	●	●
4	LABEL; ENG MAINTENANCE 6HE1 TC ENG(57L) CAUTIONS SPANISH<YN1> (B)	8-94390-957-0	01	1	9606-9802	●
4	LABEL; ENG MAINTENANCE 6HE1 TC ENG(57L) CAUTIONS SPANISH<YN1> (B)	8-94390-957-0	01	1	9803-	●	●
4	LABEL; ENG MAINTENANCE 6HE1 TC ENG(57L) EXC. CAUTIONS SPANISH<YN1> (A)	8-94390-763-0	01	1	9603-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	8-97600-783-0	01	1	0005-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-97601-727-0	01	1	0011-	●
4	LABEL; ENG MAINTENANCE 6HH1 STD 4VALVE ENG(1A6) EXC. CAUTIONS CHINESE<SL7> (C)	8-97601-293-0	01	1	0608-	●
7	LABEL; EMISSION 6HH1 STD ENG(65L) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-418-0	01	1	9902-	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-726-0	01	1	9510-9606	●	●
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	9607-	●	●
193	PLATE; CAUTION,EGR 6HH1 STD 4VALVE ENG(1A6) HEAVY DUTY P/S OIL PUMP<E1N> EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-97601-728-0	01	1	0011-	●

228 69 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9510-0610		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	9510-0610	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	0611-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (A)	1-85883-114-0	01	1	0611-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> (B)	8-98082-441-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	9510-0610		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	9510-0610	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0611-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	1-53639-004-0	01	1	0611-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9510-0610		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	9510-0610	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	0611-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (A)	1-85883-108-0	01	1	0611-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	9510-0610		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	9510-0610	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	0611-0708		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (A)	1-53639-005-0	01	1	0611-0708	●
6	PLATE; CAUTION,SPARE TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	0709-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	0709-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS CHINESE<SL7> (A)	1-85883-113-0	01	1	9510-0012	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS CHINESE<SL7> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)	1-85883-113-0	01	1	0101-0610	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS CHINESE<SL7> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B)	1-85883-113-0	01	1	0611-0708	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS CHINESE<SL7> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	8-98082-438-0	01	1	0709-	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7>	1-85887-537-0	01	1	9510-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS ARABIAN<WJ7> EXC. STARTER SWITCH DELETION<E5D>	1-85887-537-0	01	1	0303-	●	●
69	PLATE; CAUTION,STARTER SW EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	9510-0302	●	●
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	0303-		●
69	PLATE; CAUTION,STARTER SW EXC. STARTER SWITCH DELETION<E5D>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1>	1-85887-389-0	01	1	0303-	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8>	1-85887-535-0	01	1	9510-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS FRENCH<WJ8> EXC. STARTER SWITCH DELETION<E5D>	1-85887-535-0	01	1	0303-	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1>	9-83999-419-0	01	1	9510-0302	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS SPANISH<YN1> EXC. STARTER SWITCH DELETION<E5D>	9-83999-419-0	01	1	0303-	●	●
69	PLATE; CAUTION,STARTER SW CAUTIONS CHINESE<SL7>	1-85887-536-0	01	1	9510-0302	●
69	PLATE; CAUTION,STARTER SW CAUTIONS CHINESE<SL7> EXC. STARTER SWITCH DELETION<E5D>	1-85887-536-0	01	1	0303-	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-48199-324-0	01	1	9811-1001	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	9811-0109	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	0110-1001		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-48199-325-0	01	1	0110-1001	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	9811-0109	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-48199-326-0	01	1	0110-1001	●	●

49 60 51 51 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX 6HK1 TCC ENG(81L) CAUTIONS SPANISH<YN1>	1-85878-567-0	01	1	0608-	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85888-558-0	01	1	9510-0109	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	1-85878-224-0	01	1	0110-	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85888-554-2	01	1	9510-9802	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85877-623-0	01	1	9803-0004	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85878-278-0	01	1	0005-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	1-85888-557-0	01	1	9510-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	9510-0607	●	●
49	PLATE; CAUTION,FUSE BOX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	0608-0805		●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) CAUTIONS SPANISH<YN1>	1-85888-556-0	01	1	0608-0805	●
49	PLATE; CAUTION,FUSE BOX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) CAUTIONS SPANISH<YN1>	1-85878-460-0	01	1	0806-		●
49	PLATE; CAUTION,FUSE BOX 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) CAUTIONS SPANISH<YN1>	1-85878-460-0	01	1	0806-	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85888-555-0	01	1	9510-0004	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-281-1	01	1	0005-0109	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85878-341-0	01	1	0110-	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-		●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A)	1-85880-707-1	01	1	9510-	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-710-0	01	1	9510-9601	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-709-1	01	1	9602-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-560-2	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B)	1-85888-559-2	01	1	9510-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-709-0	01	1	9510-9601	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-710-1	01	1	9602-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-708-1	01	1	9510-	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7>	1-85883-172-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-169-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-173-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-170-0	01	1	9510-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-171-0	01	1	9510-	●
156	PLATE; CAUTION,A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-97065-990-0	01	1	9510-0603	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
