◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#40469) — 30 parça

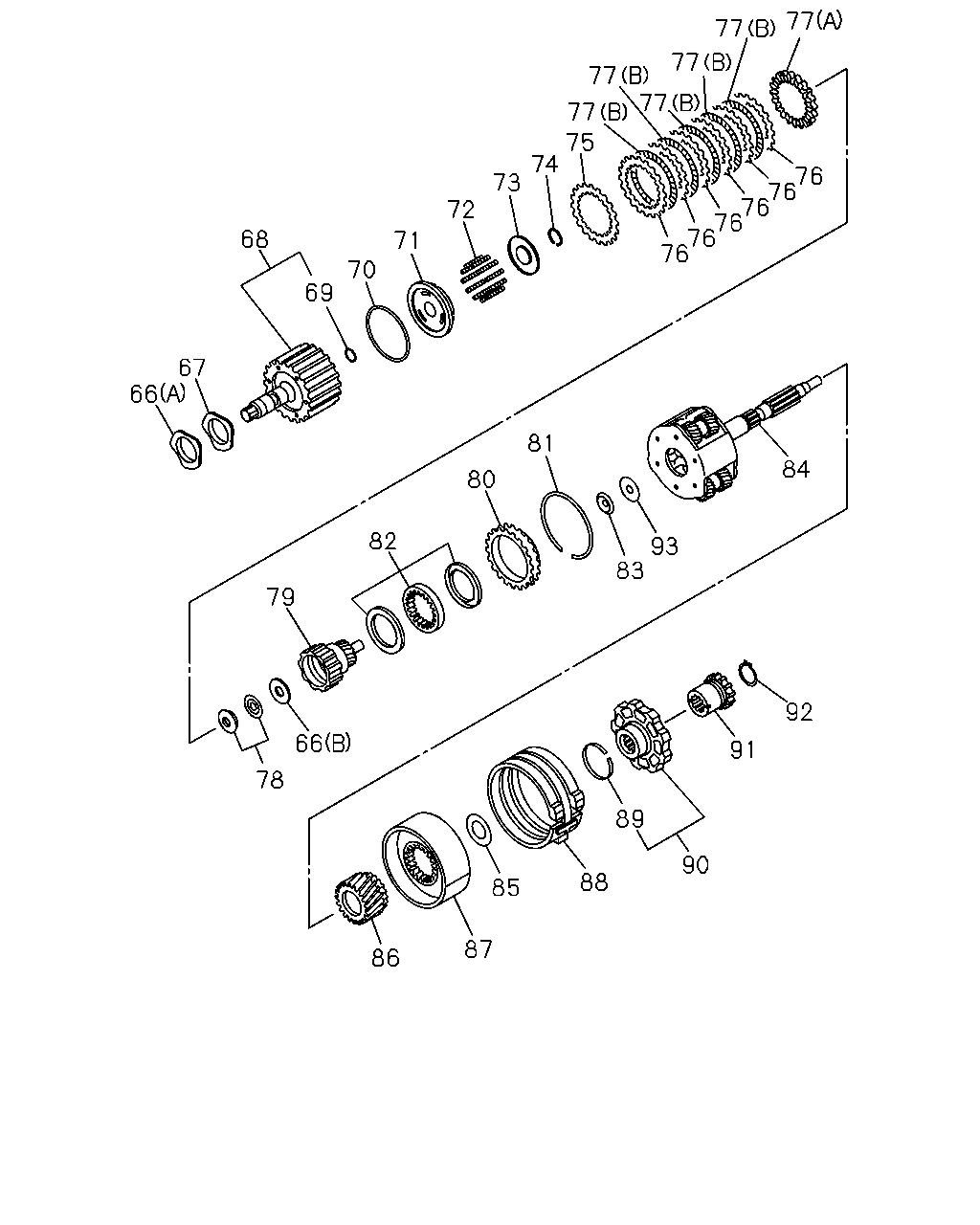

çizim 16704
77 77 77 77 77 77 75 74 73 76 76 76 76 76 76 72 68 71 70 69 67 66 81 84 80 82 93 83 79 92 66 91 78 89 90 88 85 87 86
BalonParca AdiParca NoAdetTipApplied Date
66 WASHER; THRUST,3RD CLU
(A) 		8-96013-403-0 01 1 9708-
66 WASHER; THRUST,3RD CLU
(B) 		8-96015-459-0 01 1 9708-
67 WASHER; THRUST,CLU HUB 8-05258-945-0 01 1 9708-
68 DRUM; 3RD CLU 8-96041-095-0 01 1 9708-
69 SEAL; 3RD CLU PISTON INNER 8-96018-543-0 01 1 9708-
70 SEAL; 3RD CLU PISTON OUTER 8-96014-296-0 01 1 9708-
71 PISTON; 3RD CLU 8-96016-223-0 01 1 9708-
72 SPRING; PISTON CLU 8-08958-719-0 12 1 9708-
73 SEAT; SPR,3RD CLU 8-05258-039-0 01 1 9708-
74 RING; RET 8-05258-094-0 01 1 9708-
75 PLATE; SPR,CLU 8-96017-603-0 01 1 9708-
76 PLATE; 3RD CLU 8-05258-955-0 06 1 9708-
77 PLATE ASM; 3RD CLU
(A) 		8-96017-370-0 01 1 9708-
77 PLATE ASM; 3RD CLU
(B) 		8-96017-371-0 05 1 9708-
78 WASHER & THRUST BEARING KIT 8-96040-078-0 01 1 9708-
79 GEAR ASM; INPUT SUN 8-96016-253-0 01 1 9708-
80 RACE; SPRAG 8-96017-373-0 01 1 9708-
81 RING; RET,SPRAG 8-08958-684-0 01 1 9708-
82 SPRAG KIT 8-96017-149-0 01 1 9708-
83 BEARING; OUTPUT SHAFT 8-96014-602-0 01 1 9708-
84 CARRIER ASM; PLANETARY 8-96017-348-0 01 1 9708-
85 THRUST BEARING & WASHER KIT 8-96016-084-0 01 1 9708-
86 GEAR; REACTION SUN 8-96015-037-0 01 1 9708-
87 DRUM; REACTION SUN 8-96018-009-0 01 1 9708-
88 BAND; BRAKE 8-96014-805-0 01 1 9708-
89 SEAL; RING,PARKING LOCK 8-05258-837-0 01 1 9708-
90 WHEEL; PARKING LOCK 8-96016-669-0 01 1 9708-
91 WHEEL; SPD 8-96015-053-0 01 1 9708-
92 RING; RET 8-96015-123-0 01 1 9708-
93 WASHER; OUTPUT SHAFT 8-96014-607-0 01 1 9708-
