◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#40468) — 20 parça

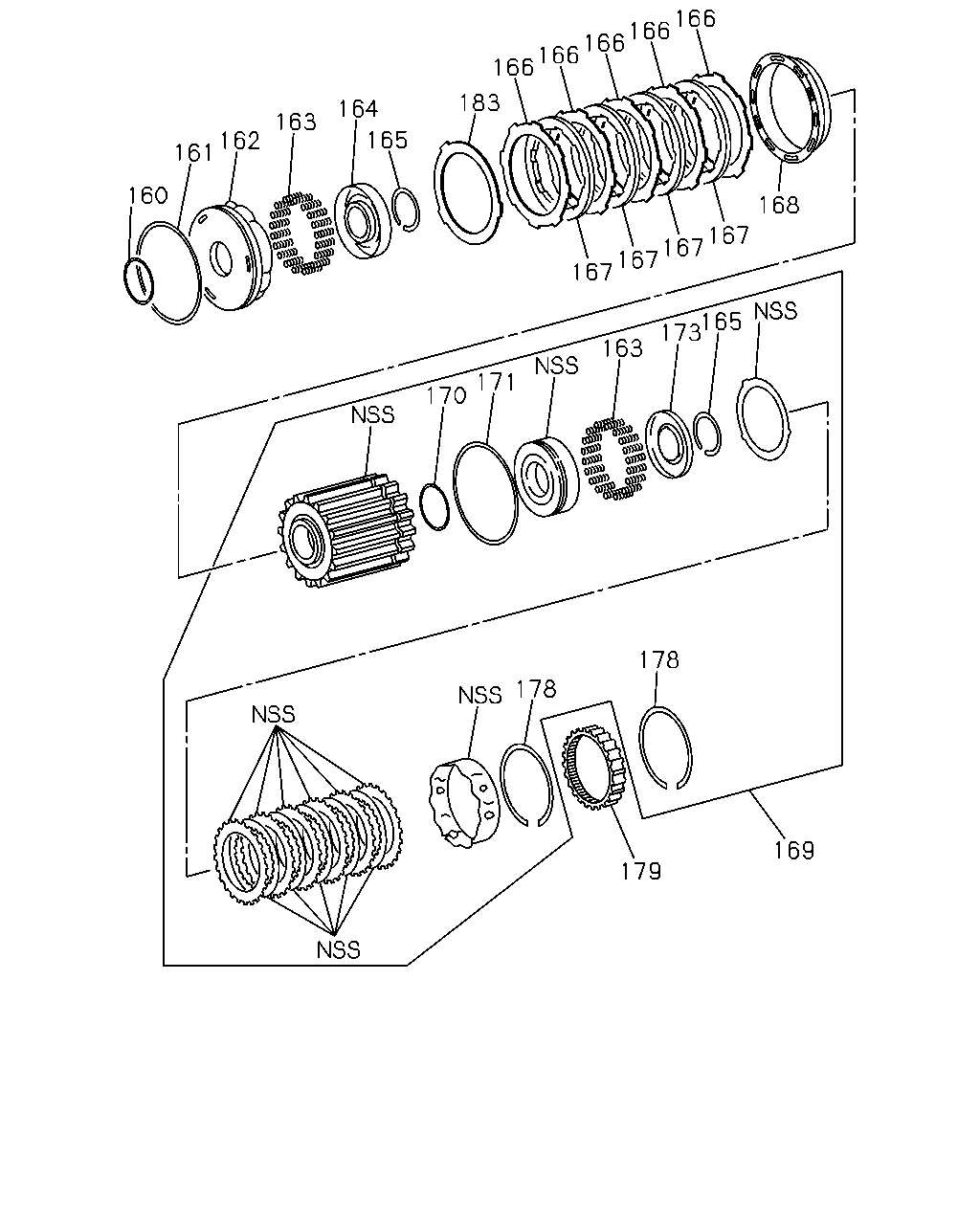

çizim 64135
166 166 166 166 166 183 164 165 163 162 161 160 168 167 167 167 167 165 173 163 171 170 178 178 169 179
BalonParca AdiParca NoAdetTipApplied Date
160 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9708-
161 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9708-
162 PISTON; REV CLU 8-96014-964-0 01 1 9708-
163 SPRING; PISTON CLU 8-08958-719-0 46 1 9708-
164 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9708-
165 RING; RET 8-05258-093-0 02 1 9708-
166 PLATE; REV CLU 8-96017-283-0 05 1 9708-
167 PLATE ASM; REV CLU 8-96014-269-0 04 1 9708-
168 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9708-
168 PLATE; REV CLU PRESS
T=6.64 		8-96014-623-0 01 1 9902-
168 PLATE; REV CLU PRESS
T=6.93 		8-96014-624-0 01 1 9902-
168 PLATE; REV CLU PRESS
T=7.22 		8-96014-625-0 01 1 9902-
168 PLATE; REV CLU PRESS
T=7.51 		8-96014-626-0 01 1 9902-
169 DRUM; 2ND CLU 8-96041-054-0 01 1 9708-
170 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9708-
171 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9708-
173 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9708-
178 RING; RET 8-08958-619-0 02 1 9708-
179 GEAR; RING 8-96014-576-0 01 1 9708-
183 PLATE; REV CLU 8-96017-451-0 01 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
