2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#40466) — 20 parça

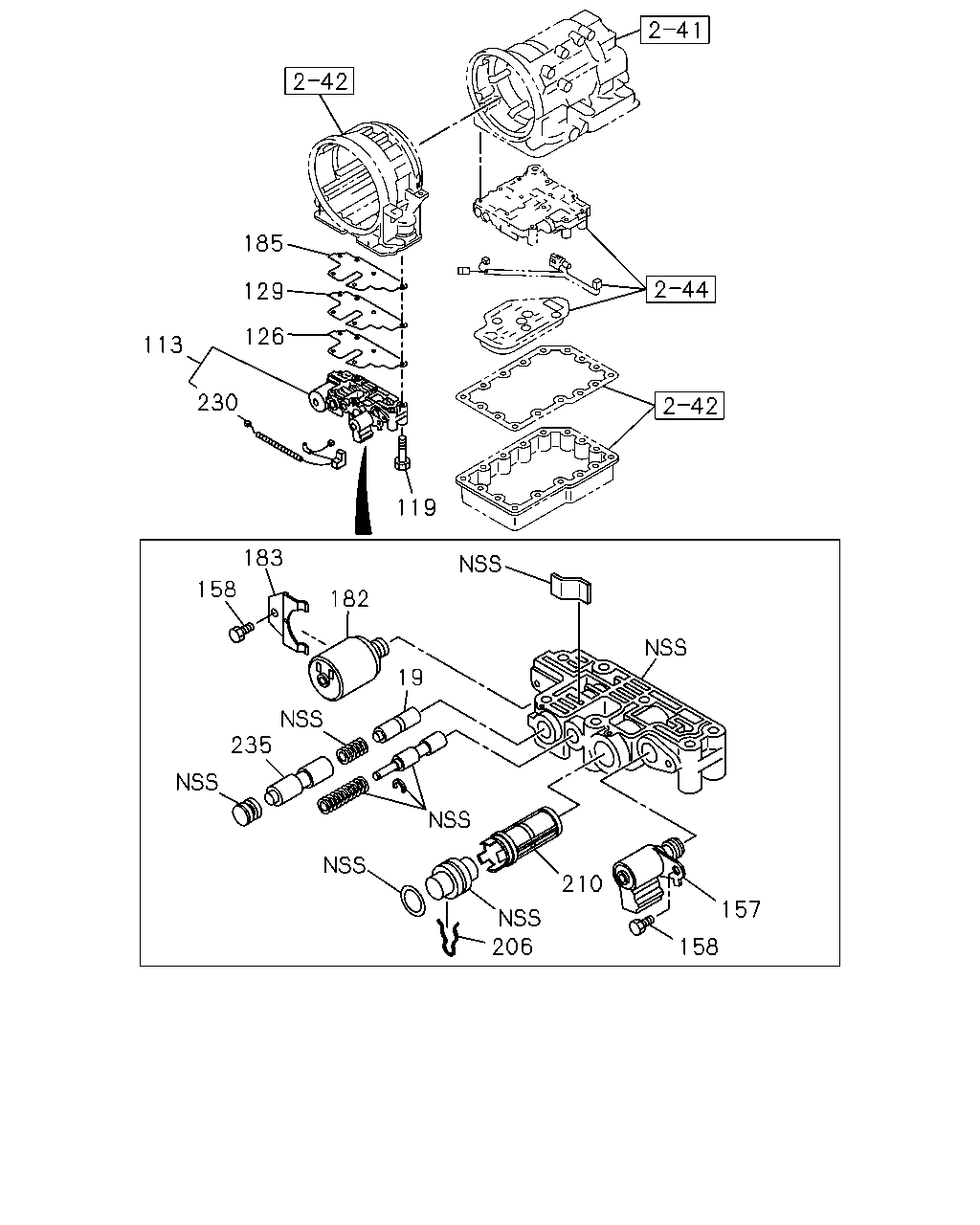

çizim 15815
185 129 126 113 230 119 183 158 182 19 235 210 157 206 158
BalonParca AdiParca NoAdetTipApplied Date
19 VALVE; ACCUMLATOR CONT,UPR VLV 8-96014-338-0 01 1 9708-
113 VALVE ASM; CONT,A/T 8-96017-357-0 01 1 9708-9907
113 VALVE ASM; CONT,A/T 8-96023-391-0 01 1 9908-
119 BOLT; VLV BODY,A/T 8-96017-270-0 07 1 9708-
126 GASKET; VALVE BODY 8-96017-399-0 01 1 9708-
129 PLATE; SEPARATOR,SIDE 8-96018-292-0 01 1 9708-9907
129 PLATE; SEPARATOR,SIDE 8-96022-846-0 01 1 9908-
157 SOLENOID; CONV CLU 8-96014-183-0 01 1 9708-9907
157 SOLENOID; CONV CLU 8-96018-534-0 01 1 9908-
158 BOLT; SOLENOID 8-00117-461-0 02 1 9708-
182 SOLENOID; FORCE MOTOR 8-08677-314-0 01 1 9708-9907
182 SOLENOID; FORCE MOTOR 8-96018-043-0 01 1 9908-
183 RETAINER; FORCE MOTOR 8-96016-954-0 01 1 9708-9907
183 RETAINER; FORCE MOTOR 8-96018-476-0 01 1 9908-
185 GASKET; ADAPTER TO TRANSFER PLATE 8-96017-400-0 01 1 9708-
206 RING; SNAP 8-05258-185-0 01 1 9708-
210 STRAINER 8-96041-009-0 01 1 9708-
230 HARNESS ASM; CABLE,A/T CONT 8-96018-278-0 01 1 9708-9907
230 HARNESS ASM; CABLE,A/T CONT 8-96018-537-0 01 1 9908-
235 VALVE; ACCUMULATOR 8-05258-806-0 01 1 9708-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
