2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#40464) — 83 parça

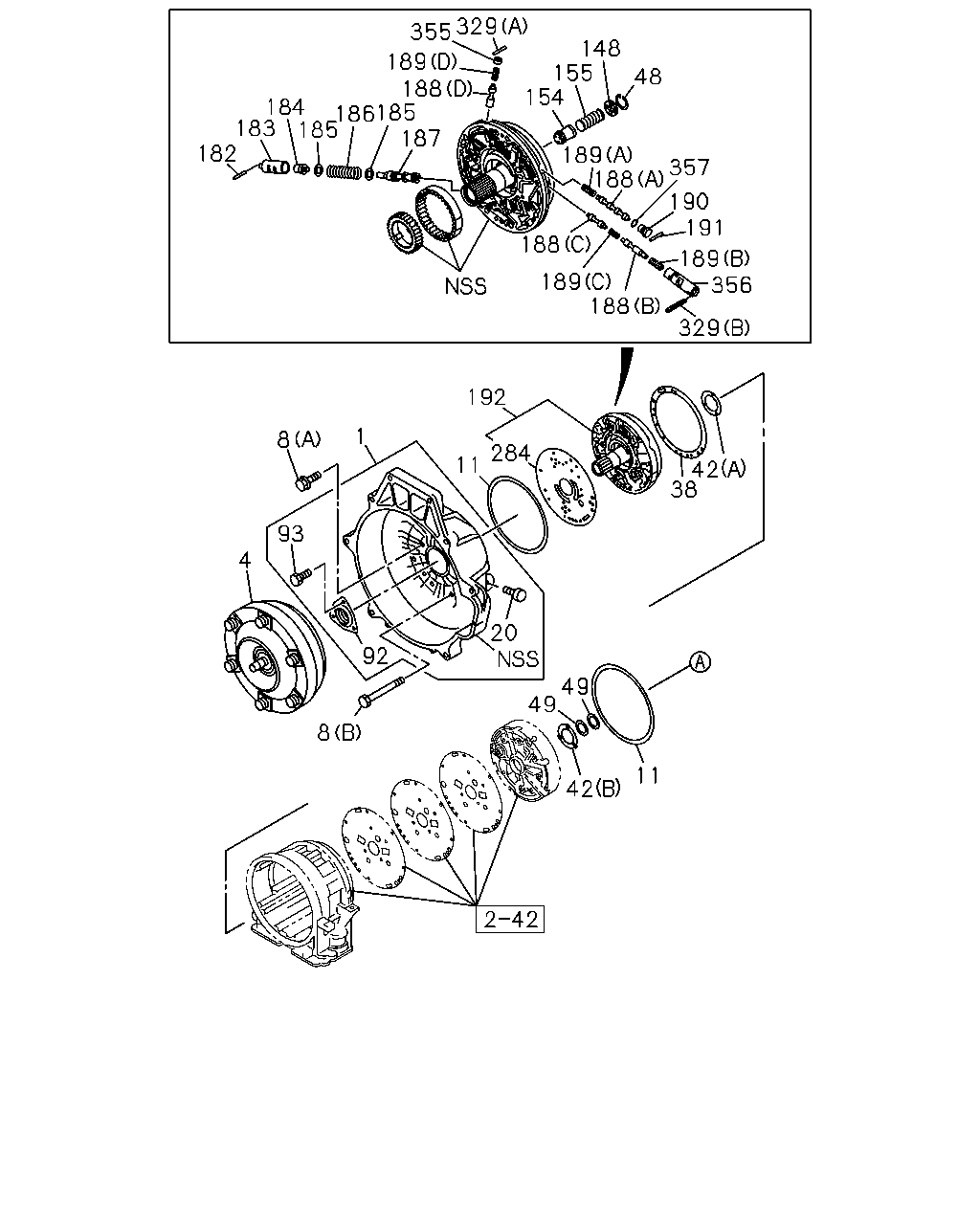

çizim 16657
355 329 189 188 184 187 182 148 155 48 154 189 357 188 190 191 189 356 188 189 188 329 192 1 8 284 11 42 38 93 92 4 20 49 49 8 11 42 183 185 186 185
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-96042-233-0 01 1 9708-9907
1 HOUSING; CONV,A/T 8-96041-623-0 01 1 9908-
4 CONVERTER ASM; TORQUE,A/T 8-24210-869-0 01 1 9708-9907
4 CONVERTER ASM; TORQUE,A/T 8-24213-406-0 01 1 9908-
8 BOLT; HSG TO CASE
(A) 		8-96013-210-0 05 1 9708-
8 BOLT; HSG TO CASE
(B) 		8-96016-795-0 07 1 9708-9802
8 BOLT; HSG TO CASE
(B) 		8-96018-559-0 07 1 9803-
11 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9708-
20 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9708-
38 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9708-
42 WASHER; OIL PUMP HSG,A/T
(A) YELLOW 		8-96013-761-0 01 1 9708-
42 WASHER; OIL PUMP HSG,A/T
(B) YELLOW 		8-96017-289-0 01 1 9708-
42 WASHER; OIL PUMP HSG,A/T
(A) RED 		8-96013-762-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(A) BLACK 		8-96013-763-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(A) NATURAL 		8-96013-764-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(A) GREEN 		8-96013-765-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(A) BLUE 		8-96013-766-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(B) RED 		8-96017-290-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(B) BLACK 		8-96017-291-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(B) WHITE 		8-96017-292-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(B) GREEN 		8-96017-293-0 01 1 9902-
42 WASHER; OIL PUMP HSG,A/T
(B) BLUE 		8-96017-294-0 01 1 9902-
48 RING; SNAP,OIL PUMP,A/T 8-96014-406-0 01 1 9708-
49 RING; OIL SEAL 8-96017-553-0 02 1 9708-
92 COVER ASM; A/T 8-96015-187-0 01 1 9708-
93 BOLT; COVER & BUSHING,A/T 8-96015-215-0 03 1 9708-
148 RETAINER; SPRING,CAM RING,OIL PUMP 8-96014-405-0 01 1 9708-
154 PISTON; ACCUMLATOR,OIL PUMP 8-96014-403-0 01 1 9708-
155 SPRING; SERVO,ACCUMLATOR PISTON,OIL PU 8-96014-404-0 01 1 9708-
182 PIN; BOOST VALVE SLEEVE 8-08958-824-0 01 1 9708-
183 SLEEVE; BOOST VALVE 8-96014-996-0 01 1 9708-
184 VALVE; BOOST 8-96014-997-0 01 1 9708-
185 SEAT; SPR,REG VALVE 8-05258-219-0 02 1 9708-
186 SPRING; REG VALVE 8-96017-526-0 01 1 9708-
187 VALVE; PRESSURE REG 8-96016-072-0 01 1 9708-
188 VALVE; CONV CLU CONT
(A) 		8-96014-396-0 01 1 9708-9907
188 VALVE; CONV CLU CONT
(A) 		8-96018-515-0 01 1 9908-
188 VALVE; CONV CLU CONT
(B) 		8-96018-518-0 01 1 9908-
188 VALVE; CONV CLU CONT
(C) 		8-96018-520-0 01 1 9908-
188 VALVE; CONV CLU CONT
(D) 		8-96018-522-0 01 1 9908-
189 SPRING; CONV CLU CONT VALVE
(A) 		8-96014-397-0 01 1 9708-9907
189 SPRING; CONV CLU CONT VALVE
(A) 		8-96018-516-0 01 1 9908-
189 SPRING; CONV CLU CONT VALVE
(B) 		8-96018-519-0 01 1 9908-
189 SPRING; CONV CLU CONT VALVE
(C) 		8-96018-521-0 01 1 9908-
189 SPRING; CONV CLU CONT VALVE
(D) 		8-96018-523-0 01 1 9908-
190 PLUG; CONV CLU CONT VALVE 8-96013-218-0 01 1 9708-9907
190 PLUG; CONV CLU CONT VALVE 8-96023-463-0 01 1 9908-
191 PIN; SPR,PLUG 8-96013-658-0 01 1 9708-
192 PUMP KIT; OIL 8-96042-234-0 01 1 9708-9907
192 PUMP KIT; OIL 8-96041-624-0 01 1 9908-
284 PLATE; WEAR,OIL PUMP 8-96017-926-0 01 1 9708-9907
284 PLATE; WEAR,OIL PUMP 8-96023-492-0 01 1 9908-
329 PIN; STRAIGHT
(A) 		8-96013-658-0 01 1 9908-
329 PIN; STRAIGHT
(B) 		8-96023-513-0 01 1 9908-
355 GUIDE; SPRING,CONV 8-96022-613-0 01 1 9908-
356 SLEEVE; CONV CLU 8-96018-472-0 01 1 9908-
357 GASKET; PLUG,CONV 8-96023-465-0 01 1 9908-

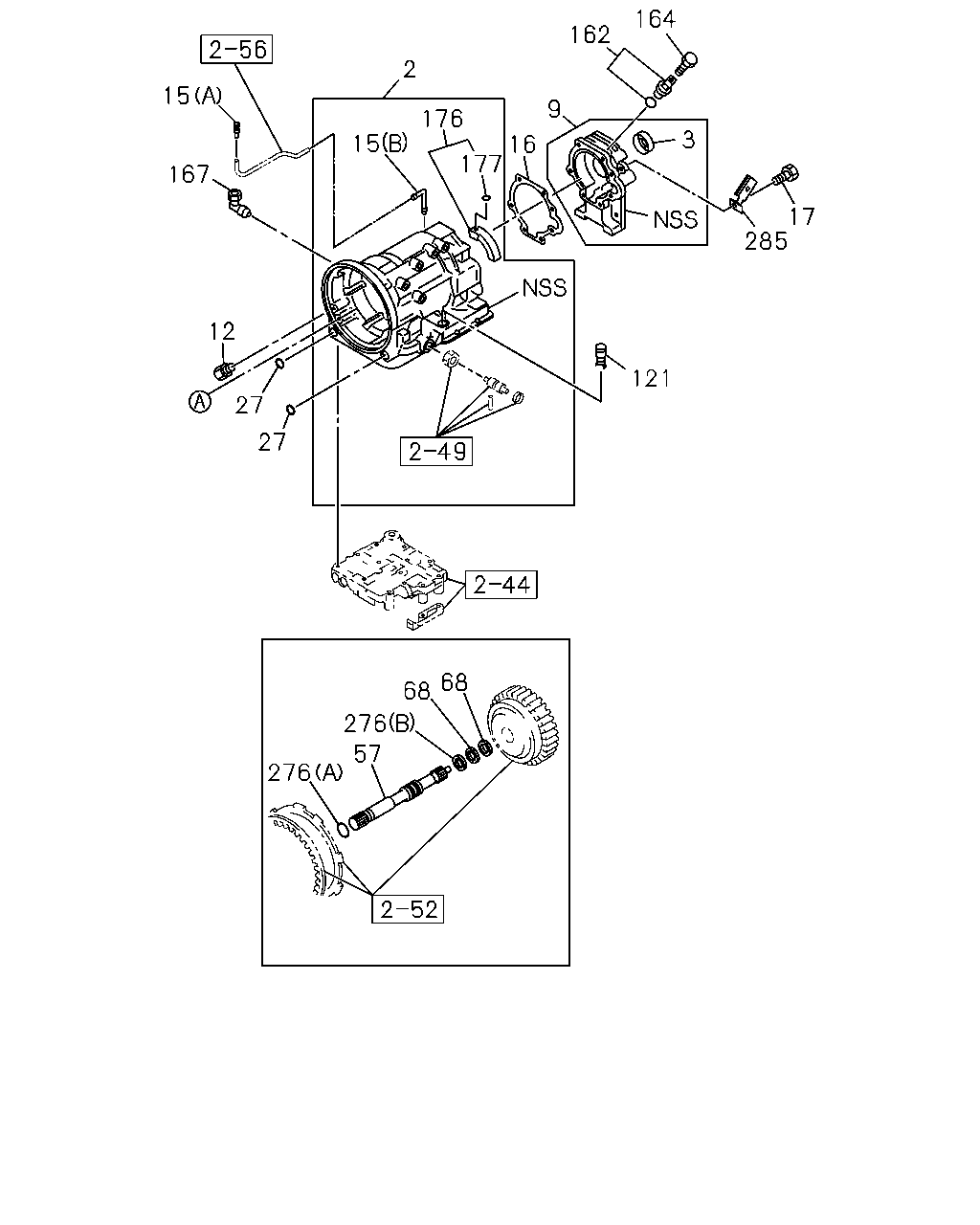

çizim 63922
164 162 2 15 9 16 177 176 15 3 167 17 285 12 121 27 27 68 68 276 57 276
BalonParca AdiParca NoAdetTipApplied Date
2 CASE ASM; A/T 8-96041-374-0 01 1 9708-9907
2 CASE ASM; A/T 8-96041-537-0 01 1 9908-
3 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9708-
9 COVER ASM; RR,A/T 8-96042-194-0 01 1 9708-
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-96015-476-0 01 1 9708-
15 BREATHER; A/T CASE
(A) 		8-96015-793-0 01 1 9708-
15 BREATHER; A/T CASE
(B) 		8-97164-362-0 01 1 9708-
16 GASKET; EXT HSG 8-96014-417-0 01 1 9708-
17 BOLT; REAR COVER TO CASE 8-96015-271-0 07 1 9708-
27 GASKET; HSG TO CASE 8-96014-270-0 02 1 9708-
57 SHAFT; TURBINE,A/T 8-96018-034-0 01 1 9708-9810
57 SHAFT; TURBINE,A/T 8-96023-043-0 01 1 9811-9907
57 SHAFT; TURBINE,A/T 8-96018-528-0 01 1 9908-
68 RING; OIL SEAL,TURBINE SHAFT 8-96017-484-0 02 1 9708-
121 CONNECTOR; ELEC 8-96015-409-0 01 1 9708-9907
121 CONNECTOR; ELEC 8-96018-330-0 01 1 9908-
162 SENSOR; REVOLUTION,A/T CONT 8-96014-422-0 01 1 9708-
164 BOLT; REV SENSOR,A/T 8-96014-809-0 01 1 9708-
167 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9708-9907
167 CONNECTOR; CASE,A/T 8-96023-299-0 01 1 9908-
176 RESERVOIR; MAIN CASE 8-96014-865-0 01 1 9708-
177 SEAL; MAIN CASE 8-96017-547-0 01 1 9708-
276 GASKET; SHAFT
(A) 		8-96013-953-0 01 1 9708-
276 GASKET; SHAFT
(B) 		8-96041-327-0 01 1 9708-
285 BRACKET; HARNESS 8-96018-298-0 01 1 9708-9709
285 BRACKET; HARNESS 8-96018-455-0 01 1 9710-
