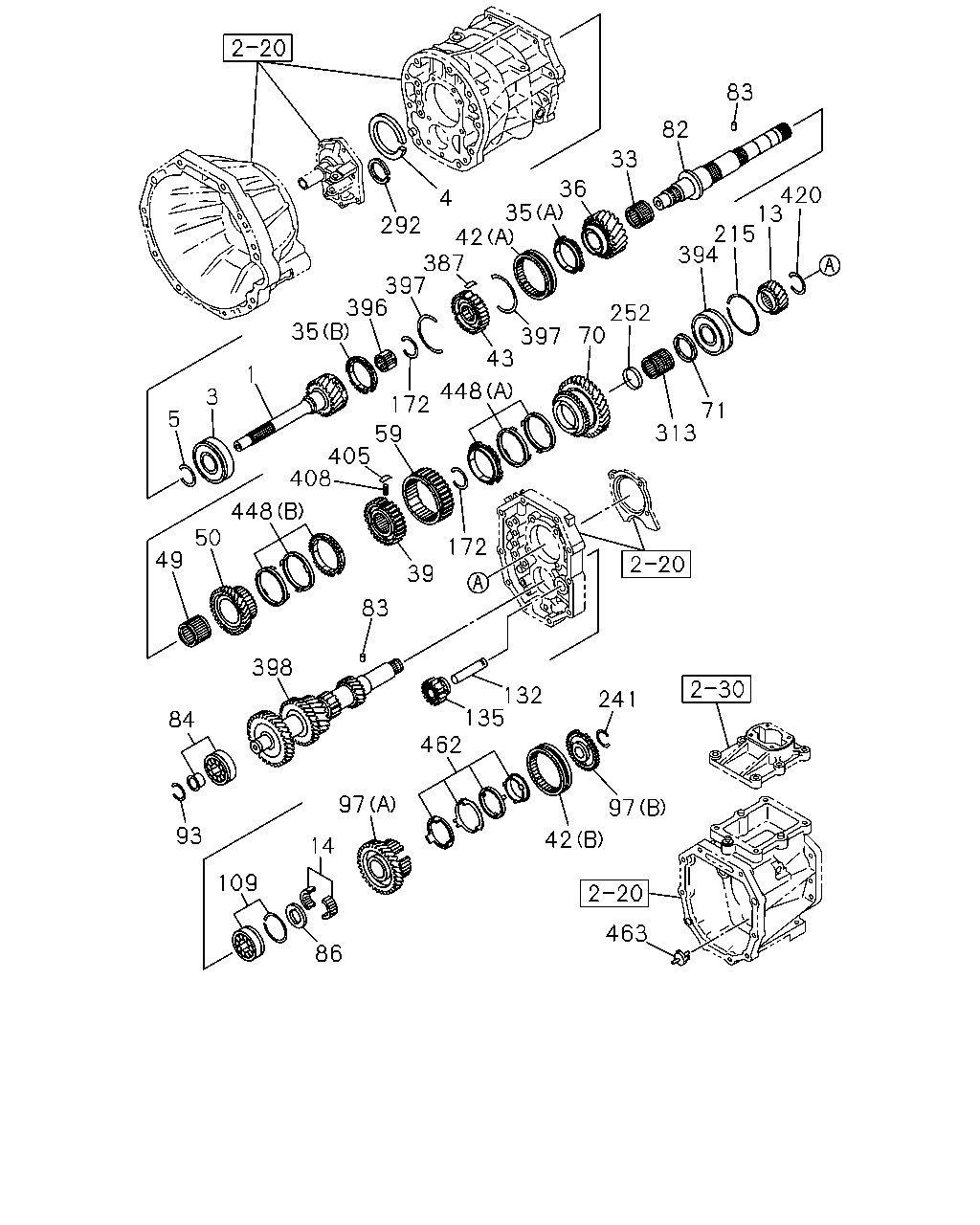

2-26 — MANUAL TRANSMISSION GEAR (#40460) — 156 parça

83 82 33 36 420 13 215 394 4 35 292 42 387 397 396 35 252 70 397 43 1 448 3 172 71 313 5 59 405 408 448 50 172 49 39 83 398 132 135 462 241 84 97 97 93 42 14 109 463 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	SHAFT; TOP GEAR,TRANS	8-97165-076-0	01	1	9708-9806	●
3	BEARING; TOP GEAR SHAFT	8-97164-976-0	01	1	9708-9806	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT	8-97165-073-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.10	8-97165-064-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.15	8-97165-065-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.20	8-97165-066-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.25	8-97165-067-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.30	8-97165-068-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.35	8-97165-069-0	01	1	9708-9806	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT T=2.40	8-97165-070-0	01	1	9708-9806	●
13	GEAR; 5TH,MAINSHAFT	8-97164-981-0	01	1	9708-9806	●
14	BEARING; NEEDLE,5TH	8-97165-013-0	01	1	9708-9806	●
33	BEARING; NEEDLE,3RD GEAR	8-97165-014-0	01	1	9708-9806	●
35	RING; BLOCK,4TH & 3RD (A)	8-97165-002-0	01	1	9708-9806	●
35	RING; BLOCK,4TH & 3RD (B)	8-97165-003-0	01	1	9708-9806	●
36	GEAR; 3RD,MAINSHAFT	8-97164-979-0	01	1	9708-9806	●
39	HUB; CLU,LOW & 2ND	8-97164-971-0	01	1	9708-9806	●
42	SLEEVE (A)	8-97164-998-0	01	1	9708-9806	●
42	SLEEVE (B)	8-97165-005-0	01	1	9708-9806	●
43	HUB; CLU,3RD & 4TH,MAIN	8-97164-972-0	01	1	9708-9806	●
49	BEARING; NEEDLE,2ND GEAR	8-97165-016-0	01	1	9708-9806	●
50	GEAR; 2ND,MAINSHAFT	8-97164-978-0	01	1	9708-9806	●
59	GEAR; REV MAINSHAFT	8-97165-077-0	01	1	9708-9806	●
70	GEAR; 1ST,MAINSHAFT	8-97164-977-0	01	1	9708-9806	●
71	WASHER; THRUST,LOW	8-97164-997-0	01	1	9708-9806	●
82	SHAFT; MAIN,TRANS	8-97164-995-0	01	1	9708-9806	●
83	PIN; THRUST WASHER	8-97164-974-0	02	1	9708-9806	●
84	BEARING; COUNTER SHAFT,FRT	8-97165-017-0	01	1	9708-9806	●
86	WASHER; THRUST,5TH	8-97164-996-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.00	8-97165-027-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.05	8-97165-028-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.10	8-97165-029-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.15	8-97165-030-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.20	8-97165-031-0	01	1	9708-9806	●
93	RING; SNAP,COUNTER FRT BRG T=2.25	8-97165-032-0	01	1	9708-9806	●
97	GEAR; 5TH,COUNTER (A)	8-97164-980-0	01	1	9708-9806	●
97	GEAR; 5TH,COUNTER (B)	8-97165-090-0	01	1	9708-9806	●
109	BEARING; COUNTER SHAFT,RR	8-97165-018-0	01	1	9708-9806	●
132	SHAFT; REV	8-97165-006-0	01	1	9708-9806	●
135	GEAR; REV IDLER	8-97164-982-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=1.80	8-97165-050-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=1.85	8-97165-051-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=1.90	8-97165-052-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=1.95	8-97165-053-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.00	8-97165-054-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.05	8-97165-055-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.10	8-97165-056-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.30	8-97165-057-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.35	8-97165-058-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.40	8-97165-059-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.45	8-97165-060-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.50	8-97165-061-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.55	8-97165-062-0	01	1	9708-9806	●
172	RING; SNAP,CLU HUB T=2.60	8-97165-063-0	01	1	9708-9806	●
215	RING; SNAP,BALL BRG	8-97165-072-0	01	1	9708-9806	●
241	RING; SNAP T=2.85	8-97165-020-0	01	1	9708-9806	●
241	RING; SNAP T=2.90	8-97165-021-0	01	1	9708-9806	●
241	RING; SNAP T=2.95	8-97165-022-0	01	1	9708-9806	●
241	RING; SNAP T=3.00	8-97165-023-0	01	1	9708-9806	●
241	RING; SNAP T=3.05	8-97165-024-0	01	1	9708-9806	●
241	RING; SNAP T=3.10	8-97165-025-0	01	1	9708-9806	●
241	RING; SNAP T=3.15	8-97165-026-0	01	1	9708-9806	●
252	SPACER	8-97164-973-0	01	1	9708-9806	●
292	RING; SNAP,BRG OUTER	8-97165-071-0	01	1	9708-9806	●
313	BEARING; NEEDLE,LOW GEAR	8-97165-015-0	01	1	9708-9806	●
387	INSERT; SYN,4TH & 3RD	8-97165-001-0	03	1	9708-9806	●
394	BEARING; BALL,MAINSHAFT RR	8-97164-975-0	01	1	9708-9806	●
396	BEARING; NEEDLE,MAINSHAFT	8-97165-012-0	01	1	9708-9806	●
397	SPRING; INSERT,4TH & 3RD	8-97165-004-0	02	1	9708-9806	●
398	GEAR; COUNTER	8-97164-983-0	01	1	9708-9806	●
405	INSERT; SYN,LOW & 2ND	8-97165-000-0	03	1	9708-9806	●
408	SPRING	8-97165-019-0	03	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=2.75	8-97165-035-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=2.80	8-97165-036-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=2.85	8-97165-037-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=2.90	8-97165-038-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=2.95	8-97165-039-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.00	8-97165-040-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.05	8-97165-041-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.10	8-97165-042-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.15	8-97165-043-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.20	8-97165-044-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.25	8-97165-045-0	01	1	9708-9806	●
420	RING; SNAP,OUTPUT SHAFT T=3.30	8-97165-046-0	01	1	9708-9806	●
448	SYNCHRONIZER ASM; 1ST & 2ND (A)	8-97164-968-0	01	1	9708-9806	●
448	SYNCHRONIZER ASM; 1ST & 2ND (B)	8-97164-969-0	01	1	9708-9806	●
462	RING ASM; BLOCK,SYNCHRONIZER	8-97164-970-0	01	1	9708-9806	●
463	PIPE; COUNTER SHAFT	8-97164-985-0	01	1	9708-9806	●

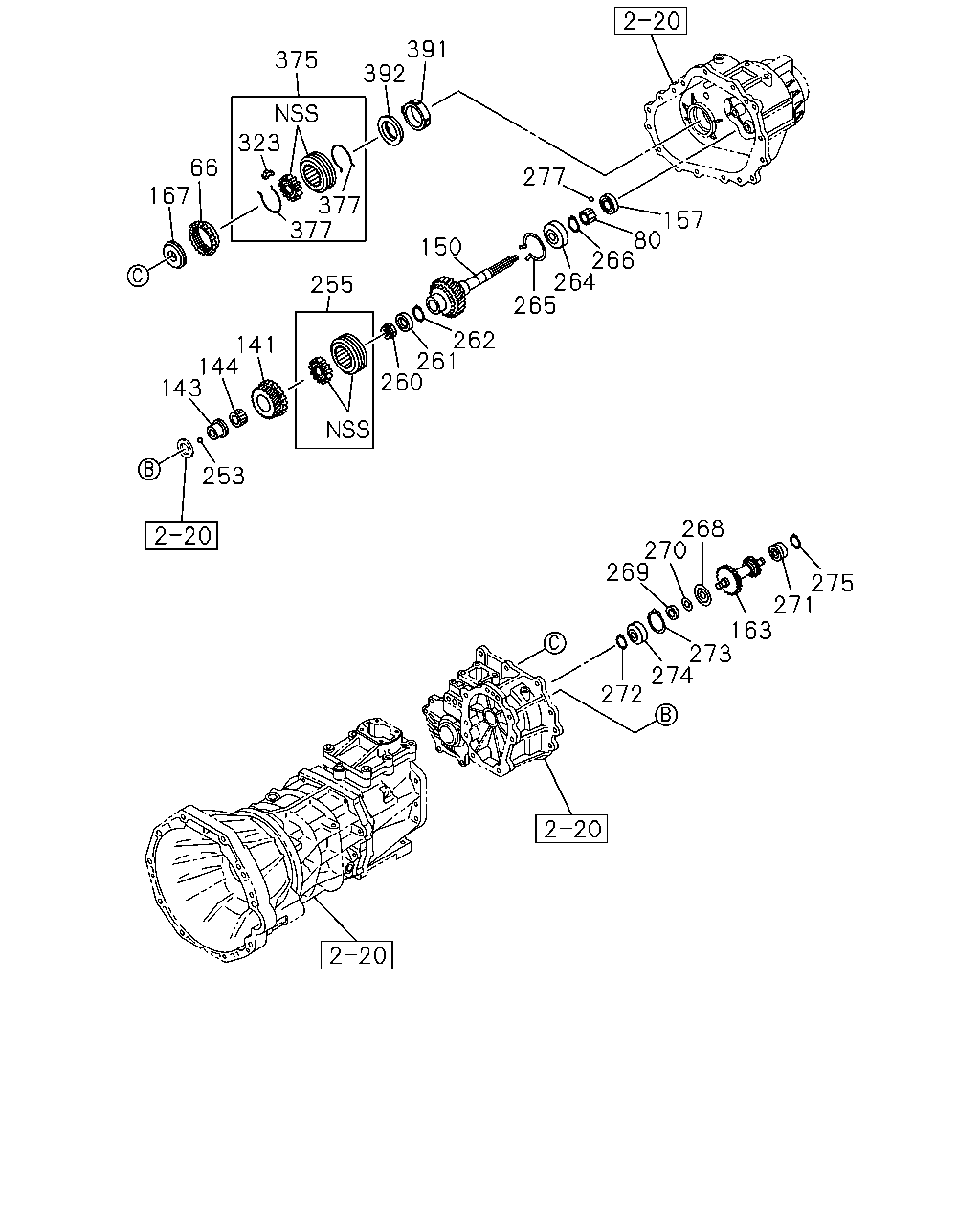

391 392 375 323 66 167 277 377 377 157 80 266 264 265 150 255 262 261 260 141 144 143 253 268 270 269 275 271 163 273 274 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	RING; BLOCK,SYN EXC. TORQUE ON DEMAND<7HA>	8-97169-516-0	01	1	9708-9806	●	●
66	RING; BLOCK,SYN EXC. TORQUE ON DEMAND<7HA>	8-97169-516-1	01	1	9807-		●
80	GEAR; SPD DRIVE EXC. TORQUE ON DEMAND<7HA> Z=6	8-94333-535-2	01	1	9708-9806	●	●
80	GEAR; SPD DRIVE EXC. TORQUE ON DEMAND<7HA> Z=6	8-94333-535-2	01	1	9807-		●
141	GEAR; INPUT,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=34	8-97141-878-0	01	1	9708-9806	●	●
141	GEAR; INPUT,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=34	8-97141-878-0	01	1	9807-		●
143	COLLAR; INPUT GEAR BRG,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94482-579-1	01	1	9708-9806	●	●
143	COLLAR; INPUT GEAR BRG,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94482-579-1	01	1	9807-		●
144	BEARING; NEEDLE,INPUT GEAR EXC. TORQUE ON DEMAND<7HA> NSK	1-09811-028-1	01	1	9708-9806	●	●
144	BEARING; NEEDLE,INPUT GEAR EXC. TORQUE ON DEMAND<7HA> NSK	1-09811-028-1	01	1	9807-		●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. TORQUE ON DEMAND<7HA> Z=49	8-97166-156-0	01	1	9708-9806	●	●
150	SHAFT; OUTPUT,RR WHEEL DRIVE EXC. TORQUE ON DEMAND<7HA> Z=49	8-97166-156-0	01	1	9807-		●
157	BEARING; BALL,OUTPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-050-0	01	1	9708-9806	●	●
157	BEARING; BALL,OUTPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-050-1	01	1	9807-		●
163	GEAR; COUNTER,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=37-26	8-97165-317-0	01	1	9708-9806	●	●
163	GEAR; COUNTER,TRANSFER EXC. TORQUE ON DEMAND<7HA> Z=37-26	8-97165-317-0	01	1	9807-		●
167	PLATE; LK,COUNTER SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97102-940-0	01	1	9708-9806	●	●
167	PLATE; LK,COUNTER SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97102-940-0	01	1	9807-		●
253	BALL; INPUT EXC. TORQUE ON DEMAND<7HA>	8-94201-356-0	01	1	9708-9806	●	●
253	BALL; INPUT EXC. TORQUE ON DEMAND<7HA>	8-94201-356-0	01	1	9807-		●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97141-885-1	01	1	9708-9806	●	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97141-885-1	01	1	9807-		●
260	NUT; MAINSHAFT END EXC. TORQUE ON DEMAND<7HA> M27	8-94388-182-1	01	1	9708-9806	●	●
260	NUT; MAINSHAFT END EXC. TORQUE ON DEMAND<7HA> M27	8-94388-182-1	01	1	9807-		●
261	BEARING; PILOT,OUTPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-176-0	01	1	9708-9806	●	●
261	BEARING; PILOT,OUTPUT SHAFT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-176-0	01	1	9807-		●
262	RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND<7HA> ID=23.2	9-09180-025-0	01	1	9708-9806	●	●
262	RING; SNAP,PILOT BRG EXC. TORQUE ON DEMAND<7HA> ID=23.2	9-09180-025-0	01	1	9807-		●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-054-0	01	1	9708-9806	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-054-1	01	1	9807-		●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND<7HA> KOYO	8-94422-055-1	01	1	9708-9806	●	●
264	BEARING; RR OUTPUT SHAFT,FRT EXC. TORQUE ON DEMAND<7HA> KOYO	8-94422-055-1	01	1	9807-		●
265	RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND<7HA> OD=95.0	8-94422-091-0	01	1	9708-9806	●	●
265	RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND<7HA> OD=95.0	8-94422-091-0	01	1	9807-		●
266	RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND<7HA> ID=37.0 OD=53.0	8-94422-093-0	01	1	9708-9806	●	●
266	RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND<7HA> ID=37.0 OD=53.0	8-94422-093-0	01	1	9807-0004		●
266	RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND<7HA> ID=37.4	8-97254-316-0	01	1	0005-		●
268	PLATE; ANTI LASH,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97164-348-0	01	1	9708-9806	●	●
268	PLATE; ANTI LASH,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97164-348-0	01	1	9807-		●
269	SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-94482-469-1	01	1	9708-9806	●	●
269	SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-94482-469-1	01	1	9807-9812		●
269	SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-		●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94482-498-0	01	1	9708-9806	●	●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94482-498-0	01	1	9807-		●
271	BEARING; COUNTER GEAR,FRT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-050-0	01	1	9708-9806	●	●
271	BEARING; COUNTER GEAR,FRT EXC. TORQUE ON DEMAND<7HA> NSK	8-94422-050-1	01	1	9807-		●
272	RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND<7HA> T=1.50 WHITE	8-94448-808-0	01	1	9708-9806	●	●
272	RING; SNAP,BRG INNER EXC. TORQUE ON DEMAND<7HA> T=1.50 WHITE	8-94448-808-0	01	1	9807-		●
273	RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND<7HA> OD=77.0	8-94422-092-0	01	1	9708-9806	●	●
273	RING; SNAP,BRG OUTER EXC. TORQUE ON DEMAND<7HA> OD=77.0	8-94422-092-0	01	1	9807-		●
274	BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND<7HA> NSK	8-97080-184-0	01	1	9708-9806	●	●
274	BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND<7HA> NSK	8-97080-184-0	01	1	9807-		●
274	BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND<7HA> KOYO	8-97080-185-0	01	1	9708-9806	●	●
274	BEARING; COUNTER GEAR,RR EXC. TORQUE ON DEMAND<7HA> KOYO	8-97080-185-0	01	1	9807-		●
275	RING; SNAP,COUNTER GEAR BRG EXC. TORQUE ON DEMAND<7HA> ID=23.2	9-09180-025-0	01	1	9708-9806	●	●
275	RING; SNAP,COUNTER GEAR BRG EXC. TORQUE ON DEMAND<7HA> ID=23.2	9-09180-025-0	01	1	9807-		●
277	BALL; SPD DRIVE GEAR EXC. TORQUE ON DEMAND<7HA>	8-94201-356-0	01	1	9708-9806	●	●
277	BALL; SPD DRIVE GEAR EXC. TORQUE ON DEMAND<7HA>	8-94201-356-0	01	1	9807-		●
323	INSERT EXC. TORQUE ON DEMAND<7HA>	8-94448-202-1	03	1	9708-9806	●	●
323	INSERT EXC. TORQUE ON DEMAND<7HA>	8-94448-202-2	03	1	9807-		●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. TORQUE ON DEMAND<7HA>	8-97104-027-0	01	1	9708-9806	●	●
375	SYNCHRONIZER ASM; 2ND & 4TH EXC. TORQUE ON DEMAND<7HA>	8-97104-027-0	01	1	9807-		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94422-075-0	02	1	9708-9806	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-94422-075-0	02	1	9807-		●
391	RING; INSIDE,SYN EXC. TORQUE ON DEMAND<7HA>	8-97101-452-0	01	1	9708-9806	●	●
391	RING; INSIDE,SYN EXC. TORQUE ON DEMAND<7HA>	8-97101-452-0	01	1	9807-		●
392	RING; OUTSIDE,SYN EXC. TORQUE ON DEMAND<7HA>	8-97169-514-0	01	1	9708-9806	●	●
392	RING; OUTSIDE,SYN EXC. TORQUE ON DEMAND<7HA>	8-97169-514-1	01	1	9807-		●
