2-20 — MANUAL TRANSMISSION ASM AND CASE (#40458) — 110 parça

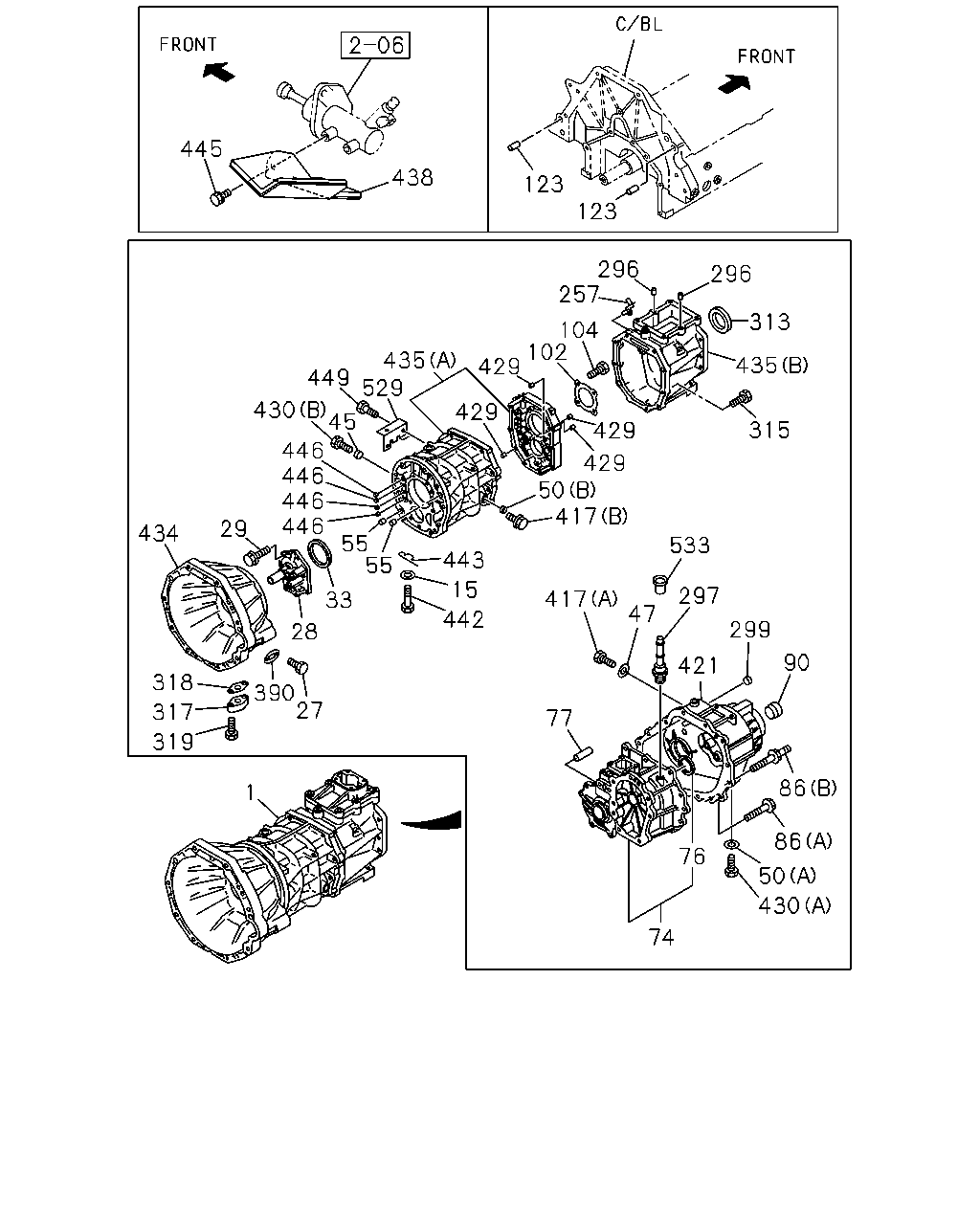

445 438 123 123 296 257 296 313 104 102 435 529 435 429 449 429 429 50 417 430 45 429 315 446 446 446 446 29 434 55 55 533 443 15 297 417 33 47 442 299 28 90 421 318 390 27 317 77 319 86 1 86 76 50 430 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-97185-560-0	01	1	9708-9806	●
15	WASHER; PL ID=8 OD=22	9-09160-708-0	01	1	9708-9806	●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	9708-9806	●
28	COVER; FRT,TRANS CASE	8-97164-890-0	01	1	9708-9806	●
29	BOLT; FRT COVER	8-97164-896-0	08	1	9708-9806	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97165-084-0	01	1	9708-9806	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97164-900-0	01	1	9708-9806	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	8-97115-712-0	01	1	9708-9806	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	8-97115-712-0	01	1	9807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> (A)	8-97115-712-0	01	1	9708-9806	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> (A)	8-97115-712-0	01	1	9807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97164-900-0	01	1	9708-9806	●
55	PIN; KNOCK,CASE,TRANS	8-97185-154-0	02	1	9708-9806	●
74	CASE ASM; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97164-349-0	01	1	9708-9806	●	●
74	CASE ASM; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97164-349-0	01	1	9807-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-700-0	01	1	9708-9806	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-700-0	01	1	9807-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-701-2	01	1	9708-9806	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-701-2	01	1	9807-		●
77	PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA> L=20	8-97135-423-0	02	1	9708-9806	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA> L=20	8-97135-423-0	02	1	9807-		●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (B) M10X18 M10X35 L=63	8-94367-310-1	02	1	9708-9806	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (B) M10X18 M10X35 L=63	8-94367-310-1	02	1	9807-		●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	8-94448-818-1	09	1	9708-9805	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	0-28081-035-0	09	1	9806-9806	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	0-28081-035-0	09	1	9807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-706-0	01	1	9708-9806	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-706-0	01	1	9807-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-707-2	01	1	9708-9806	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-707-2	01	1	9807-		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97164-895-0	01	1	9708-9806	●
104	BOLT; BRG RET	8-97164-897-0	04	1	9708-9806	●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9708-9806	●	●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9807-		●
257	CLIP; HARNESS TORQUE ON DEMAND<7HA> ID=22 OD=25 H=18	8-97022-767-0	01	1	9708-		●
257	CLIP; HARNESS	8-97167-997-0	01	1	9708-9806	●
296	PIN; QUAD BOX TO CASE	8-97185-165-0	02	1	9708-9806	●
297	BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA>	8-97173-541-1	01	1	9708-9806	●	●
297	BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA>	8-97173-541-1	01	1	9807-		●
299	PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA> OD=14	5-09609-004-0	02	1	9708-9806	●	●
299	PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA> OD=14	5-09609-004-0	02	1	9807-		●
313	SEAL; OIL	8-97165-085-0	01	1	9708-9806	●
315	BOLT; CASE	8-97164-988-0	10	1	9708-9806	●
317	COVER; CASE	8-97034-422-1	01	1	9708-9806	●
318	GASKET; COVER	8-97035-567-0	01	1	9708-9806	●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	9708-9806	●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	9708-9806	●
417	PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND<7HA> (A)	8-94310-917-0	01	1	9708-9806	●	●
417	PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND<7HA> (A)	8-94310-917-0	01	1	9807-		●
417	PLUG; OIL FILLER,TRANS (B)	8-97164-952-0	01	1	9708-9806	●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97126-772-1	01	1	9708-9806	●	●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97126-772-1	01	1	9807-9902		●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9903-		●
429	PIN; STRAIGHT	8-97185-155-0	04	1	9708-9806	●
430	PLUG; OIL DRAIN EXC. TORQUE ON DEMAND<7HA> (A)	9-09662-004-0	01	1	9708-9806	●	●
430	PLUG; OIL DRAIN EXC. TORQUE ON DEMAND<7HA> (A)	9-09662-004-0	01	1	9807-		●
430	PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	9708-9806	●
434	HOUSING; CLU	8-97185-561-0	01	1	9708-9806	●
435	CASE; TRANS (A)	8-97164-893-0	01	1	9708-9806	●
435	CASE; TRANS (B)	8-97164-986-0	01	1	9708-9806	●
438	PROTECTOR; HEAT,SLAVE CYL	8-97178-698-0	01	1	9708-9806	●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	9708-9806	●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	9708-9806	●
445	BOLT; HEAT PROTECTOR M6X12 FLANGE	0-28080-612-0	02	1	9708-9806	●
446	PLUG; CASE,TRANS	8-97185-156-0	04	1	9708-9806	●
449	BOLT; BRKT M6X12 FLANGE	0-28080-612-0	01	1	9708-9806	●
529	BRACKET; MISSION CASE	8-97163-787-0	01	1	9708-9806	●
533	CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9708-9806	●	●
533	CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9807-		●

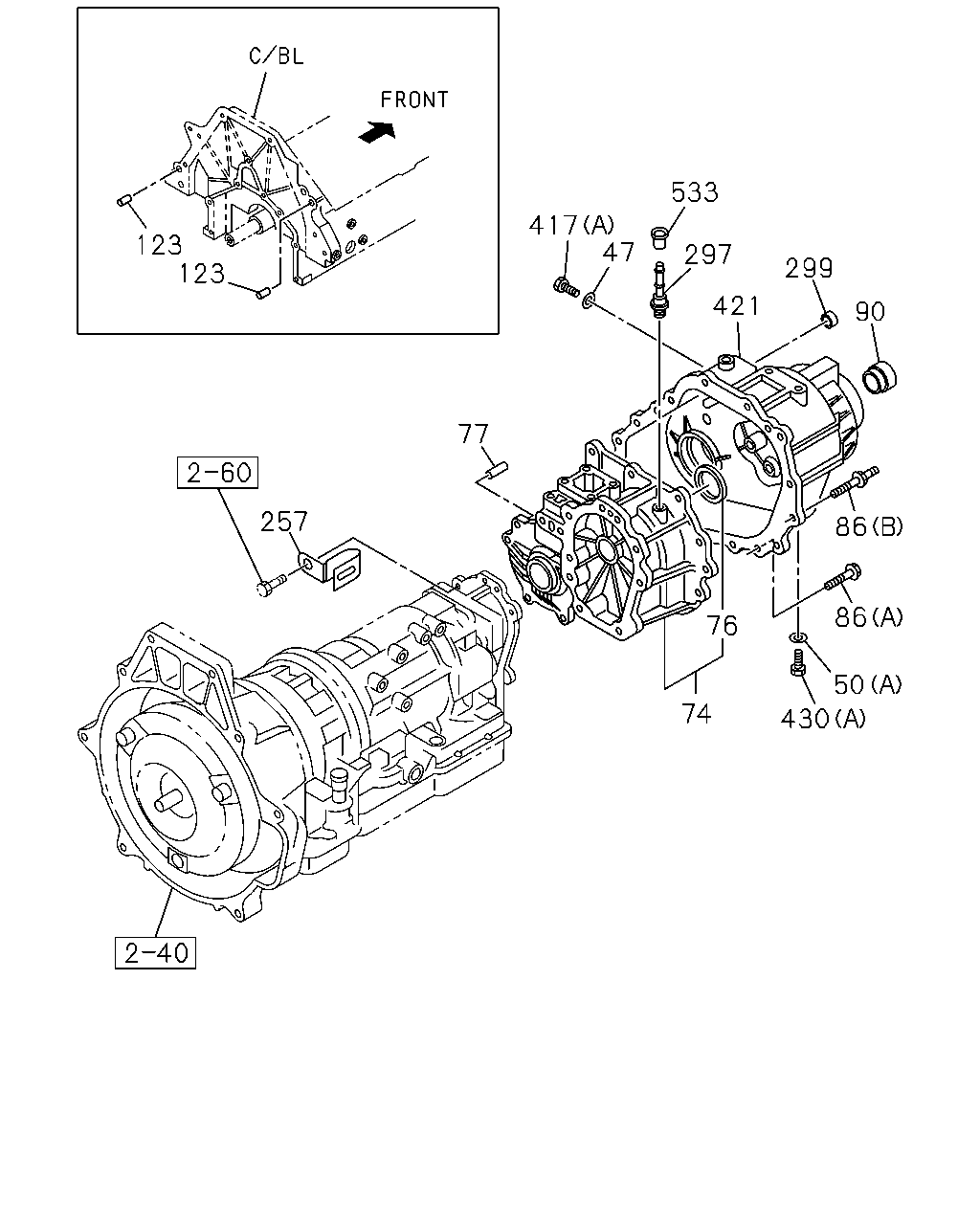

533 417 47 123 123 297 299 421 90 77 86 86 76 50 74 430 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	8-97115-712-0	01	1	9708-9806	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	8-97115-712-0	01	1	9807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> (A)	8-97115-712-0	01	1	9708-9806	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> (A)	8-97115-712-0	01	1	9807-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97164-900-0	01	1	9708-9806	●
74	CASE ASM; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97164-349-0	01	1	9708-9806	●	●
74	CASE ASM; TRANSFER EXC. TORQUE ON DEMAND<7HA>	8-97164-349-0	01	1	9807-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-700-0	01	1	9708-9806	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-700-0	01	1	9807-		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-701-2	01	1	9708-9806	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-701-2	01	1	9807-		●
77	PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA> L=20	8-97135-423-0	02	1	9708-9806	●	●
77	PIN; KNOCK,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA> L=20	8-97135-423-0	02	1	9807-		●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (B) M10X18 M10X35 L=63	8-94367-310-1	02	1	9708-9806	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (B) M10X18 M10X35 L=63	8-94367-310-1	02	1	9807-		●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	8-94448-818-1	09	1	9708-9805	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	0-28081-035-0	09	1	9806-9806	●	●
86	BOLT; RR COVER EXC. TORQUE ON DEMAND<7HA> (A) M10X35 FLANGE	0-28081-035-0	09	1	9807-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-706-0	01	1	9708-9806	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> TKK	8-97046-706-0	01	1	9807-0010		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-707-2	01	1	9708-9806	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA> NOK	8-97046-707-2	01	1	9807-		●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9708-9806	●	●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9807-		●
257	CLIP; HARNESS TORQUE ON DEMAND<7HA> ID=22 OD=25 H=18	8-97022-767-0	01	1	9708-		●
257	CLIP; HARNESS	8-97167-997-0	01	1	9708-9806	●
297	BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA>	8-97173-541-1	01	1	9708-9806	●	●
297	BREATHER; AIR,TRANSFER CASE EXC. TORQUE ON DEMAND<7HA>	8-97173-541-1	01	1	9807-		●
299	PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA> OD=14	5-09609-004-0	02	1	9708-9806	●	●
299	PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA> OD=14	5-09609-004-0	02	1	9807-		●
417	PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND<7HA> (A)	8-94310-917-0	01	1	9708-9806	●	●
417	PLUG; OIL FILLER,TRANS EXC. TORQUE ON DEMAND<7HA> (A)	8-94310-917-0	01	1	9807-		●
417	PLUG; OIL FILLER,TRANS (B)	8-97164-952-0	01	1	9708-9806	●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97126-772-1	01	1	9708-9806	●	●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97126-772-1	01	1	9807-9902		●
421	COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9903-		●
430	PLUG; OIL DRAIN EXC. TORQUE ON DEMAND<7HA> (A)	9-09662-004-0	01	1	9708-9806	●	●
430	PLUG; OIL DRAIN EXC. TORQUE ON DEMAND<7HA> (A)	9-09662-004-0	01	1	9807-		●
430	PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	9708-9806	●
533	CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9708-9806	●	●
533	CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9807-		●
