◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#40453) — 23 parça

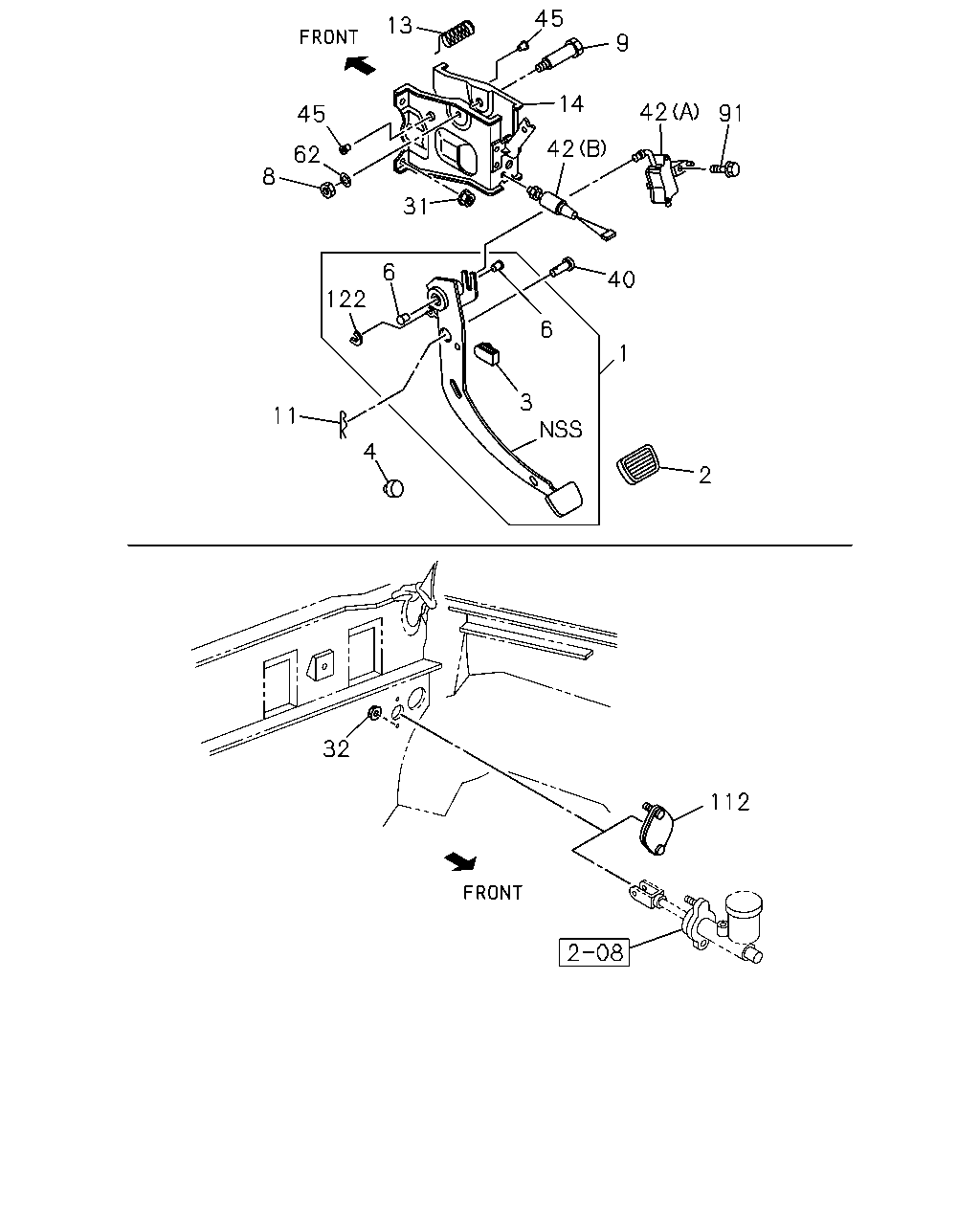

çizim 65154
45 13 9 14 31 42 91 45 42 62 8 6 40 122 6 1 3 11 4 2 32 112
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
M/T AR-5 5 SPEED(RNK) 		8-97145-916-0 01 1 9708-9806
2 COVER; CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94222-524-1 01 1 9708-9806
3 RUBBER; STOPPER,CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94463-258-0 01 1 9708-9806
4 STOPPER; CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94103-675-0 01 1 9708-9806
6 BUSHING; CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94244-439-0 02 1 9708-9806
8 NUT; PIN TO PEDAL
M/T AR-5 5 SPEED(RNK) M10 		9-09110-410-0 01 1 9708-9806
9 PIN; CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94455-308-0 01 1 9708-9806
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T AR-5 5 SPEED(RNK) L=27.7 		1-09747-005-0 01 1 9708-9806
13 SPRING; ASSIST,CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-97036-041-0 01 1 9708-9806
14 BRACKET ASM; CLU PEDAL MTG
M/T AR-5 5 SPEED(RNK) 		8-97042-056-0 01 1 9708-9806
31 NUT; MTG BRKT TO BODY
M/T AR-5 5 SPEED(RNK) M8 FLANGE 		0-91150-108-0 04 1 9708-9806
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91150-108-0 02 1 9708-
40 PIN; JOINT,CLU DAMPER
M/T AR-5 5 SPEED(RNK) 		8-94318-383-0 01 1 9708-9805
40 PIN; JOINT,CLU DAMPER
M/T AR-5 5 SPEED(RNK) 		8-94432-133-1 01 1 9806-9806
42 SWITCH; CLU
M/T AR-5 5 SPEED(RNK) (A) 		5-82340-008-3 01 1 9708-9806
42 SWITCH; CLU
M/T AR-5 5 SPEED(RNK) (B) 		8-94368-343-0 01 1 9708-9806
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T AR-5 5 SPEED(RNK) 		8-94175-433-0 02 1 9708-9806
62 WASHER; LK,PIN TO PEDAL
M/T AR-5 5 SPEED(RNK) ID=10.2 		9-09150-510-0 01 1 9708-9806
91 BOLT; SWITCH,CLU
M/T AR-5 5 SPEED(RNK) M6X25 FLANGE 		0-28680-625-0 01 1 9708-9806
112 PLUG; METAL,M/CYL
A/T THM(RMQ) 		8-94325-869-0 01 1 9708-9806
112 PLUG; METAL,M/CYL 8-94325-869-0 01 1 9807-0007
112 PLUG; METAL,M/CYL 8-97259-210-0 01 1 0008-
122 BUSHING; ASSIST PEDAL,CLU
M/T AR-5 5 SPEED(RNK) 		8-94175-434-0 01 1 9708-9806
