1-41 — FUEL PIPING; CHASSIS (#40450) — 143 parça

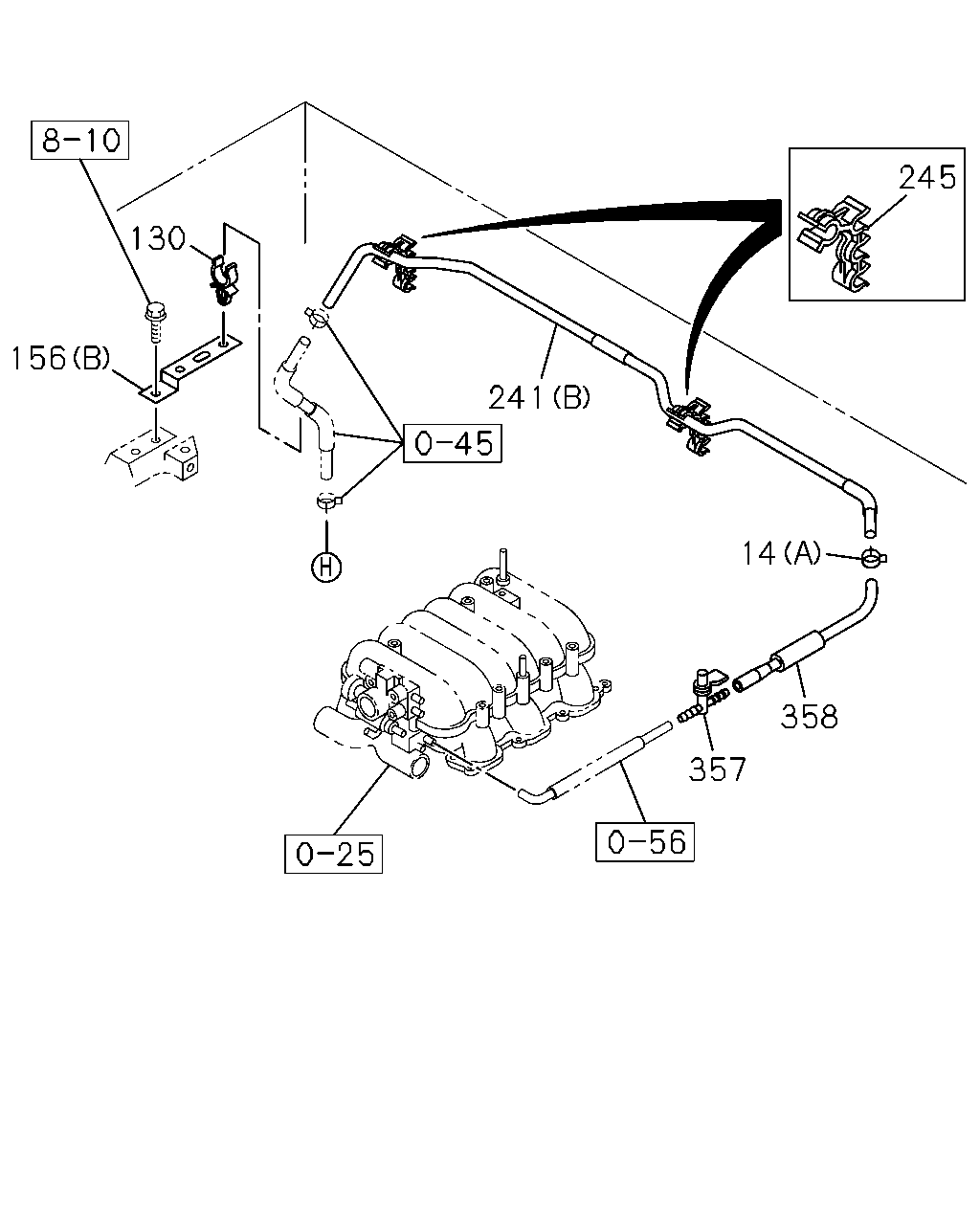

çizim 63777
245 130 156 241 14 358 357
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
(A) ID=11 		8-94238-570-0 01 1 9708-0103
14 CLIP; HOSE
(A) ID=11 		8-97173-219-0 01 1 0104-
14 CLIP; HOSE
(B) ID=14 		8-94238-572-0 01 1 9708-9801
14 CLIP; HOSE
(B) ID=14 		8-97173-221-0 01 1 9802-
130 CLIP; RUBBER HOSE
ID=10.7 		8-94400-275-0 01 1 9708-9907
156 BRACKET; FUEL HOSE
(B) 		8-97049-707-1 01 1 9708-9907
156 BRACKET; FUEL HOSE
(C) 		8-97174-660-0 01 1 9708-0106
156 BRACKET; FUEL HOSE
(C) 		8-97312-339-0 01 1 0107-
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97170-282-0 01 1 9708-9806
156 BRACKET; FUEL HOSE
(A) 		8-97170-282-0 01 1 9807-
156 BRACKET; FUEL HOSE
M/T AR-5 5 SPEED(RNK) (A) 		8-97179-586-0 01 1 9708-9806
241 PIPE; EVAP
(A) 		8-97147-245-1 01 1 9708-
241 PIPE; EVAP
(B) 		8-97163-443-4 01 1 9708-
241 PIPE; EVAP
(C) 		8-97163-762-1 01 1 9708-
245 CLIP; EVAP HOSE
ID=6.4 & 4.8 & 4.8 & 4.8 		8-97035-565-2 02 1 9708-9801
245 CLIP; EVAP HOSE
ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 02 1 9802-
357 VALVE; CHECK,EVAPORATOR 8-97126-016-0 01 1 9708-
358 HOSE; RUBBER,PURGE 8-97163-239-0 01 1 9708-

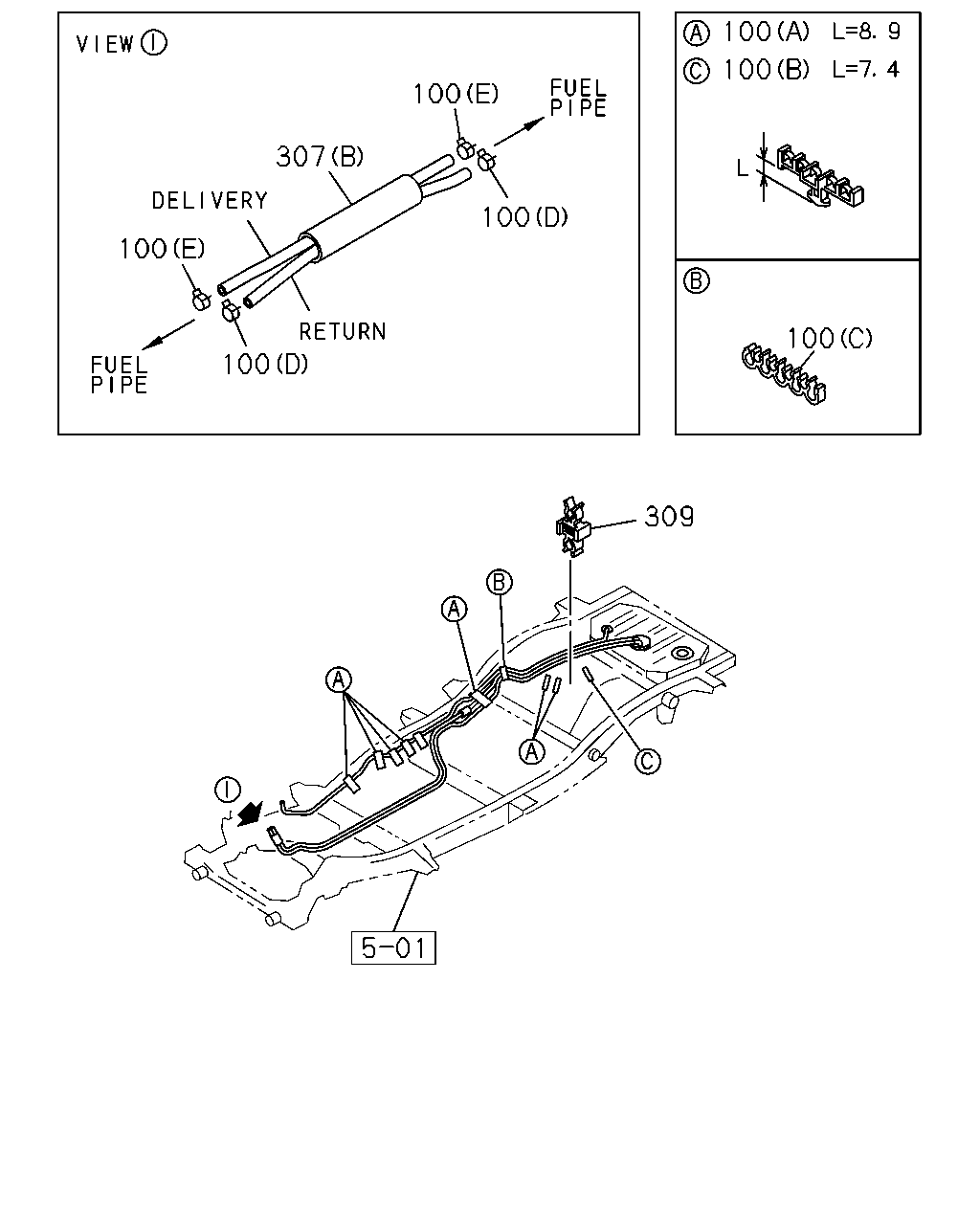

çizim 64052
100 100 100 307 100 100 100 100 309
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; FUEL PIPE
(B) L=7.4 		8-94435-550-0 01 1 9708-
100 CLIP; FUEL PIPE
(A) L=8.9 		8-94435-551-1 09 1 9708-
100 CLIP; FUEL PIPE
(C) 		8-97073-935-0 01 1 9708-
100 CLIP; FUEL PIPE
(D) ID=11.5 		8-97138-011-0 02 1 9708-0007
100 CLIP; FUEL PIPE
TORQUE ON DEMAND<7HA> (D) ID=11.5 		8-97138-011-0 01 1 0008-
100 CLIP; FUEL PIPE
(E) ID=12 		8-97148-892-0 02 1 9708-0007
100 CLIP; FUEL PIPE
TORQUE ON DEMAND<7HA> (E) ID=12 		8-97148-892-1 01 1 0008-
100 CLIP; FUEL PIPE
EXC. TORQUE ON DEMAND<7HA> (D) ID=11.5 		8-97138-011-0 02 1 0008-
100 CLIP; FUEL PIPE
EXC. TORQUE ON DEMAND<7HA> (E) ID=12 		8-97148-892-1 02 1 0008-
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97174-384-2 01 1 9708-9907
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97229-400-1 01 1 9908-9912
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97249-655-0 01 1 0001-0007
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (B) 		8-97249-655-2 01 1 0008-
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A) 		8-97188-829-1 01 1 9709-9806
307 HOSE ASM; FUEL,DELIVERY & RETURN
TORQUE ON DEMAND<7HA> (A) 		8-97163-846-6 01 1 9708-
307 HOSE ASM; FUEL,DELIVERY & RETURN
TORQUE ON DEMAND<7HA> (B) 		8-97289-613-0 01 1 0008-
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-2 01 1 9708-9708
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-4 01 1 9709-9806
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-6 01 1 9807-
309 CLIP; PIPE
ID=6 & 6 		8-94463-708-0 01 1 9708-

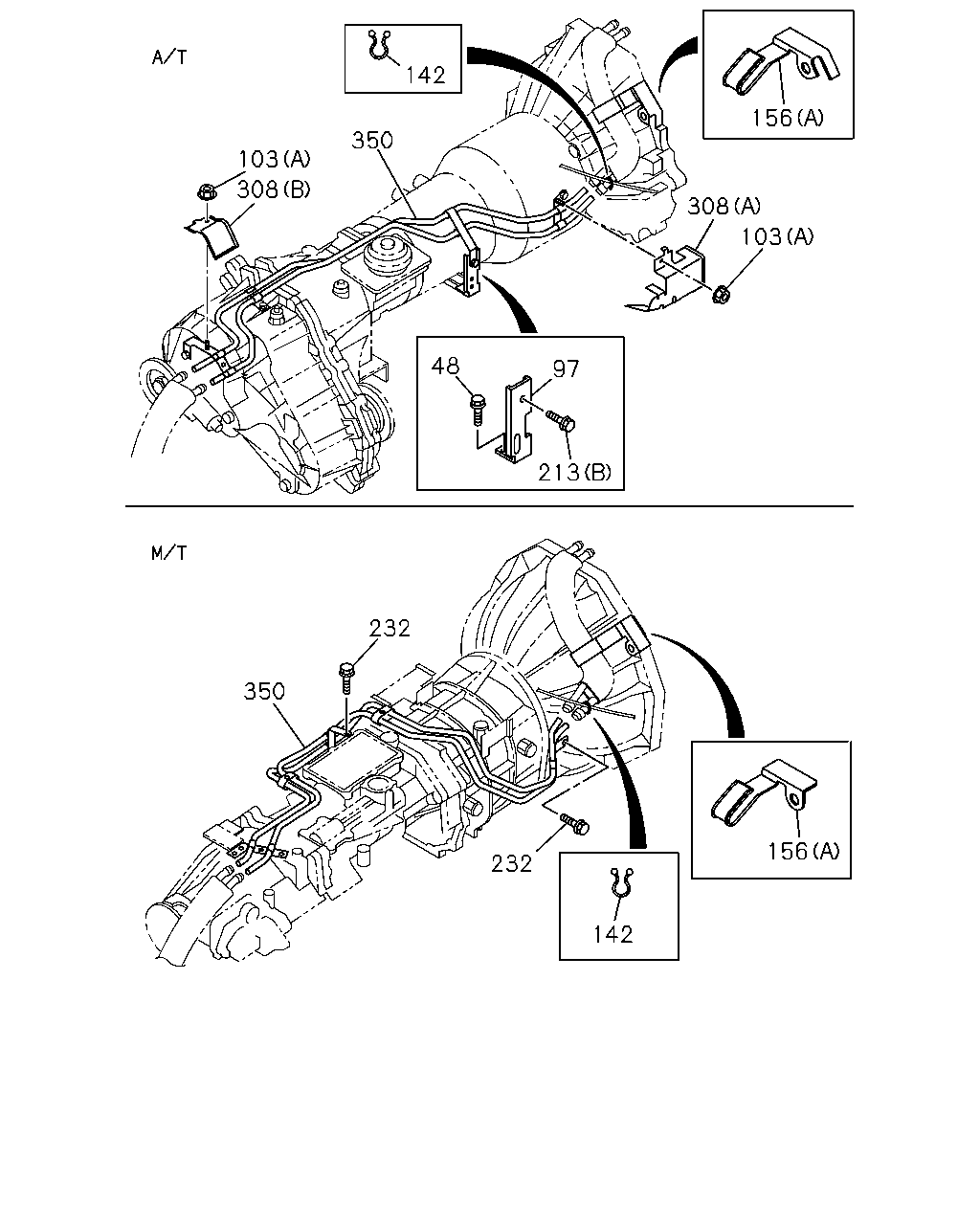

çizim 64070
142 156 350 103 308 308 103 48 97 213 232 350 156 232 142
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; BRKT
A/T THM(RMQ) M6X25 FLANGE 		0-28680-625-0 01 1 9708-9806
48 BOLT; BRKT
M6X25 FLANGE 		0-28680-625-0 01 1 9807-
97 BRACKET; CLIP
A/T THM(RMQ) 		8-97175-938-1 01 1 9708-9806
97 BRACKET; CLIP 8-97175-938-1 01 1 9807-
103 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 9708-
103 NUT; BRKT
TORQUE ON DEMAND<7HA> (A) M6 FLANGE 		0-91150-106-0 02 1 0008-
142 CLIP; BAND,FUEL HOSE
ID=20 		1-09709-068-0 01 1 9708-0008
156 BRACKET; FUEL HOSE
(B) 		8-97049-707-1 01 1 9708-9907
156 BRACKET; FUEL HOSE
(C) 		8-97174-660-0 01 1 9708-0106
156 BRACKET; FUEL HOSE
(C) 		8-97312-339-0 01 1 0107-
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97170-282-0 01 1 9708-9806
156 BRACKET; FUEL HOSE
(A) 		8-97170-282-0 01 1 9807-
156 BRACKET; FUEL HOSE
M/T AR-5 5 SPEED(RNK) (A) 		8-97179-586-0 01 1 9708-9806
213 BOLT; FUEL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9708-
213 BOLT; FUEL PIPE FIX
A/T THM(RMQ) (B) M6X16 FLANGE 		0-28680-616-0 01 1 9708-9806
213 BOLT; FUEL PIPE FIX
(B) M6X16 FLANGE 		0-28680-616-0 01 1 9807-
213 BOLT; FUEL PIPE FIX
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (C) M6X20 FLANGE 		0-28680-620-0 01 1 9708-9806
213 BOLT; FUEL PIPE FIX
EXC. TORQUE ON DEMAND<7HA> (C) M6X20 FLANGE 		0-28680-620-0 01 1 9807-
232 BOLT; CLIP,PIPE
M/T AR-5 5 SPEED(RNK) M6X12 FLANGE 		0-28080-612-0 02 1 9708-9806
308 BRACKET; FUEL PIPE
TORQUE ON DEMAND<7HA> (A) 		8-97213-915-1 01 1 0008-
308 BRACKET; FUEL PIPE
TORQUE ON DEMAND<7HA> (B) 		8-97213-916-0 01 1 0008-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97163-758-4 01 1 9708-9806
350 PIPE; FUEL,DEL & RET
TORQUE ON DEMAND<7HA> 		8-97163-758-5 01 1 9807-0007
350 PIPE; FUEL,DEL & RET
TORQUE ON DEMAND<7HA> 		8-97213-913-0 01 1 0008-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97163-759-4 01 1 9708-9806
350 PIPE; FUEL,DEL & RET
EXC. TORQUE ON DEMAND<7HA> 		8-97163-759-5 01 1 9807-9910
350 PIPE; FUEL,DEL & RET
EXC. TORQUE ON DEMAND<7HA> 		8-97240-939-0 01 1 9911-
350 PIPE; FUEL,DEL & RET
M/T AR-5 5 SPEED(RNK) 		8-97163-757-5 01 1 9708-9806

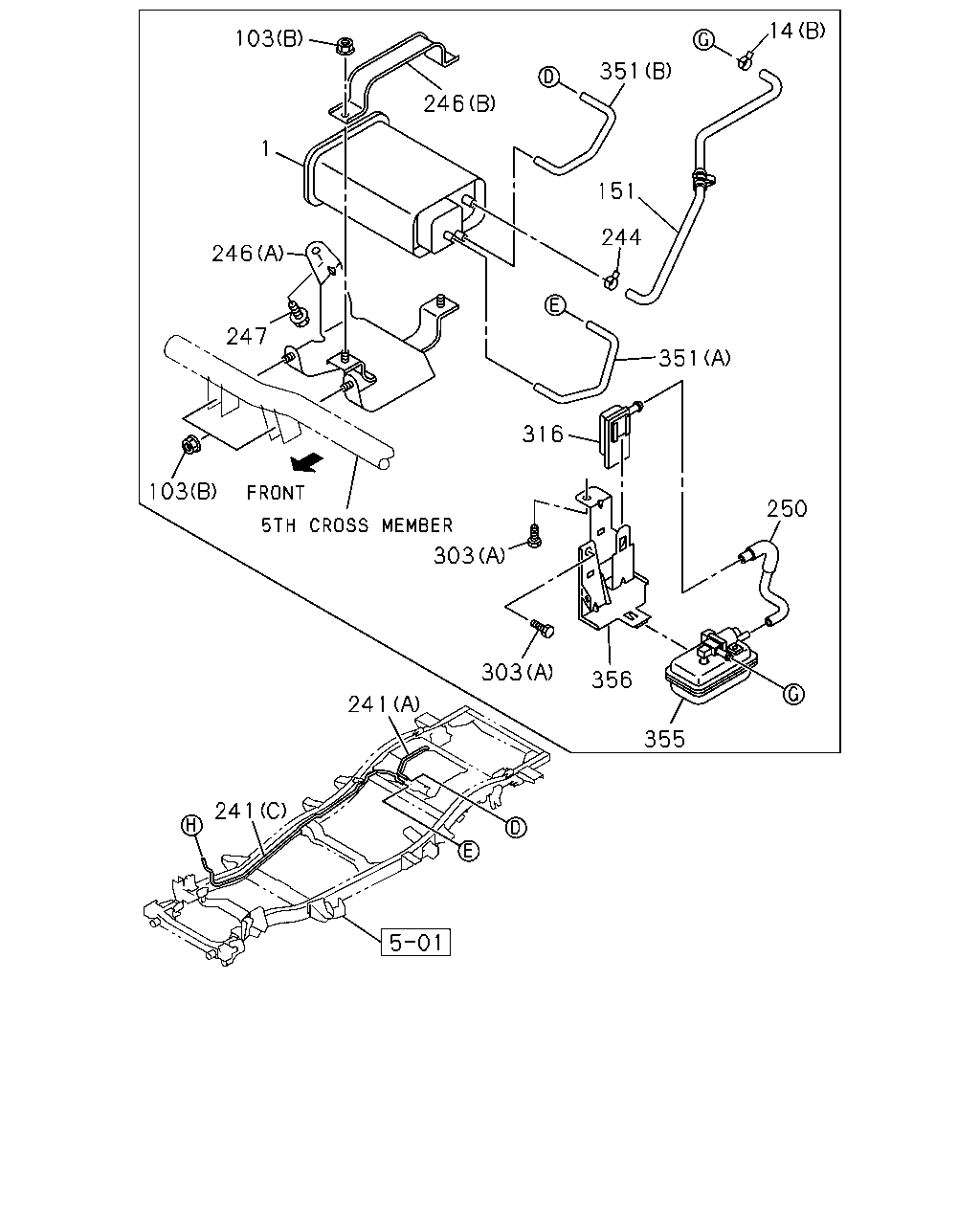

çizim 64212
14 103 351 246 1 151 244 246 247 351 316 103 250 303 303 356 241 355 241
BalonParca AdiParca NoAdetTipApplied Date
1 CANISTER; FUEL 8-17096-147-0 01 1 9708-9710
1 CANISTER; FUEL 8-17097-118-0 01 1 9711-
14 CLIP; HOSE
(A) ID=11 		8-94238-570-0 01 1 9708-0103
14 CLIP; HOSE
(A) ID=11 		8-97173-219-0 01 1 0104-
14 CLIP; HOSE
(B) ID=14 		8-94238-572-0 01 1 9708-9801
14 CLIP; HOSE
(B) ID=14 		8-97173-221-0 01 1 9802-
103 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 9708-
103 NUT; BRKT
TORQUE ON DEMAND<7HA> (A) M6 FLANGE 		0-91150-106-0 02 1 0008-
151 HOSE; RUBBER,CONT VLV,FUEL 8-97163-238-1 01 1 9708-
241 PIPE; EVAP
(A) 		8-97147-245-1 01 1 9708-
241 PIPE; EVAP
(B) 		8-97163-443-4 01 1 9708-
241 PIPE; EVAP
(C) 		8-97163-762-1 01 1 9708-
244 CLIP; HOSE,CANISTER
ID=16 		8-94238-568-0 01 1 9708-9801
244 CLIP; HOSE,CANISTER
ID=16 		8-97173-222-0 01 1 9802-
246 BRACKET; CANISTER
(A) 		8-97145-320-4 01 1 9708-
246 BRACKET; CANISTER
(B) 		8-97161-204-1 01 1 9708-
247 BOLT; CANISTER BRKT
M8X25 W/LK&PL WASHER 		8-94411-977-0 01 1 9708-
250 HOSE; RUBBER 8-97177-547-1 01 1 9708-
303 BOLT; BRKT
(A) M8X16 FLANGE 		0-28480-816-0 02 1 9708-
303 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9708-9806
303 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9807-
316 SEPARATOR; AIR 8-17096-210-0 01 1 9708-
351 TUBE; PURGE,CANISTER
(A) 		8-97160-606-1 01 1 9708-
351 TUBE; PURGE,CANISTER
(B) 		8-97160-607-1 01 1 9708-
355 VALVE ASM; CUT,W/AIR FILTER 8-97130-368-0 01 1 9708-
356 BRACKET; SEPARATOR 8-97145-356-2 01 1 9708-

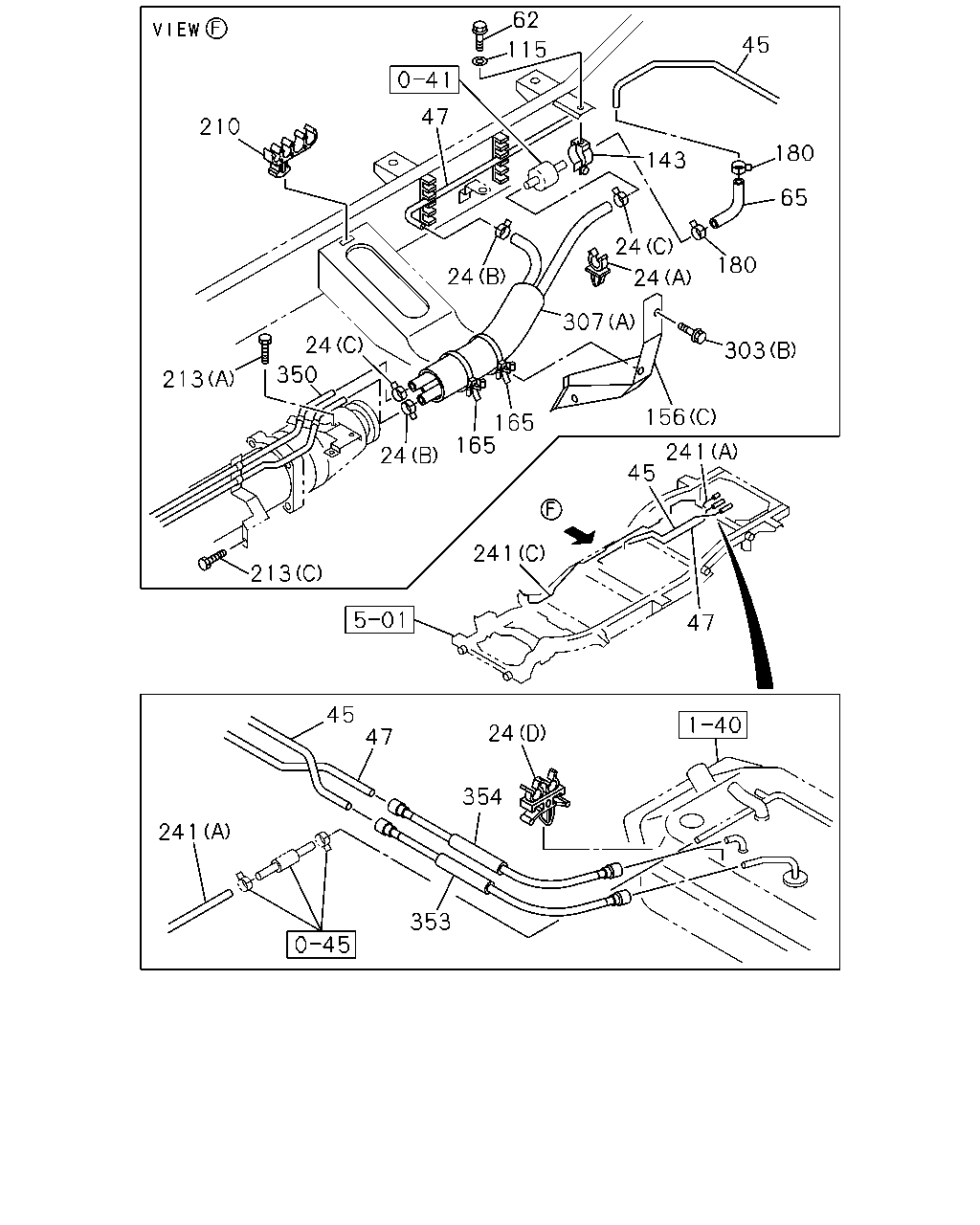

çizim 64221
62 45 115 47 210 180 143 65 24 180 24 24 307 24 303 350 213 156 165 165 241 24 45 241 213 47 45 24 47 354 241 353
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(A) ID=13.8 		8-97016-932-0 01 1 9708-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-97138-011-0 02 1 9708-
24 CLIP; FUEL HOSE
(C) ID=12 		8-97148-892-1 02 1 9708-
24 CLIP; FUEL HOSE
(D) 		8-97180-781-0 01 1 9708-
45 PIPE; FUEL,DELIVERY 8-97163-761-2 01 1 9708-
47 PIPE; FUEL,RETURN 8-97163-760-2 01 1 9708-
62 BOLT; CLIP FIX
M6X16 FLANGE 		0-28680-616-0 01 1 9708-
65 HOSE; FUEL,DELIVERY PIPE
L=100 SERVICED BY L=3000 		0-01458-300-0 01 1 9708-
115 WASHER; PL,CLIP
ID=6 OD=22 		9-09164-806-0 01 1 9708-
143 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9708-
156 BRACKET; FUEL HOSE
(B) 		8-97049-707-1 01 1 9708-9907
156 BRACKET; FUEL HOSE
(C) 		8-97174-660-0 01 1 9708-0106
156 BRACKET; FUEL HOSE
(C) 		8-97312-339-0 01 1 0107-
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97170-282-0 01 1 9708-9806
156 BRACKET; FUEL HOSE
(A) 		8-97170-282-0 01 1 9807-
156 BRACKET; FUEL HOSE
M/T AR-5 5 SPEED(RNK) (A) 		8-97179-586-0 01 1 9708-9806
165 CLIP; FUEL HOSE
L=212 		8-94107-652-0 02 1 9708-9812
165 CLIP; FUEL HOSE
L=172 		8-94232-620-0 02 1 9901-0106
165 CLIP; FUEL HOSE
L=212 		8-94107-652-0 02 1 0107-
180 CLIP; DELIVERY & RETURN
ID=12 		8-97148-892-1 02 1 9708-
210 CLIP; FEED PIPE 8-97069-378-0 01 1 9708-
213 BOLT; FUEL PIPE FIX
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9708-
213 BOLT; FUEL PIPE FIX
A/T THM(RMQ) (B) M6X16 FLANGE 		0-28680-616-0 01 1 9708-9806
213 BOLT; FUEL PIPE FIX
(B) M6X16 FLANGE 		0-28680-616-0 01 1 9807-
213 BOLT; FUEL PIPE FIX
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (C) M6X20 FLANGE 		0-28680-620-0 01 1 9708-9806
213 BOLT; FUEL PIPE FIX
EXC. TORQUE ON DEMAND<7HA> (C) M6X20 FLANGE 		0-28680-620-0 01 1 9807-
241 PIPE; EVAP
(A) 		8-97147-245-1 01 1 9708-
241 PIPE; EVAP
(B) 		8-97163-443-4 01 1 9708-
241 PIPE; EVAP
(C) 		8-97163-762-1 01 1 9708-
303 BOLT; BRKT
(A) M8X16 FLANGE 		0-28480-816-0 02 1 9708-
303 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9708-9806
303 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9807-
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97174-384-2 01 1 9708-9907
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97229-400-1 01 1 9908-9912
307 HOSE ASM; FUEL,DELIVERY & RETURN
(B) 		8-97249-655-0 01 1 0001-0007
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (B) 		8-97249-655-2 01 1 0008-
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A) 		8-97188-829-1 01 1 9709-9806
307 HOSE ASM; FUEL,DELIVERY & RETURN
TORQUE ON DEMAND<7HA> (A) 		8-97163-846-6 01 1 9708-
307 HOSE ASM; FUEL,DELIVERY & RETURN
TORQUE ON DEMAND<7HA> (B) 		8-97289-613-0 01 1 0008-
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-2 01 1 9708-9708
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-4 01 1 9709-9806
307 HOSE ASM; FUEL,DELIVERY & RETURN
EXC. TORQUE ON DEMAND<7HA> (A) 		8-97163-847-6 01 1 9807-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97163-758-4 01 1 9708-9806
350 PIPE; FUEL,DEL & RET
TORQUE ON DEMAND<7HA> 		8-97163-758-5 01 1 9807-0007
350 PIPE; FUEL,DEL & RET
TORQUE ON DEMAND<7HA> 		8-97213-913-0 01 1 0008-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97163-759-4 01 1 9708-9806
350 PIPE; FUEL,DEL & RET
EXC. TORQUE ON DEMAND<7HA> 		8-97163-759-5 01 1 9807-9910
350 PIPE; FUEL,DEL & RET
EXC. TORQUE ON DEMAND<7HA> 		8-97240-939-0 01 1 9911-
350 PIPE; FUEL,DEL & RET
M/T AR-5 5 SPEED(RNK) 		8-97163-757-5 01 1 9708-9806
353 TUBE; FUEL,DELIVERY 8-97164-249-5 01 1 9708-
354 TUBE; FUEL,RETURN 8-97164-250-6 01 1 9708-
