Isuzu WW
▶
TRUCKS
▶
FTR
▶
10703 - FTR(LHD) EXC.EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

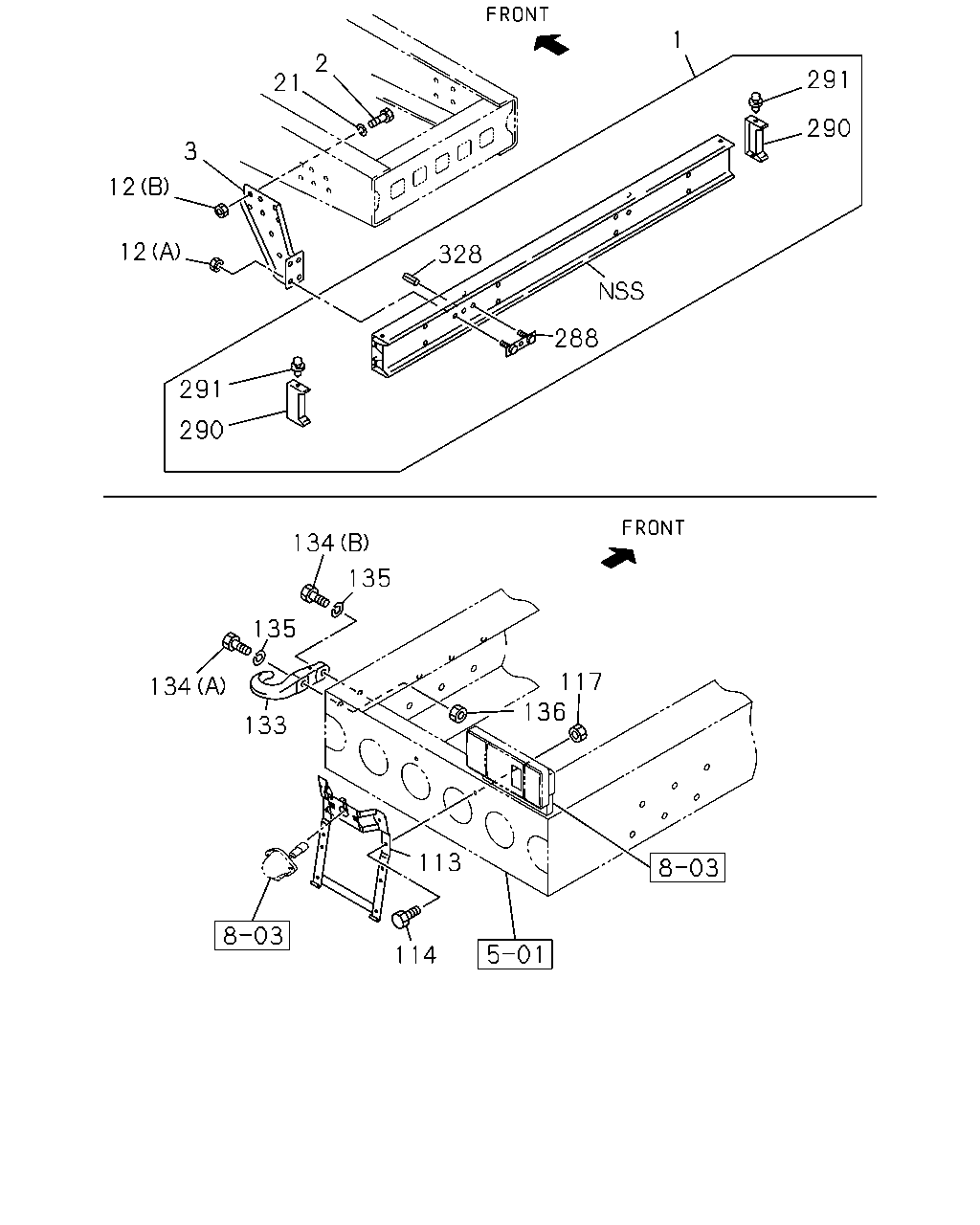

6-90 — REAR BUMPER
(#4045) — 36 parça
Tümü
A - FTR6MF
B - FTR6MC
1
2
291
21
290
3
12
12
328
288
291
290
134
135
135
117
136
134
133
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71220-165-1
01
1
0306-
●
2
BOLT; BACK BAR
BUMPER REAR REINFORCEMENT VAR5<SMV> M16X40
0-20801-640-0
12
1
0306-0512
●
2
BOLT; BACK BAR
BUMPER REAR REINFORCEMENT VAR5<SMV> M16X40
0-20851-640-0
12
1
0601-
●
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP BU
1-71230-254-1
01
1
0306-
●
3
BRACKET; BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> STAMP BU
1-71230-255-1
01
1
0306-
●
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (A) M12 FLANGE
0-91150-212-0
08
1
0306-0602
●
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (A) M12 FLANGE
0-91180-212-0
08
1
0603-
●
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M16
9-99110-516-0
12
1
0306-0512
●
12
NUT; BRKT
BUMPER REAR REINFORCEMENT VAR5<SMV> (B) M16
0-91110-516-0
12
1
0601-
●
21
WASHER; LK,BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> ID=16.2
9-09150-816-0
12
1
0306-0603
●
21
WASHER; LK,BUMPER
BUMPER REAR REINFORCEMENT VAR5<SMV> ID=16.2
0-91510-816-0
12
1
0604-
●
113
BRACKET; LICENSE PLATE
1-53485-048-2
01
1
9510-9608
●
●
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
9609-0302
●
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28080-820-0
02
1
9510-9606
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
9607-0512
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
117
NUT; BRKT
M8
9-09110-408-0
02
1
9510-9606
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9607-0602
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
133
HOOK
1-57181-027-1
01
1
9510-
●
●
134
BOLT; HOOK
(A) M16X70
0-10811-670-0
01
1
9510-0004
●
●
134
BOLT; HOOK
(A) M16X60
0-10811-660-0
01
1
0005-0512
●
●
134
BOLT; HOOK
(A) M16X60
0-10861-660-0
01
1
0601-
●
●
134
BOLT; HOOK
(B) M16X50
0-20801-650-0
01
1
9510-0512
●
●
134
BOLT; HOOK
(B) M16X50
0-20851-650-0
01
1
0601-
●
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9510-0603
●
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
●
136
NUT; HOOK
M16
9-99110-416-0
02
1
9510-0206
●
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0207-0512
●
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
●
288
PLATE; RR BUMPER,REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-053-0
04
1
0306-
●
290
COVER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-056-0
01
1
0306-
●
290
COVER; RR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-057-0
01
1
0306-
●
291
RIVET; REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV> PUSH RIVET BLACK
1-71290-041-0
04
1
0306-
●
328
PIN; REFLECTOR
BUMPER REAR REINFORCEMENT VAR5<SMV>
1-71290-054-0
04
1
0306-
●
