1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

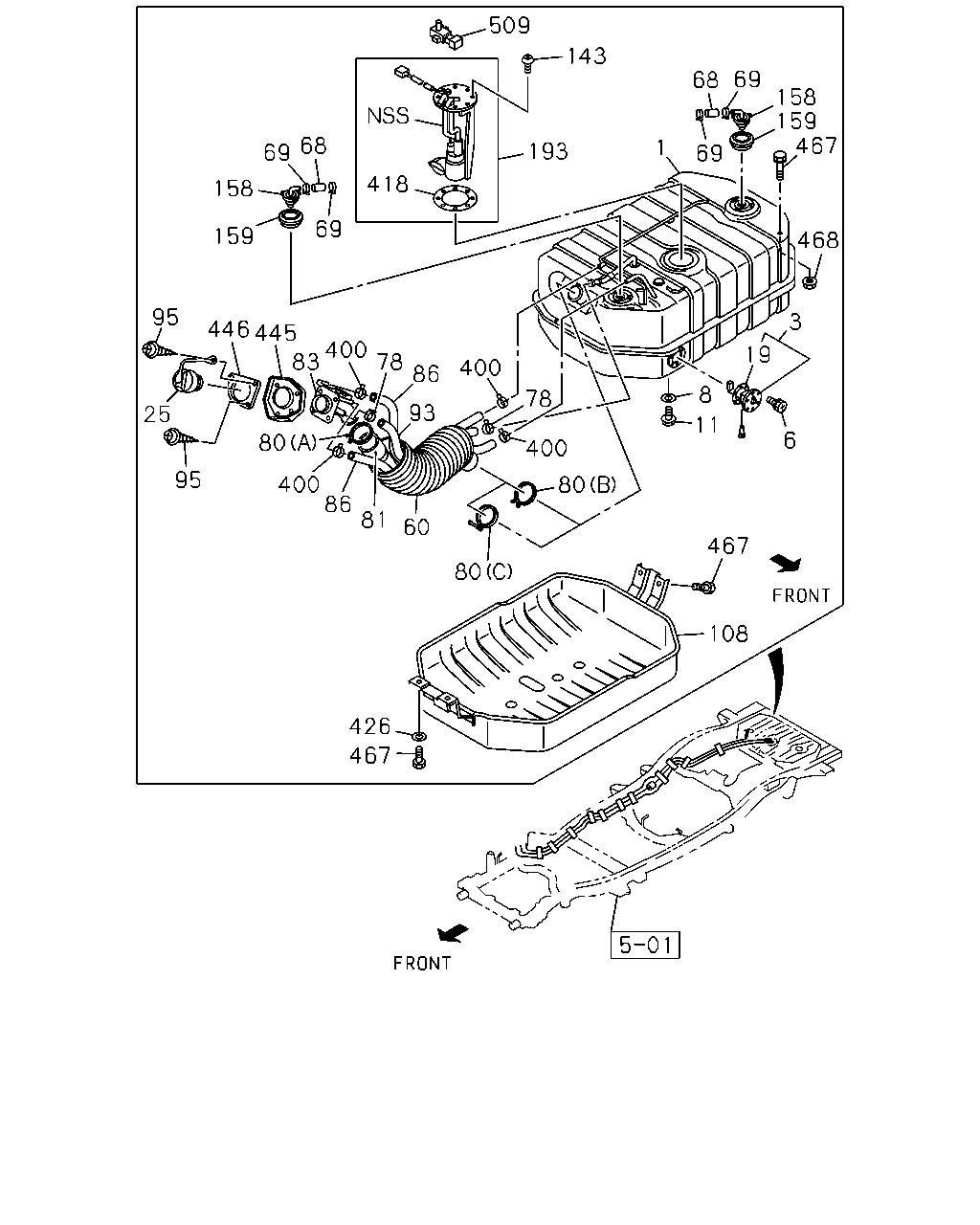

1-40 — FUEL TANK
(#40449) — 39 parça
509
143
69
68
158
159
467
68
1
193
69
69
418
158
69
159
468
95
3
446
445
400
83
78
86
19
400
8
78
93
25
11
6
80
400
95
400
86
80
81
60
467
80
108
426
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
8-97164-263-5
01
1
9708-0211
1
TANK; FUEL
8-97357-021-0
01
1
0212-0301
1
TANK; FUEL
8-97363-821-0
01
1
0302-
3
UNIT; FUEL TANK,SUB
8-97184-577-0
01
1
9708-9907
3
UNIT; FUEL TANK,SUB
8-97193-984-1
01
1
9908-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER
9-03910-512-0
05
1
9708-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=8.2 OD=17
9-09572-008-0
01
1
0203-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=8.2 OD=17
9-09572-008-0
01
1
9708-0202
11
PLUG; DRAIN,FUEL TANK
M8X16 FLANGE
0-28080-816-0
01
1
0203-
11
PLUG; DRAIN,FUEL TANK
M8X16 FLANGE
0-28080-816-0
01
1
9708-0202
19
GASKET; FUEL TANK UNIT
5-83148-001-0
01
1
9708-
25
CAP; FILLER,FUEL TANK
8-97118-749-1
01
1
9708-
60
PROTECTOR; FUEL FILLER
8-97114-063-0
01
1
9708-
68
HOSE; RUBBER,FUEL TANK TO EVAP PIPE
L=90 SERVICED BY L=3000
8-94128-826-0
02
1
9708-
69
CLIP; FUEL TANK TO EVAP PIPE
ID=8.5
8-94166-071-0
04
1
9708-0211
78
CLIP; BREATHER HOSE
ID=21
8-94242-034-0
02
1
9708-
80
CLIP; FILLER HOSE
(A) ID=60
9-09915-265-1
01
1
9708-
80
CLIP; FILLER HOSE
(B) ID=54
9-09915-412-1
01
1
9708-0110
80
CLIP; FILLER HOSE
(C) ID=57
9-09915-036-1
01
1
0111-
81
HOSE; FUEL FILLER
8-97164-299-2
01
1
9708-
83
NECK; FUEL FILLER
8-97164-265-2
01
1
9708-
86
HOSE; EVAP
W/O STRIPE
8-97174-651-1
01
1
9708-
86
HOSE; EVAP
W/ STRIPE
8-97174-652-1
01
1
9708-
93
HOSE; BREATHER,FUEL TANK
L=520
8-97174-656-0
01
1
9708-
95
SCREW; FILLER NECK
M6X16 W/LK&PL WASHER
8-97116-224-1
03
1
9708-
108
PROTECTOR; FUEL TANK
8-97018-490-4
01
1
9708-
143
SCREW; FUEL PUMP
M5X10 W/LK WASHER
9-03910-510-0
08
1
9708-
158
VALVE; ROLL OVER & FLOAT
8-97120-906-2
02
1
9708-
159
SEAL; ROLL OVER & FLOAT VALVE
8-94246-338-2
02
1
9708-
193
PUMP; FUEL
8-97163-248-1
01
1
9708-
400
CLIP; HOSE,EVAP
ID=11
8-97173-219-0
04
1
9708-
418
GASKET; FUEL PUMP
8-94386-449-0
01
1
9708-
426
WASHER; PL
ID=8 OD=22
9-09164-708-0
02
1
9708-
445
RUBBER; RECEIVER
8-97022-669-3
01
1
9708-
446
PLATE; FIXING
8-94340-181-0
01
1
9708-
467
BOLT
M8X24
8-97034-130-1
10
1
9708-
468
NUT
M8 FLANGE
8-94328-243-1
03
1
9708-
509
SENSOR; VAPOR
8-16238-409-0
01
1
9708-0211
509
SENSOR; VAPOR
8-12206-740-0
01
1
0212-
