Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

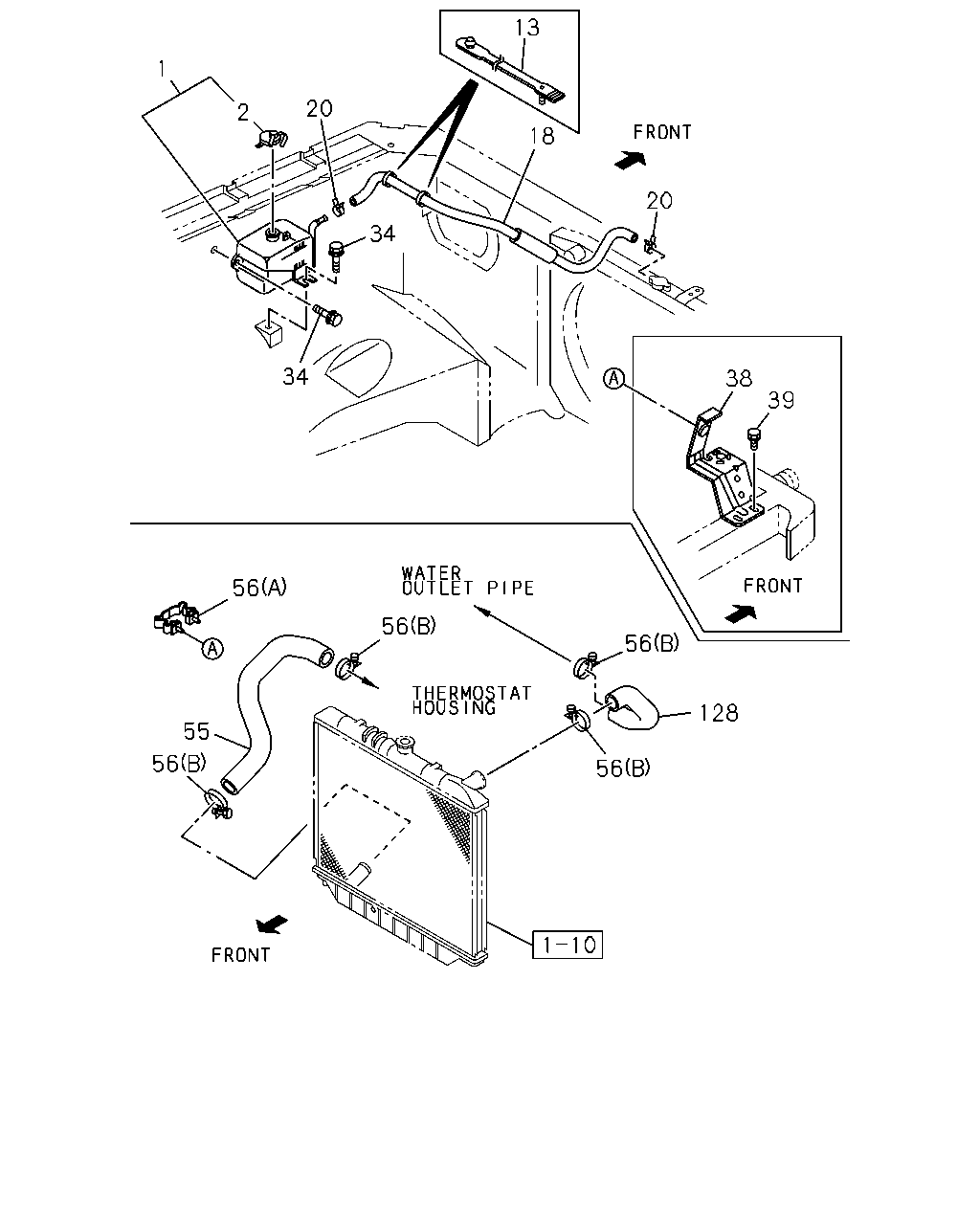

1-11 — RADIATOR HOSE AND SUB TANK
(#40446) — 14 parça
13
1
20
2
18
20
34
34
38
39
56
56
56
128
55
56
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-97101-191-1
01
1
9708-
2
CAP; SURGE TANK
8-97130-964-0
01
1
9708-
13
CLIP; HOSE,SURGE TANK
L=103
8-94239-339-0
02
1
9708-
18
HOSE; RAD TO SURGE TANK
L=990 W/INSULATOR
8-97174-766-0
01
1
9708-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
02
1
9708-0103
34
BOLT; RESERVE TANK
M8X25
8-97091-076-0
02
1
9708-0203
34
BOLT; RESERVE TANK
M8X25
8-97327-634-0
02
1
0204-
38
BRACKET; RUBBER HOSE
8-97164-191-2
01
1
9708-
39
BOLT; BRKT FIX
M6X16 FLANGE
0-28480-616-0
02
1
9708-
55
HOSE; WATER,RAD OUTLET
8-94375-171-2
01
1
9708-
56
CLIP; WATER HOSE,RAD
(A) ID=46
8-97023-235-1
01
1
9708-
56
CLIP; WATER HOSE,RAD
(B) ID=48
9-09915-512-1
04
1
9708-9811
56
CLIP; WATER HOSE,RAD
(B) ID=48
8-97213-216-0
04
1
9812-
128
HOSE; WATER,RAD INL
8-97164-267-1
01
1
9708-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
