Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

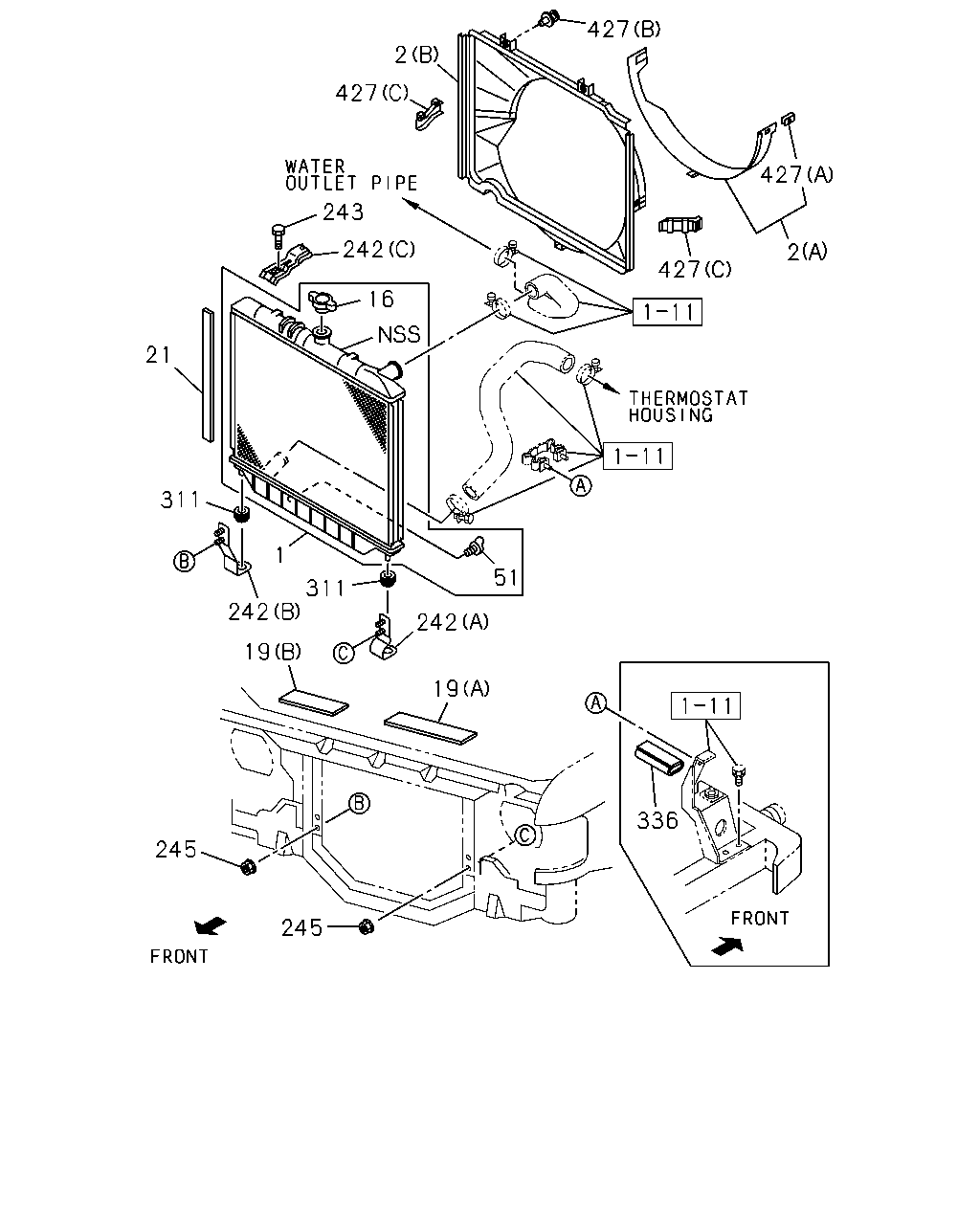

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#40445) — 30 parça
427
2
427
243
427
242
2
427
16
21
311
1
51
242
311
242
19
19
336
245
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
A/T THM(RMQ)
8-97164-188-0
01
1
9708-9806
1
RADIATOR ASM
8-97164-188-0
01
1
9807-9908
1
RADIATOR ASM
8-97171-431-0
01
1
9909-0005
1
RADIATOR ASM
8-97237-051-0
01
1
0006-
1
RADIATOR ASM
M/T AR-5 5 SPEED(RNK)
8-97164-187-0
01
1
9708-9806
2
GUIDE; FAN
(B)
8-97166-239-0
01
1
9708-
2
GUIDE; FAN
A/T THM(RMQ) (A)
8-97033-101-2
01
1
9708-9806
2
GUIDE; FAN
(A)
8-97033-101-2
01
1
9807-
16
CAP; RAD
8-97171-436-0
01
1
9708-9908
16
CAP; RAD
8-97239-187-0
01
1
9909-
19
SEAL; RAD UPR
(A) L=300
8-97164-207-1
01
1
9708-
19
SEAL; RAD UPR
(B) L=360
8-97164-208-1
01
1
9708-
21
SEAL; RAD
A/T THM(RMQ)
8-97033-102-3
01
1
9708-9806
21
SEAL; RAD
8-97033-102-3
01
1
9807-
21
SEAL; RAD
A/T THM(RMQ)
8-97047-002-3
01
1
9708-9806
21
SEAL; RAD
8-97047-002-3
01
1
9807-
51
PLUG; DRAIN
8-97171-437-0
01
1
9708-
242
BRACKET; RAD
(A)
8-97084-635-1
01
1
9708-
242
BRACKET; RAD
(B)
8-97084-636-1
01
1
9708-
242
BRACKET; RAD
(C)
8-97123-089-1
01
1
9708-
243
BOLT; BRKT
M8X20 W/LK WASHER
0-50040-820-0
02
1
9708-
245
NUT; BRKT
M8 FLANGE
8-97046-127-0
04
1
9708-
311
RUBBER; MTG,RAD
8-94375-183-1
02
1
9708-9910
311
RUBBER; MTG,RAD
8-97231-024-0
02
1
9911-
336
SEAL; LWR,RAD
8-97124-393-0
02
1
9708-0206
336
SEAL; LWR,RAD
8-97257-011-0
02
1
0207-
427
CLIP; FAN GUIDE
(B)
8-97043-862-0
02
1
9708-
427
CLIP; FAN GUIDE
(C)
8-97066-962-0
04
1
9708-
427
CLIP; FAN GUIDE
A/T THM(RMQ) (A)
8-97043-199-0
02
1
9708-9806
427
CLIP; FAN GUIDE
(A)
8-97043-199-0
02
1
9807-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
