0-66 — GENERATOR (#40442) — 46 parça

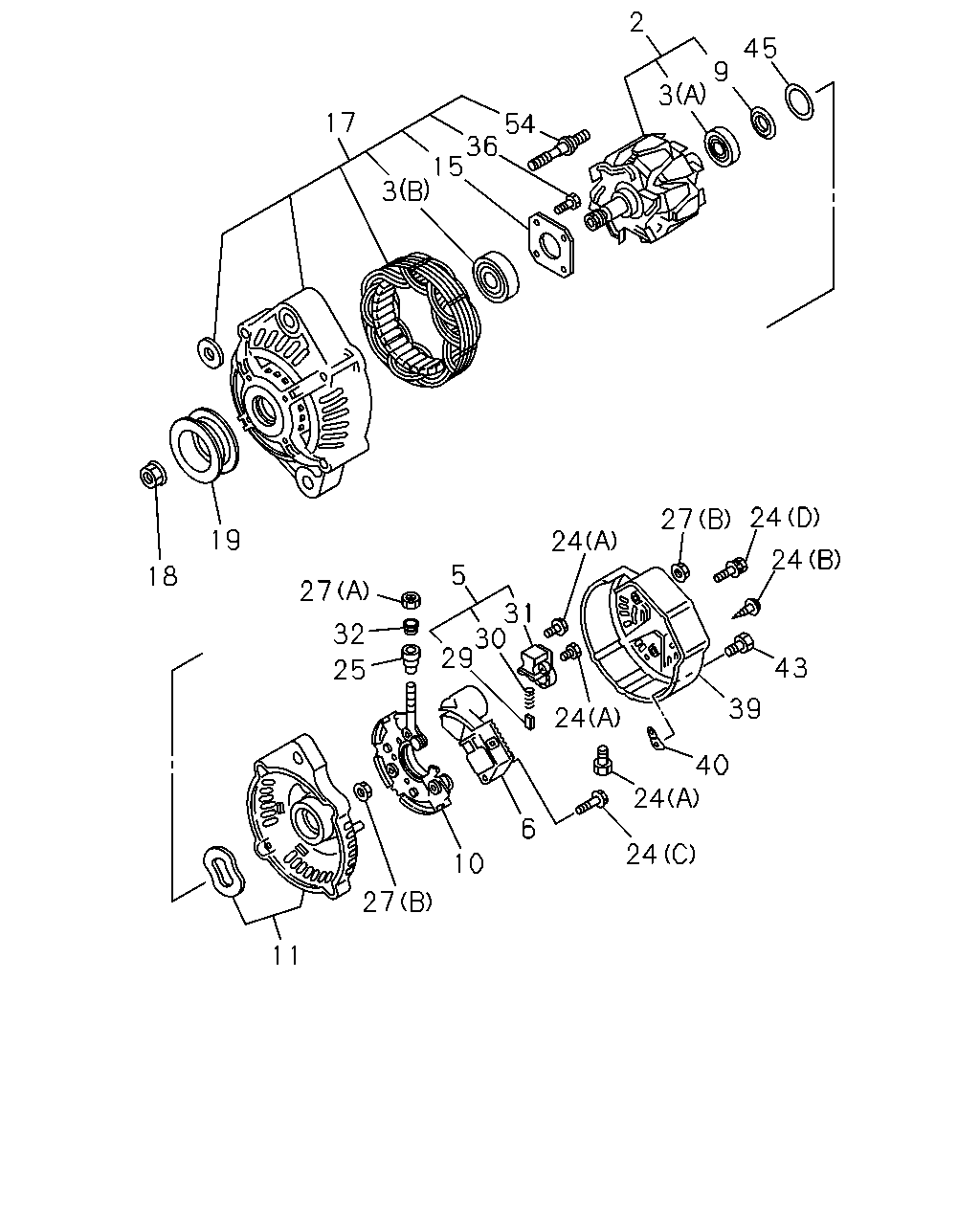

çizim 63814
2 45 9 3 17 54 36 15 3 19 24 24 5 18 27 40 24 31 30 29 32 25 43 39 24 6 24 10 27 11 27 24
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
ASM PART: C = 8-97210-373-0 		8-97032-306-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-371-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: C = 8-97210-373-0 		1-81229-742-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: C = 8-97210-373-0 		1-81229-743-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-369-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-370-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: C = 8-97210-373-0 		8-97032-308-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97040-494-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-97183-613-0 01 1 -
9 COVER; FELT WASHER,ROTOR,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-94123-051-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-368-0 01 1 -
10 RECTIFIER; GEN
ASM PART: C = 8-97210-373-0 		8-97211-427-0 01 1 -
11 COVER; RR,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-367-0 01 1 -
11 COVER; RR,GEN
ASM PART: C = 8-97210-373-0 		8-97211-428-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-94406-982-0 01 1 -
15 RETAINER; ROTOR,GEN
ASM PART: C = 8-97210-373-0 		8-97032-304-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-376-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: C = 8-97210-373-0 		8-97211-424-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-94123-043-0 01 1 -
19 PULLEY; GEN
ASM PART: C = 8-97210-373-0 		8-97032-301-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-380-0 01 1 -
24 SCREW; RECTIFIER,GEN
(A) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-94455-161-0 06 1 -
24 SCREW; RECTIFIER,GEN
(A) ASM PART: C = 8-97210-373-0 		8-97032-313-0 06 1 -
24 SCREW; RECTIFIER,GEN
(B) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-97032-314-0 02 1 -
24 SCREW; RECTIFIER,GEN
(A) W/WASHER ASM PART: C = 8-97210-373-0 		8-97070-810-0 01 1 -
24 SCREW; RECTIFIER,GEN
(C) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97142-568-0 01 1 -
24 SCREW; RECTIFIER,GEN
(D) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97142-569-0 01 1 -
25 BUSHING; INSULATION TERMINAL
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-94135-760-0 01 1 -
25 BUSHING; INSULATION TERMINAL
ASM PART: C = 8-97210-373-0 		8-97032-312-0 01 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-94123-064-0 07 1 -
27 NUT; RECTIFIER,GEN
(A), M6 ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-94206-186-0 01 1 -
27 NUT; RECTIFIER,GEN
(A) ASM PART: C = 8-97210-373-0 		8-97032-317-0 01 1 -
29 BRUSH; GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-94123-056-0 02 1 -
29 BRUSH; GEN
ASM PART: C = 8-97210-373-0 		8-97032-310-0 02 1 -
30 SPRING; BRUSH,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-94123-057-0 02 1 -
31 SHEET; BRUSH,GEN
ASM PART: C = 8-97210-373-0 		8-97032-309-0 01 1 -
31 SHEET; BRUSH,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97040-495-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
ASM PART: C = 8-97210-373-0 		8-97211-429-0 01 1 -
36 SCREW; FRT COVER
ASM PART: C = 8-97210-373-0 		8-97032-305-0 04 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97171-366-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: C = 8-97210-373-0 		8-97211-430-0 01 1 -
40 PLATE; RR COVER
ASM PART: C = 8-97210-373-0 		8-97070-812-0 01 1 -
43 SCREW; RR END COVER
ASM PART: C = 8-97210-373-0 		8-97070-811-0 01 1 -
45 WASHER; INSULATE,RR COVER,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0 		8-97142-570-0 01 1 -
54 BOLT; RECTIFIER,GEN
ASM PART: A = 8-97167-157-1, B = 8-97187-304-0, C = 8-97210-373-0 		8-94123-048-0 04 1 -
