◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶

0-65 — STARTER (#40441) — 76 parça

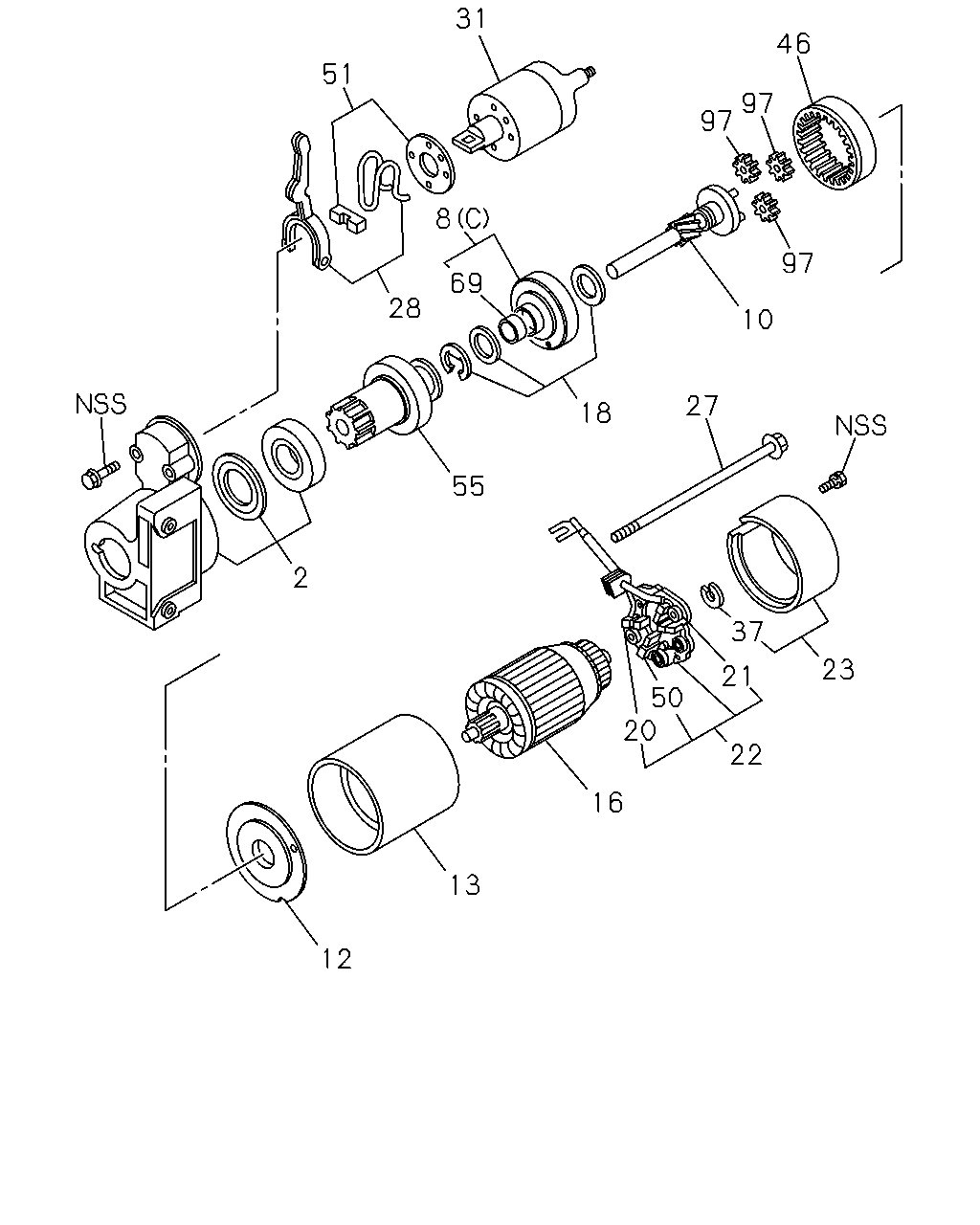

31 46 51 97 97 8 97 69 28 10 27 18 55 2 37 23 21 50 20 22 16 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97123-923-0	8-97044-143-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97323-540-0	8-97323-547-0	01	1	-
8	BRACKET; CENTER STARTER (A) ASM PART: A = 8-97123-923-0	8-97044-138-0	01	1	-
8	BRACKET; CENTER STARTER (B) ASM PART: A = 8-97123-923-0	8-97044-140-0	01	1	-
8	BRACKET; CENTER STARTER (C) ASM PART: B = 8-97323-540-0	8-97130-307-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97123-923-0	8-97044-141-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97323-540-0	8-97323-546-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: B = 8-97323-540-0	8-97130-309-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97123-923-0	8-97044-131-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97323-540-0	8-97130-305-1	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97123-923-0	8-97044-130-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97323-540-0	8-97130-304-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-149-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97123-923-0	8-97044-134-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-97323-540-0	8-97123-224-1	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97123-923-0	8-97044-135-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97323-540-0	8-97123-225-1	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97123-923-0	8-97044-132-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97323-540-0	8-97123-222-1	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97123-923-0	8-97044-136-1	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-540-0	8-97323-545-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97323-540-0	8-94233-230-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97123-923-0	8-97044-150-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97123-923-0	8-97044-144-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97323-540-0	8-97130-315-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97123-923-0	8-97044-145-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97323-540-0	8-97323-548-0	01	1	-
37	METAL; RR COVER STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-137-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 8-97123-923-0	8-97044-147-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-97323-540-0	8-97130-308-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97123-923-0	8-97044-133-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-97323-540-0	8-97123-223-1	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97123-923-0	8-97123-924-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-540-0	8-97323-549-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-142-0	01	1	-
69	METAL; CENTER BRKT,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-139-0	01	1	-
97	GEAR; STARTER ASM PART: A = 8-97123-923-0	8-97044-146-0	03	1	-
97	GEAR; STARTER ASM PART: B = 8-97323-540-0	8-97223-647-0	03	1	-

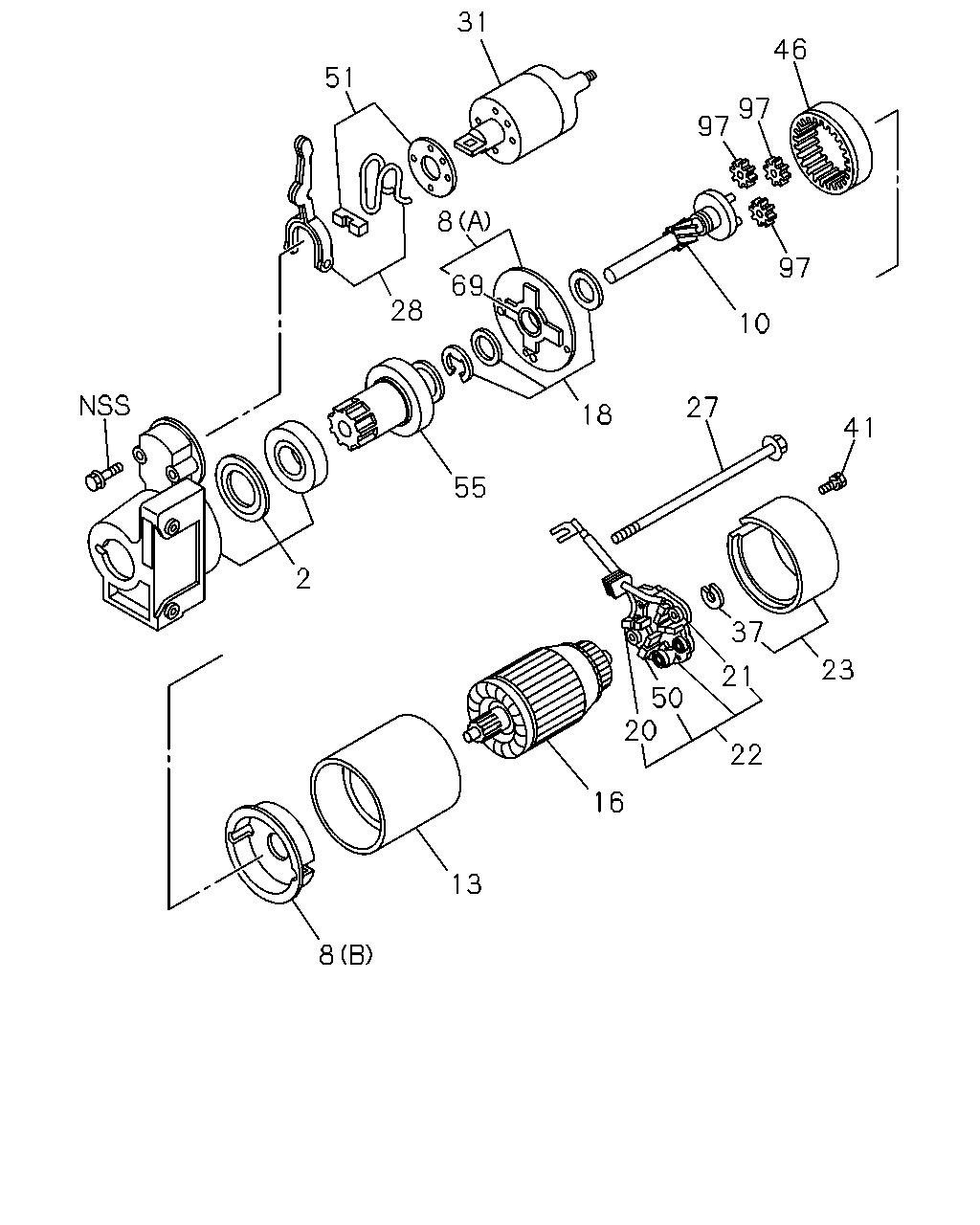

31 46 51 97 97 8 97 69 28 10 27 18 41 55 2 37 23 21 50 20 22 16 13 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97123-923-0	8-97044-143-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97323-540-0	8-97323-547-0	01	1	-
8	BRACKET; CENTER STARTER (A) ASM PART: A = 8-97123-923-0	8-97044-138-0	01	1	-
8	BRACKET; CENTER STARTER (B) ASM PART: A = 8-97123-923-0	8-97044-140-0	01	1	-
8	BRACKET; CENTER STARTER (C) ASM PART: B = 8-97323-540-0	8-97130-307-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 8-97123-923-0	8-97044-141-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-97323-540-0	8-97323-546-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97123-923-0	8-97044-131-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97323-540-0	8-97130-305-1	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97123-923-0	8-97044-130-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97323-540-0	8-97130-304-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-149-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-97123-923-0	8-97044-134-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-97323-540-0	8-97123-224-1	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97123-923-0	8-97044-135-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97323-540-0	8-97123-225-1	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97123-923-0	8-97044-132-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97323-540-0	8-97123-222-1	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97123-923-0	8-97044-136-1	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97323-540-0	8-97323-545-0	01	1	-
27	BOLT; THROUGH,STARTER ASM PART: B = 8-97323-540-0	8-94233-230-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97123-923-0	8-97044-150-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97123-923-0	8-97044-144-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97323-540-0	8-97130-315-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97123-923-0	8-97044-145-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97323-540-0	8-97323-548-0	01	1	-
37	METAL; RR COVER STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-137-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 8-97123-923-0	8-97044-151-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 8-97123-923-0	8-97044-147-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-97323-540-0	8-97130-308-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-97123-923-0	8-97044-133-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-97323-540-0	8-97123-223-1	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: A = 8-97123-923-0	8-97123-924-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-97323-540-0	8-97323-549-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-142-0	01	1	-
69	METAL; CENTER BRKT,STARTER ASM PART: A = 8-97123-923-0, B = 8-97323-540-0	8-97044-139-0	01	1	-
97	GEAR; STARTER ASM PART: A = 8-97123-923-0	8-97044-146-0	03	1	-
97	GEAR; STARTER ASM PART: B = 8-97323-540-0	8-97223-647-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
