Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND BATTERY CABLE
▶

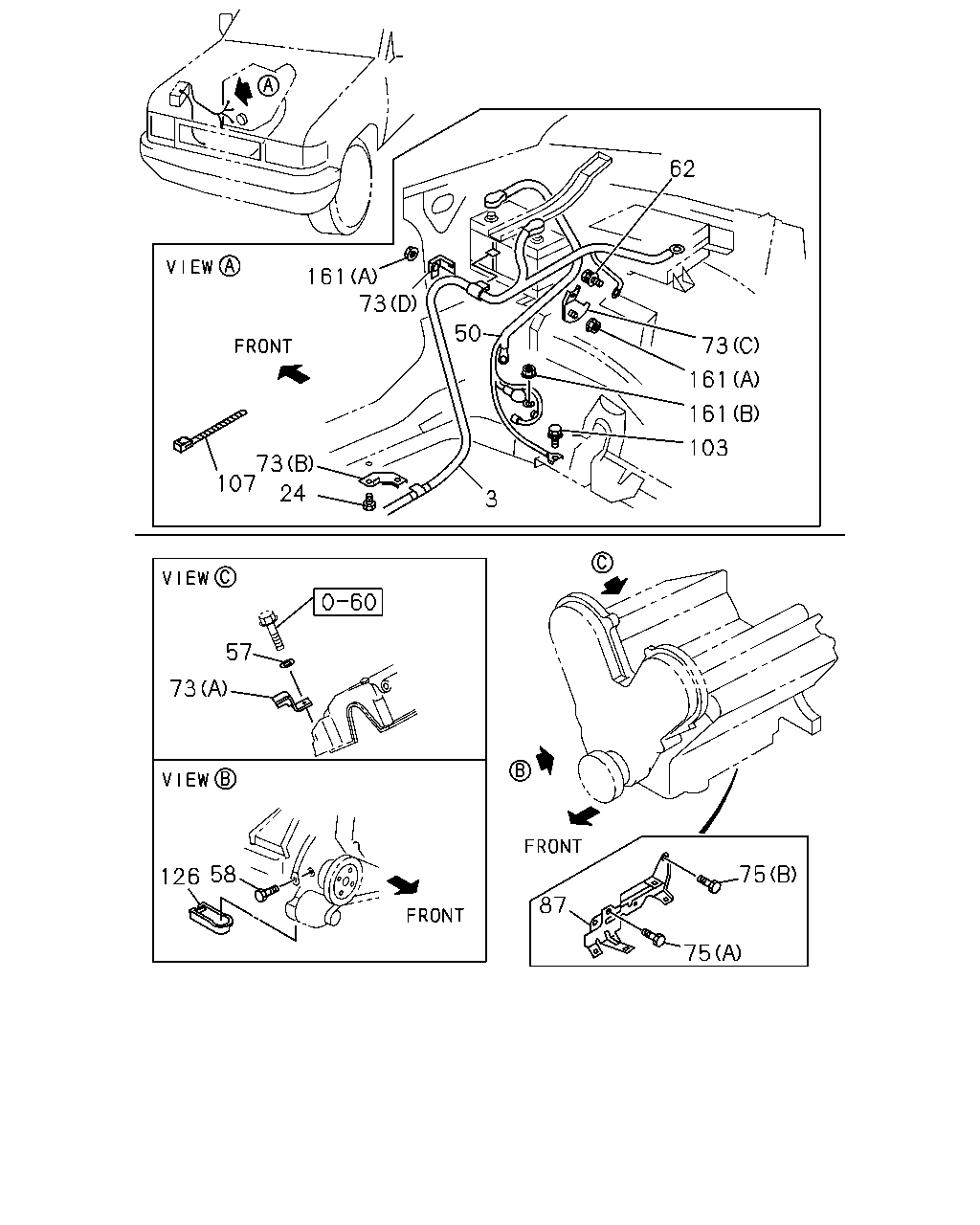

0-61 — BATTERY AND BATTERY CABLE
(#40440) — 24 parça
62
161
73
50
73
161
161
103
73
107
24
3
57
73
126
58
75
87
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HARNESS; CABLE,BATTERY TO STARTER
8-97163-793-1
01
1
9708-9907
3
HARNESS; CABLE,BATTERY TO STARTER
8-97226-021-1
01
1
9908-
24
BOLT; BRKT TO FRAME
M6X16 FLANGE
0-28680-616-0
02
1
9708-
50
CABLE; BATTERY TO BODY (-)
8-97168-561-1
01
1
9708-9810
50
CABLE; BATTERY TO BODY (-)
8-97218-531-0
01
1
9811-9907
50
CABLE; BATTERY TO BODY (-)
8-97228-314-0
01
1
9908-0012
50
CABLE; BATTERY TO BODY (-)
8-97289-220-1
01
1
0101-
57
WASHER; PL,BATTERY CABLE
ID=6
9-09160-706-0
01
1
9708-9907
58
BOLT; CABLE,BATTERY
M8X16 FLANGE
0-28080-816-0
01
1
9708-0012
58
BOLT; CABLE,BATTERY
M8X25 FLANGE
0-28690-825-0
01
1
0101-0202
58
BOLT; CABLE,BATTERY
M8X25 FLANGE
0-28680-825-0
01
1
0203-
62
BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
9708-
73
BRACKET; BATTERY CABLE
(A)
8-97183-097-0
01
1
9708-9907
73
BRACKET; BATTERY CABLE
(B)
8-97803-052-0
02
1
9708-
73
BRACKET; BATTERY CABLE
(C)
8-97803-308-0
01
1
9708-
73
BRACKET; BATTERY CABLE
(D)
8-97804-787-0
01
1
9708-
75
BOLT; BRKT
(B) M10X16 FLANGE
0-28181-016-0
01
1
9708-
75
BOLT; BRKT
(A) M6X16 FLANGE
0-28680-616-0
01
1
9708-
87
BRACKET; HARNESS
8-97130-483-1
01
1
9708-
103
BOLT; BATTERY CABLE
M6X20 W/LK&PL WASHER
8-97086-824-0
01
1
9708-
107
CLIP; BAND
TORQUE ON DEMAND<7HA> L=140
5-09707-031-1
01
1
9708-0202
126
CAP; TERMINAL,AC GEN
8-97218-500-0
01
1
9811-
161
NUT; BATTERY CABLE
(A) M6 FLANGE
0-91150-106-0
02
1
9708-
161
NUT; BATTERY CABLE
(B) M6 W/LK WASHER
8-94424-179-0
01
1
9708-
