Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

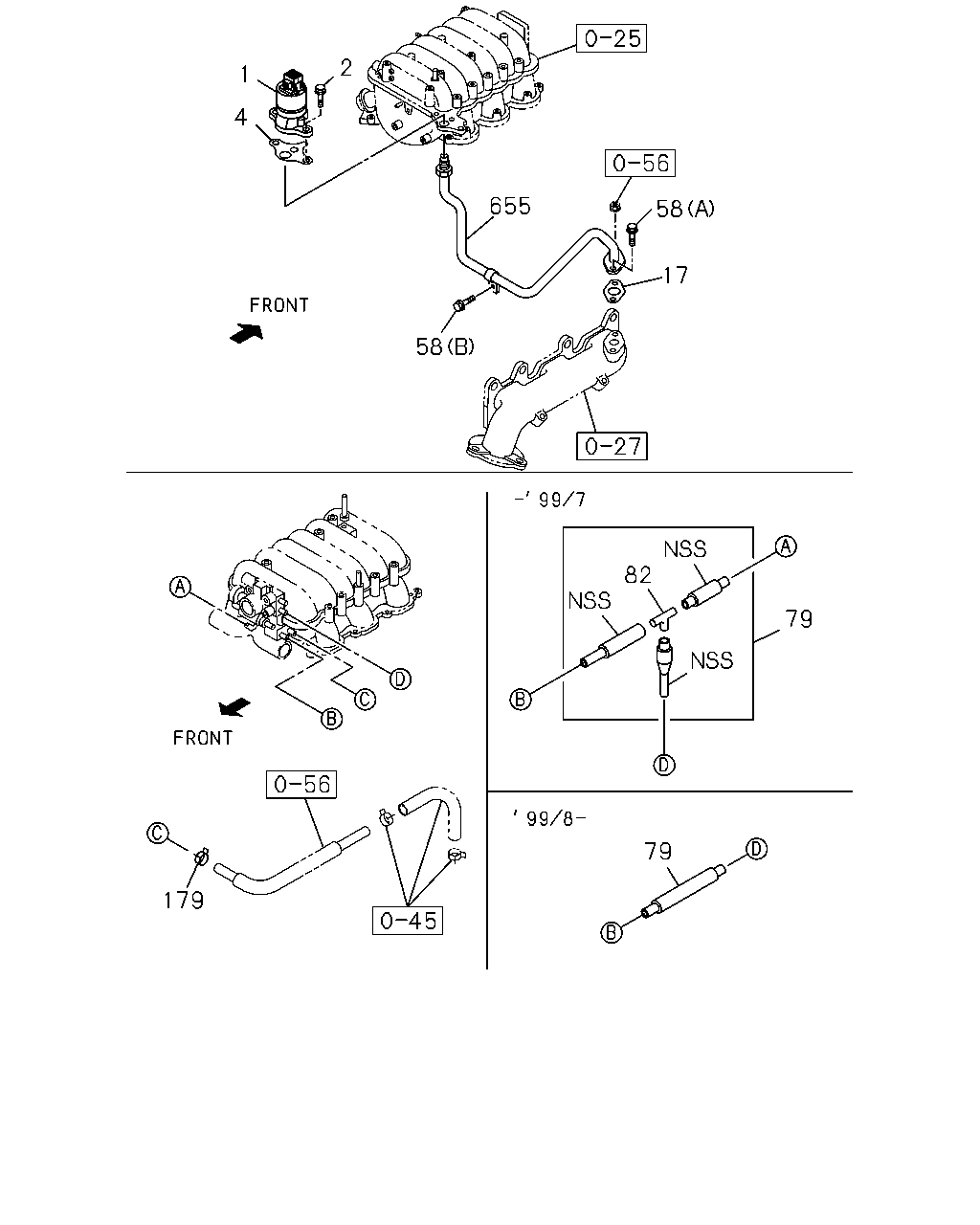

0-57 — EMISSION PIPING
(#40438) — 13 parça
2
1
4
655
58
17
58
82
79
79
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-17096-178-3
01
1
9708-
2
BOLT; EGR VLV
M8X25 FLANGE
0-28680-825-0
02
1
9708-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE)
8-97104-317-2
01
1
9708-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE)
8-97060-414-0
01
1
9708-
58
BOLT; PIPE
(A) M8X12 FLANGE
0-28080-812-0
01
1
9708-
58
BOLT; PIPE
(B) M8X18
8-94368-563-1
01
1
9708-
79
HOSE; RUBBER,THROTTLE BODY TO PIPE
8-97136-220-0
01
1
9708-9907
79
HOSE; RUBBER,THROTTLE BODY TO PIPE
8-97194-287-0
01
1
9908-0104
79
HOSE; RUBBER,THROTTLE BODY TO PIPE
8-97264-475-0
01
1
0105-
82
JOINT; 3 WAY
8-97061-674-0
01
1
9708-9907
179
CLIP; PIPE CLAMP
ID=11
8-94238-570-0
01
1
9708-9907
179
CLIP; PIPE CLAMP
ID=12
8-94238-610-0
01
1
9908-
655
PIPE; EGR VLV
8-97131-897-1
01
1
9708-
