Isuzu WW
▶
SUV
▶
UBS
▶
50803 - UBS(TAIWAN)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

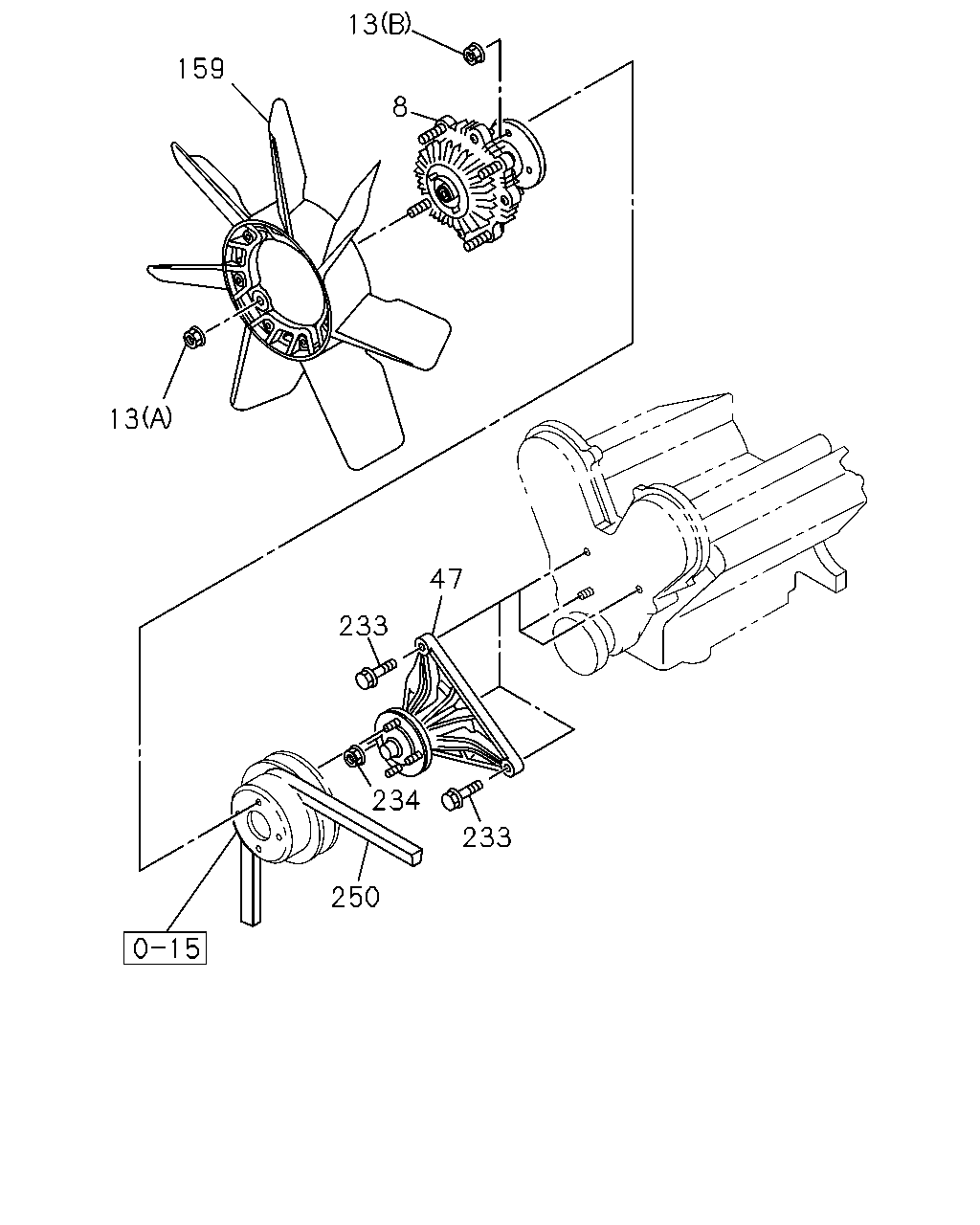

0-33 — FAN AND FAN BELT
(#40429) — 13 parça
13
159
8
13
47
233
234
233
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
CLUTCH; COOLING FAN
8-97130-362-1
01
1
9708-
13
NUT; COOLING FAN
(A) M6 FLANGE
0-91150-106-0
04
1
9708-
13
NUT; COOLING FAN
(B) M8 FLANGE
0-91150-108-0
04
1
9708-
47
BRACKET; FAN
8-97148-675-1
01
1
9708-9906
47
BRACKET; FAN
8-97231-718-0
01
1
9907-
159
BLADE; COOLING FAN
8-97130-757-1
01
1
9708-
233
BOLT; FAN BRKT
M8X98 FLANGE
8-97182-861-0
02
1
9708-
234
NUT; FAN BRKT
M8 FLANGE
0-91150-108-0
01
1
9708-
250
BELT; SERPENTINE DRIVE
AIR CONDITIONER MANUAL CONT(C60) L=2288
8-97130-560-0
01
1
9708-9806
250
BELT; SERPENTINE DRIVE
L=2288
8-97130-560-0
01
1
9807-9907
250
BELT; SERPENTINE DRIVE
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=2288
8-97130-560-0
01
1
9908-
250
BELT; SERPENTINE DRIVE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038
8-97130-561-0
01
1
9708-9806
250
BELT; SERPENTINE DRIVE
EXC. AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=2038
8-97130-561-0
01
1
9908-
