0-31 — THERMOSTAT AND HOUSING (#40427) — 17 parça

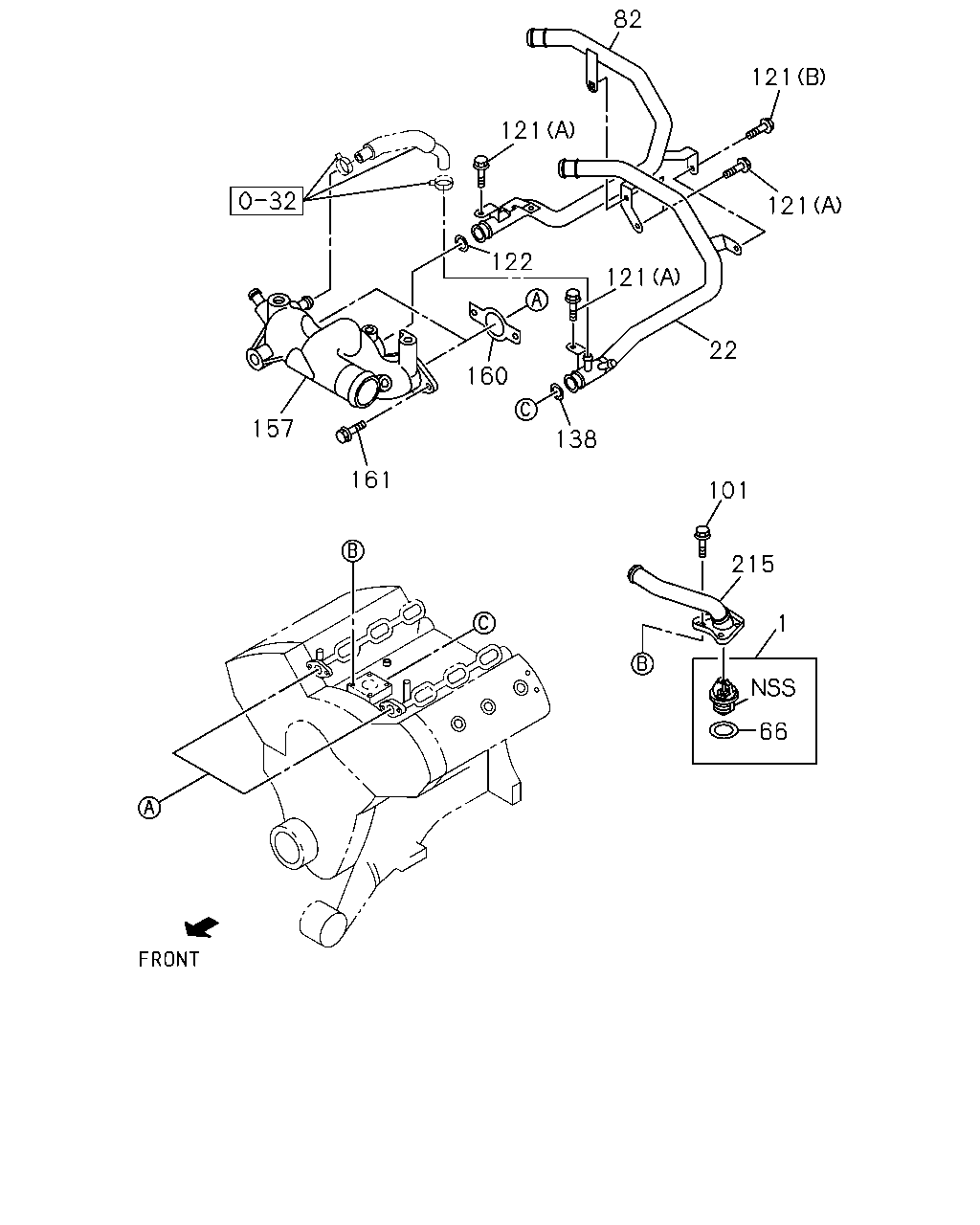

çizim 65297
82 121 121 122 121 121 22 160 157 138 161 101 215 1 66
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
76.5C 		8-97123-161-4 01 1 9708-0301
1 THERMOSTAT
76.5C 		8-97362-894-0 01 1 0302-
22 PIPE; HTR,RETURN 8-97131-890-2 01 1 9708-9906
22 PIPE; HTR,RETURN 8-97231-679-1 01 1 9907-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97123-162-0 01 1 9708-0301
82 PIPE; WATER,HTR 8-97131-889-2 01 1 9708-9906
82 PIPE; WATER,HTR 8-97222-133-0 01 1 9907-
101 BOLT; PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 9708-
121 BOLT; HTR PIPE
(A) M8X12 FLANGE 		0-28080-812-0 04 1 9708-
121 BOLT; HTR PIPE
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9708-
122 GASKET; HSG TO PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) 		9-09561-220-0 01 1 9708-
138 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) 		9-09561-225-0 01 1 9708-
157 MANIFOLD; WATER 8-97136-345-3 01 1 9708-0202
157 MANIFOLD; WATER 8-97226-674-1 01 1 0203-
160 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE) 		8-97136-346-0 02 1 9708-
161 BOLT; MANIF TO HD
M8X40 FLANGE 		0-28690-840-0 04 1 9708-
215 PIPE; WATER,INL 8-97131-884-2 01 1 9708-
