0-25 — INLET MANIFOLD (#40423) — 22 parça

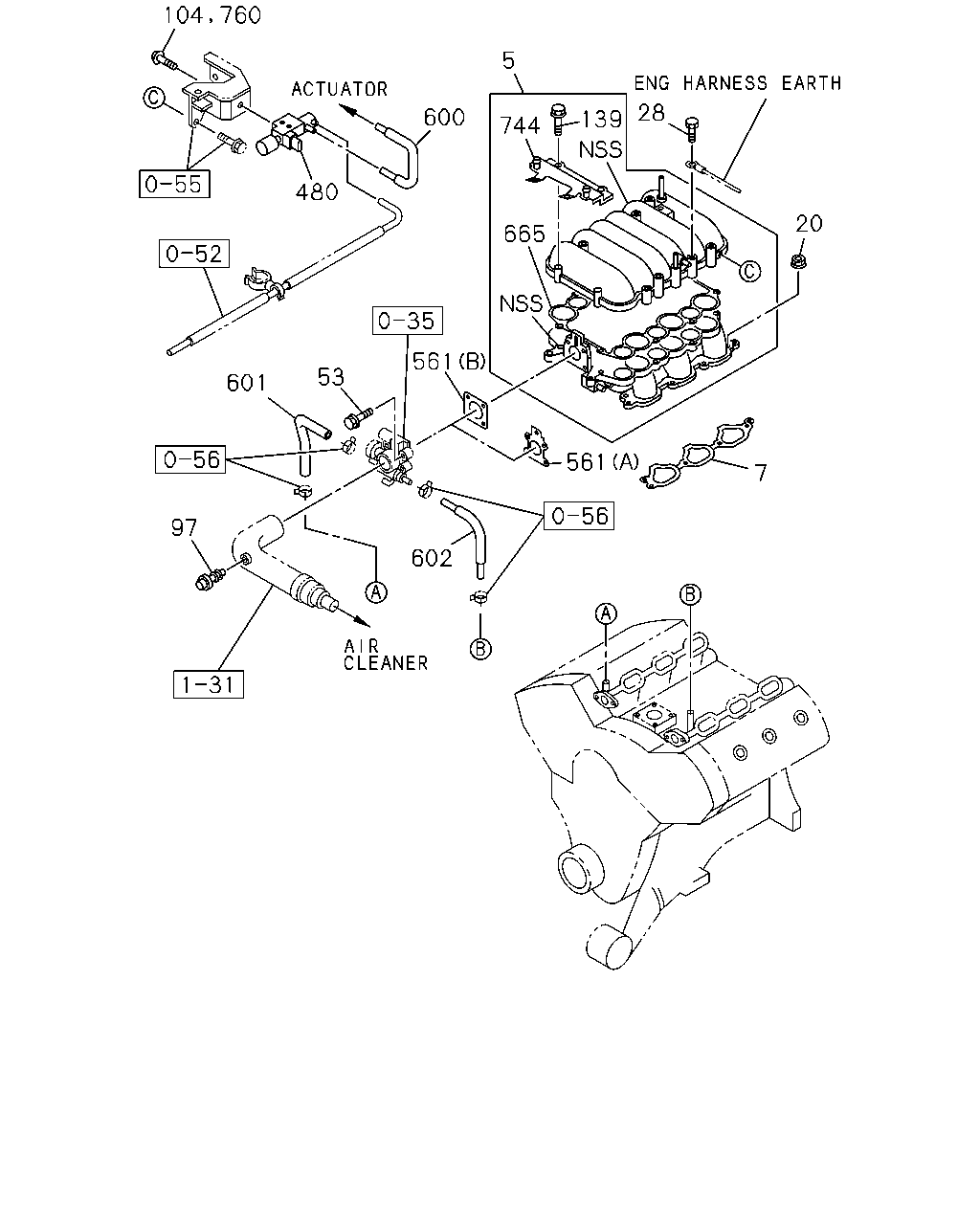

çizim 64211
5 28 600 139 744 480 20 665 561 53 601 561 7 97 602 104 760
BalonParca AdiParca NoAdetTipApplied Date
5 CHAMBER; COMMON 8-97131-891-7 01 1 9708-9907
5 CHAMBER; COMMON 8-97193-355-2 01 1 9908-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97131-894-2 02 1 9708-9909
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97237-538-0 02 1 9910-
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 04 1 9708-
28 BOLT; CHAMBER
M8X150 FLANGE 		0-28085-815-0 04 1 9708-
53 BOLT; INL PIPE
M8X40 FLANGE 		0-28080-840-0 04 1 9708-9907
53 BOLT; INL PIPE
M6X50 FLANGE 		0-28080-650-0 04 1 9908-
97 SENSOR; INTAKE,AIR TEMPERATURE 8-12160-244-0 01 1 9708-
104 SCREW
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9708-0209
139 BOLT; BRKT FIX 8-97308-002-0 04 1 0108-
480 VALVE ASM; VAC SW 8-97086-348-0 01 1 9708-
561 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE) (A) 		8-94389-939-0 01 1 9708-9907
561 GASKET; TB
ALSO INCLUDED IN GASKET SET(ENGINE) (B) 		8-97193-729-1 01 1 9908-
600 HOSE; RUBBER,VACUUM 8-97149-231-1 01 1 9708-
601 HOSE; WATER,T/V FEED 8-97136-218-0 01 1 9708-9907
601 HOSE; WATER,T/V FEED 8-97231-680-0 01 1 9908-
602 HOSE; WATER,T/V RETURN 8-97136-219-2 01 1 9708-
665 GASKET; COMMON CHAMBER
ALSO INCLUDED IN GASKET SET(ENGINE) 		8-97146-074-1 01 1 9708-0107
665 GASKET; COMMON CHAMBER
ALSO INCLUDED IN GASKET SET(ENGINE) 		8-97254-448-0 01 1 0108-
744 BRACKET; ENG COVER 8-97307-352-0 01 1 0108-
760 BOLT; VSV FIX
M5X12 		8-94386-089-0 01 1 0210-
