◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50803 - UBS(TAIWAN)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#40417) — 16 parça

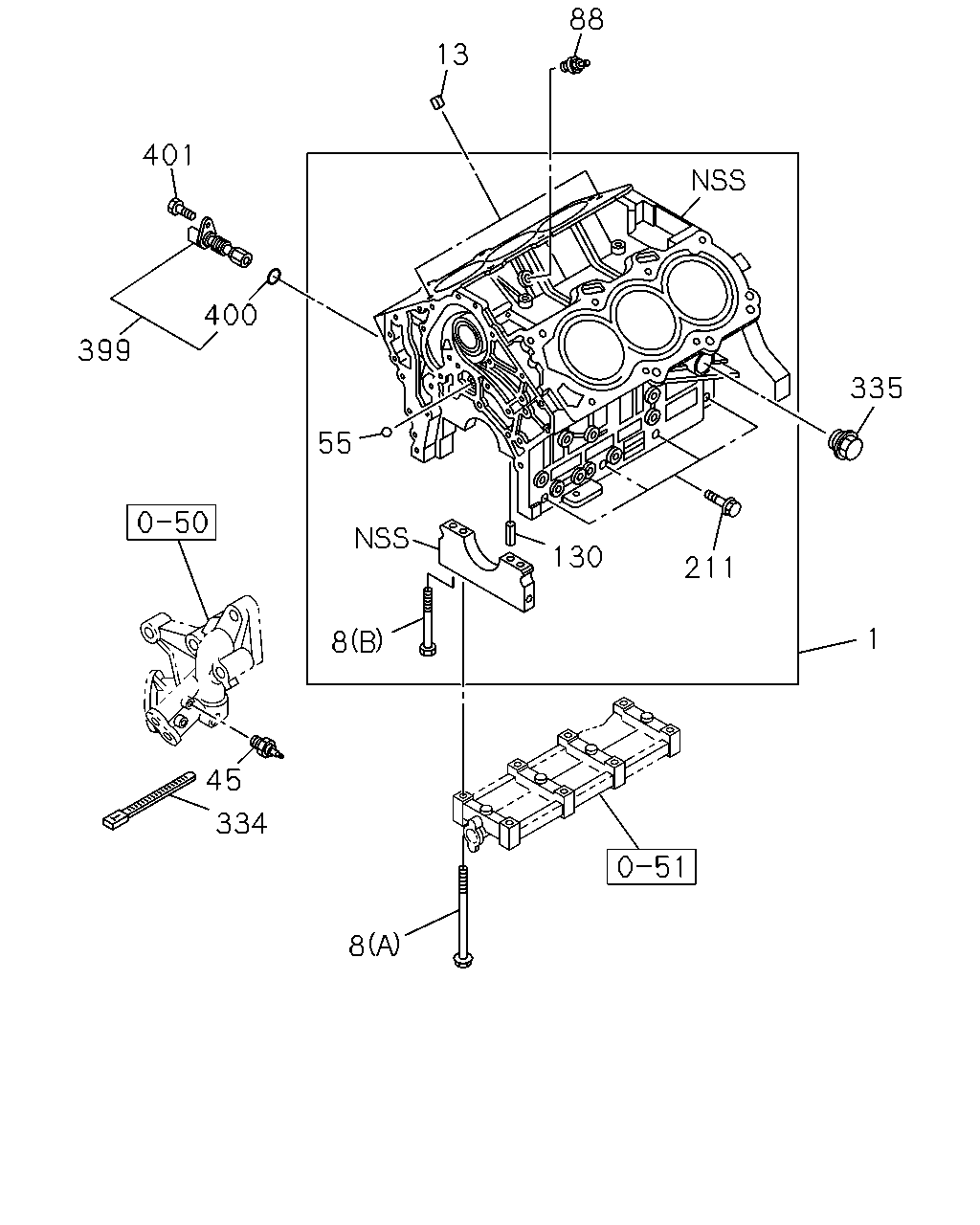

çizim 64081
88 13 401 400 399 335 55 130 211 1 8 45 334 8
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-97131-850-1 01 1 9708-9907
1 BLOCK ASM; CYL 8-97193-231-1 01 1 9908-
8 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9708-
8 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9708-
13 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9708-
45 SWITCH; OIL PRESSURE 8-94312-940-0 01 1 9708-
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 9708-
88 SENSOR; KNOCK CONT 8-10456-085-0 01 1 9708-9907
130 DOWEL; BRG CAP 8-94382-070-0 08 1 9708-
211 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 9708-
334 CLIP; BAND,OIL PRESS UNIT
EXC. TORQUE ON DEMAND<7HA> L=140 		5-09707-031-0 01 1 9708-9802
335 PLUG; C/BL,SIDE
M28X16 FLANGE 		8-97028-246-2 01 1 9708-
399 SENSOR; CRANKSHAFT POSITION 8-97136-125-1 01 1 9708-0202
399 SENSOR; CRANKSHAFT POSITION 8-97258-523-0 01 1 0203-
400 GASKET; CRANKSHAFT POSITION SENSOR 8-97131-356-0 01 1 9708-
401 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9708-
