9-32 — REAR BODY; GUARD FRAME (#40411) — 36 parça

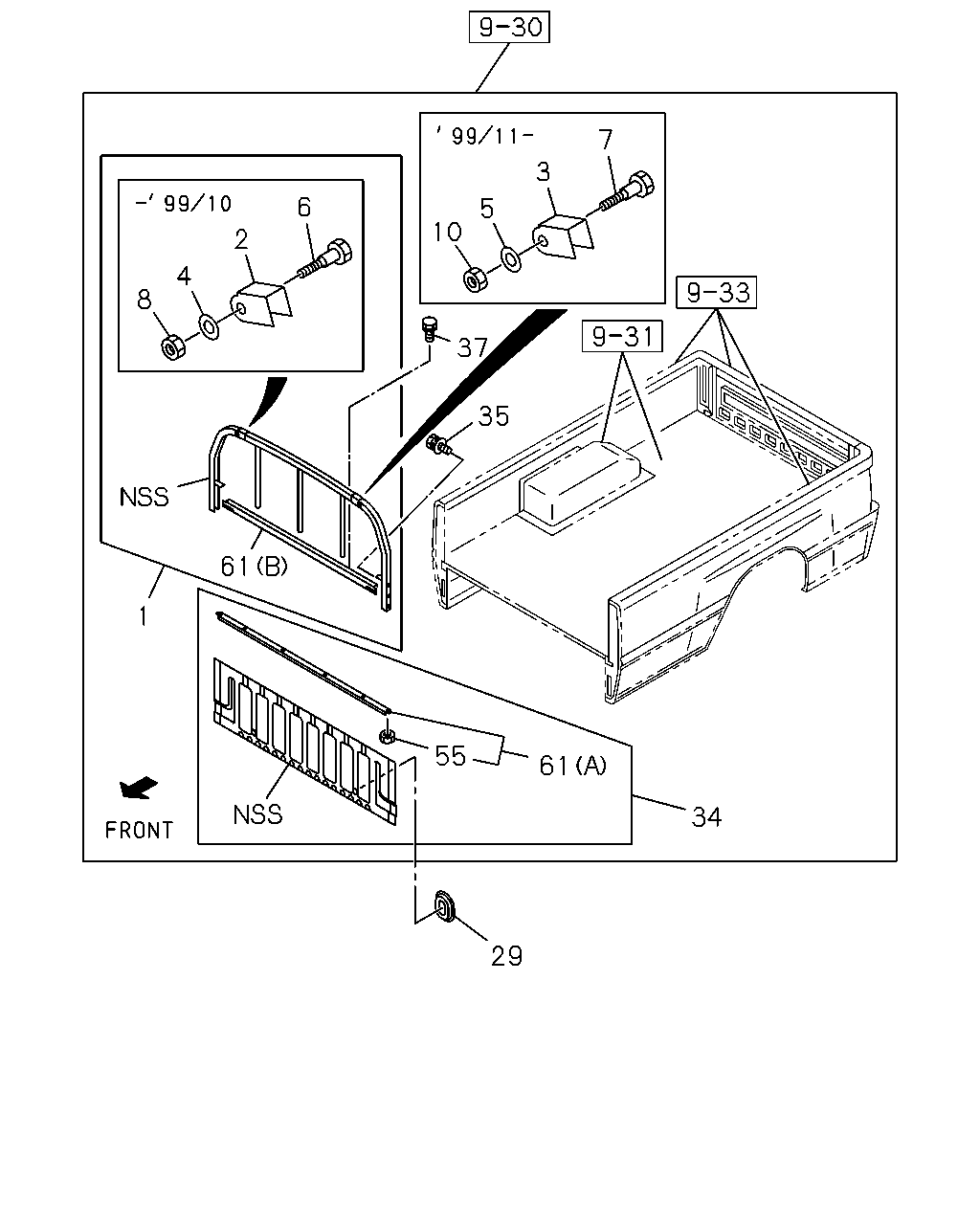

çizim 64259
7 3 2 6 5 10 4 8 37 35 61 1 55 61 34 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.455 FRAME; GUARD,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97118-527-3 01 1 9804-9906 ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97118-527-3 01 1 9907-9910 ● ● ● ● ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97941-402-0 01 1 9911- ● ● ● ● ● ●
2 17.447 STOPPER; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-94217-998-0 02 1 9804-9906 ● ● ● ● ● ●
2 17.447 STOPPER; GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) 		8-94217-998-0 02 1 9907-9910 ● ● ● ● ● ●
3 17.447 STOPPER; GUARD FRAME,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-94217-998-0 02 1 9911- ● ● ● ● ● ●
4 17.447 WASHER; STOPPER TO GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) 		8-94481-019-0 02 1 9907-9910 ● ● ● ● ● ●
5 17.447 WASHER; PL,GUARD FRAME STOPPER
RR BODY DBL WALL CTR PULL(6MW) 		8-94481-019-0 02 1 9911- ● ● ● ● ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) M6X45 		8-94481-022-0 02 1 9804-9906 ● ● ● ● ● ●
6 17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) M6X45 		8-94481-022-0 02 1 9907-9910 ● ● ● ● ● ●
7 17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY DBL WALL CTR PULL(6MW) M6X45 		8-94481-022-0 02 1 9911- ● ● ● ● ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) M6 FLANGE 		8-94481-428-0 02 1 9804-9906 ● ● ● ● ● ●
8 17.447 NUT; STOPPER BOLT
RR BODY DBL WALL CTR PULL(6MW) M6 FLANGE 		8-94481-428-0 02 1 9907-9910 ● ● ● ● ● ●
10 17.447 NUT; GUARD FRAME STOPPER
RR BODY DBL WALL CTR PULL(6MW) M6 FLANGE 		8-94481-428-0 02 1 9911- ● ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 17.447 		8-94430-184-1 02 1 9804-9906 ● ● ● ● ● ●
29 17.455 COVER; GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) 17.447 		8-94430-184-1 02 1 9907- ● ● ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97114-839-1 01 1 9804-9906 ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97114-839-1 01 1 9907- ● ● ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97114-841-2 01 1 9804-9902 ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97216-016-0 01 1 9903-9906 ● ●
34 17.455 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97216-016-0 01 1 9907- ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8X25 FLANGE 		0-28680-825-0 10 1 9804-9906 ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 02.559 M8X25 FLANGE 		0-28680-825-0 10 1 9907- ● ● ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9804-9906 ● ●
35 17.455 BOLT; FRT PANEL,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9907- ● ●
37 17.455 BOLT; GUARD FRAME
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 00.738 M6X16 FLANGE 		0-28080-616-0 06 1 9804-9906 ● ● ● ● ● ●
37 17.455 BOLT; GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) 00.738 M6X16 FLANGE 		0-28080-616-0 06 1 9907-0203 ● ● ● ● ● ●
37 17.455 BOLT; GUARD FRAME
RR BODY DBL WALL CTR PULL(6MW) 04.439 M6X16 FLANGE 		0-28680-616-0 06 1 0204- ● ● ● ● ● ●
55 17.070 NUT; MEMBER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 16.545 M6 		9-09114-086-0 06 1 9804-9906 ● ● ● ● ● ●
55 17.070 NUT; MEMBER
RR BODY DBL WALL CTR PULL(6MW) 16.545 M6 		9-09114-086-0 06 1 9907- ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97115-003-0 01 1 9804-9804 ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97940-565-0 01 1 9805-9906 ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97940-565-0 01 1 9907- ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97117-550-1 01 1 9804-9804 ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97940-442-0 01 1 9805-9906 ● ● ● ● ● ●
61 17.447 BAR ASM
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97940-442-0 01 1 9907- ● ● ● ● ● ●
