◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶
9-30 — REAR BODY ASM AND MOUNTING (#40409) — 42 parça
çizim 63833
13 11 11 16 15 16 15 13 12 11 16 15 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94331-737-0 04 1 9804-9906 ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94331-737-0 04 1 9907- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94331-738-1 06 1 9804-9906 ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94331-738-1 06 1 9907- ● ● ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94331-738-1 08 1 9804-9906 ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94331-738-1 08 1 9907- ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94331-737-0 02 1 9804-9906 ● ●
11 09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94331-737-0 02 1 9907- ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9804-9906 ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20 		9-07077-620-0 08 1 9907- ● ● ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9804-9906 ● ●
12 09.011 SCREW; RR BODY MTG GASKET
RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20 		9-07077-620-0 04 1 9907- ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9804-9906 ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B) M12X40 W/PL WASHER 		8-97169-423-0 02 1 9907- ● ● ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97169-896-0 02 1 9804-9906 ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97169-896-0 02 1 9907- ● ● ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97169-896-0 04 1 9804-9906 ● ●
13 09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97169-896-0 04 1 9907- ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE 		8-97028-764-0 06 1 9804-9906 ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE 		8-97028-764-0 06 1 9907- ● ● ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE 		8-97028-764-0 08 1 9804-9906 ● ●
15 09.011 NUT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE 		8-97028-764-0 08 1 9907- ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9804-9906 ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5 		5-09503-093-0 06 1 9907- ● ● ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5 		5-09503-093-0 08 1 9804-9906 ● ●
16 09.011 WASHER; FRAME END,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5 		5-09503-093-0 08 1 9907- ● ●

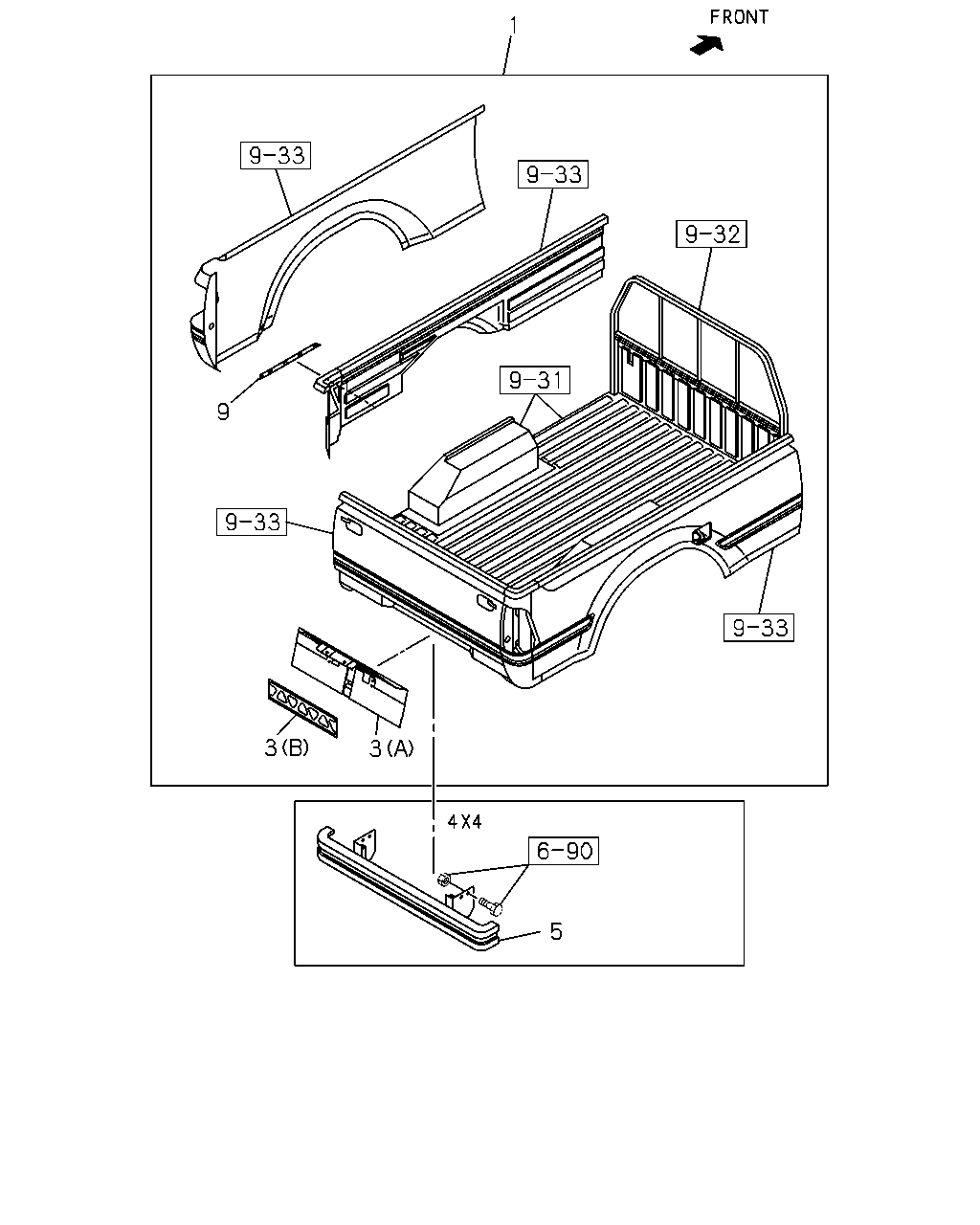

çizim 63909
1 9 3 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-808-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-916-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-772-0 01 1 9804-9906 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-807-1 01 1 9804-0012 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-912-0 01 1 0101- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-771-0 01 1 9804-9906 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97180-809-0 01 1 9804-9906 ● ●
1 17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW) 		8-97217-088-1 01 1 9907- ● ●
1 17.090 BODY ASM; REAR
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S) 		8-97135-770-0 01 1 9804-9906 ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9804-9906 ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94327-560-1 01 1 9907- ● ● ● ● ● ●
3 07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97115-001-3 01 1 9804-9804 ● ● ● ● ● ●
5 17.447 PROTECTOR
RR UNDERRUN PROTECTOR(6DY) 		8-94329-894-1 01 1 9804- ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-532-0 02 1 9907- ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97115-008-0 02 1 9804-9804 ● ● ● ● ● ●
9 17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97940-532-0 02 1 9805-9906 ● ● ● ● ● ●
