8-71 — COMPRESSOR; AIR CONDITIONING (#40402) — 41 parça

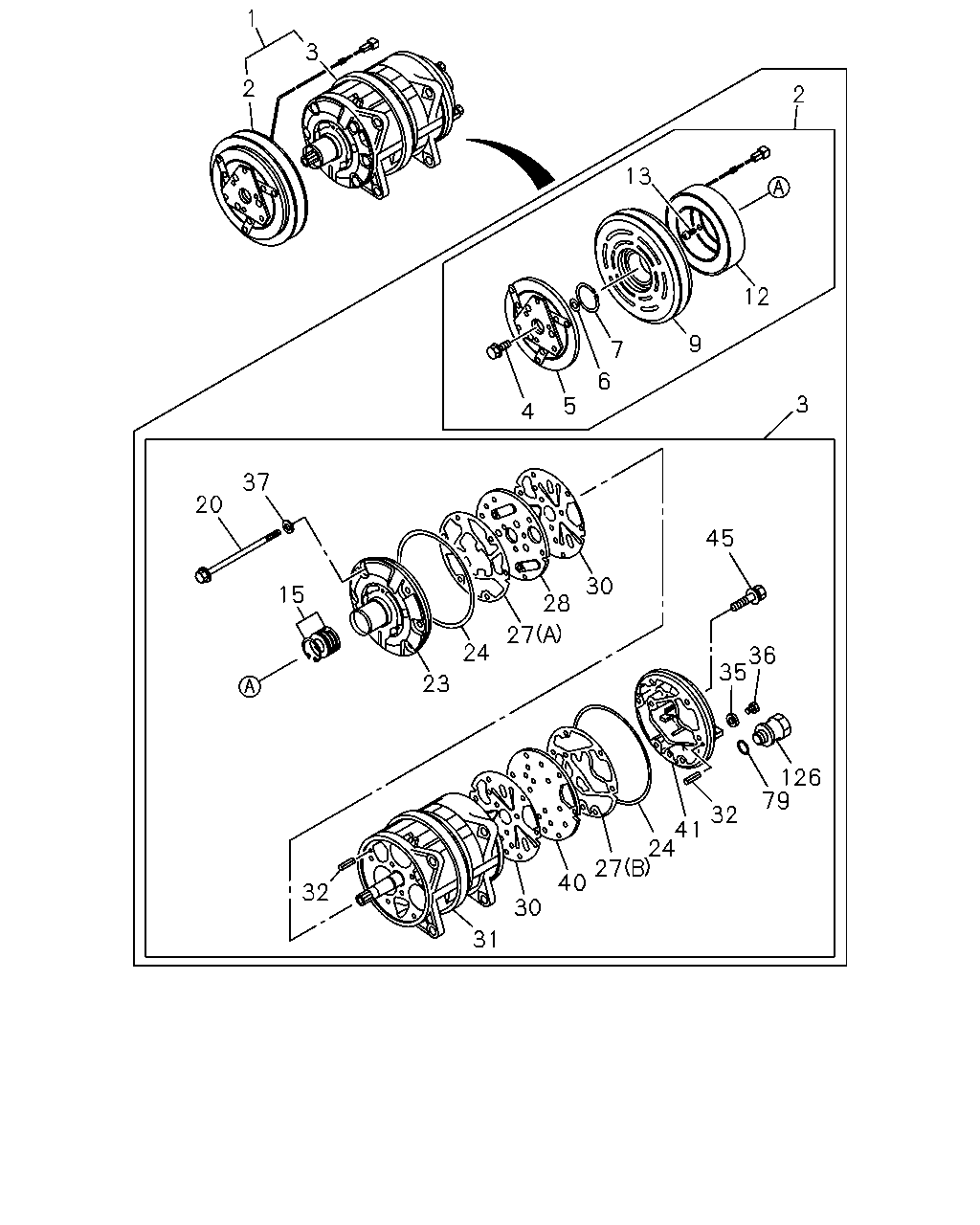

çizim 65227
1 3 2 2 13 12 9 7 6 3 5 4 37 20 45 30 28 27 15 24 23 36 35 126 79 32 41 24 27 40 32 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97168-990-0 01 1 9804-9810 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97217-449-0 01 1 9811-0005 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97252-452-1 01 1 0006- ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-923-0 01 1 9804-9810 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-924-1 01 1 9811- ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-199-2 01 1 9804-0005 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-882-0 01 1 0006- ● ● ● ● ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 09.186 		8-94164-439-0 01 1 9804- ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-922-0 01 1 9804-9810 ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-193-0 01 1 9811-0210 ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97357-156-0 01 1 0211- ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) T=0.1 		8-94120-721-0 AR 1 9804- ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) T=0.3 		8-94120-722-0 AR 1 9804- ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) T=0.5 		8-94120-723-0 AR 1 9804- ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-94120-724-0 01 1 9804- ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-920-0 01 1 9804-9810 ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-195-0 01 1 9811-0210 ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97365-826-0 01 1 0211- ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-917-0 01 1 9804-9810 ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-198-0 01 1 9811-0210 ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-918-0 01 1 0211- ● ● ● ● ● ●
13 09.186 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60) 09.188 		8-94120-727-0 03 1 9804- ● ● ● ● ● ●
15 09.175 SEAL; SHAFT
AIR CONDITIONER MANUAL CONT(C60) 		8-97178-403-0 01 1 9804- ● ● ● ● ● ●
20 09.174 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97081-394-0 06 1 9804- ● ● ● ● ● ●
23 09.174 HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONT(C60) 		8-97178-401-0 01 1 9804- ● ● ● ● ● ●
24 09.172 GASKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-396-0 02 1 9804- ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97170-930-0 01 1 9804- ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97170-933-0 01 1 9804- ● ● ● ● ● ●
28 09.172 PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-932-0 01 1 9804- ● ● ● ● ● ●
30 09.172 VALVE; SUCTION
AIR CONDITIONER MANUAL CONT(C60) 		8-97134-755-0 02 1 9804- ● ● ● ● ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97138-175-0 01 1 9804- ● ● ● ● ● ●
32 09.174 PIN; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-94154-711-0 04 1 9804- ● ● ● ● ● ●
35 09.175 GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-395-0 01 1 9804- ● ● ● ● ● ●
36 09.173 PLUG; CYL
AIR CONDITIONER MANUAL CONT(C60) 		8-94164-473-0 01 1 9804- ● ● ● ● ● ●
37 09.172 GASKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.174 		8-94466-678-0 06 1 9804- ● ● ● ● ● ●
40 09.172 PLATE; VLV,RR
AIR CONDITIONER MANUAL CONT(C60) 		8-97170-931-0 01 1 9804- ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-200-0 01 1 9804-9810 ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
AIR CONDITIONER MANUAL CONT(C60) 		8-97223-548-1 01 1 9811- ● ● ● ● ● ●
45 09.173 BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9804- ● ● ● ● ● ●
79 09.172 GASKET; VLV,CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-202-0 01 1 9804- ● ● ● ● ● ●
126 09.172 VALVE; RELIEF,CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97183-201-0 01 1 9804- ● ● ● ● ● ●
