50802 - TFR/TFS(EUROPE)-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#40401) — 16 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀

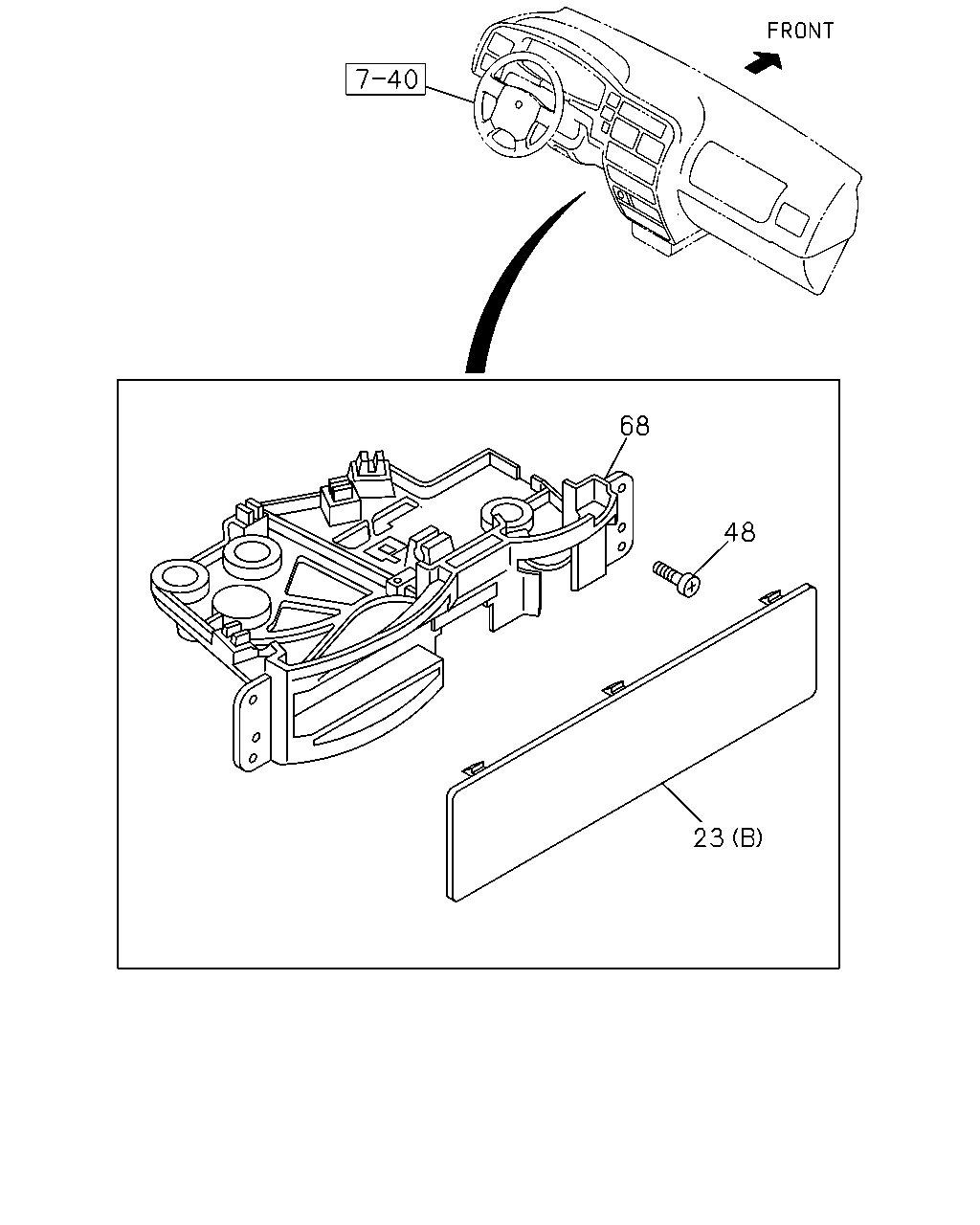

[865A] NO.2 (4 parça)

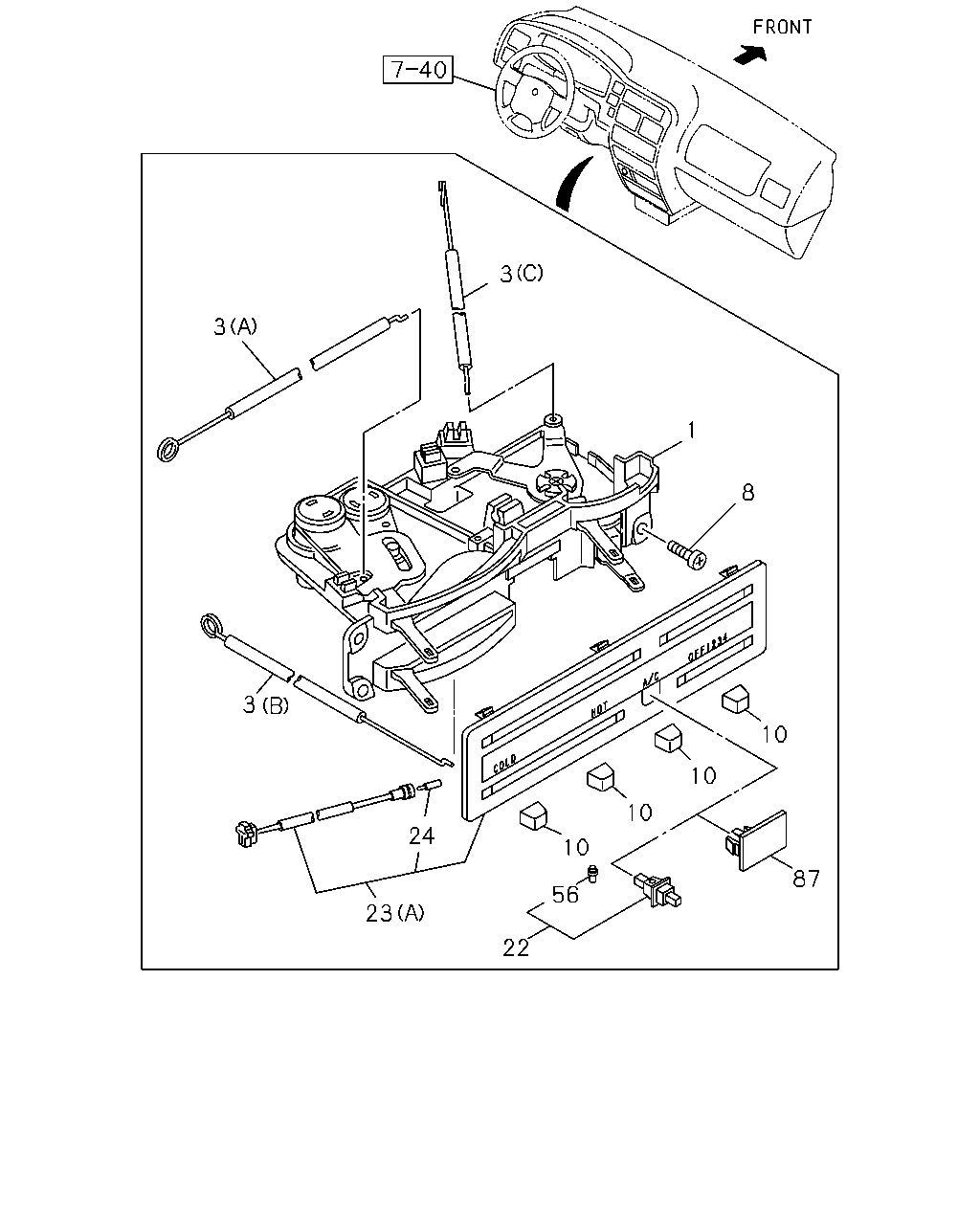

[865A] NO.1 (12 parça)
▶
68
48
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-97107-570-2
01
1
9804-
●
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-97112-443-0
01
1
0108-
●
●
●
●
●
●
48
08.552 SCREW; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M5X16 TAPPING
9-09829-323-1
04
1
0108-
●
●
●
●
●
●
68
08.849 BRACKET; BEZEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97165-592-0
01
1
0108-
●
●
●
●
●
●
3
1
8
10
10
10
24
10
87
56
23
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97118-217-0
01
1
9804-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE LEVER
8-97118-219-0
01
1
9804-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP LEVER
8-97118-221-0
01
1
9804-
●
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) F/C LEVER
8-97118-222-0
01
1
9804-
●
●
●
●
●
●
8
08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M5X16 TAPPING
9-09829-323-1
04
1
9804-
●
●
●
●
●
●
10
08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-94435-195-0
04
1
9804-
●
●
●
●
●
●
22
08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60)
8-97117-963-0
01
1
9804-
●
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-97107-570-2
01
1
9804-
●
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-97112-443-0
01
1
0108-
●
●
●
●
●
●
24
08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 1.4W
5-82194-021-0
01
1
9804-
●
●
●
●
●
●
56
08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA
8-94337-134-0
01
1
9804-
●
●
●
●
●
●
87
08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 08.852
8-94435-500-0
01
1
9804-
●
●
●
●
●
●
