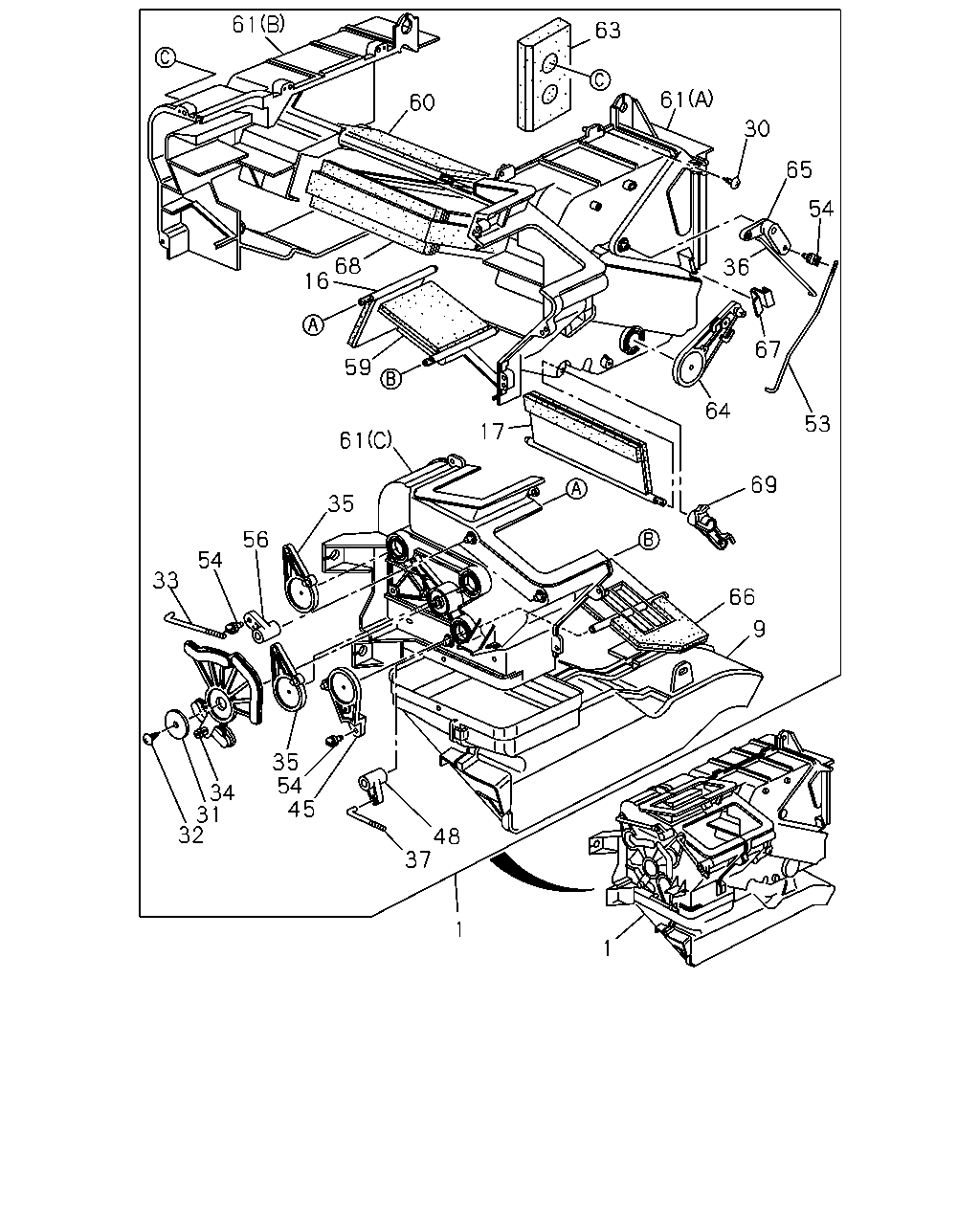

8-60 — HEATER UNIT; FRONT (#40400) — 29 parça

61 63 61 60 30 65 54 68 16 36 67 59 64 53 17 61 69 35 56 54 33 66 9 35 54 45 34 31 32 48 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97100-187-0	01	1	9804-	●	●	●	●	●	●
9	08.854 DUCT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97164-336-0	01	1	9804-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-94324-837-0	01	1	9804-	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845	8-94324-834-0	01	1	9804-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	13	1	9804-	●	●	●	●	●	●
31	08.852 WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	01	1	9804-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	9804-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866	8-94324-849-0	02	1	9804-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-845-1	01	1	9804-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-843-1	02	1	9804-	●	●	●	●	●	●
36	08.852 ROD; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-94324-847-0	01	1	9804-	●	●	●	●	●	●
37	08.852 ROD; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-848-0	01	1	9804-	●	●	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-844-1	01	1	9804-	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-842-0	01	1	9804-	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-846-0	01	1	9804-	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-94248-794-0	04	1	9804-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.856	8-94324-841-0	02	1	9804-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-835-0	01	1	9804-	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-833-0	01	1	9804-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94324-828-3	01	1	9804-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94324-829-3	01	1	9804-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94324-830-1	01	1	9804-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-416-1	01	1	9804-	●	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94324-840-1	01	1	9804-	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94324-838-0	01	1	9804-	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-94324-836-0	01	1	9804-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9804-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94327-444-2	01	1	9804-	●	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97045-854-0	01	1	9804-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
