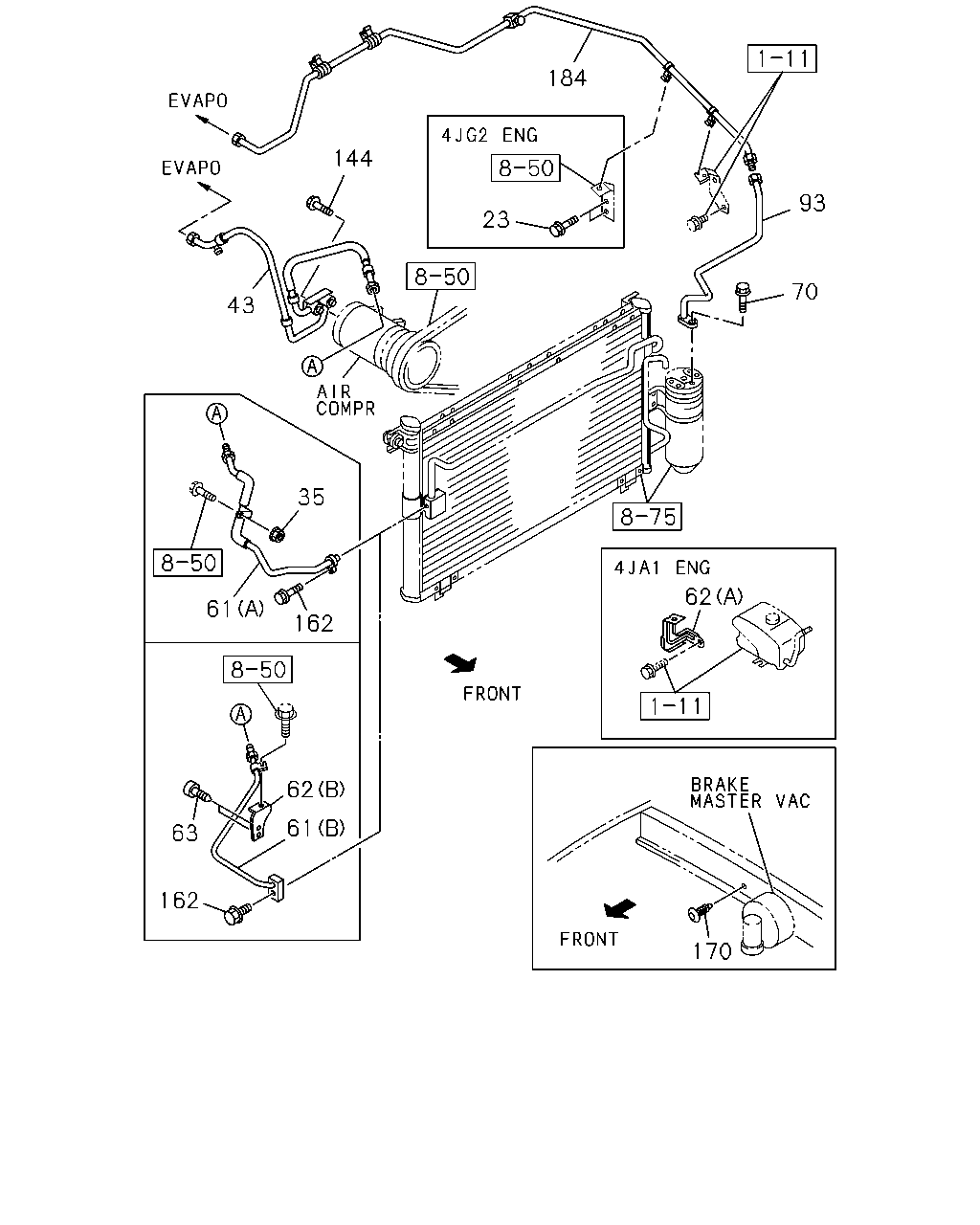

8-52 — PIPING; AIR CONDITIONING (#40399) — 66 parça

184 144 93 23 70 43 35 62 61 162 62 61 63 162 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 08.077 M6X18	8-94408-386-1	02	1	9804-0012	●	●	●	●	●	●
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 08.077 M6X18	8-97071-681-0	02	1	0101-0107	●	●	●	●	●	●
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 08.077 M6X18	8-97071-681-0	02	1	0108-		●	●		●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91150-206-0	01	1	9804-0009	●	●	●	●	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.062 M6 FLANGE	0-91150-206-0	01	1	0010-0012	●	●	●	●	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 01.062 M6 FLANGE	0-91150-206-0	01	1	0101-0111	●	●	●	●	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0112-	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97180-920-0	01	1	9804-9806	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97211-319-0	01	1	9807-9810	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97217-081-0	01	1	9811-9906	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-97227-322-1	01	1	9907-0107	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97301-244-0	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97301-244-0	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97302-529-1	01	1	0108-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97302-529-1	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-97302-529-1	01	1	0108-				●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A)	8-97180-850-0	01	1	9804-0107	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97301-234-0	01	1	0108-	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B)	8-97301-233-0	01	1	0108-	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60) (A)	8-94462-279-2	01	1	9804-	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94462-279-2	01	1	9804-		●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B)	8-94459-508-1	01	1	0108-	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	0108-	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9804-0012	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0101-	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) PORTUGAL EQUIPMENT(6JK)	8-97181-358-0	01	1	9804-9809	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. PORTUGAL EQUIPMENT(6JK)	8-97177-165-0	01	1	9804-9809	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97177-165-0	01	1	9810-0107	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97301-235-0	01	1	0108-	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9804-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9804-	●	●	●	●	●	●
170	09.220 PLUG; HOLE 16.067	8-94279-922-0	01	1	9804-0212	●	●	●	●	●	●
170	09.220 PLUG; HOLE 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0301-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●

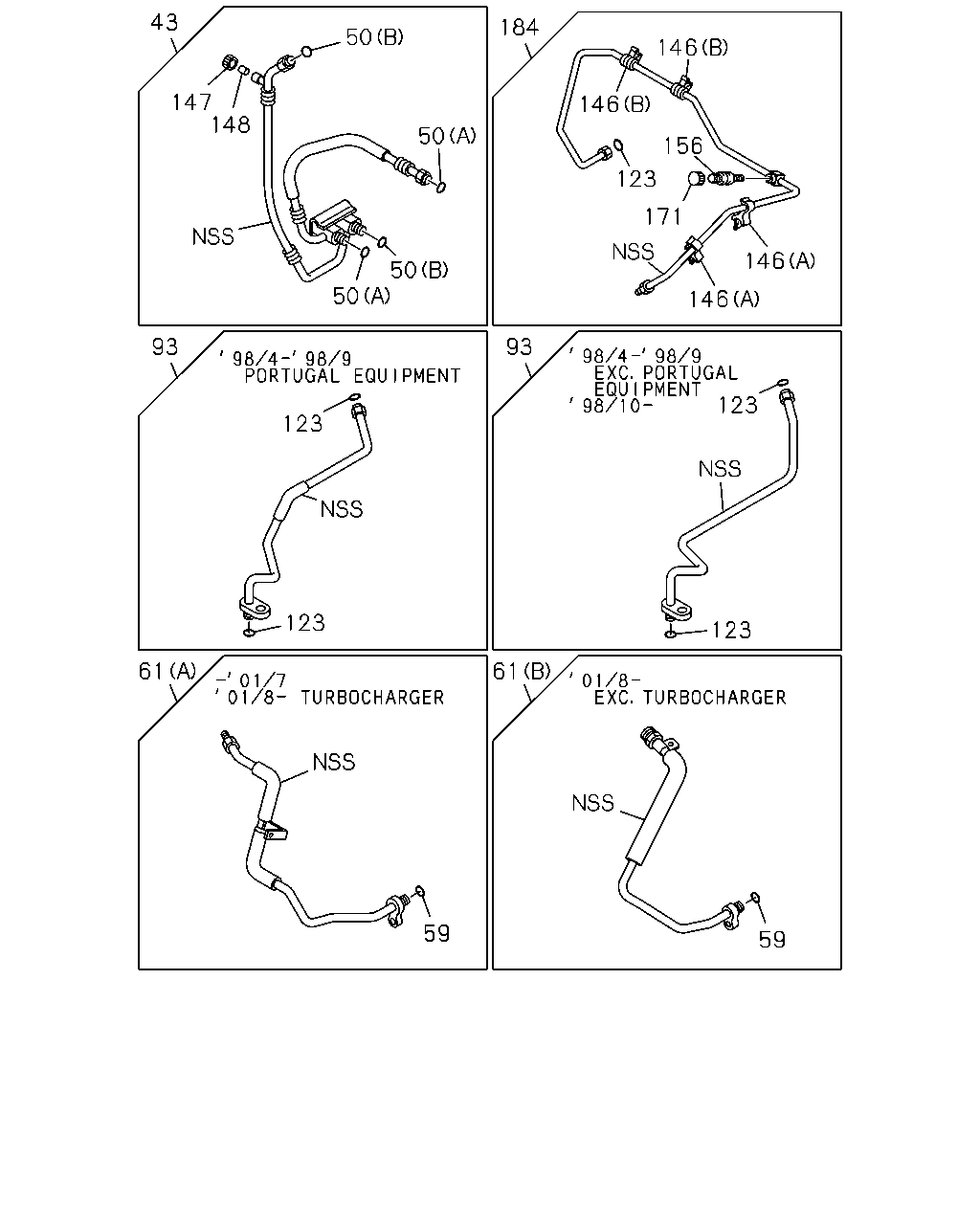

43 184 50 146 147 148 146 50 156 123 171 146 50 50 93 93 123 123 123 123 61 61 59 59 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97180-920-0	01	1	9804-9806	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97211-319-0	01	1	9807-9810	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97217-081-0	01	1	9811-9906	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-97227-322-1	01	1	9907-0107	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97301-244-0	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97301-244-0	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-97302-529-1	01	1	0108-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97302-529-1	01	1	0108-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-97302-529-1	01	1	0108-				●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=15.5	8-97161-777-0	02	1	9804-0107	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=15.5	8-97161-777-0	02	1	0108-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9804-0107	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=18.3	8-97161-778-0	02	1	0108-	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=15.5	8-97161-777-0	01	1	9804-	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A)	8-97180-850-0	01	1	9804-0107	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97301-234-0	01	1	0108-	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B)	8-97301-233-0	01	1	0108-	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) PORTUGAL EQUIPMENT(6JK)	8-97181-358-0	01	1	9804-9809	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. PORTUGAL EQUIPMENT(6JK)	8-97177-165-0	01	1	9804-9809	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97177-165-0	01	1	9810-0107	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97301-235-0	01	1	0108-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	01	1	9804-	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	9804-9906	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	9907-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (A) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9804-	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9804-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	9804-0107	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0108-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9804-	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	9804-	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	9804-	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97177-166-0	01	1	9804-	●	●	●	●	●	●
