8-73 — BLOWER UNIT (#40397) — 88 parça

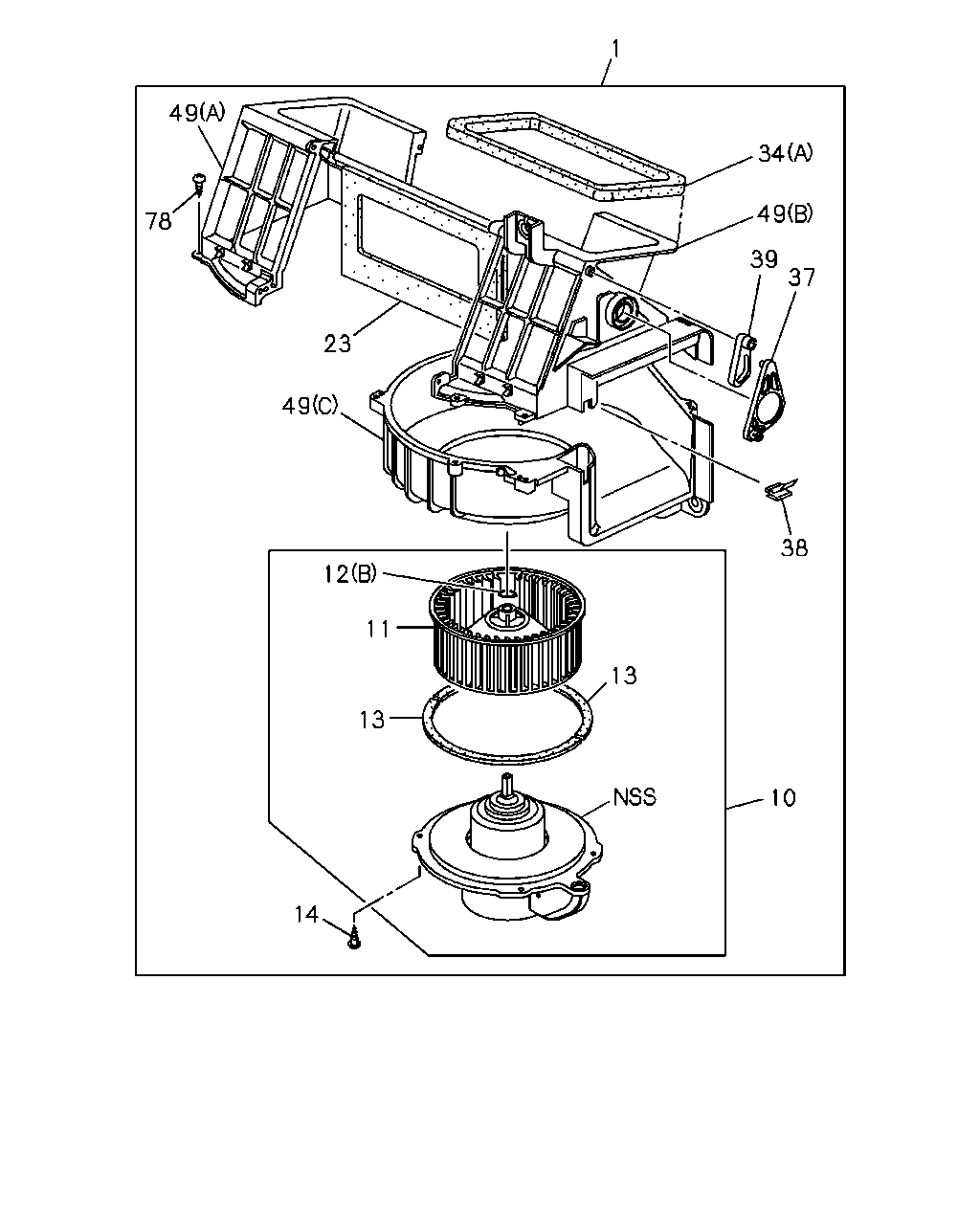

çizim 65462
1 34 49 39 37 38 49 23 78 49 12 11 13 13 10 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94376-105-4 01 1 9112-9403 ● ●
1 08.855 BLOWER ASM
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97109-566-0 01 1 9404-9504 ● ●
1 08.855 BLOWER ASM 8-97109-566-1 01 1 9505- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97047-200-1 01 1 9112-9403 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97103-726-0 01 1 9404-9504 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-726-0 01 1 9505- ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-434-0 01 1 9112-9403 ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97089-700-0 01 1 9404-9504 ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9505- ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		5-83569-088-0 01 1 9112-9403 ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-94243-962-0 01 1 9112-9504 ● ●
12 08.857 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9505- ● ●
13 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94324-816-0 02 1 9112-9504 ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9505- ● ●
14 08.857 SCREW; COVER TO CASE
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 04 1 9112-9504 ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9505-9704 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9705- ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97073-514-0 01 1 9112-9504 ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97073-514-0 01 1 9505-9704 ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9705- ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (C) 		8-97027-786-0 01 1 9112-9403 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-97069-409-0 01 1 9112-9403 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-94327-437-0 01 1 9404-9504 ● ●
34 08.856 LINING; BLOWER UNIT
(A) 		8-94327-437-0 01 1 9505- ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-97069-410-0 01 1 9112-9403 ● ●
37 09.786 LEVER; MODE LEVER
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-435-2 01 1 9112-9504 ● ●
37 09.786 LEVER; MODE LEVER 8-94327-435-2 01 1 9505- ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94337-654-0 01 1 9112-9504 ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9505- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-436-0 01 1 9112-9504 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-94327-436-0 01 1 9505-9704 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97178-223-0 01 1 9705- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-94327-430-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9505- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-94327-431-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9505- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (C) 		8-94327-432-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9505- ● ●
78 08.857 SCREW; CASE TO CASE
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 10 1 9112-9504 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 10 1 9505-9704 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9705- ● ●

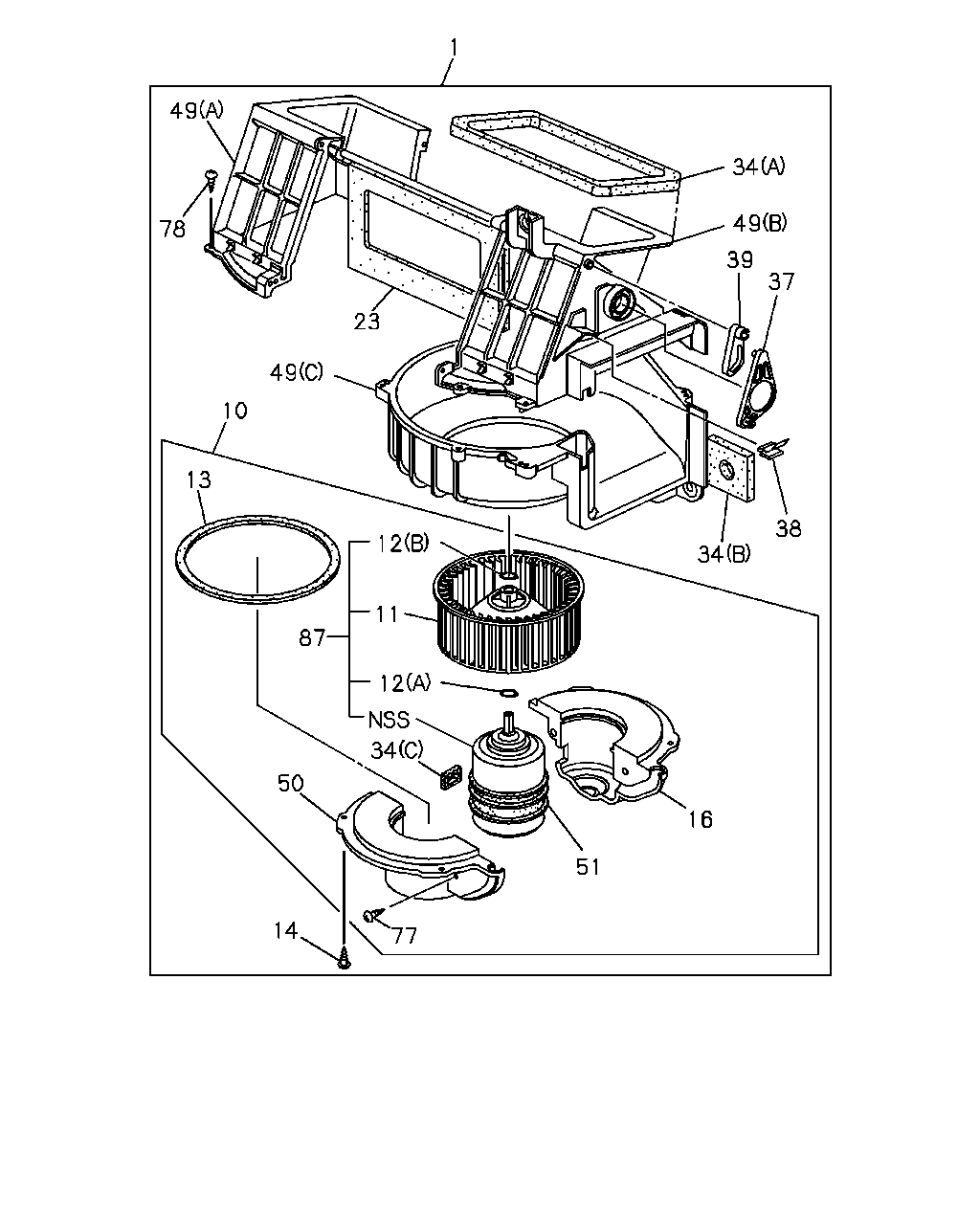

çizim 65484
1 34 49 39 37 38 34 23 49 10 78 49 12 11 12 16 51 77 14 50 34 87 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94376-105-4 01 1 9112-9403 ● ●
1 08.855 BLOWER ASM
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97109-566-0 01 1 9404-9504 ● ●
1 08.855 BLOWER ASM 8-97109-566-1 01 1 9505- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97047-200-1 01 1 9112-9403 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97103-726-0 01 1 9404-9504 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-726-0 01 1 9505- ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-434-0 01 1 9112-9403 ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97089-700-0 01 1 9404-9504 ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9505- ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		5-83569-088-0 01 1 9112-9403 ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-94243-962-0 01 1 9112-9504 ● ●
12 08.857 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9505- ● ●
13 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94324-816-0 02 1 9112-9504 ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9505- ● ●
14 08.857 SCREW; COVER TO CASE
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 04 1 9112-9504 ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9505-9704 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9705- ● ●
16 08.857 COVER; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94324-813-0 01 1 9112-9403 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97073-514-0 01 1 9112-9504 ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97073-514-0 01 1 9505-9704 ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9705- ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (C) 		8-97027-786-0 01 1 9112-9403 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-97069-409-0 01 1 9112-9403 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-94327-437-0 01 1 9404-9504 ● ●
34 08.856 LINING; BLOWER UNIT
(A) 		8-94327-437-0 01 1 9505- ● ●
34 08.856 LINING; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-97069-410-0 01 1 9112-9403 ● ●
37 09.786 LEVER; MODE LEVER
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-435-2 01 1 9112-9504 ● ●
37 09.786 LEVER; MODE LEVER 8-94327-435-2 01 1 9505- ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94337-654-0 01 1 9112-9504 ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9505- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94327-436-0 01 1 9112-9504 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-94327-436-0 01 1 9505-9704 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97178-223-0 01 1 9705- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (A) 		8-94327-430-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9505- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (B) 		8-94327-431-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9505- ● ●
49 08.857 CASE; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) (C) 		8-94327-432-1 01 1 9112-9504 ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9505- ● ●
50 08.857 COVER; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94324-814-0 01 1 9112-9403 ● ●
51 08.855 ISOLATOR; BLOWER UNIT
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-94324-815-0 01 1 9112-9403 ● ●
77 08.857 SCREW; COVER TO COVER,BLOWER UNI
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 08.846 M5X16 		8-94248-820-0 02 1 9112-9403 ● ●
78 08.857 SCREW; CASE TO CASE
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 10 1 9112-9504 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 10 1 9505-9704 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9705- ● ●
87 08.855 MOTOR ASM; FAN
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97069-408-1 01 1 9112-9307 ● ●
87 08.855 MOTOR ASM; FAN
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60) ,AIR CON PREPARATORY PACK<S6D>,COOLER WO/HEATER(YL1) 		8-97106-493-0 01 1 9308-9403 ● ●
